Major tech MT255 Instruction Manual

Ac power data logger
Hide thumbs

Advertisement

Table of Contents

INSTRUCTION MANUAL
MT255
AC POWER DATA LOGGER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT255 and is the answer not in the manual?

Questions and answers

Related Manuals for Major tech MT255

Summary of Contents for Major tech MT255

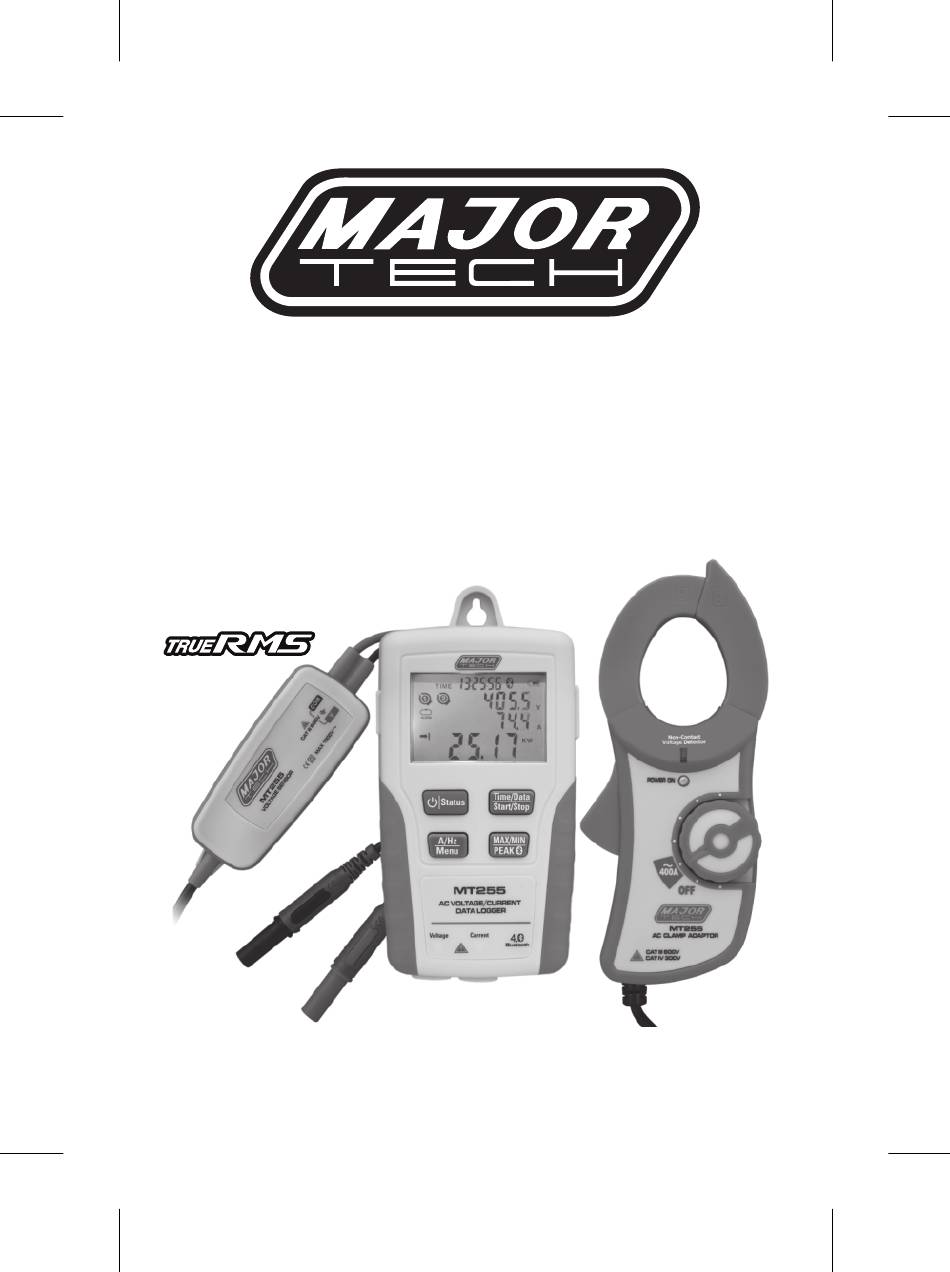

  • Page 1 INSTRUCTION MANUAL MT255 AC POWER DATA LOGGER...
  • Page 3 Page no Contents...

  • Page 4: Safety Warnings

    1. SAFETY WARNINGS Ÿ This instrument has been designed, manufactured and tested according to IEC 61010: Safety requirements for Electronic Measuring apparatus, and delivered in the best condition after passing inspection. Ÿ This instruction manual contains warnings and safety rules which must be observed by the user to ensure safe operation of the instrument and to keep the instrument in a safe operating condition.
  • Page 5 • Disconnect all the cords and cables from the object under test and power off the instrument before opening the Battery Cover for Battery replacement. • Use only the correct supplied current clamp and voltage lead. 1.3. DANGER • Never make a measurement on a circuit with voltage over AC 1000V. •...
  • Page 6 • CAT II: Primary electrical circuits of equipment connected to an AC electrical outlet by a power cord. • CAT III: Primary electrical circuits of the equipment connected directly to the distribution panel, and feeders from the distribution panel to outlets. •...
  • Page 7 3. DESCRIPTION 3.1. Meter Description 1 - LCD Display 8 - Current LED Indicator 2 - External Power Interface 9 - Voltage Sensor Interface 3 - Power/Status Button 10 - Current Sensor Interface 4 - Clock/Date, Recording Start/Stop 11 - USB Interface Button 12 - Mounting Bracket 5 - Current/Frequency Switching,...
  • Page 8 3.2. Symbols Used on LCD Display 10 - Record Mode: Normal, Trigger, 1 - Minimum Capture 2 - Maximum 11 - lnstantaneous Peak Mode 3 - Date 12 - Record: Indicates recording is active 4 - Time 13 - Set to stop recording when the 5 - Time/Date Area: Indicates recording capacity is full Time, Date and Time Interval...

  • Page 9: Recording Procedures

    4.1. Recording Data The following describes the operational flow: from preparation to completing recording. 4.1.1. Boot • Press and hold the Power/Status Button to switch on MT255. • If the LCD shows “ ” please replace the batteries. 4.1.2. Sensor Connection •...
  • Page 10 4.1.3. Set The Recording Mode 1. To set recording functions and parameters, press and hold the A/HZ/Menu button to enter the set up mode. Press the Time/Date/Start/Stop button or Peak/Min/Max/Bluetooth button to adjust the LCD display until if shows “SET 1”. 2.
  • Page 11 4.1.6. Set the Date and Time 1. Push and hold the Max/Min/Peak/Bluetooth button to scroll down to the setup screen “SET 4”. 2. Press the Power/Status button to enter the time setting. 3. Press the Power/Status button to move through Year/Month/Day and Time.
  • Page 12 4.1.9. Start Recording • Settings cannot be changed during recording, check settings before initiating a recording. • reviously recorded data will be cleared before starting recording (in this case, the LCD will display “ ” when you press and hold the Time/Date/Start/Stop button).

  • Page 13: Recording Modes

    • See Chapter 7 (page 14) for data viewing and PC software operations. 4.2. Clearing Record Data • Press and hold the A/Hz/Menu Button to enter the setting mode, turn on PEAK/MAX/MIN/Bluetooth Button to adjust the LCD display “ ”, press the Power/Status Button to enter the data clear. •...
  • Page 14 • During installation you can choose whether to install drivers. • After installing, connect the MT255 via the PC n which the Software has been installed. Transfer the recorded data on the logger to the PC. • For more help, see the software manual for details.
  • Page 15 Adapter are compatible, and then connect the Power Cord. • Disconnect the Power cord of the AC Adapter from the outlet when the MT255 is not in use. • Do not put any heated objects on the AC Adapter or Power Cord.

  • Page 16: Specifications

    Battery lndicator (3 levels) Over-range Indication “OL” mark is displayed when exceeding a measuring range Auto Power Off Power-off function turns the MT255 off automatically after 10 minutes with no input while not recording. Location For Use Indoor use, Altitude up to 2000m Temperature &...
  • Page 17 10.2.3. Active Power Range Resolution Tolerances 9.999kW 0.001kW ±(4% + 10 digit) 99.99kW 0.01kW ±(4% + 1 digit) 400.0kW 0.1kW Accuracy defined for: Sine wave, AC V RMS <1000.0V and AC A RMS <400.0A, Frequency 45-65Hz, PF=1.00. When the power factor is closer to 0, the error margin is greater. To ensure effective measurement, ensure that the absolute value of the power factor is greater than 0.90.
  • Page 20 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
