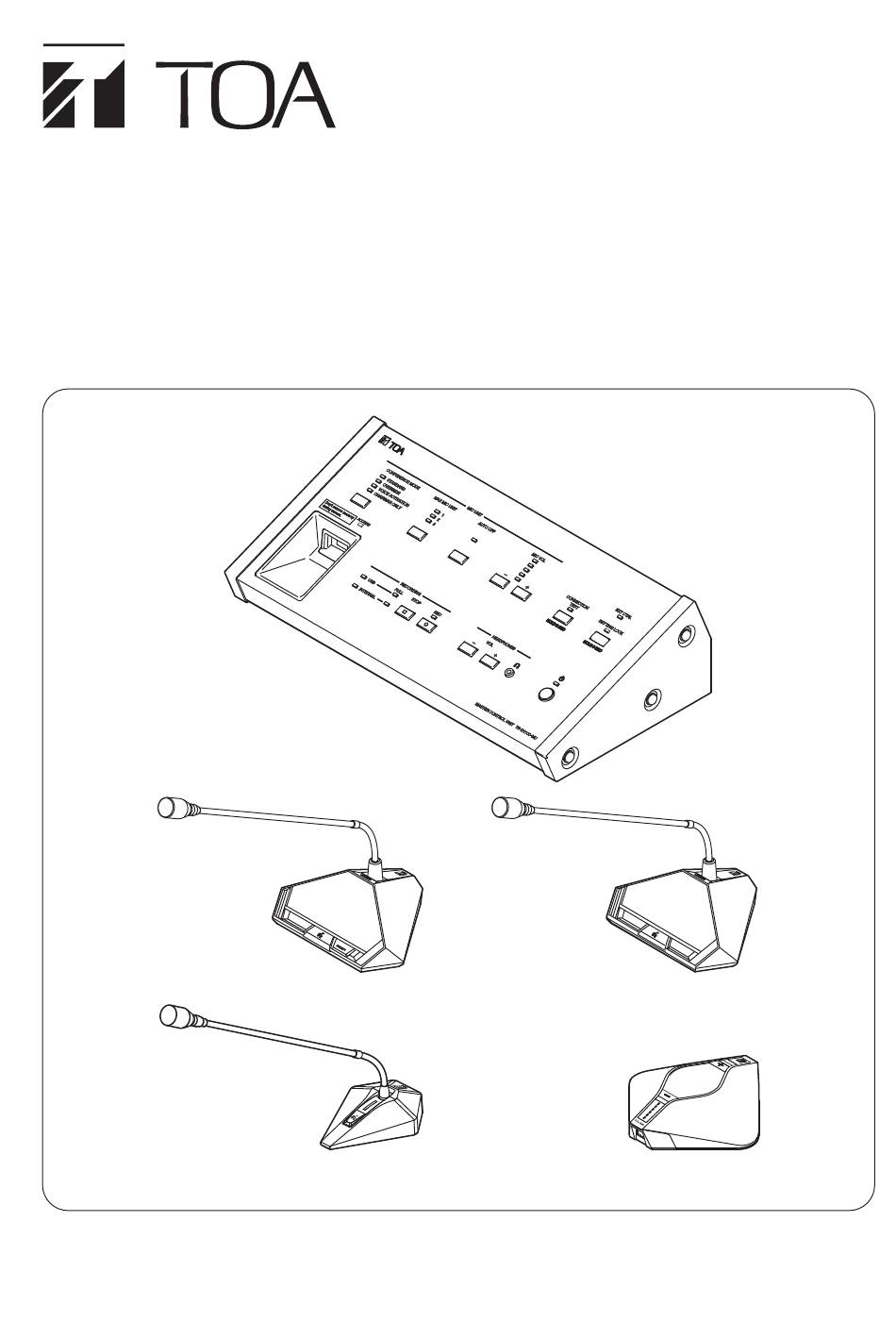

DIGITAL CONFERENCE SYSTEM
TS-D1000-CU
Chairman unit
TS-D1100-MC
Microphone unit
Thank you for purchasing TOA's Digital Conference System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TS-D1100-MU
Master control unit
INSTRUCTION MANUAL
TS-D1100 SERIES
TS-D1000-DU
Delegate unit
TS-D1100-SP
Speaker unit

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS-D1100-MU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa TS-D1100-MU

Summary of Contents for Toa TS-D1100-MU

  • Page 1 TS-D1100-MU Master control unit TS-D1000-CU TS-D1000-DU Chairman unit Delegate unit TS-D1100-MC TS-D1100-SP Microphone unit Speaker unit Thank you for purchasing TOA’s Digital Conference System. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Table Of Contents

    4. AVAILABLE INSTRUCTION MANUALS ..........6 5. NOMENCLATURE AND FUNCTIONS ..........7 5.1. TS-D1100-MU Master Control Unit ............... 7 5.2. TS-D1000-SU Sub Control Unit ................. 11 5.3. TS-D1000-EX Extension Unit ................11 5.4. TS-D1000-CU Chairman Unit ................12 5.5. TS-D1000-DU Delegate Unit ................14 5.6.
  • Page 3 14.2. Using an External Processor ................41 15. IF A FAILURE IS DETECTED ............... 42 15.1. TS-D1100-MU Master Control Unit ..............42 15.2. TS-D1000-SU Sub Control Unit ............... 43 15.3. TS-D1000-EX Extension Unit ................44 15.4. TS-D1000-CU Chairman Unit and TS-D1000-DU Delegate Unit ..... 44 15.5.

  • Page 4: Safety Precautions

    • Should the following irregularity be found during use, immediately switch off the power, disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.
  • Page 5 · When connecting the unit’s power cord to an AC outlet, use the AC outlet with current capacity allowable to the unit. · The rack-mounting screws supplied with the optional rack-mounting brackets* can be used for the TOA equipment rack only. Do not use them for other rack.

  • Page 6: General Description

    The TOA TS-D1100 Series is a conference system specially designed for easy set up, disassembly and storage. It can be used by merely connecting a number of conference units* to the TS-D1100-MU Master control unit. Up to 32 Conference units can be connected. This number can be increased to up to 246 units (up to 2 Chairman Units) by further connecting a maximum of 5 TS-D1000-SU Sub control units.

  • Page 7: Nomenclature And Functions

    5. NOMENCLATURE AND FUNCTIONS 5.1. TS-D1100-MU Master Control Unit [Top] 21 22 23 1. Power switch (For 24 V DC) 4. Conference mode indicators (Green) Press this switch to turn the Power ON. Press the The indicator corresponding to the selected by switch again to switch the power OFF.
  • Page 8 7. Mic auto-off setting key 17. Access indicator (Green) Delegate and Microphone units microphones can Remains continuously lit until a compatible USB be set to automatically disable approximately 30 memory device is inserted into the USB memory seconds after speaking ends if the user forgets device port (16).
  • Page 9 OFF and then turned back ON again. • LINK/ACT indicator (Green) Lights when the TS-D1100-MU is connected to a network and flashes during data transmission/ Switch 1 Switch 2...
  • Page 10 34. USB port [When connected to an external processor] Use the supplied USB cable to connect a PC to When an external processor is connected to this port. The Web conference application allows these SEND and RETURN terminals, the internal the Master Control Unit to be used as both a FBS circuit is switched OFF.

  • Page 11: Ts-D1000-Su Sub Control Unit

    5.2. TS-D1000-SU Sub Control Unit [Front] [Rear] 1. Power indicator (White) 4. DC inlet Lights when power is supplied. Insert the power plug from the unit’s supplied AC This indicator interlocks with the Master control adapter into this inlet. unit’s power switch operation when the Master control unit and the supplied AC adapter are 5.

  • Page 12: Ts-D1000-Cu Chairman Unit

    Manual (Browser Settings), which 4. Priority speech key downloaded from the TOA DATA Library (https:// Gives speaking priority to the current speaker. www.toa-products.com/international/). When this key is used for speech, no other Conference units can be used. Sound from external microphone, video conference inputs, and PC being connected to the USB port are also muted.
  • Page 13 8. Connection terminal cover The range of connectable units is as follows: Detach this cover when connecting other units to Master control unit TS-D1100-MU the Conference unit connection terminals (9). After Sub control unit TS-D1000-SU completing connection, replace the cover where it...

  • Page 14: Ts-D1000-Du Delegate Unit

    (2) and the microphone’s Indicator (6) light, and the the browser.* microphone turns on. Pressing this key again turns off both indicators and the microphone. * For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa- products.com/international/).
  • Page 15 7. Connection terminal cover The range of connectable units is as follows: Detach this cover when connecting other units to Master control unit TS-D1100-MU the Conference unit connection terminals (8). After Sub control unit TS-D1000-SU completing connection, replace the cover where it...

  • Page 16: Ts-D1100-Mc Microphone Unit

    Master control unit TS-D1100-MU Sub control unit TS-D1000-SU Extension unit TS-D1000-EX Other Microphone unit TS-D1100-MC Speaker unit TS-D1100-SP * For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa- products.com/international/).

  • Page 17: Ts-D1100-Sp Speaker Unit

    The range of connectable units is as follows: other audio signals from the Master control unit are output from this speaker. Master control unit TS-D1100-MU The volume setting is adjusted using the Volume Sub control unit TS-D1000-SU control key (2).

  • Page 18: Conference System Operation

    • Speaker volume can also be muted in the browser settings. For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). Step 2. Speak. Step 3. After speaking is finished, press the Talk key again.
  • Page 19 6.1.2. In the case of TS-D1100-MC Microphone unit Step 1. Press the Talk key. Indicator The microphone turns on while both the Power/Speech indicator and the microphone’s Indicator light red. The microphone’s Indicator remains lit red for the entire time TS-D1100-MC that the microphone is ON.

  • Page 20: Initiating Priority Speech (Ts-D1000-Cu Chairman Unit Only)

    Priority speech is terminated. In such cases, first press the Talk key again to cause both the Speech and the microphone’s Indicators to light, then begin speaking. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).
  • Page 21 Priority speech is terminated. In such cases, first press the Talk key again to cause both the Speech and the microphone’s Indicators to light, then begin speaking. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).

  • Page 22: Using The Recording Function

    • USB memory device (flash drive) with a capacity of up to 32 GB. • Compatible with USB 2.0 devices. • When using a USB memory device with the TS-D1100-MU for the first time, format it with a PC before using. Formatting conditions are as follows:...

  • Page 23: Sound Source File Specifications And Filenames

    The recording start time included in the sound source filename corresponds to the Master control unit’s internal clock. The internal clock can be set via network using a PC browser. For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).

  • Page 24: Recording To A Usb Memory Device

    7.4. Recording to a USB Memory Device A commercially available USB memory device (flash drive/thumb drive) is required to make USB memory recordings using the Master control unit. Prepare a USB memory device that meets all the conditions shown in the section, "Usable USB memory devices"...

  • Page 25: Recording To The Internal Memory

    7.4.2. Moving a sound source file from the USB memory device Using a PC, copy the sound source file to the PC’s hard drive. Refer to the instruction manual enclosed with the USB memory device or the PC for the correct copy procedure. Important When disconnecting and removing the USB memory device from the PC, be sure to perform "Safely remove Hardware"...

  • Page 26: System Examples

    7.5.2. Accessing and deleting sound source files from the internal memory A PC connected to the TS-D1100-MU via network is required to access or delete sound source files recorded to the TS-D1100-MU’s internal memory. A PC having the following specifications is recommended:...

  • Page 27: Example Of Both Microphone And Speaker Unit Usage

    Notes • Up to 3 Speaker units can be connected to a single line. • Chairman and Delegate units cannot be connected on the same line as the Microphone and Speaker units. TS-D1100-MU Master control unit TS-D1100-MC TS-D1100-SP Conference unit connection terminal Max.

  • Page 28: Expanded System Example - Connected Unit Expansion

    1 m (3.28 ft). • Up to 3 Speaker units can be connected to a single line. • Chairman and Delegate units cannot be connected on the same line as the Microphone and Speaker units. TS-D1100-MU Master control unit TS-D1000-CU or TS-D1000-DU Max.

  • Page 29: Expanded System Example - Distance Extension

    Conference units in the basic system or in systems in which the number of connected units has been increased. Note Only one TS-D1000-EX can be connected per line. It may be connected in any position on the line. TS-D1100-MU Master control unit TS-D1000-EX Extension unit Max. 1 m or 3.28 ft...

  • Page 30: Connections

    9. CONNECTIONS [TS-D1100-MU] Signal ground terminal To AC mains (11) AC adapter To microphone (10) Video conference system To Conference unit External processor (4) To Sub control Unit Recording (5) To network device Amplifier Speaker 9.1. Power Supply Connection (1) AC adapter connection Use the supplied AC adapter.

  • Page 31: Conference Unit And Sub Control Unit Connections

    Doing so could lead to the Conference unit’s failures. 9.4. External Device Connections (5) Network connection Connect a PC to the TS-D1100-MU in order to perform settings using the PC’s browser, as well as PC connections over the network. Connectable network interface: 10BASE-T, 100BASE-TX (6) PC connections Connect the PC to be used for Web conferencing to the USB port using the supplied USB cable.

  • Page 32: Using The Master Control Unit Connected To A Pc

    10. USING THE MASTER CONTROL UNIT CONNECTED TO A PC Shown below is an example of the TS-D1100-MU Master control unit being connected to a PC to allow microphones and speakers to be used with the installed Web Conference application.

  • Page 33: Installation

    11. INSTALLATION 11.1. Mounting the Control Unit in an Equipment Rack Use the following optionally available mounting bracket set when installing the TS-D1100-MU Master control unit or TS-D1000-SU Sub control unit in an equipment rack. 11.1.1. TS-D1100-MU Step 1. Detach both side panels of the TS-D1100-MU.
  • Page 34 11.1.2. TS-D1000-SU [Rack-mounting a single unit] Use the MB-15B-BK Bracket kit. Component parts of MB-15B-BK Tapping screw 3 x 8 * Tapping screw 3 x 14 * TS-D1000-SU Blank bracket * Tapping screw 3 x 14 * Rack mounting bracket * Fiber washer (for M5) * Rack mounting screw 5 x 12 * [Rack-mounting two units]...

  • Page 35: Microphone Connection

    The unit is placed in Connection test mode, causing the Connection test indicator to light and all connected microphones’ Indicators* to flash. Connection test indicator: Lights Connection test key: Press for 3 seconds TS-D1100-MU or more. Indicator: Flashes Step 2. Visually check to confirm that the microphone’s Indicators* of all connected Conference units are flashing.

  • Page 36: Settings

    12. SETTINGS The following settings can be performed with the Setting key on the TS-D1100-MU unit’s top panel. [Setting Items] • Conference mode (see below) • Max. open mic No. (see p. 37) • Mic auto-off (see p. 38) • Conference sound volume (see p. 39) Notes •...

  • Page 37: Max. Open Mic No. Setting

    Max. open mic No. setting key, lighting up the corresponding Max. open mic No. indicator. The number of units that can be set on the TS-D1100-MU top panel is 1, 2 and 8 (factory default setting: 8). Tips An arbitrary number of units (1 –...

  • Page 38: Mic Auto-Off Setting

    12.3. Mic Auto-Off Setting Even if a speaker forgets to turn off the microphone after speaking, if more than 30 seconds of silence is detected, this function automatically assumes that speaking has ended and turns off the microphone. Mic auto-off indicator Mic auto-off setting key Notes •...

  • Page 39: Conference Unit Monitor Volume Setting

    • The monitor speaker can be muted using a browser if desired because of feedback or other reasons. For details, please refer to the separate Instruction Manual (Browser Settings), which can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/). 12.5. Speaker Unit Volume Adjustment Set the Speaker unit volume to an appropriate level using the Volume control keys.

  • Page 40: Setting Lock

    12.6. Setting Lock Mistaken operation can be minimized by disabling all setting-related key operations. Performing the Setting lock function causes all setting-related keys shown below to be locked, making their operations impossible. Keys to be locked Setting lock indicator Setting lock key 12.6.1.

  • Page 41: Browser Setting

    The ON/OFF status of the internal FBS function is interlocked with the existence of a connection to an external processor. If the processor’s wiring is left connected to the TS-D1100-MU after use, the internal FBS function will be left OFF and not work.

  • Page 42: If A Failure Is Detected

    No sound output from Is headphone volume control properly Adjust sound volume headphones. adjusted? appropriate level. Is headphone plug fully inserted? Ensure that the headphone plug is fully inserted and secure. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).

  • Page 43: Ts-D1000-Su Sub Control Unit

    Unit’s use. heard or sound from the Master control Is "TOA TS-D1100-MU" selected in the Select "TOA TS-D1100-MU." unit cannot be heard Web Conference application’s Device at the connected settings for selecting microphones and destinations.

  • Page 44: Ts-D1000-Ex Extension Unit

    • The Talk key cannot be used to start speaking if the mode is set to Voice activation. • Delegate units cannot used for speaking if the mode is set to Chairman only. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).

  • Page 45: Ts-D1100 Mc Microphone Unit

    • The Talk key cannot be used to start speaking if the mode is set to Voice activation. • Delegate units cannot be used for speaking if the mode is set to Chairman only. * Can be downloaded from the TOA DATA Library (https://www.toa-products.com/international/).

  • Page 46: Ts-D1100 Sp Speaker Unit

    Symptom Cause and Points to Check Remedy Microphone’s Indicator Is the Mic auto-off set to Enabled? When the Mic auto-off function is extinguishes while set to Enabled, the microphone will speaking. automatically turn off if silent for more than 30 seconds. If pauses of 30 seconds or more are expected during speaking, disable the Mic auto-off function.

  • Page 47: Specifications

    16. SPECIFICATIONS 16.1. TS-D1100-MU Master Control Unit Power Source 100 to 240 V AC, 50/60 Hz (use of the supplied AC adapter) Power Consumption 60 W or less Audio Transmission System Time division multiplexing (TDM), 10 channels 16-bit, PCM, 32 kHz sampling frequency Frequency Response 100 Hz –...

  • Page 48: Ts-D1000-Su Sub Control Unit

    A USB 2.0 – Compatible FAT32 – formatted flash memory device of up 32 GB in capacity can be used. There may be cases in which a USB flash drive cannot be used with the TS-D1100-MU, depending on the drive’s attributes or recording conditions.

  • Page 49: Ts-D1000-Ex Extension Unit

    AC adapter (Cord length: 1.8 m or 5.91 ft DC cord, and 2 m or 6.56 ft detachable AC cord) ..1 16.4. TS-D1000-CU Chairman Unit Power Source 24 V DC ( supplied from the optional TS-D1100-MU Master control unit, optional TS- D1000-SU Sub control units, or optional TS-D1000-EX Extension units) Power Consumption 1.5 W or less...

  • Page 50: Ts-D1000-Du Delegate Unit

    16.5. TS-D1000-DU Delegate Unit Power Source 24 V DC ( supplied from the optional TS-D1100-MU Master control unit, optional TS- D1000-SU Sub control units, or optional TS-D1000-EX Extension units) Power Consumption 1.5 W or less Signal to Noise Ratio 65 dB or more (A-weighted)

  • Page 51: Ts-D1100-Mc Microphone Unit

    16.7. TS-D1100-MC Microphone Unit Power Source 24 V DC ( supplied from the optional TS-D1100-MU Master control unit, optional TS- D1000-SU Sub control units, or optional TS-D1000-EX Extension units) Power Consumption 0.4 W or less Frequency Response 100 Hz to 13 kHz...
