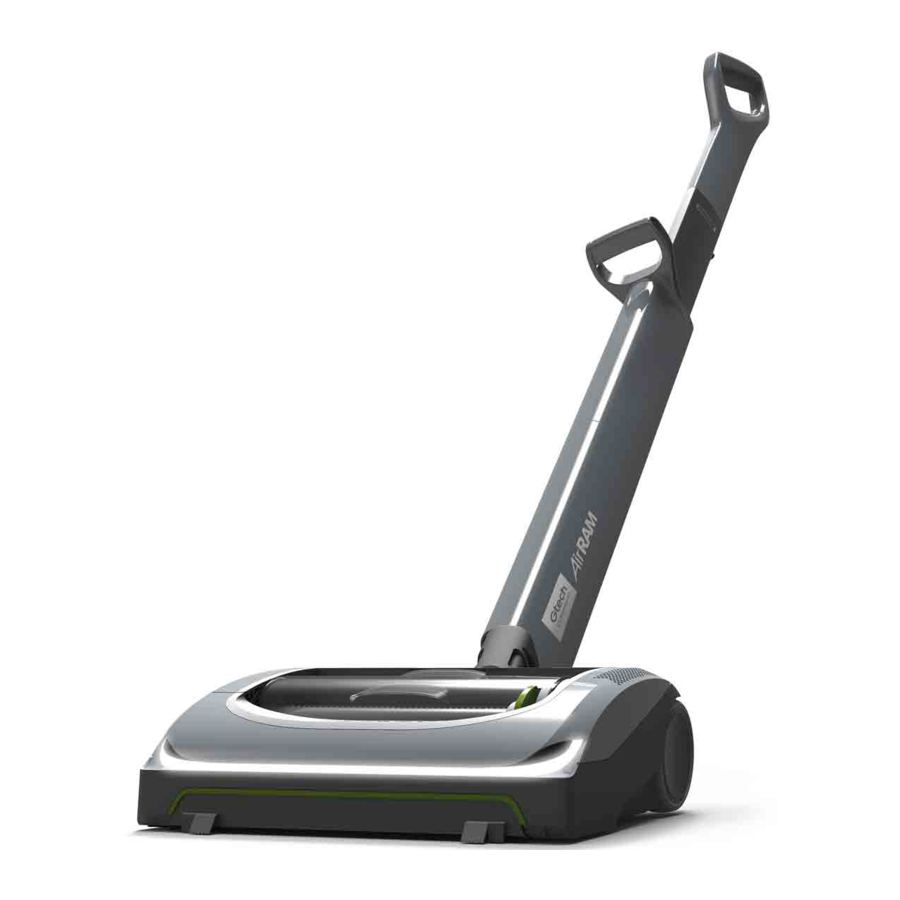

G-Tech AirRAM AR45 Manual

What's in the box

Make a note of your product serial number code for future reference. You can find this on the underside of item

Assembly

Storage

Operation

Removing the battery

Refitting the battery

State of charge

Battery charging

4 hours

Emptying the bin

Cleaning the filters

Do this once a month or more frequently depending on use.

Wash the filter under a tap. Squeeze out any excess water then let it dry completely before reinserting into the product. Recommended water temperature 40°C. Do not use detergent or soaps.
Never put bin back without filter inside. You could damage the motor.

Replacing the filters

Brush bar is jammed

Removing and cleaning the brush bar

Always remove the battery before removing and cleaning the brush bar.

Never operate the product without the brush bar in place.

Scented cartridge

If your original cartridge no longer smells, it can still be used.

Scented cartridge refills: Keep out of the reach of children. People suffering from perfume sensitivities should be cautious when using this product as it may produce an allergic reaction or cause sensitisation by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to aquatic organisms, may cause long-term adverse effects in the aquatic environment. Scented refills contain: Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil, Vanillin, Borneol, Polysorbate 20

Product care

Always remove the battery before carrying out any cleaning or maintenance on the product.

Your product doesn't need much maintenance: keep the filter clean, check for blockages, remove hair from the brush bar and charge the battery.
Wipe it with a dry cloth if it gets dirty, including the area under the bin.
Never wash it with liquid, run it under a tap or use it without the filter.

Troubleshooting

Product support

If these initial tips do not solve your problem please visit our support area where you can find troubleshooting help, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product.
UK customers visit www.gtech.co.uk/support
Online
Live chat support
support@gtech.co.uk
How to videos

TECHNICAL SPECIFICATION

WARRANTY REGISTRATION

If you purchased directly from Gtech, your details are already registered and your 2-year warranty will start automatically.
If you purchased from an authorised Gtech retailer, please register your warranty within 3 months. You will need to provide proof of purchase to support any claim(s) against your warranty.
Visit www.gtech.co.uk/registerproduct to register your product and ensure that we have all the information required to provide you with quick and efficient support. You will need your product's serial number.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining.

Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal safety:

• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended may present a risk of personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliance's openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers and all parts of the body.
• Particularly keep hair away from the brush bar and other moving parts, but also loose clothing, fingers and other body parts.

Electrical safety:

• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.
• A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.
•
  Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Do not wrap the cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged, the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

Battery safety:

•
  This appliance includes Li-ion batteries; do not incinerate batteries or expose to high temperatures as they may explode.
• Liquid ejected from the battery may cause irritation or burns.
• In an emergency situation, contact professional help immediately!
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin, wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
•
  Shorting the battery terminals may cause burns or fire.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance, remove the battery and dispose of the battery safely in accordance with local regulations.
• Do not use a battery pack that is damaged or modified.
• Do not open or crush the battery.
• Do not immerse the battery in water or any other fluids.
• Do not short the positive and negative contacts.
• For use: recommended ambient temperature -5°C to 30°C
• For charging: recommended ambient temperature 5°C to 30°C

Service:

•
  to reduce the risk of injury from moving parts, remove battery before servicing.
• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.
• Never modify the appliance in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Gtech.
• If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service centre.

Intended use:

• This appliance has been designed for dry vacuum cleaning only.
• Do not pick up liquids or use on wet surfaces.
• Do not pick up anything that is flammable, burning or smoking.
• Use only as described in this manual.
• Do not use on concrete, tarmacadam or other rough surfaces.
• The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.
• May damage delicate fabrics or upholstery. Care should be taken on loose-weave fabrics or where there are loose threads. If in doubt, please test on an inconspicuous area first.
• The product has a constantly rotating brush bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the floor surface.
• The product has been designed to clean a wide variety of floor surfaces without the need to change settings. However some surfaces such as delicate loose-pile rugs or carpets, tasselled rug edges or damaged carpets with exposed threads are not suitable for cleaning with a rotary brush.
• This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

• Do not use water, solvents or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Only use authentic Gtech filters, batteries, charger etc.
• Never use the product without the filter fitted.
•
  Operators shall be adequately instructed on the use of these machines.
•
  This machine is not suitable for picking up hazardous dust.
•
  This machine is for dry use only.
•
  This machine is for indoor use only.
•
  This machine shall be stored indoors only.
