FireClass FC600 Series Panels
FC-FI-1 FireClass Field Interface Board for the
FC602S and FC602S Scandinavian Panels
Part No. 557.200.661

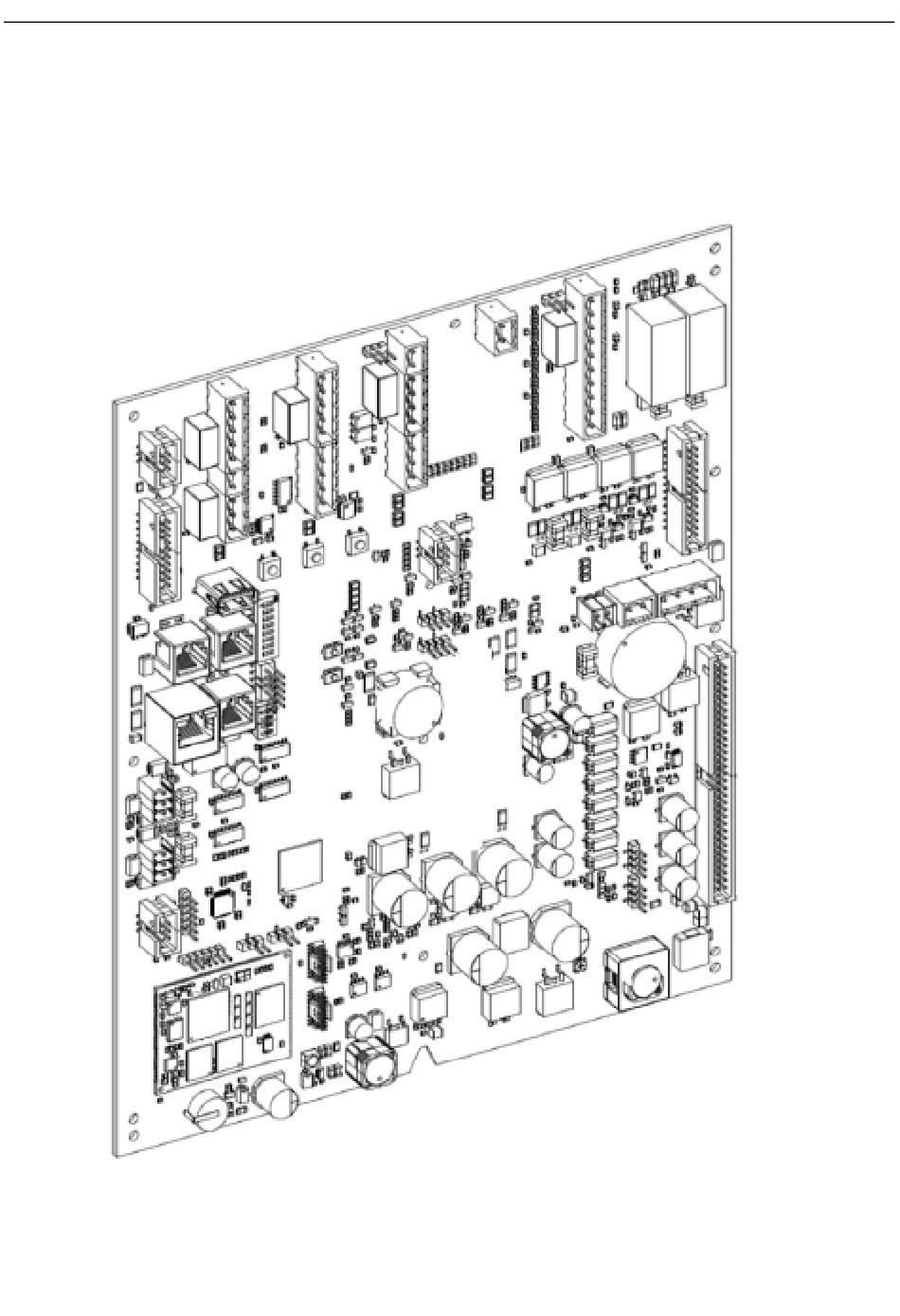

Fig. 1: FC-FI-1 - Field Interface Board. The FC-FI-1 is used in the FC602S panel and the FC602S Scandinavian panel.
Fixing instructions Doc. version 1.0
FC-FI-1
1/4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FireClass FC-FI-1
Summary of Contents for FireClass FC-FI-1
- Page 1 FC-FI-1 FireClass Field Interface Board for the FC602S and FC602S Scandinavian Panels Part No. 557.200.661 Fig. 1: FC-FI-1 - Field Interface Board. The FC-FI-1 is used in the FC602S panel and the FC602S Scandinavian panel. Fixing instructions Doc. version 1.0...
- Page 2 FC602S or FC602S Scandi- in Fig. 2. navian panels 5 To mount the new FC-FI-1 board, fit the groove at the base of the board (Item 5 in Fig. NOTICE 2) into the metal dowel located at the back Switch the panel off during the wall of the panel housing.
- Page 3 FireClass FC600 Series Panels FC-FI-1 Fig. 2: FC-FI-1 in a FC602S or FC602S Scandinavian panel 1 – BAW75T24 PSU 2 – FC-FI-1 3 – Shake-proof 3mm washer 4 – ISO7045 screw 3mm 5 – Groove Fixing instructions Doc. version 1.0...
- Page 4 The power and signal cabling is connected securely, with the correct polarity. To remove a FC-FI-1 board from a FC602S panel, The power and signal are neatly routed and see steps 1 to 4 in the procedure “Replacing the arranged in the housings.
