MEXPO AXIWI AT-350 Operating Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

AXIWI AT-350
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXIWI AT-350 and is the answer not in the manual?

Questions and answers

Related Manuals for MEXPO AXIWI AT-350

Summary of Contents for MEXPO AXIWI AT-350

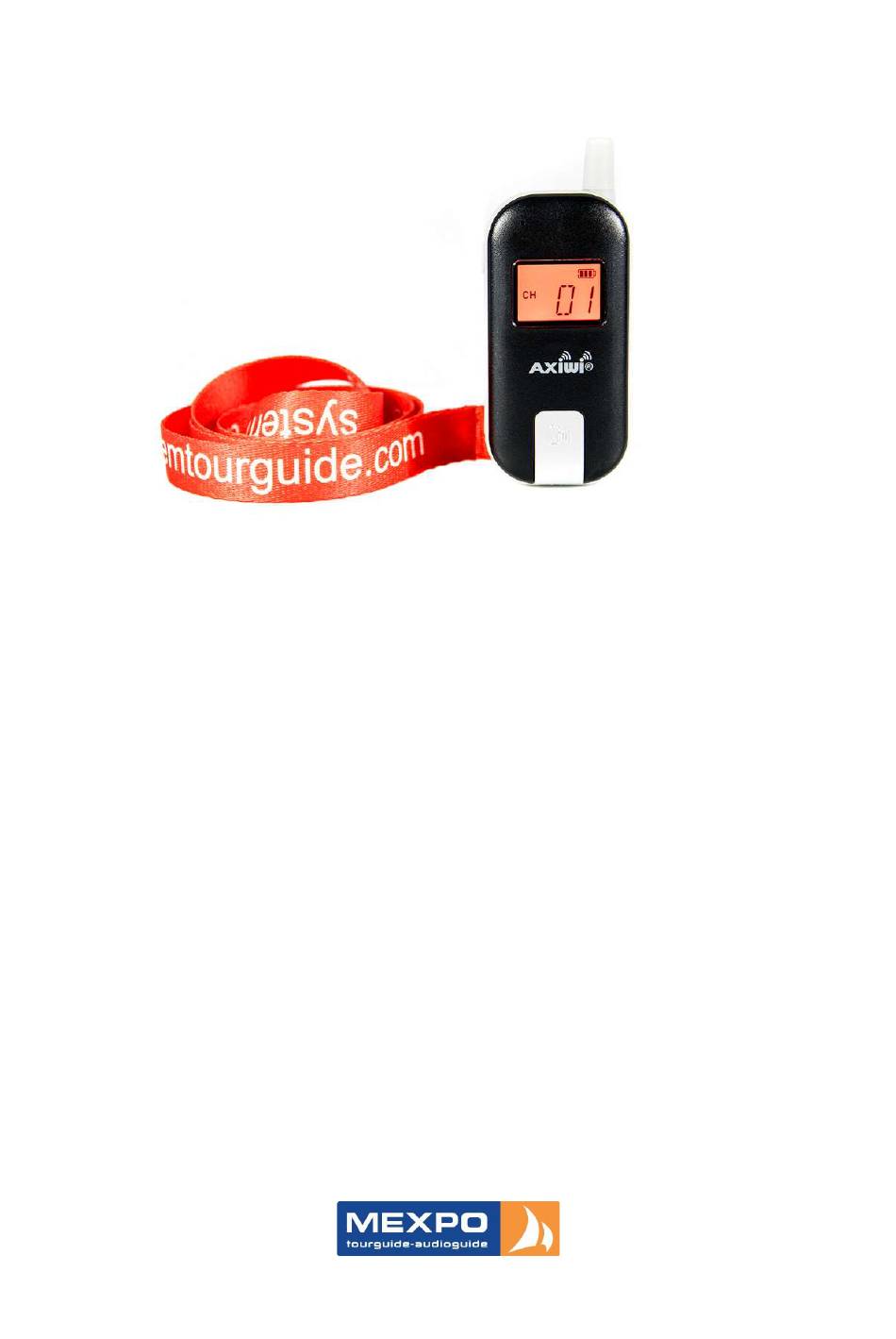

  • Page 1 AXIWI AT-350 Operating Manual...

  • Page 2: Device Diagram

    Device Diagram 1. Power button Enables or disables the device 2. Micro USB port Charges the battery by connecting the USB cable 3. 3.5 mm jack For connecting headset 4. Antenna Antenna for transmitting / receiving broadcasts 5. LCD display Provides important information for users 6.

  • Page 3: Display Diagram

    Increases the volume of broadcast reception and 8. UP button changes channels Decreases the volume of broadcast reception and 9. DOWN button changes channels Displays the battery charging status. Red LED - 10. LED indicator charging, green LED - fully charged. 11.

  • Page 4: Operating Modes

    MASTER allows the communication and management of the entire group. Each communication channel in the Axiwi AT-350 system must have one device working in the MASTER mode. If no device is operating in this mode on the channel or it is disabled, the whole group will lose the ability to communicate with each other.
  • Page 5 After starting the SUBMASTER mode and connecting the microphone to the socket, the device user can immediately communicate with the group. The MASTER user and FOLLOWER users cannot mute or dismiss the SUBMASTER from the group. FOLLOWER MODE FOLLOWER can communicate with the entire group or only be a recipient of an audio transmission.
  • Page 6 Enabling / disabling broadcast transmission (applies to FOLLOWER) Enabling broadcast (microphone) 1. Press the TALK button. 2. The symbol of an enabled microphone will appear on the display and the voice message TALK ON will be played on the handset. Disabling broadcast (microphone) 1.

  • Page 7: Battery Charging Status

    Battery Charging Status The device can be charged via the Micro USB cable. The red LED on the top of the device will light up when charging. When recharging is complete, a green LED will flash. The remaining battery charge is displayed in the battery icon.
  • Page 8 Weight 70 g Charging port Micro USB Headphone/microphone socket Jack 3.5 [mm] Tightness class IP54 Service and Distribution Mexpo ul. Kazimierza Pułaskiego 8 81-368 Gdynia +48 58 550 10 25 +48 22 39 81 699 biuro@systemtourguide.com www.systemtourguide.com...
