Service guide
6 | AX384036216157en-000103

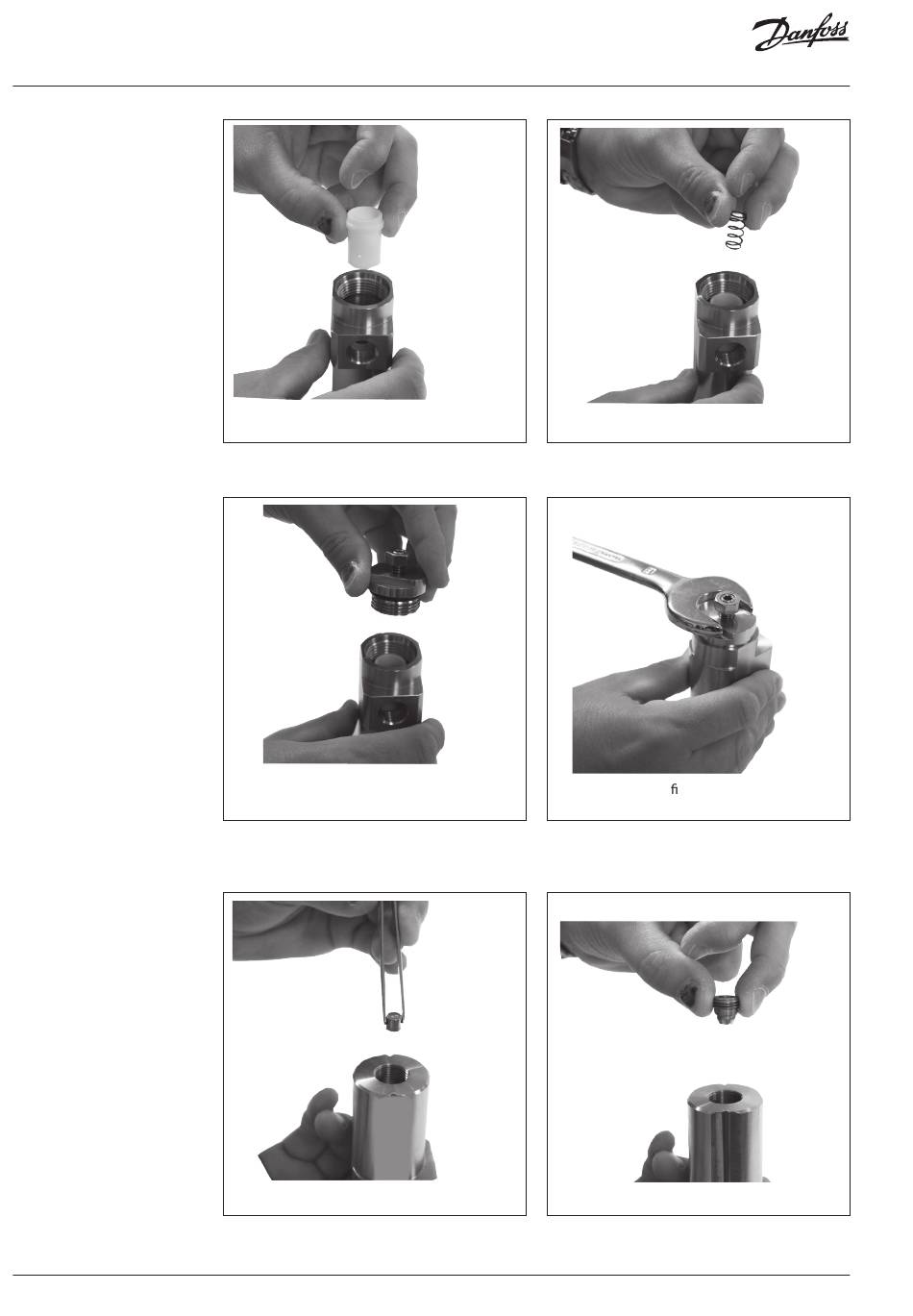

Disassembling and assembling VRH 5 - 120 (F)
5. Insert tube.
7. Mount the cover.
9. Insert poppet.
6. Insert spring.
8. Tighten as speci ed on the drawing.
10. Insert valve seat.
