Quick Start
Begin Here
Have a qualified electrician:
Install the relay panel per the instructions
Terminate power to the transformer
Clear all circuits and terminate wiring to the
relays and 0-10V dimmers
Have electrician/service personnel:
Configure Emergency operation jumpers on
Phase Monitoring and Relay Bypass Output
Modules in any Emergency relay panels
Address dimming modules with a unique
address (0,1 thru 0, F and 1,0)
Then:
Connect the WaveLinx Area Controller to a
PoE port on a Network Switch
Connect the WaveLinx Relay Panel to a
standard port on a Network Switch
Install a current web browser on the device
that will be used for configuration
Install the WaveLinx Mobile
Application from the App
Store® or Google Play™ on a
mobile device with iOS 15+ or
Android™ 12+
Launch the app and tap Register to create
an account

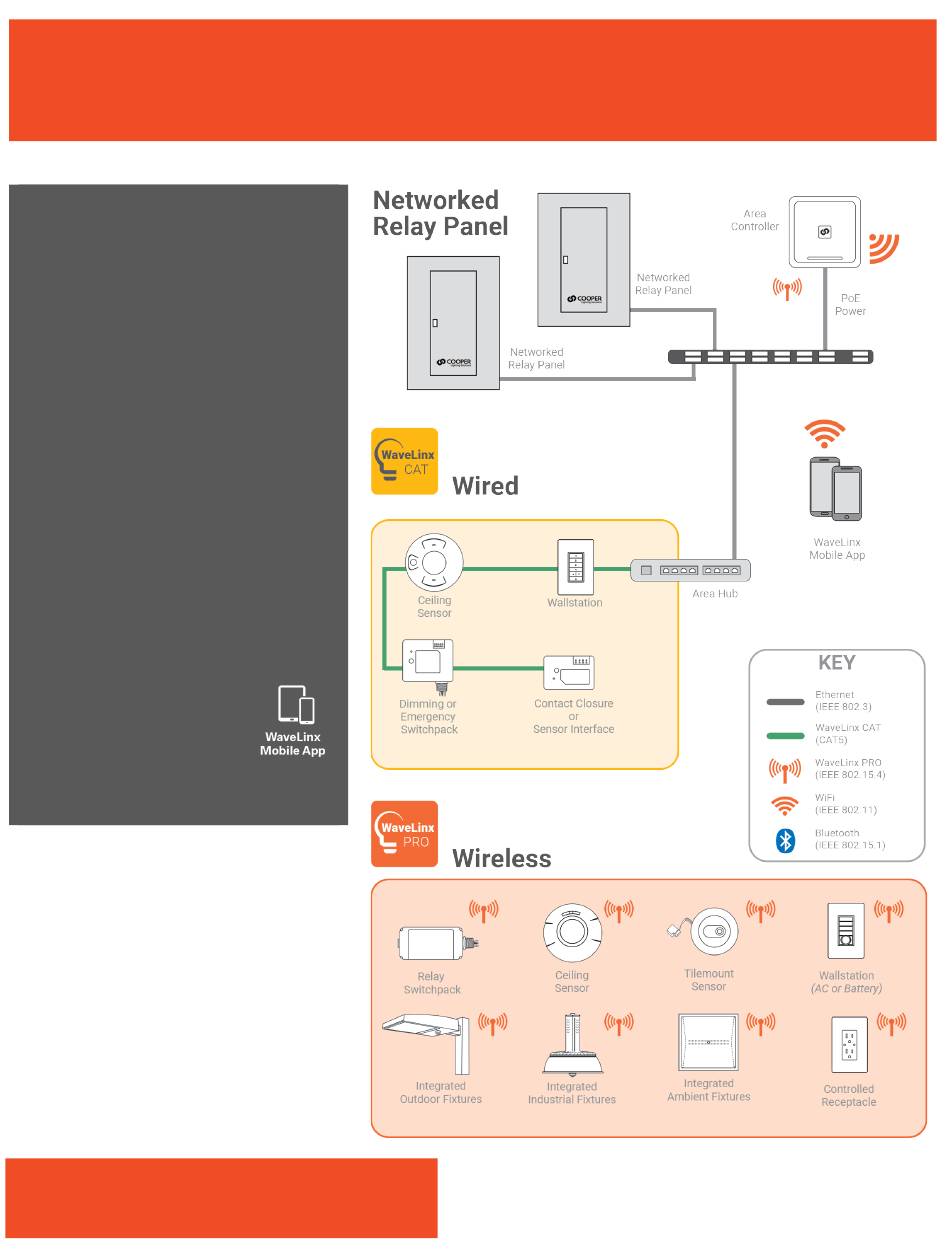

The WaveLinx Networked Relay Panel provides
WaveLinx control for larger spaces and relay panel
retrofit locations. WaveLinx Panel relays and 0-
10V dimmers operate from WaveLinx PRO and
CAT devices, expanding on the capabilities of the
hybrid WaveLinx architecture.
The WaveLinx Networked Relay Panel connects to
the WaveLinx Area Controller over the Ethernet.
The WaveLinx Mobile App configures the panel's
relays and dimmers using Wi-Fi to communicate
to the WaveLinx Area Controller.
This Quick Start Guide will walk through the
configuration and initial connection of the
WaveLinx Networked Relay Panel and WaveLinx
Area Controller.
Contact Cooper Lighting Solutions Tech Support
(800) 553-3879
controltechsupport@cooperlighting.com
WaveLinx
Networked Relay Panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WaveLinx and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooper WaveLinx

  • Page 1 Launch the app and tap Register to create  an account The WaveLinx Networked Relay Panel provides WaveLinx control for larger spaces and relay panel retrofit locations. WaveLinx Panel relays and 0- 10V dimmers operate from WaveLinx PRO and CAT devices, expanding on the capabilities of the hybrid WaveLinx architecture.
  • Page 2: Device Information

    5: Relays Out of the Box The WaveLinx Networked Relay Panel has no out-of-the box functionality. Power Switch and Manual Relay Operation Once power is applied, the relay override buttons and display allow manual operation of the relays and dimmers until a connection can be made to the WaveLinx Area Controller.
  • Page 3: Initial Configuration

    Initial Configuration Follow the steps in this section to configure the initial settings of the WaveLinx Network Relay Panel and the WaveLinx Area Controller. Configure the WaveLinx Network Relay Panel To prepare the relay panel for its connection to the WaveLinx Controller, perform the following steps:...
  • Page 4: Important Note

    The WaveLinx Networked Relay Panel communicates with the WaveLinx Area Controller over the building LAN. The relay panel must be configured with a unique IP address within the same network range as the WaveLinx Area Controller. By default, the Ethernet port is disabled.
  • Page 5 WaveLinx Networked Relay Panel Quick Start (Version 15) Using a Static IP (continue step 6) Press MODE: STATIC. Assign the IP ADDRESS: Press  or  to move the cursor point  beneath the desired address segment. Press and release  to increment or  to decrement one digit at a time.
  • Page 6 Important The initial configuration of the WaveLinx Area Controller requires the use of a device that has Wi-Fi, an Ethernet port, and a current web browser. These steps assume that the Area Controller is still in a factory default condition.
  • Page 7 Any future Wi-Fi Access Point connections will require the use of the assigned network key (password). The WaveLinx Area Controller will reboot. Wait about one minute. Reconnect to the Wi-Fi Access Point using the new password. Step 2: Set the WaveLinx Area Controller Clock 1 –...
  • Page 8 Step 3: Set the WaveLinx Area Controller IP Address The WaveLinx Area Controller is set to use DHCP by default. If using a DHCP server, IP configuration is not necessary unless requested to assign a static IP address. If DHCP is not being used, assign a static IP address using the following steps: 1 –...
  • Page 9 Adding the Relay Panel to the WaveLinx Area Controller Using the Mobile App The following sections will use the WaveLinx Mobile App loaded on a mobile device (tablet/smartphone). Use the following sections to login to the mobile app and add the WaveLinx Networked Relay Panel.
  • Page 10 Add the WaveLinx Networked Relay Panel To be able to program and control the relays and dimmers in the WaveLinx Networked Relay Panel from the WaveLinx Mobile App, the Relay Panel must be added using its IP address. Before proceeding, open the WaveLinx Mobile App and Login to the WaveLinx Area Controller.
  • Page 11 Check the relay panel import for all expected relays and dimmers. During the check, the panel can be renamed from the default name given (optional). Before beginning these steps, open the WaveLinx Mobile App and Login to the WaveLinx Area Controller.
  • Page 12 Area. Tap a dimmer to view it. Next Steps The WaveLinx Network Relay Panel’s relays and dimmers are ready for programming. Use the WaveLinx Mobile App to assign the relays and dimmers to Areas and Zones and assign control from other WaveLinx devices.
  • Page 13: Troubleshooting Tips

    • Verify that the relays and dimmers can be manually commanded from the onboard display. • Once logged in to the mobile app, if the WaveLinx Area • Verify that the relays and dimmers can be manually Controller is not listed, select to rescan.
