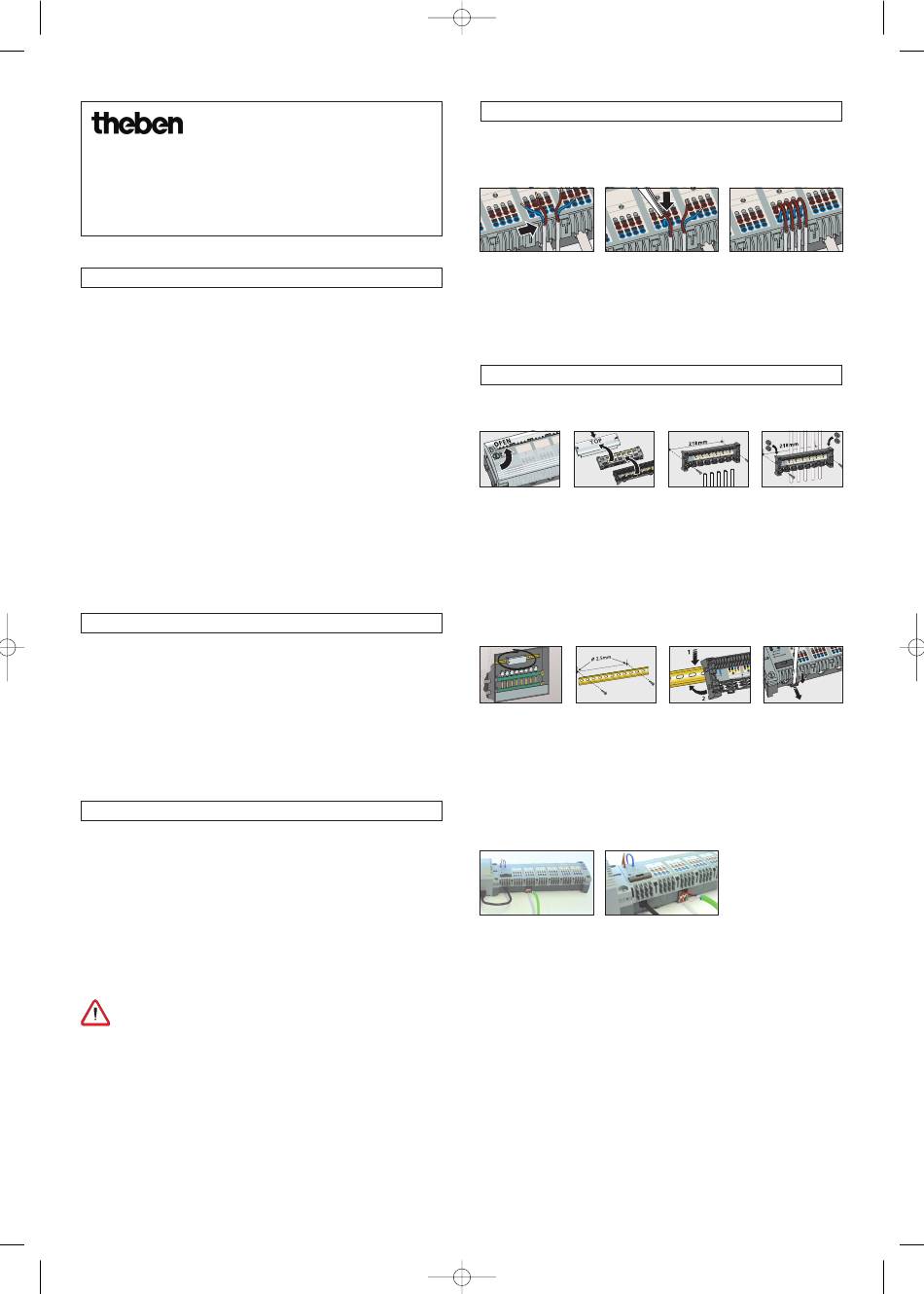

Operating Instructions
for the Heating Actuators
HMT 6 and HMT 12 KNX
for use with heat circulation/distribution systems
to control thermal actuators
1.0 Application and description
The system consists of an HMT 6 or HMT 12 device, the room thermo -
stats as well as the actuators. Both are used in residential applications as
well as various types of service buildings and facilities. Both heating
actuators can optimize the effectiveness of room thermostats used with
thermal actuators. They are suitable for installation in heat circulation/
distribution systems and are equipped with Triacs to ensure silent swit-
ching operation.
Features of HMT 6/12
• Easy wiring of actuators (24 V).
• Connection of up to 13 actuators.
• The unit can be mounted directly to the wall or attached on the
mounting bracket.
• Easy installation by using the unique Spring Clamp Terminals and
color-coding minimizes the installation and setup time tremendously.
• The operation indicators inform the user about the operating voltage
and the condition of the fuse.
2.0 Electrical connections
Both routing and connecting up the bus cable as well as installation
work must be carried out in accordance with the applicable regulations
and guidelines of DIN/ VDE, as well as with the KNX Handbook from
ZVEI/ZVEH. The work may only be carried out by qualified electricians
with appropriate KNX training. National norms and the applicable safety
regulations shall be observed. Any changes made to the device will inva-
lidate the guarantee.
3.0 Safety Instructions
Modifications or changes to this equipment are only permitted after the
manu facturers approval. The manufacturer does not accept liability for
damages arising from misusing HMT 6 and HMT 12.
Authorized specialists
Installations of electrical systems shall only be carried out by trained,
qualified specialists in accordance with the national, valid regulations
and in compliance with the ordinances stipulated by the local power aut-
horities These instruction may be sucject to technical alterations.
Sources of danger
• Before opening the basis always switch the system off.
• To clean the unit use a dry towel only.
• Never clean the unit with water or other solvents (e.g. spirit, acetone).
In case of emergency
• Immediately remove the plug from the mains.
28.07.2009 9:45 Uhr Seite 1
310 987 01
4.0 Network connection / Connection of actuators
• Each actor requires its own connection to the main power supply.
• Possibility to connect up to a maximum of 13 actuators to the basis.
Press the wires into the Insert die end of the lines
cable grip so that the sheath into the Spring Clamp
is flush with the top edge. Terminals. Observe the color
coding of the connections.
5.0 Installation
Mounting on the wall
To lift the trans- Prepare the device
parent cover from for installation by
the junction unit
seperating all pie-
turn the screws.
ces.
Installation on mounting bracket
Simple installation
Attach mounting
on mounting bra-
bracket using the 2
cket (EN 50022).
screws of the deli-
very contents
KNX connection
Insert both ends of the KNX Slide the terminal into the
cable into the KNX terminal. bus connection on the device.
A maximum of 4 actuators
can be connected to each
channel.
6
5
4 ramm C 2
3 Heizprog
2 6
1 ramm C 1
Heizprog 5
230V AC 4 ramm C 2
3 Heizprog
2
1 ramm C 1
Heizprog
230V AC
Install the base unit
To allow wiring to
directly onto the
be routed behind
ø
install the base unit
wall ( for screws
with spacers.
2,5 mm).
Clip the base unit
To remove the base
onto the mounting
from the rail, use a
bracket. screwdriver as
shown.
