IFYIL TROY PLUS User Manual

Hydro pellet stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

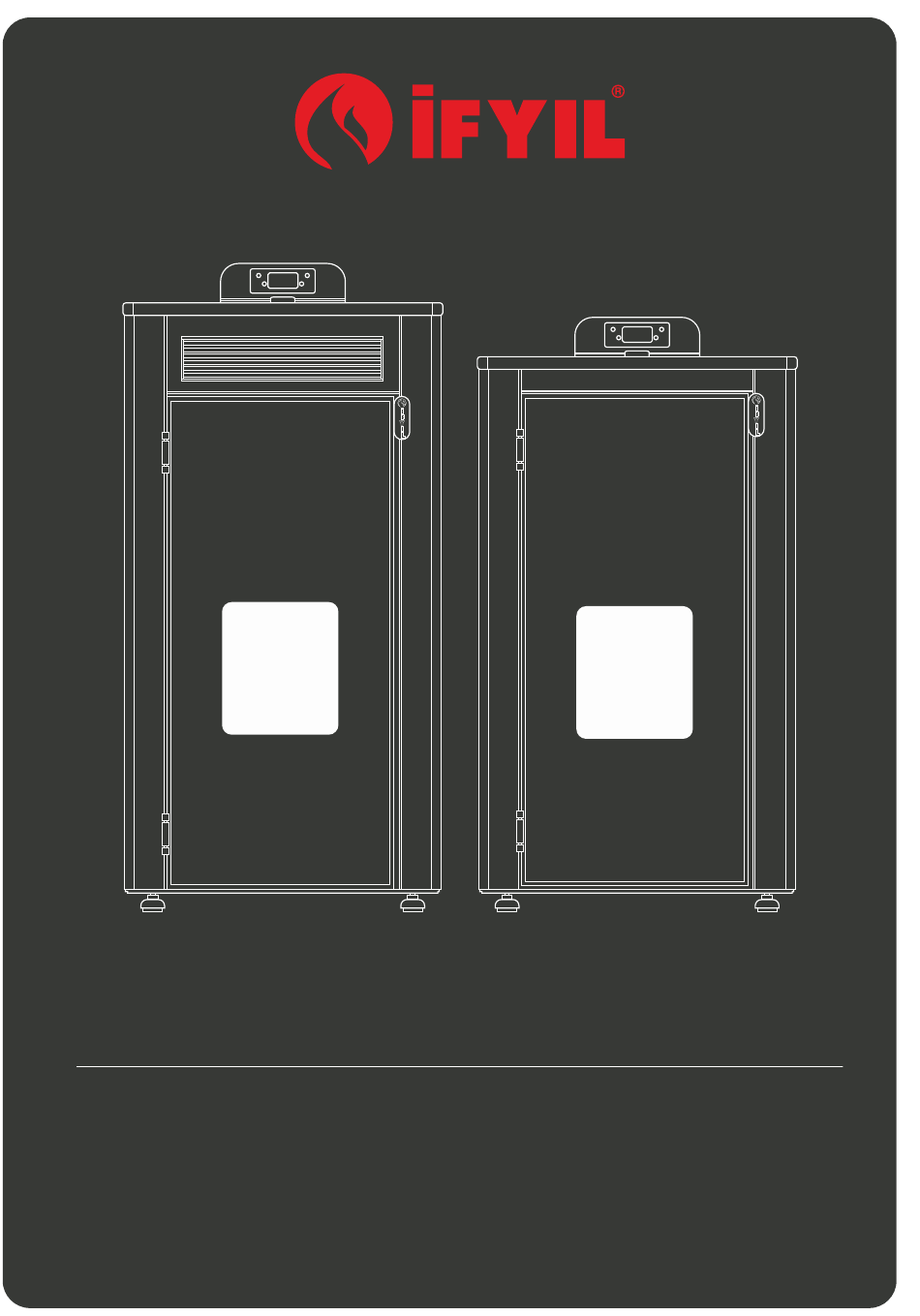

FREEDOOM
TROY
PLUS
PLUS
Hydro Pellet Stove
USERGUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TROY PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for IFYIL TROY PLUS

Summary of Contents for IFYIL TROY PLUS

  • Page 1 FREEDOOM TROY PLUS PLUS Hydro Pellet Stove USERGUIDE...
  • Page 2 İFYIL TERMO İKLİMLENDİRME SAN. ve TİC. LTD. ŞTİ. CONTACT INFO Web Site: www.ifyil.com.tr Phone: +90 (850) 346 0 362 Fax: +90 (362) 266 94 43 E-mail: info@ifyil.com.tr Adress: Kavak Organize Sanayi Bölgesi 3. Cad. No.11 Kavak/Samsun/TÜRKİYE...
  • Page 3 1- IMPORTANT NOTICE 1-1 General Safety Warning 1-2 Operating Warnings 2- FUEL INFORMATION 3- TECHNICAL SPECIFICATIONS 4-MAIN PARTS AND DIMENSIONS 4-1 Model: Troy Plus 4-3 Model: Freedoom Plus 5- INSTALLATION 5-1 Operating Environment 5-2 Electrical Connections 5-3 Plumbing Connections 5-4 Ventilation And Air Flow...
  • Page 4 7-1 Model: Troy Plus 7-1-1 Information Menu 7-1-2 User Menu Screen 7-1-3 Chrono Setup Menu 7-2 Model: Freedoom Plus 7-2-1 Information Menu 7-2-2 KUser Menu Screen-1 7-2-3 Chrono Setup Menu 7-2-4 User Menu Screen-2 7-3 Error Codes 8- OPERATING 9- FUEL CALIBRATION...
  • Page 5 So, please read this userguide carefully before starting to use our stove and keep it as a reference in any case. This userguide; - Troy Plus - Freedoom Plus product includes. Information This symbol high lightens the significant details for correct usage of stove.

  • Page 6: Important Notice

    • The product should be installed in accordance with the legislation of the country in which it will be used and the necessary safety precautions should be taken. Otherwise IFYIL will not accept any responsibility. • This is a pellets stove. Please only use wood pellets as fuel.

  • Page 7: Operating Warnings

    1-2 Operating Warnings • Powersupply should be used during longterm power outages. • Assembly of İFYIL pellet stoves and fireplaces; Electrical connections and installation should be done in accordance with the scheme. • Pellets stoves are for houses, office and internal places. •...
  • Page 8 • Automatic air pru er must be in the system. Customers not obeying the above requirements and schemas cannot claim any right for any problem. In any case, contact your dealer or IFYIL.

  • Page 9: Fuel Information

    2- FUEL INFORMATION Wood pellets are manufactured by hot-extruding compressed sawdust which is produced during the working of natural dried wood. The compactness of the material comes from the lignin which is contained in the wood itself, and allows the production of pellets without the use of glues or binders.
  • Page 10 Tel. +90 850 346 0 362 Manufacturer: iFYlL TERMO iKLiMLENDiRME SAN. Tic. LTD. STi. www.ifyil.com.tr Kavak OSB 3. cad. No: 11 Kavak/Samsun/TURKEY info@ifyil.com.tr ( * ) PM = par�culate ma�er, OGCs = organic gaseous compounds, CO = carbon monoxide, NOX = nitrogen oxides ( **) Only required if correc�on factors F(2) or F(3) are applied...
  • Page 11 Tel. +90 850 346 0 362 Manufacturer: iFYlL TERMO iKLiMLENDiRME SAN. Tic. LTD. STi. www.ifyil.com.tr Kavak OSB 3. cad. No: 11 Kavak/Samsun/TURKEY info@ifyil.com.tr ( * ) PM = par�culate ma�er, OGCs = organic gaseous compounds, CO = carbon monoxide, NOX = nitrogen oxides ( **) Only required if correc�on factors F(2) or F(3) are applied...
  • Page 12 Measured Values Technical Data Troy Freedoom Plus Plus Fuel consumption (Min.- Max kg/h 1,89–5,25 1,05-3,5 Maximum Operating tempera- Minimum Maximum working pressure Test pressure Boiler water volume Chimney pull required 12 + 2 Fuel tank capacity kg-lt 32–53 25–42 Weight Dimensions (W X D X H) 602x738x1227 602x738x1129...
  • Page 13 4- 8. MAIN PARTS AND DIMENSIONS 4-1 Troy Plus Dimensions...
  • Page 14 4-2 Troy Plus Parts Description Outher panels Hot air blower (ambient) Top cover Fuel tank cover Control panel Motherboard interference cover Fuel tank intervention cover Service intervention cover Combustion air intake (ø 60 mm) On/Off Chimney outlet (ø 100 mm) Circulation pump Hot water outlet (1”))
  • Page 15 4-3 Freedoom Plus Dimensions...
  • Page 16 4-4 Freedom Plus Parts Description Outer panels Top cover Fuel tank cover Control panel Motherboard interference cover Fuel tank intervention cover Service intervention cover Combustion air intake (ø 60 mm) On/Off Chimney outlet (ø 100 mm) Circulation pump Hot water outlet (1”) Cold water inlet (1”) Heat exchanger connections Pressure gauge...

  • Page 17: Installation

    5-INSTALLATION • This stoves product for houses, offices and internal places. • Pellet stove should not be installed in areas such as balconies, bathrooms, warehouses. In case of use outside of the interior, our company accepts no responsibility for the problems related to heating. •...

  • Page 18: Electrical Connections

    • If the base where the stove is to be installed is made of flammable materials. If the stove is put on flammable material, suitable isolation must be done. • Please keep away heat sensitive materials from stove (flammable, explosive etc.). 5-2 Electrical Connections First insert the power cable into the back of the stove, then insert the cable outlet.

  • Page 19: Plumbing Connections

    Plumbing Connections * Example schema - 1 F İ * Example schema - 2 F İ...
  • Page 20 * Example schema - 3 F İ * Example schema - 4 F İ...
  • Page 22 5-4 Ventilation And Air Flow • In the room where the stove is installed, there should be enough air to allow regular combustion. • The location of stove fresh air inlet must be provided. • It is recommended that the stove should be connected to an environment (external environment) where the air suction pipe can be continuously flowing clean air with hermetic pipe.
  • Page 23 •The pellets stove should be mounted as close to the chimney as possible (chimney connection should be short). •Chimney cap should be used to prevent the flow into the chimney flue repercussions of windy weather and rain. •Concrete blocks are affected by temperature changes, concrete flat roof which is in direct contact with the air must be absolutely isolated.
  • Page 24 5-7 Suitable Shapes Of Chimney The remaining section of the chimney outside the home, it must be insulated. The smoke in the event of an electrical failure of your stove with a natural drive capable throw out the chimney must be applied. isolation isolation Figure 5.2 Suitable chimney shapes...
  • Page 25 Figure 5.4 Suitable chimney shapes HOUSES AND OFFICES NOT OBEYİNG THE ABOVE MENTIONED STANDARDS ARE POTENTIAL FOR FIRE AT ANYTIME AND CARBON MONOXIDE (CO) GAS LEAKAGE. PLEASE FOLLOW THE ABOVE MENTIONED INSTRUCTİONS! BY SO, CLIENT ACCEPTS IN ADVANCE THAT IN SUCH CASES MANUFACTURER DOESN’T HAVE ANY RESPONSIBILTIES CLIENT NOT FULFILLING ABOVE MENTIONED REQUIREMENTS IN SCHEMAS CANNOT CLAIM ANY RIGHT OR...
  • Page 26 6- MAINBOARD CONNECTION SCHEMAS...

  • Page 28: Control Panel

    (MB100/IN 5, NG01/IN 3) can be removed and the room thermostat can be connected instead. In this case, the value "P75" specified in the User menu must be 4. (For Troy Plus “P70”) 7- CONTROL PANEL 7-1 Model: Troy Plus...

  • Page 29: Information Menu

    Function Exit the menu / Previous menu To switch the stove on or off (hold it for 3 seconds), to reset the fault (hold it down for 3 seconds) Pressing 1 times opens the User menu 1 screen, when pressed for 3 seconds, User menu 2 is opened, used to confirm the entered values.
  • Page 30 7-1-2 User Menu Screen Powers From this menu, the combustion powers can be adjusted. Combustion powers can be selected manually or automatically. In the first case, the system selects the burning power. In the second case, the user selects the desired power. The left side of the display shows the burning pattern (A = automatic combustion, M=manual burning) and the power at which the system operates.
  • Page 31 7-1-3 Chrono Setup Menu This menu allows to set the Ignition-Extinguishing method and time intervals. Method Allows the selection of the desired method or disables all programming. Disable • Use the P3 button to enter the method menu in the timer Daily menu.
  • Page 32 7-2 Model: Freedom Plus The main screen displays: Time and date, Chrono active, Combustion power, Status / Error code, Instantaneous water temperature, Set water temperature, summer / winter mode Fuction Exit the menu / Previous menu To switch the stove on or off (hold it for 3 seconds), to reset the fault (hold it down for 3 seconds) Pressing 1 times opens the User menu 1 screen, when pressed for 3 seconds, User menu 2 is opened, used to confirm the entered...
  • Page 33 7-2-1 Visualization Display Description T. Exhaust flue gas. Exhaust flue gas temperature Boiler T [ C] Boiler Temperature T. Room. [ C] Room Temperature Fan [rpm] Speed of the Exhaust flue gas 1250 Auger [s] ON time of the Auger Service [h] 2000 Maintenance Time Clean [h]...
  • Page 34 Mode It allows you to select the mode of your choice or to disable Disable all the set programmes. Daily • Enter modify mode with the key P3 Weekly • Select the mode of your choice (Daily, Weekly or Weekend) Weekend •...
  • Page 35 Auger Calibration This menu allows you to modify the factory set values of speed or the On times of the auger. You can set the values in a range between –7÷7. The factory value is 0. Fan Calibrqation This menu allows you to modify the factory set values of the Combustion Fan speed.
  • Page 36 7-3 Error Codes System Description Code Phase Boiler water temperature too high error (This Blok Er01 alarm is activated when the system is off.) Prosestat error Blok Er02 Blok Er03 Extinguishing at low flue temperature High water temperature extinguishing Blok Er04 High chimney temperature extinguishing Blok...

  • Page 37: Fuel Calibration

    "on" . The pellet feed will then be activated and the pellet will feed continuously for 5 minutes (for Troy Plus 3 minute). At the end of this period, perform the loading again. Weigh the pellet at the end of this 10 minute (for Troy Plus 6 minute) loading.
  • Page 38 The user must not change any parameters except these two parameters within the calibration process. Otherwise, the user is responsible for the loss of efficiency. It is recommended that all these operations be performed by the service. Troy Stadard Troy Plus Freedoom Std Freedoom Plus Gr/10dk Gr/6dk Gr/10dk...

  • Page 39: Led Colour

    10- PUMP WARNING LAMP In case of using frequency controlled wilo pump in the product LED COLOUR MEAN DETAILED DESCRIPTION The pump is operating normally Normal Operation Solid Green light Pump will try to take the air in the system for 10 minutes. The pump then this process will not work if the maximum speed;...

  • Page 40: Maintenance And Cleaning

    When cleaning your stove; Do not use Flammable, explosive, flammable etc chemicals that may pose a hazard. Clean the glass of your stove with a damp, soft cloth and a surface cleaner. Troy Plus 5. Grill tray 1. Top Cover 6. Ashtray 2.
  • Page 41 Freedoom Plus 5. Grill tray 1. Top Cover 6. Ashtray 2. Turbulator arms 7. Cleaning Cover 3. Front cover (glass) 4. Combustion chamber cover...
  • Page 42 Combustion Pot Cleaning; When cleaning the combustion Pot, open the front cover (3) and the combustion • chamber cover (4). • Move the grill table (5) / (5A) back and forth. • Visually inspect the combustion crucible for slag build-up. Remove any slag. When cleaning the crucible, make sure it is completely cold.
  • Page 43 • After 2000 hours of operation, please call the technical service for stove maintenance. • Do not spray cleaner on painted parts or on fire gate seals. The display shows the message “Clean” per 200 hours and the system gives out an acoustic signal periodically.

  • Page 44: Problems, Causes And Solutions

    12- PROBLEMS, CAUSES and SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTIONS Make sure that the main switch in Electrical failure or lack of work position Stove does not work. The fuse has blown. Change this fuse The pellets feeder is Fill the pellets tank. empty.
  • Page 45 Smoke extractor engine may be damaged. Call the technical service The pellets could not Check the gutters clean and damp or appropriate. clear the air duct of the combustion bowl. Baca fanını besleyen motor Duman baca fanı bozulmuş olabilir. Call the technical service tahliye motoru Elektronik kart arızalı...
  • Page 46 Service Calls For technical service calls, please visit www.ifyil.com.tr Any right cannot be claimed due to the changes or modifications or wrong use of spare parts. IFYIL original spare parts must be used for any permitted change of spare part.

  • Page 47: Certificate Of Warranty

    Kavak OSB Kavak/ Production Date: SAMSUN/TÜRKİYE Warranty Time: Two Years Phone: +90 (362) 266 94 43 Max Reperation Time: Twenty Working Days Fax: +90 (362) 266 94 43 info@ifyil.com.tr E-Mail: Authorized Signature&Stamp IMPORTER / DEALER CUSTOMER Name: Name Surname: Address:...

  • Page 48: Warranty Conditions

    WARRANTY CONDITIONS The warranty period starts from the delivery date of the product and is two (2) years. The product is fully in warranty, except for the glass and cast parts. In case the product is found to be defective, Article 11 of the Law No. 6502 on Consumer Protection;...
  • Page 49 Product will out of Warranty when installation/any change made by non authorised personnel or services. Warranty does not covers any damages due to set up ifyil pellet stoves in open air areas, wet places, humid places or any place which directly related to all these places.
  • Page 53 “Time to heat up most efficiently” WE LOVE WORLD FOUR PELLET POWERFUL SYSTEM ADVANTAGES CENTRAL STYLISH DESIGN HEATING HOT MODERN HEATING WATER STOVE & SOLUTIONS FIREPLACE www. .com.tr...
