Vanish 8 Touring

User Manual

Version: 2.2

Updated: 2023-7-10

Table of Contents

Need help?

Do you have a question about the Vanish 8 Touring and is the answer not in the manual?

Questions and answers

Summary of Contents for ROE Vanish 8 Touring

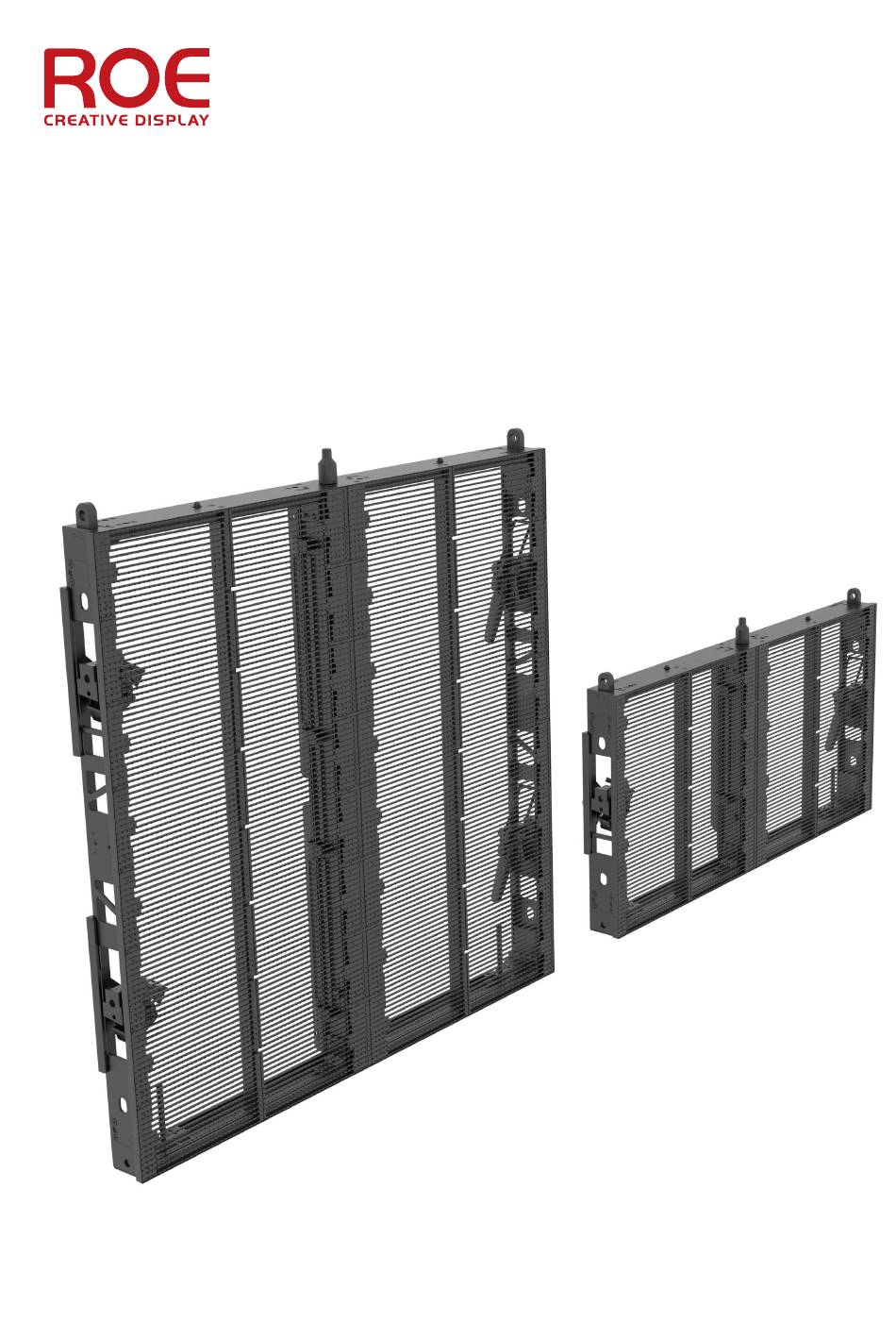

Page 1 Vanish 8 Touring User Manual Version: 2.2 Updated: 2023-7-10...
Page 2: Copyright
ROE. Warranty Policy The standard warranty period for the Products is 2 years after shipment from ROE Visual for rental applications and 3 years for fixed install applications. The contract will specify the application. This warranty includes all accessories, spare parts, and components shipped at the time of the original purchase.
Page 3: Contact Information
Software or accessory malfunction. m. Any other cause not related to a defect in materials or workmanship. Contact Information If you have any questions about this document, please feel free to contact with ROE technical service team. ROE CHINA ROE EUROPE...
Page 4: Table Of Contents
6.2 Curving Connection & Horizontal Connection ................26 6.3 Stacking on dolly ........................28 7 Quick-start Guide ..........................31 7.1 Hanging System ........................31 7.2 Stacking System ........................34 V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 4 / 46...
Page 5 8.2 Data Cabling ..........................39 8.3 Others ............................39 9 Control System ..........................40 10 Service Manual ..........................41 10.1 Cleaning Tiles ......................... 41 10.2 Rear Service ..........................42 V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 5 / 46...
Page 6: Safety
All components should be kept dry, clean, lubricated (only of recommended), coated properly, and otherwise maintained in a manner consistent with the part design. ROE products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the loading capacity.
Page 7 LED when the LED heats up too aggressively. There fore，ROE recommends that if you have not used a screen for a prolonged time and/or the screen was stored in a very humid environment, you slowly heat up the screen.
Page 8: Safety Instructions
(9) Please do not use the product near the sea and / or other places with corrosive environment. (10) The installation must be performed by authorized and qualified technical personnel only. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 8 / 46...
Page 9: Consignes De Sécurité
Les produits ROE doivent être utilisés conformément à leur conception et inspectés régulièrement pour vérifier leur sécurité, leur usure, leur déformation, leur corrosion et toute autre circonstance pouvant affecter leur capacité...
Page 10 LED contient de l'humidité, il y a un risque d'endommager la LED lorsque la LED chauffe de manière trop agressive. Par conséquent, ROE recommande que si vous n'avez pas utilisé un écran pendant une période prolongée et / ou que l'écran a été stocké dans un environnement très humide, vous chauffez lentement l'écran.
Page 11: Consignes De Sécurité
(9) Veuillez ne pas utiliser le produit près de la mer et / ou d’autres lieux exposés à un environnement corrosif. (10) L'installation doit être effectuée par du personnel technique autorisé et qualifié. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 11 / 46...
Page 12: General Introduction
General Introduction 2.1 Features The Vanish 8 Touring (V8T) complements the Vanish series of transparent LED panels. With a transparency of 50%, this LED panel offers outstanding performance in outdoor environments through its high-brightness and excellent viewing angles. 2.1.1 Outdoor Touring Solution The V8T panels offer an outdoor touring solution in a transparent panel design.
Page 13: Specifications
-20 °C to 45 °C / -4 °F to 113 °F Storage Temperature -40 °C to 60 °C / -40 °F to 140 °F Humidity 10 – 90% RH V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 13 / 46...
Page 14: Installation Requirements
3.1 Mechanical Requirements 3.1.1 Weight Do not underestimate the weight of tiles and frames. Please make sure the floor or truss on which ROE tiles and frames will be installed is capable of handling five times the complete weight of tiles and frames.
Page 15: Components
Figure 4- 2. V8 Touring Parts Information Parts List: Guide Pin Data Frame Latch Curving Lock Bottom Lock Data Power Out Side Lock Power In V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 15 / 46...
Page 16: Module
Figure 4- 3. V8 Touring _ Full _ Module Dimensions Dimensions: 497 x 119 x 3.6 mm Figure 4- 4. V8 Touring _ Half (H)_ Module Dimensions V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 16 / 46...
Page 17: Power Box
Figure 4- 5. V8 Touring _ Full _ Power Box Dimensions Dimensions: 83 x 458 x 91 mm Figure 4- 6. V8 Touring _ Half (H)_ Power Box Dimensions V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 17 / 46...
Page 18: Accessories
Weight: 10.8 kg Dimensions: 782.3 x 495.6 x 197.8 mm Stacking Guard Bar SAP: 315004-00132 Weight: 1.51 kg Dimensions: 770.0 x 40.0 x 95.2 mm V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 18 / 46...
Page 19: A Complete Stacking System
Figure 5- 1. V8 Touring Stacking System Note: The stacking system should be used for each width (per meter) of the V8 Touring. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 19 / 46...
Page 20: Cables
Neutrik _ Neutrik Connectors Connect neighboring tiles (vertical). Data Cable_1.50m SAP: 208004C1063 Weight: 0.21 kg Neutrik _ Neutrik Connectors Connect tiles in neighboring columns. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 20 / 46...
Page 21 5.5.3 Data Cable Plug in the data cable and you feel a “click”. Press the button on the socket and plug the data cable out. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 21 / 46...
Page 22: Dolly
Dimensions: 770.0 x 40.0 x 95.2 mm Note: A pair of stacking guard bar should be provided when stacking 2 layers of height tiles without a V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 22 / 46...
Page 23 Its dimensions are 1117.1 x 790.0 x 2297.8 mm. (See figure 5-6 below) Figure 5-5. V8T Stacking Guard Bar Dimensions Figure 5-6. Stacking 2-layers tile Dimensions V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 23 / 46...
Page 24: Installation Of V8T
Step 2: Insert the guide pin and two vertical locating pins of the lower frame into the corresponding holes of the unlock frame. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 24 / 46...
Page 25 Step 3: Pull the handle down and then move the handles outward to the both sides, and finally push up into slot. Locking Status V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 25 / 46...
Page 26: Curving Connection & Horizontal Connection
Step 2: Holding the handle while press the button and then move them up to release the side lock. Press the button Unlock Status V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 26 / 46...
Page 27 Note: There are three locating pin slots on the angle plate. See the red circle on the angle plate below. locating Pin Slot Angle Plate Flat Concave 10° Convex 10° Over View V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 27 / 46...
Page 28: Stacking On Dolly
Note: Press and hold the side bar of the panel frame while pulling out the button, and then make the claw to fixed it. Button Claw Block V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 28 / 46...
Page 29 1. Assemble the dolly stackers and the first layer of tiles. Move the handles outward to the both sides and then push down into the slot. Unlock Status Locking Status V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 29 / 46...
Page 31: Quick-Start Guide
(2) Unlock the vertical lock and then fix the 1W hanging bar on each frame and then use the belt to through the shackles of all the hanging bar to lift the all frames and tile from the dollies. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 31 / 46...
Page 32 (4) After locking the vertical lock between the frames and unlock the vertical lock between the frame and dolly, lift the frame again and repeat the above steps until all frames and screens are installed. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 32 / 46...
Page 33 2. The V8 Touring half tile can be assembled with full tiles, as shown in the picture below. V8 Touring_Half (H)_1000X500mm V8 Touring_Full_1000X1000mm V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 33 / 46...
Page 34: Stacking System
(1) Take the stacking accessories from the flight case and put them at the target place. Note: The guide pin of base truss should be configured at the correct position. (2) Assemble base bars with base trusses. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 34 / 46...
Page 35 (3) Install the first tile onto the base bar. The tile needs to be fixed with latches and guide pin on its bottom. (4) Put the rear truss onto the base truss. The base truss and rear truss should be used every row. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 35 / 46...
Page 36 (6) Lock the second panel with the base bar and the first panel by the bottom lock and side lock of the panel. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 36 / 46...
Page 37 2. If the height exceeds 1.5m, each base truss shall be provided with front and rear ballast. (8) Finish. Note: The max stacking height for V8 Touring series tiles is 6m. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 37 / 46...
Page 38: Cabling
If the voltage is 110V, one power cable can load 3 pcs V8 Touring tiles or 6 pcs V8 Touring half tiles. Back View Note: The number in cabling is in line with that of in cables. (See 4.3 Cables.) V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 38 / 46...
Page 39: Data Cabling
(2) The cascade control data cables should not be more than 100 meters. When it's over 100 meters, please switch to fiber cables. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 39 / 46...
Page 40: Control System
V8 Touring User Manual www.roevisual.com Control System ROE provides three different control systems: Megapixel VR Helios, Brompton Tessera and ROE Evision. For more information about system operation, please check the corresponding control system user manual. 1. ROE Evision Control System User Manual 2.
Page 41: Service Manual
It should never be dripping-wet. Use gentle pressure to wipe only the smudged areas. Immediately use a clean, dry microfiber cloth to dry the screen. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 41 / 46...
Page 42: Rear Service
V8 Touring User Manual www.roevisual.com 10.2 Rear Service 10.2.1 Needed Tools Rear Service Tool You can buy it from ROE or from the supplier. Phillips Screwdriver V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 42 / 46...
Page 43 Tighten it ② ① Note: 1. It is recommended to twist about 4 turns to keep the rear service tool from falling. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 43 / 46...
Page 44 Note: The middle bar of the rear service tool protects the operator from being bruised by the frame when pushing out the module. Step 5: Tilt the module at an angle to remove it. V8 Touring_Full_1000X1000_Over View V8 Touring_Half(H)_1000X500_Over View V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 44 / 46...
Page 45 Step 1: Assemble the repaired module from the front to the original position of the tile. Step 2: Tighten the two fixing screws with the Phillips screwdriver. V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 45 / 46...
Page 46 V2.1 Add Safety content in French. Phoenix Update Contact Information; Specifications; Accessories; Stacking on V2.2 Phoenix dolly; Control System; Cleaning Tiles V2.2 | 2023-7-10 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 46 / 46...
