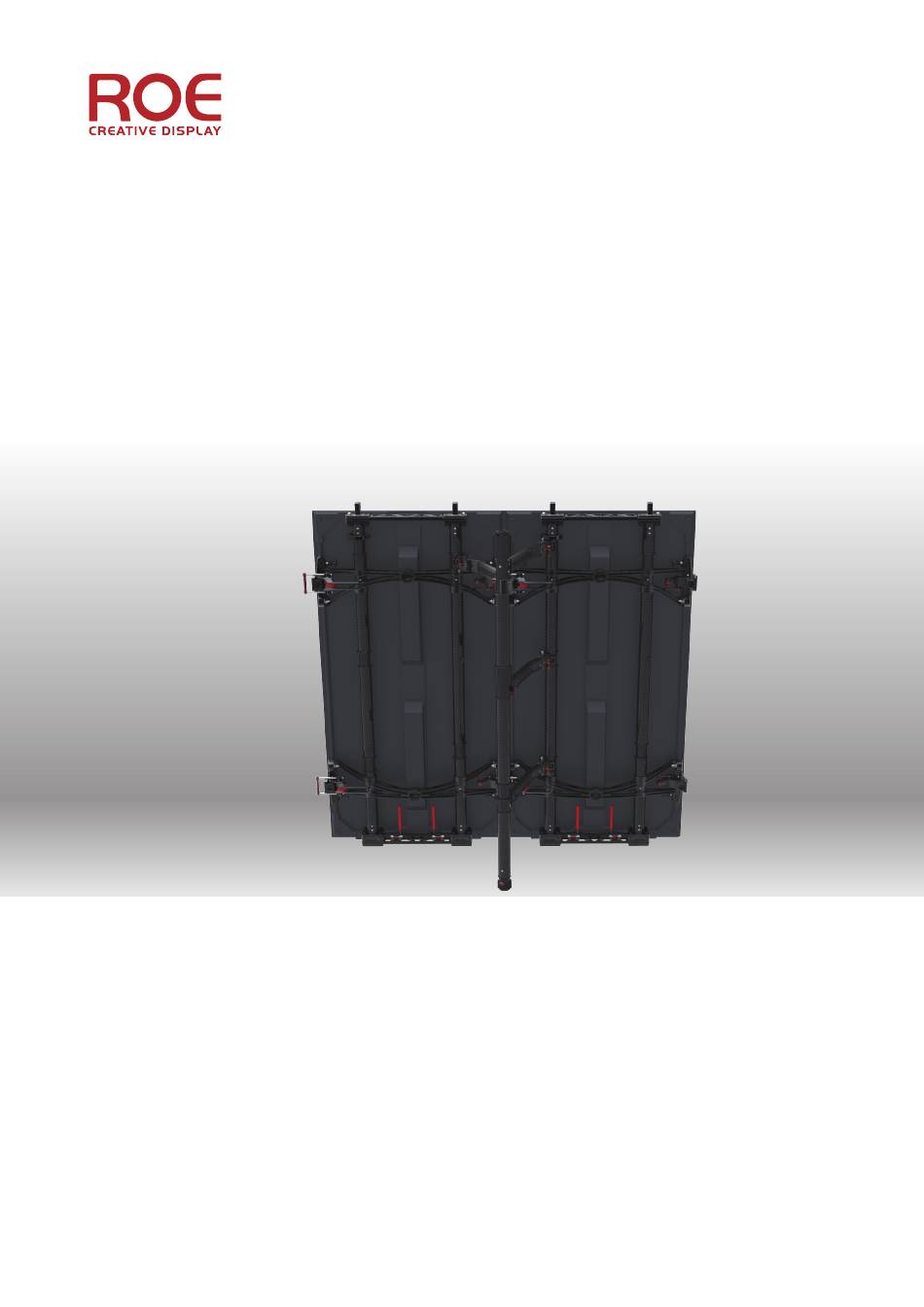

- Page 1 Air Frame User Manual Manual No. AF-180709 Version: 1.0 Updated: 9, July 2018.
- Page 2 ROE will provide both factory and on-site technical support when necessary during the warranty period. Following cases are not included: 1. If replacement parts required, customers should ship defective parts at their cost. ROE will ship replacement parts at our cost, during the warranty period.
-
Page 3: Table Of Contents
Air Frame Manual No. AF-180709 Contents 1. Safety Information ............................3 2. Usage ................................4 2.1 Frame and Bracing ..........................4 2.2 Side Lock ..............................6 2.3 Bottom Lock ............................7 2.4 Alternative Bracing ..........................8 2.5 Position Ladder ............................9 2.5.1 Bracing Position .......................... -
Page 4: Safety Information
Air Frame Manual No. AF-180709 1. Safety Information This product is for professional use only. It is not for household use. This product presents risk of severe injury if not used in the correct way. Before use, always visually inspect for damage. Do not use if damage is found. -
Page 5: Usage
Air Frame Manual No. AF-180709 2. Usage 2.1 Frame and Bracing Open Bracing position Total depth: 448mm Closed Bracing position Total depth: 120mm Clamps are opened and closed using the red actuator. Arms need to be positioned according to the desired configuration. - Page 6 Air Frame Manual No. AF-180709 To lock the bracing, move part A upwards and rotate clockwise until part A is locked into part B. To unlock the bracing, move part B upwards and rotate part A counterclockwise. Locked position...
-
Page 7: Side Lock
Air Frame Manual No. AF-180709 2.2 Side Lock The frame can be put in a +10 / +5 / 0 / -5 / -10 degree position. Also, any angle between +10 and -10 can be achieved by just tightening A to the correct position. -
Page 8: Bottom Lock
Air Frame Manual No. AF-180709 2.3 Bottom Lock The red levers need to be pulled backwards and moved sideways (outwards) to lock frames top to bottom. Make sure the red markings are not visible, otherwise frames are not locked. -
Page 9: Alternative Bracing
Air Frame Manual No. AF-180709 2.4 Alternative Bracing A keyhole lock is provided to connect with ROE standard rear bridge stacking accessory. Placing clamps on the carbon parts is not allowed. To accommodate for this, a ring is positioned on the bracing’s upright. -
Page 10: Position Ladder
Air Frame Manual No. AF-180709 2.5 Position Ladder 2.5.1 B racing Position Bracing ladder is placed between frames. To install, click ladder clamps in the 3 slots. Click the arm in the top slots. Only use the steps in the ladder to climb the LED wall. -
Page 11: Transport Position
Air Frame Manual No. AF-180709 2.5.2 Transport Position To put in transport position, click ladder clamps in the 3 slots. Click arm in closed position... -
Page 12: Stacking System
Air Frame Manual No. AF-180709 3. Stacking System Bracing can also be used in a stacking configuration. +10, 0. -10 degree Angle is set with both side locks and base stands. Height is set with adjustment rings. -
Page 13: Rigging System
Air Frame Manual No. AF-180709 4. Rigging System Bracing at the bottom Allowable wind [m/s] / height Height Max. allowable (3-sec gust) [m/s] Height Max. allowable (3-sec gust) [m/s] 10 frames 20.00 6 frames 21.71 8 frames 20.76 5 frames 22.98... -
Page 14: Safety During Cabling
Air Frame Manual No. AF-180709 5. Safety during Cabling Connection point for safety hook. Where ladder and bracing arm connect. -
Page 15: Brackets
Air Frame Manual No. AF-180709 6. Brackets 6.1 Hanging Bracket Locked position Unlocked position 6.2 Coupler Bracket The coupler bracket can only be used with the 2 wide hanging brackets. To install, the shackles on the header bars need to be removed. -
Page 16: Dolly And Storage
Air Frame Manual No. AF-180709 7. Dolly and Storage LED should always face inside! 1537mm high Pay attention when moving double stacked frames up a ramp. See safety label on the dolly! 2862mm high Double stacked dollies are only for storage. -
Page 17: Storage And Truck Pack
Air Frame Manual No. AF-180709 8. Storage and Truck Pack For storage on site, the stackers can also be used to neatly stack the dolly floors. Side covers can be stored on an empty dolly floor. EU mega box trailer 44 dollies, frames double stacked 506.88 sqm... -
Page 18: Parts
Air Frame Manual No. AF-180709 9. Parts Full Frame Full bracing 1200 x 600mm 4.2 kg 8 kg Half Frame Half bracing 600 x 600mm 5.2 kg 2.5 kg 1-Wide bracket: 6.4kg 2-Wide bracket: 12.6kg Coupler bracket: 30kg... - Page 19 Air Frame Manual No. AF-180709 Full dolly: 1150 x 1277 x 1537mm (with stackers) 504kg 1150 x 1277 x 1429mm (no stackers) 490kg Empty dolly: 85kg Dolly Stackers:14kg/set Baby arm: 640 x 50 x 60mm 0.875kg Stacker base truss: 1W base stand:...
-
Page 20: Contact Information
Air Frame Manual No. AF-180709 10. Contact Information If you have any questions about the User Manual, please feel free to contact with ROE technical service team. ROE China ROE Visual Co., Ltd. No.3 Floor, Build 7, Zhong Yun Tai Technology Industrial Park,...
