Pytes WD02 Quick Manual

Notice:
Please read this manual carefully before using the product. The content of this manual may change due to factors such as
product upgrades without further notice. Please use the actual product as standard and get the latest manual from Pytes
through any contact methods provided on this manual. Unless otherwise agreed, this manual is for informational purposes
only. No representations, information or recommendations in this manual are accepted for any kind of liability. No company
or individual may excerpt, reproduce or distribute any part (in part or in whole) of this document in any form without written
permission.
1 Device Introduction

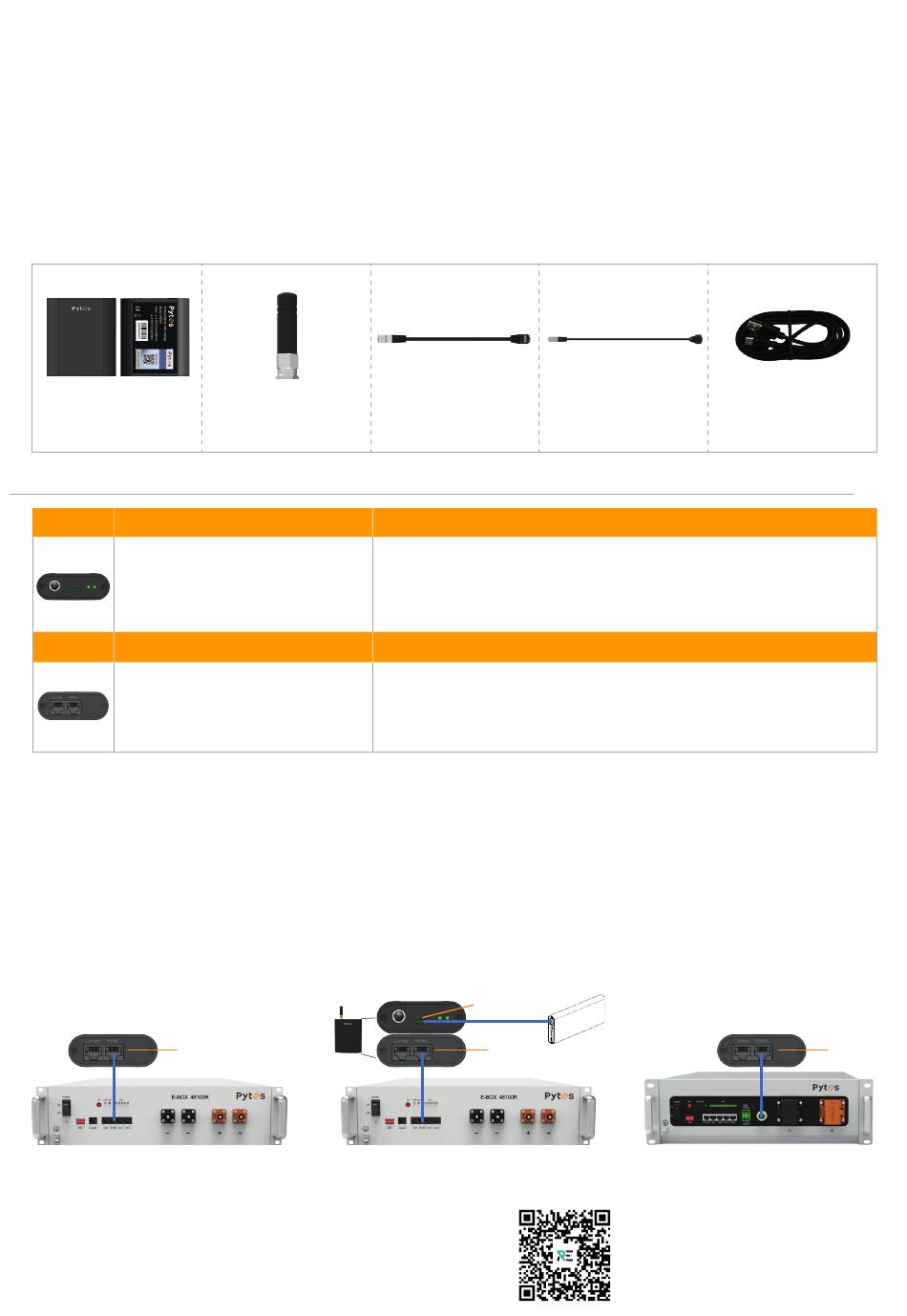

1.1 Packing List
WiFi Dongle
Dimensions: 72.1×88×25.9mm
RJ45 Communication Port
Type C Power Port (4.5V-5.5V)
1.2 LED Light and interfaces Instructions
Light
A/B
Indicating states of WiFi Dongle
Interfaces
RJ45 Port, RS232 Protocol.
Connect to PC/Laptop for
manufacturers or professional
engineers to debug or service
2 Installation and Registration
2.1 Installation
Twist the antenna onto the interface of the WIFI Dongle. Connect WIFI Dongle to RS485 port of battery with communication
cable, RJ45 terminalx2, standard pin sequence.
Battery with WiFi interfaces can be connected with the optional communication cable (RJ45-4P Aviation Female), as shown in
Table 3
Inverters i.e. DEYE, SRNE, GROWATT, Voltronic, Magarevo will not be able to communicate with battery when WIFI Dongle is
connected to battery due to occupation of the RS485 port.（Dips of these brands can't be used）
WIFI Dongle will be powered by battery through RS485 port of E-Box 48100R D which is released from Dec. 2023. An external
power source is required to power the WIFI dongle through Type C port of the WIFI Dongle when working with an earlier
E-Box 48100R version. Please contact Pytes if you are unsure of your battery version before purchase WD02.
RS485
Table 1 WiFi module connection（R-C-MCU-V2.0）
powered by battery
2.2 Registration
Scan the QR codes below with your smart phone to install the APP
WiFi Dongle WD02 Quick Guide
Antenna
Description
Console
Table 2 WiFi module connection（R-C-MCU-V1.0）
powered by External Device
CAT6
Optional Communication Cable
Communication Cable
RJ45 to P4 Aviation Female
220mm
For batteries with P4 Aviation
Two Lights on for 2 Seconds: WD02 WiFi powered on
A Light Slow Flicker: Network connecting
Two Lights Flash Alternately for 4 seconds: Network connect failed
Two Lights Quick Flicker Three Times: Network Connection success
Two Lights Flash Irregularly: WD02 Working Normally
RJ45 Port, RS485 Protocol, Communication with batteries
Type-C
RS485
Communication Cable
Males WiFi Ports.
Status
RS485
Table 3 WiFi module connection powered by
battery with WiFi Aviation Female
Type C to USB
RS485
