Summary of Contents for Pytes LSW-5

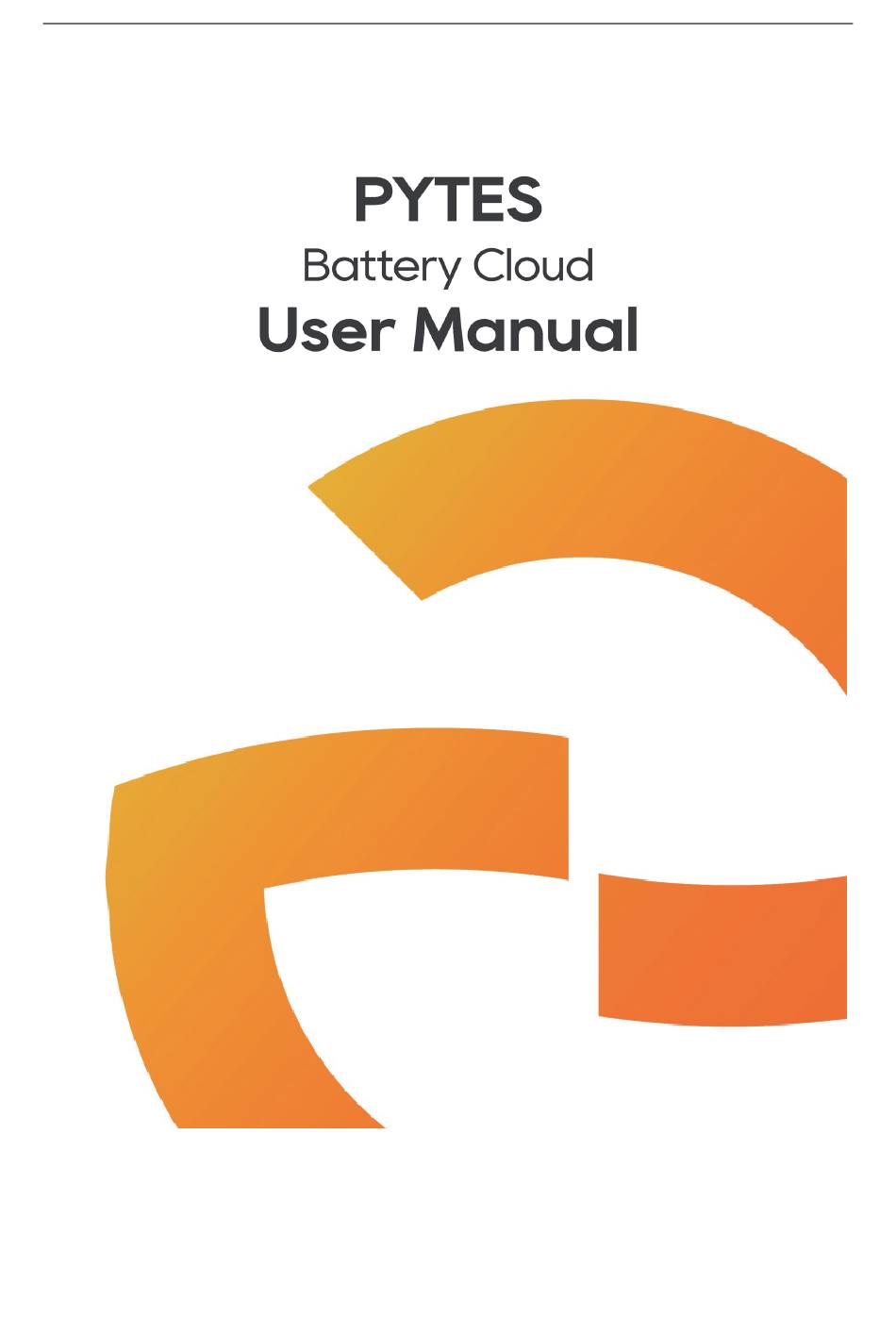

- Page 1 PYTES Battery Cloud Version 1.1 Date: 2025-1-7 Information Subject to Change without Notice...
- Page 2 PYTES Battery Cloud This manual is suitable for the Pytes batteries with WiFi function, either through external WiFi Dongle LSW-5, or built-in WiFi Module. Applicable Battery WiFi Dongle V5 Series LSW-5 Pi LV1 Built-in WiFi Module. HV48100 The battery cloud supports both APP on smart phone and PC/Laptop.
- Page 3 Chapter 1. * Skip to Chapter 2 and 3, if battery comes with built-in WiFi. 1.1 Assemble Insert LSW-5 to battery communication interface as below. Warning: When Assemble or Disassemble the Dongle, Rotating the dongle is prohibited. Warning: Do NOT Remove Waterproof Plug.
- Page 4 PYTES Battery Cloud 1.2 Indicator Lights Lights Implication Status Description(All lights are single green lights.) 1.Light off: Connection to the router failed. 2.On 1s/Off 1s(Slow flash): Connection to the router Communication succeeded. with router 3.Light keeps on: Connection to the server succeeded.
- Page 5 PYTES Battery Cloud 1.3 Trouble Shooting Dongle Indicators Fault Description Fault Cause Solution READY 1.Connection 1.Check the connection between between dongle dongle and battery. Remove and Battery and battery loosen. install dongle again. Slow Communication 2.Battery doesn’t 2.Check battery communication...
- Page 6 PYTES Battery Cloud APP Setting and Guide Chapter 2. 2.1 Pair to Smart Phone Download SOLARMAN APP Scan the QR code with smart phone. Run SOLARMAN APP and click Register to create your account.
- Page 7 Log in and click Add Now then fill in basic information to create a plant. Add a Logger If it is a WiFi Dongle LSW-5 which comes separately from the battery, the Serial Number is printed on the WiFi Dongle.
- Page 8 PYTES Battery Cloud Network Configuration Make sure bluetooth and WiFi are on. Then to click Go to Configure to select the valid WiFi and input WiFi password. Please note 5G WiFi is not supported. Wait for a few minutes and Configuration will be automatically completed. Click...
- Page 9 PYTES Battery Cloud 2.2 View Battery Data Click icons following Steps 1, 2, 3 on below picture to view battery system data. following Steps 1, 2, 4 on below picture to view specific battery data. Device Parameters Page...
- Page 10 PYTES Battery Cloud Statistics Page Tick the boxes of Parameters that you wish to display. 2.3 Check Battery Alarm Information...
- Page 11 PYTES Battery Cloud 2.4 Authorize the Plant to Installer...
- Page 12 PYTES Battery Cloud WEB Setting and Guide Chapter 3. 3.1 Pair to e-Cloud (PC/Laptop) https://home.solarmanpv.com Access Register with email/phone number first if you don’t have an account. Log in. Click to add your Plant Fill in Basic Information...
- Page 13 PYTES Battery Cloud Add the WiFi Module Serial Number. If it is a WiFi Dongle LSW-5 which comes separately from the battery, the Serial Number is printed on the WiFi Dongle. If your WiFi Module is integrated in battery, you may find the WiFi Serial Number printed on a sticker on battery.
- Page 14 PYTES Battery Cloud Connect PC/Laptop to your Device WiFi and click Next Paste 10.10.100.254 to Browser...
- Page 15 PYTES Battery Cloud Input admin to both columns and Click on Login Click Quick Set, Input Local WiFi Password, then Save. Switch the PC/Lap WiFi Connection from Device to the local. Please note 5G WiFi is not supported.
- Page 16 PYTES Battery Cloud Back to Solarman Platform and click Next 3.2 View Battery Data It will take several minutes for the first time to display your system info. Click on 1, 2 to view Battery System information. Click on 1, 3 to view Specific battery information.
- Page 17 PYTES Battery Cloud Tick the boxes of parameters at Historical Data you wish to display. 3.3 Battery Alarm Information Click Alert...
- Page 18 PYTES Battery Cloud 3.4 Authorise the Plant to Installer Click Authorization Click Add Incidence Relation Input your installer account in the bar and click Search...
- Page 19 PYTES Battery Cloud Choose either option and click confirm. Done...
- Page 20 PYTES Battery Cloud Shanghai PYTES Energy Co., LTD No.3492 Jinqian Road, Fengxian District, Shanghai, China +86 21 57474761 ess_support@pytesgroup.com The right of interpretation belongs to Pytes Energy...
