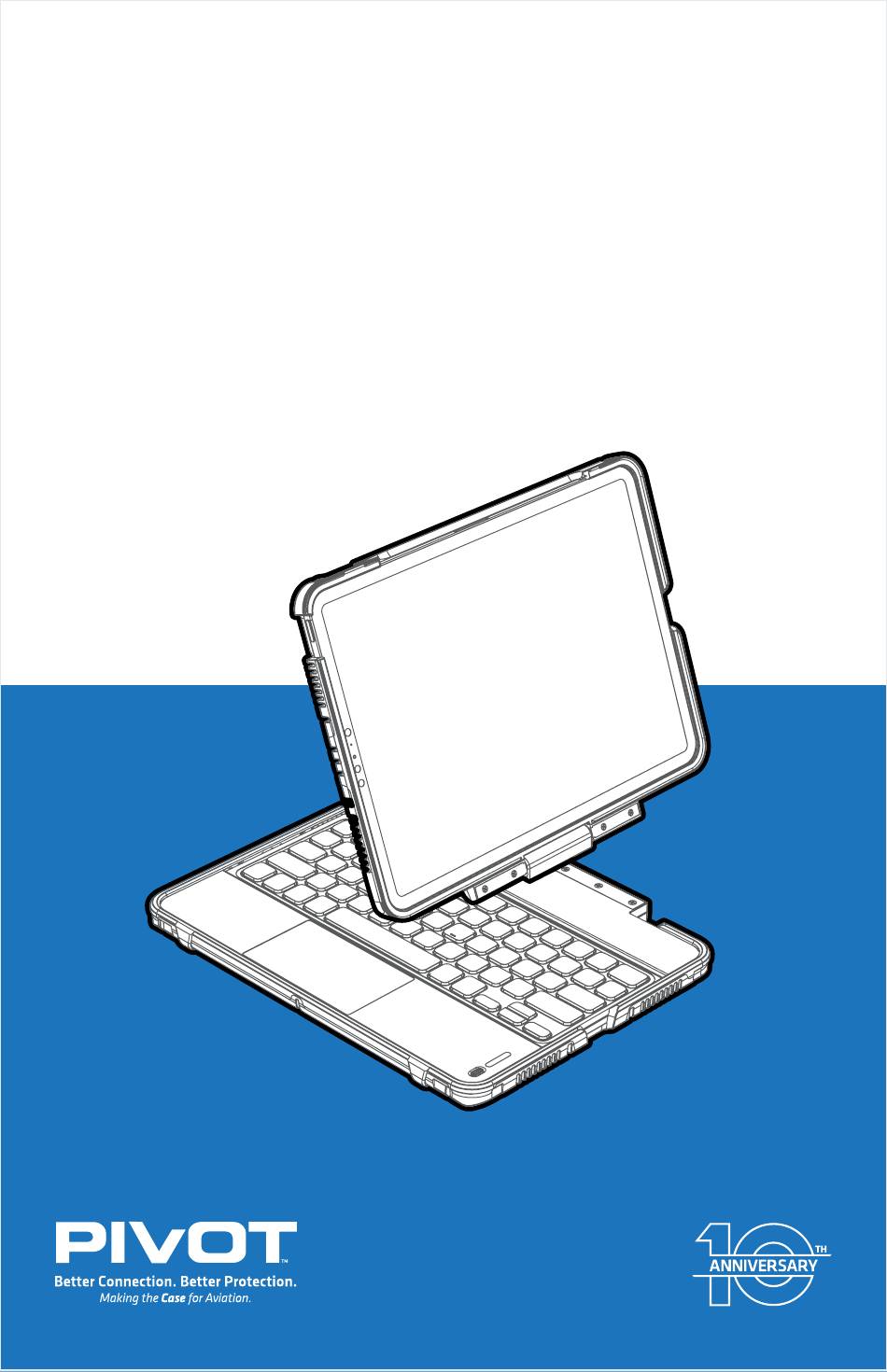

- Page 1 PIVOT BLUETOOTH KEYBOARD WITH TRACKPAD PA-KA20A | User Guide For Use With PIVOT A20A Case [Issued 2024.07.10]...
-
Page 2: Read Before Use
PA-KA20A | User Guide For Use With PIVOT A20A Case Only Read Before Use Your PIVOT KA20A Bluetooth keyboard is designed to provide seamless compatibility between device and user, while combining functionality and aesthetics. Following the recommendations in this guide will ensure maximum performance with proper connection of the case. -
Page 3: Product Description
User Guide, Scan the QR code. Did You Know? Just like the PIVOT A20A case, not all KA20A compatible devices share the same features or locations of buttons, speakers and cameras. For this reason, the access openings in the KA20A case are designed to accommodate the features of all compatible device types. - Page 4 USB-C charging port Trackpad PA-KA20A Keyboard Silicone Keyboard Cover Installing PA-KA20A STEP 1: Remove device from PIVOT A20A case. Beginning with the bottom edge near the charging port, press firmly using your thumbs to disengage the case seal. Continue carefully pressing around the edges of the case to release the device in the order shown.
- Page 5 Installing PA-KA20A (cont.) STEP 2: Place the PA-KA20A keyboard into the PIVOT A20A case body. STEP 3: With the PA-KA20A USB-C charging port aligned properly with the PIVOT A20A case body, press the keyboard into place within the case body.
- Page 6 A20A User Guide, if necessary. Congratulations! Assembly is now complete. You are now ready to pair the PA-KA20A with your device. page: 06 THIS DOCUMENT IS A ROUGH DRAFT AND INTENDED FOR INTERNAL REFERENCE USE ONLY. Do not distribute or duplicate.
-
Page 7: Indicator Light Description
If this occurs, turn the keyboard o and then on to automatically reconnect. If you need to reconnect manually, delete the connected KA20A (PIVOT-KB001) from the MY DEVICES list before reconnecting using the same pairing steps above. - Page 8 The blue character functions of certain keys must be used in combination with Fn key. To activate, press and hold the Fn key + the desired blue character function key. See below for the PA-KA20A keyboard layout and described function keys. Button Icon...
- Page 9 Use Configurations A. Laptop Mode B. Tablet Mode C. Transit Mode PA-KA20A Articulation A. The durable hinge provides 360° rotation. 360° 360° page: 09 THIS DOCUMENT IS A ROUGH DRAFT AND INTENDED FOR INTERNAL REFERENCE USE ONLY. Do not distribute or duplicate.
-
Page 10: Incorrect Use
Incorrect Use The KA20A is durable if used as intended, but can be damaged if subjected to repeated stress and misuse. Do not attempt to force the PIVOT KA20A beyond its maximum open position of 180-degrees. +180° WARNING! Do not use excessive force when... - Page 11 Trackpad Function One finger tap mode Two finger tap mode Left mouse button function Right mouse button function Slide up and down with two fingers Swipe left or right with two fingers to mouse wheel switch desktops Pinch to zoom. Three fingers swipe up to Zoom in and out (web page) multi-task window...
-
Page 12: Product Specs
3.2 lbs (1.451 kg) Sleep Mode Function If the PA-KA20A is not operated for more than 10 minutes, it will automatically enter sleep mode and the keyboard will disconnect from Bluetooth to preserve battery life. To wake from sleep mode, press any key on the keyboard and wait 3 seconds, after which the keyboard will wake and automatically reconnect. -
Page 13: Safety Precautions
Safety Precautions 1. Keep away from oily chemicals or other dangerous liquids. The PA-KA20A includes a removable, replaceable silicone keyboard cover intended to prevent the keys from contamination and to provide basic protection from liquid intrusion. To clean, gently wipe silicone keyboard cover with isopropyl alcohol.Allow at least 24 hours to dry before powering... - Page 14 Thank you. Learn more at: PIVOTCASE.COM PIVOT SUPPORT If you have questions please contact PIVOT Support. www.pi vot c as e . com /s up por t sa les@piv ot ca se.com 1-888-4-FLYBOYS (1-888-435-9269) www.youtube.com/@pivotcase TM and © 2024 FlyBoys. All rights reserved.
