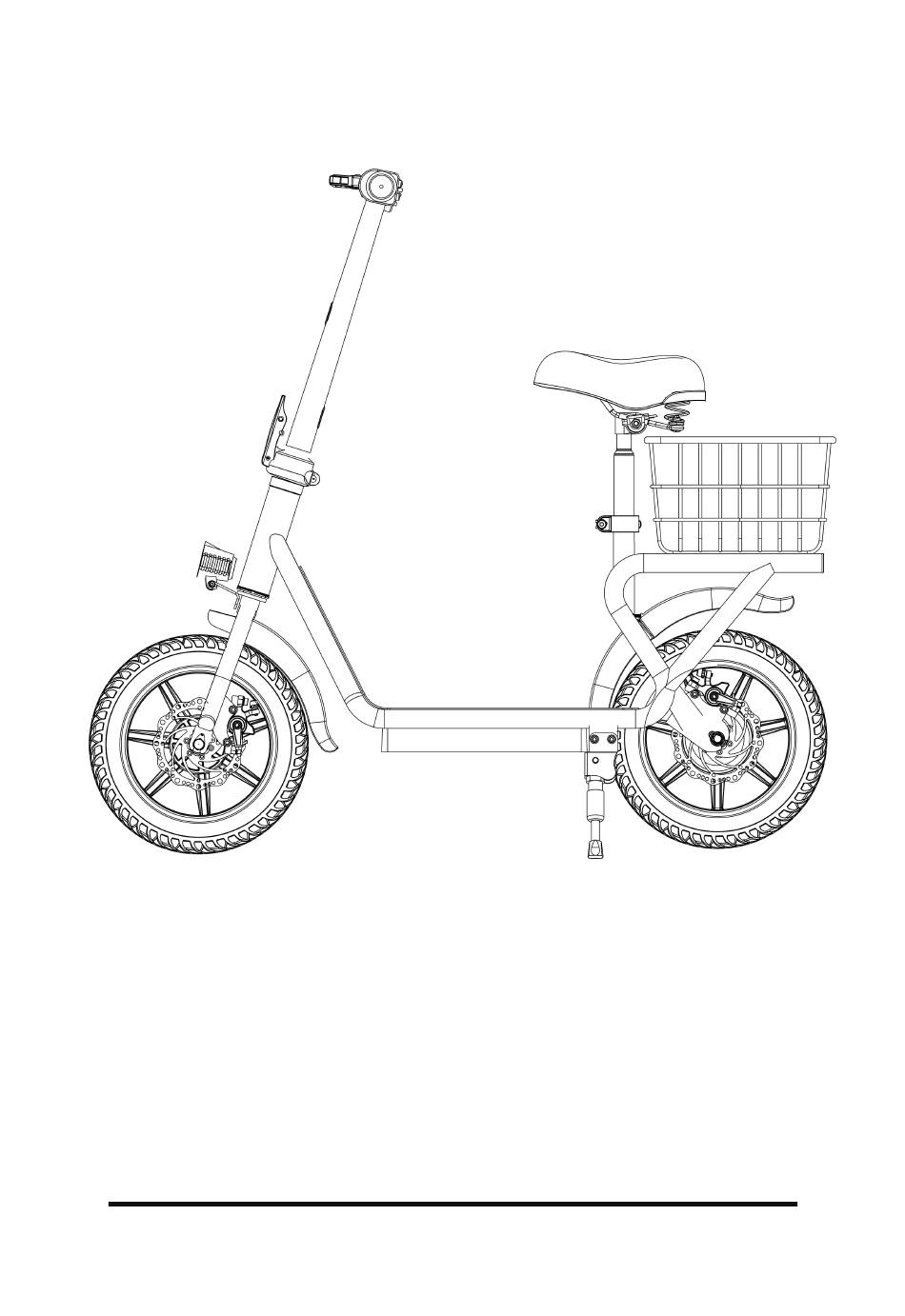

- Page 1 Model:M2 USER MANUAL...
-
Page 2: Table Of Contents
Contents 1. Riding Safety 2. Package Contents 3. Product Overview 4. Assembly and Set-Up 5. Charge Your Scooter 6. How To Ride 7. Safety Instructions 8. Safety Reminder 9. Daily Care and Maintenance 10. Specifications 11. Maintenance 12. Trademark and Legal 13. - Page 3 Congratulations On your purchase! This user manual will help you assemble and operate your new Electric Scooter. Be sure to read all of the information in this manual before riding. The electric scooter should never be used by children under the age of 13, and riders under the age of 18 years old should ride under adult supervision.
-
Page 4: Warning Message
Don't Ride Until You Read This: � Always wear a helmet when riding your electric bike . Make sure your electric bike has a full battery before taking it out to ride. 尘 Always be aware of local road laws, and follow them. 良... - Page 5 8. Before riding - Be sure that ang and all axle guards, chain guards, or other covers or guards supplied by the manufacturer are in place and in serviceable condition. 9. Before riding - Be sure to check that the tires are in good condition, inflated properly, and have sufficient tread remaining.
- Page 6 苟 Unpack You should find each of these items in your box: 1. Electric Scooter 7. Two hex wrenches 8. Four scerws and nuts 2. User Manual 9. Two wrenches 3. Warranty Card 10. Seat lever 4. Carrier 11. Socket spanner 5.
-
Page 7: Specifications
心 Get To Know Your Scooter Bell Stem Saddle Seat Post Safety Latch Headlight Motor Suspension Fork Charging Port Disc Brake Tire Built-in battery Kickstand Specifications Top Speed: 13mph/19mph Distance Per Charge: 16 miles Weight Range Up To: 264 lbs (120 kg) Battery Type: 36V 7.8Ah Battery Charger:... - Page 8 Assemble Your Scooter 1 . Stand the pole upright and lock the folding safety catch. Install Video 2. Use the tool to loosen the handlebar to fix the pressing block, load the handlebar hand, and lock the pressing block (the horizontal handlebar must be centered).
- Page 9 3. Install the saddle: Open the quick release handle and insert the saddle, adjust the right height for you and lock the quick release. CAUTION: Make sure post at least is inserted to minimum insertion marking are NOT visible. 4. The screw holes on the basket correspond to the screw holes on the rear bracket, locking 4 screws to fix.
-
Page 10: Charge Your Scooter
� Charge Your Scooter Before using the scooter, you must fully charge the battery. When charging is Plug the power Lift up the rubber flap completed, put adapter into back the rubber flap the charging port Open the rubber charging port cover. Insert the charging plug into the port. -
Page 11: How To Ride
How To Ride Wear helmets and knee pads in 1. Use the key turn on the scooter, and case of falls and injuries when check the power indicator you learn to ride the scooter 2. Step on the deck with one foot, 3. -
Page 12: Safety Reminder
Closely follow the safety instructions in the manual especially in China and countries that lack relevant laws and regulations regarding electric scooters. Superfun brand shall not be liable for any financial losses, physical injuries, accidents, legal disputes and other interest conflicts resulted from actions that violate user instructions. -
Page 13: Riding Tips
Scooter Function Mode 1. First turn the key to the right to turn on, and turn it in reverse to turn off the headlights orpower. 2. Battery power display: When the battery is fully charged, it shows full charge (4 grids). According to the use of the battery power gradually decreases and the battery griddecreases in turn. -
Page 14: Maintenance And Repair
Maintenance & Repair If you regularly clean and maintain your electric scooter, it will extend its life. Cleaning and storage: If the scooter is dirty, wipe it clean with a soft damp cloth. Brake adiustment: If the brake is too tight against the brake, turn the brake cable nut coun - terclockwise to loosen the brake cable. -
Page 15: Specifications
Specifications Performance index Item Specifications L × W × H (inch) 41.34x19.09x38.19 Dimensions After folding: L × W × H (inch) 41.34x19.09x25 Weight Item weight (lb) Approx. 41 Load range (lb) 55~264 Riding requirements Body length (inch) 47.2–78.7 Max. speed (Mph) Approx. - Page 16 石 Battery Information Only use the approved Original power adapter to charge your scooter, others may cause risk of fire&equipment may be damaged. Improper disposal of used batteries may seriously pollute the environment. Please comply with local disposal regulations. Make sure to store your scooter and power adapter in conditions that do not exceed 122 degrees Fahrenheit or below 4 degrees.
-
Page 17: Warranty
Warranty Users should operate in accordance with the product manual. In case of any performance fault caused by production quality, the company shall perform the obligations of the three guarantees in accordance with the provisions of relevant laws and regulations of the state. The company is still responsible for the after-sales service of the faults beyond three guarantees and the major components in the three guarantees, but there will be a cost for repair. -
Page 18: Maintenance
Superfun electric scooter M2 at time of printing. However, due to constant improvement of product features and changes of design, your scooter may differ slightly from the one shown in this document. -
Page 19: Contact
14261 Proctor Ave , La Puente, CA 91746 Technical Support Email: support@superfunebike.com Have your scooter serial number or order number on hand when contacting 1PLUS. You can find the serial number on the back of your scooter. SuperRide.SuperFun,follow us with superfunebike.com...
