Ingics iBS03 Series User Manual

Hide thumbs Also See for iBS03 Series:

Advertisement

Table of Contents

INGICS
Guide
Ver.06
Introduction
The document is a quick guide for iBS03/iBS03T/iBS03G/iBS03TP/iBS03P/iBS03R/iBS03F/
iBS03Q/iBS03QY/iBS03AD. To quickly verify it, please download INGICS iBS01 Tag Utility APP from
below link(Android only):
Power on
One CR2450 battery is pre-installed in each iBS03 beacon at shipment. For transportation safety it is powered off by
default. User should open the case to turn the power on. For easier operation, please follow below steps to open/close the
case.

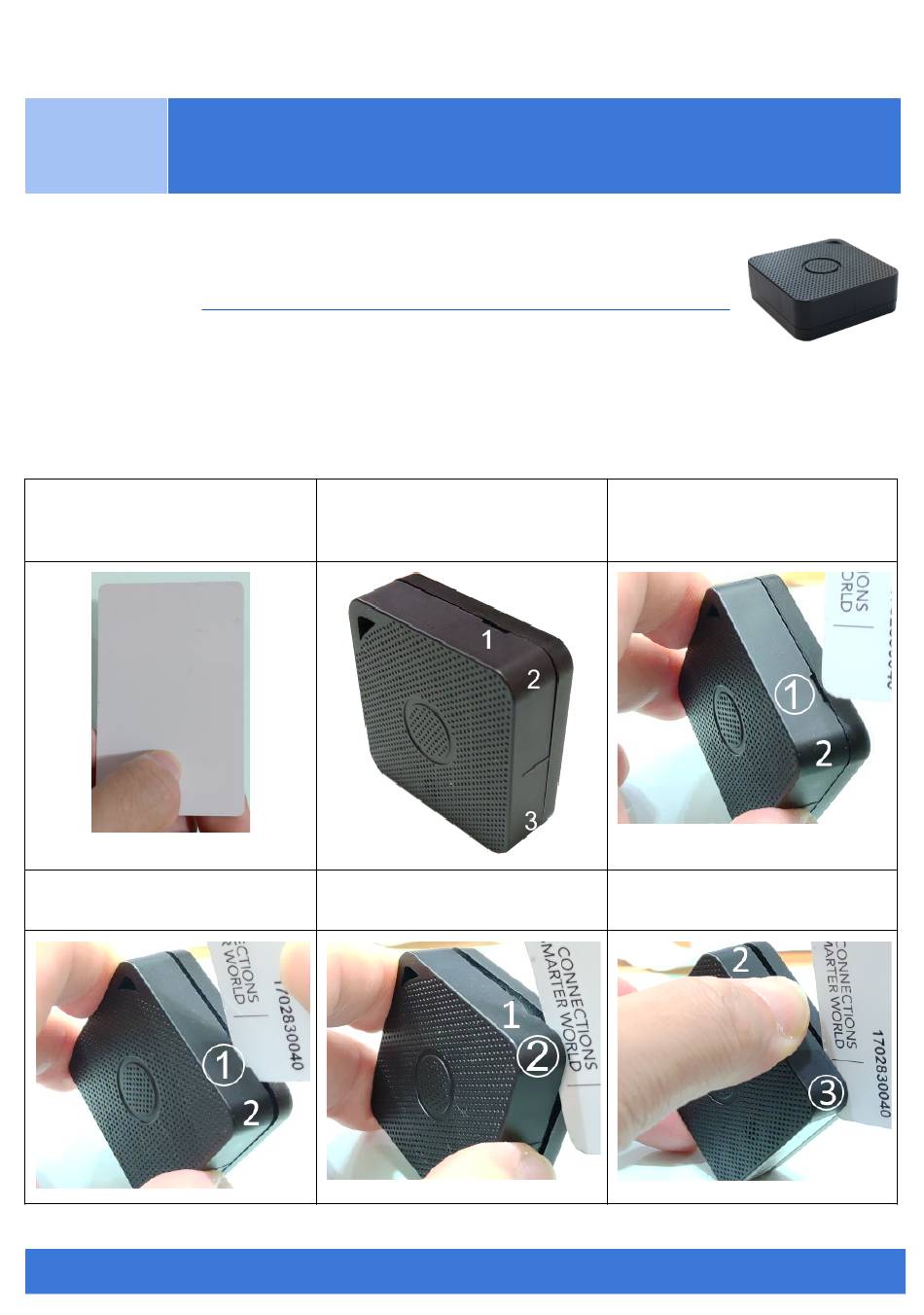

Open the case
1. Prepare a card that you don't need(
credit card/member card/employee
card)
4. Position "1" is enlarged
INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM
TECHNOLOGY
https://play.google.com/store/apps/details?id=com.ingics.tag.igstagconfig
2. Follow the 1-2-3 sequence
5. Continue to enlarge position "2". You
can rotate the card to do it easily.
iBS03 User Guide
3. Use the card to enlarge the gap
position "1"
6. Go to enlarge position "3". You can
rotate the card to open the case now.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBS03 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ingics iBS03 Series

Summary of Contents for Ingics iBS03 Series

  • Page 1 Guide Ver.06 Introduction The document is a quick guide for iBS03/iBS03T/iBS03G/iBS03TP/iBS03P/iBS03R/iBS03F/ iBS03Q/iBS03QY/iBS03AD. To quickly verify it, please download INGICS iBS01 Tag Utility APP from below link(Android only): https://play.google.com/store/apps/details?id=com.ingics.tag.igstagconfig Power on One CR2450 battery is pre-installed in each iBS03 beacon at shipment. For transportation safety it is powered off by default.
  • Page 2 fix the case with the better two stainless screws attached. (For normal usage, you don’t need these two screws) INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...

  • Page 3: Operation

    ToF distance and transmits measured distance in payload. Temperature Sensor (iBS03T, iBS03TP, iBS03P external probe) iBS03T/iBS03TP/iBS03P will always transmit temperature values in a configured period. iBS03TP/iBS03P contains internal temperature sensor and external temperature sensor probe as following diagram: INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 4 The flood sensor is 1M long and it is suitable to detect liquid leak or flood in the bathroom or kitchen. Liquid Sensor (iBS03Q/iBS03QY) The liquid level sensor is 1M long and It is suitable for sensing liquid level without metal containers and thickness less than 12mm. INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 5 Step1- Mount the sensor pad to the surface of the container, typically by double-sided tape Step2 - Open iBS03Q(iBS03QY) and power it on Step3 - Press the switch on the sensor to start the calibration INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 6 Step5 - Close the enclosure. Calibration is done and it should be able to work for you Analog and Digital Input (iBS03AD) 1. Detect the analog input voltage Connect a 0~24V analog voltage to “+” pin and ground to “-” pin. INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 7 Counter: For each “L” detected, it will add 1 in the counter 4. Connect a NTC thermistor to detect the temperature iBS03AD-NTC is optimized with 10K NTC with B value 3970( K). Please connect the NTC between “+” and “-” pins. INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 8 For iBS03R ToF mode can be choosed (default: Short Range mode) Short Range Mode: for distance < 1.3 meters measurement, power consumption optimized. ● Long Range Mode: for distance 1.4~3 meters measurement, power consumption as tradeoff. ● INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 9 DIRECTIVE 2014/35/EU. Below is the copy of the CE Declaration of Conformity. UKCA Regulatory iBS03 series have been tested and complies with the essential requirements of the Radio Equipment Regulation 2017 with reference to the Standards applied listed in the following page.

  • Page 10: Industry Canada Statement

    20 centimètre de toute personne et doit pas être co-située ni fonctionner en conjonction avec une autre antenne ou émetteur. NCC 警語 「取得審驗證明之低功率射頻器材，非經核准，公司、商號或使 用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射 頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應 立即停用，並改善至無干擾時方得繼續使用。前述合法通信，指依電信管理 法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及 醫療用電波輻射性電機設備之干擾。」 INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 11 INGICS TECHNOLOGY INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 12 INGICS TECHNOLOGY INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 13 INGICS TECHNOLOGY INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 14 INGICS TECHNOLOGY INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 15 INGICS TECHNOLOGY INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 16 INGICS TECHNOLOGY INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
  • Page 17 INGICS TECHNOLOGY INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...

  • Page 18: Revision History

    2. Add iBS03F, iBS03Q, iBS03QY, iBS03AD Instructions for use Jul 05, 2023 Add iBS03Q and iBS03QY sensor calibration Mar 22, 2024 Modify iBS03AD Jun 11, 2024 Add UK DOC Jul 03, 2024 Modify iBS03Q/iBS03QY calibration process INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM...
