Castellini C-17T Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
C-17T C-22T
OPERATOR'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the C-17T and is the answer not in the manual?

Questions and answers

Related Manuals for Castellini C-17T

Summary of Contents for Castellini C-17T

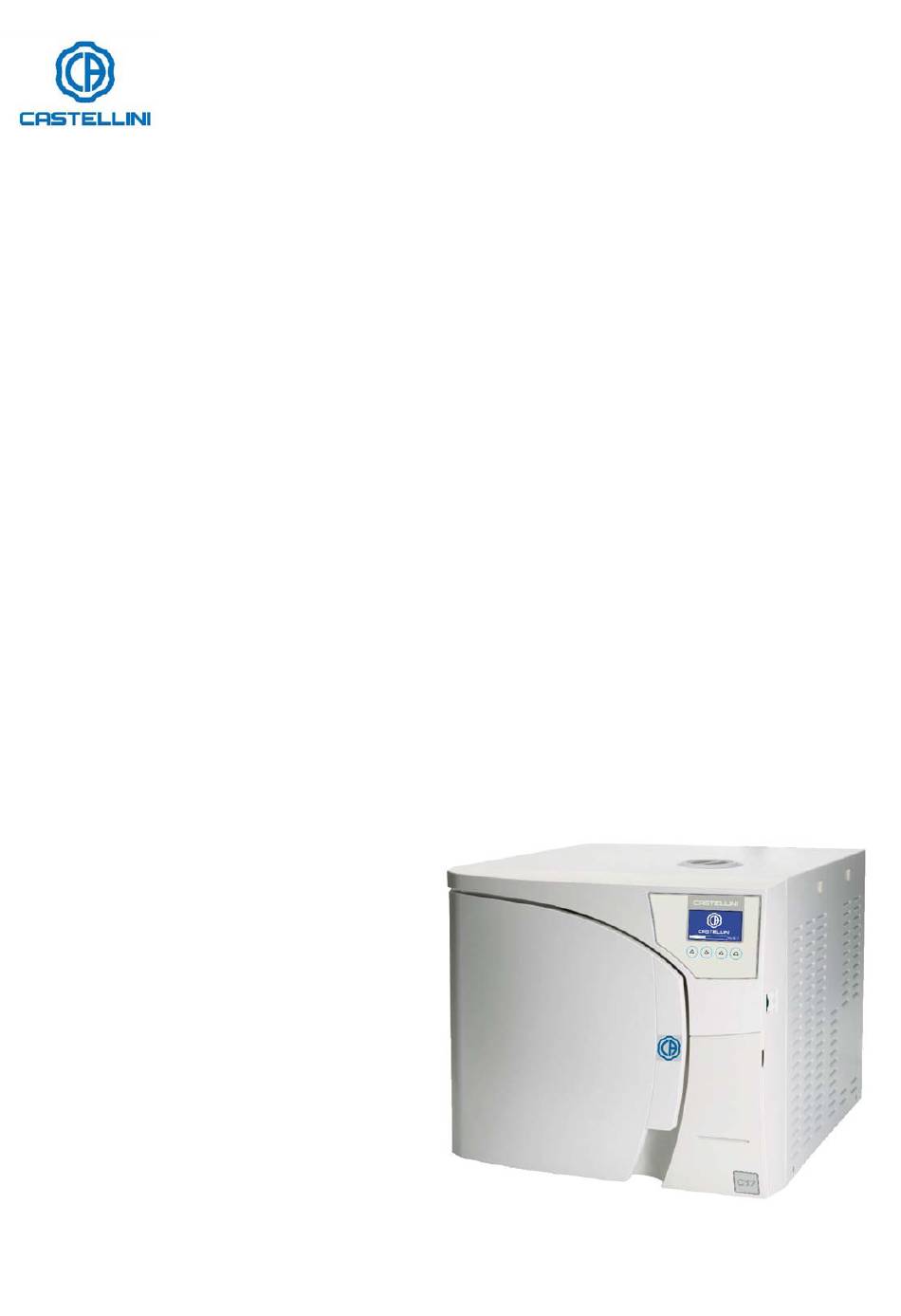

  • Page 1 C-17T C-22T OPERATOR'S MANUAL...

  • Page 2: Table Of Contents

    REVISIONS The following table lists subsequent editions/revisions of the manual. The “Description” field brief explains the subject of the latest revision. CODE REV. DATE DESCRIPTION First issue (translation from the original in 97050787 03-2015 Italian) CONTENTS ENGLISH FOREWORD.......................... 4   SYMBOLS USED ......................
  • Page 3 SAFETY DEVICES ......................45   WATER SUPPLY CHARACTERISTICS ................. 46   APPENDIX – PROGRAMS ....................47   FOREWORD ........................47   STERILIZATION PROGRAM DIAGRAM ................ 52   DIAGRAMS OF THE TEST PROGRAMMES ..............54   EXAMPLES OF PRINTED REPORTS ................55  ...

  • Page 4: Foreword

    FOREWORD Dear Customer Thank you for choosing this product.We hope that you will find it completely satisfactory. This manual describes all procedures for the correct use of the device and instructions for deriving the full benefit from its features. In any case, we will be available to provide explanations and to receive any suggestions you may have for improving our products or services.

  • Page 5: Relevant European Directives

    RELEVANT EUROPEAN DIRECTIVES The product described in this manual is manufactured in accordance with the highest safety standards and doesn't represent any danger for the operator if used according to the following instructions. The product is in accordance with the following European Directives as applicable: 2006/95/EC, for the approximation of the laws of the Member States relating to low...

  • Page 6: Purpose Of The Manual

    PURPOSE OF THE MANUAL The purpose of this manual is to provide instructions for: becoming generally familiar with the product; its correct installation and configuration; its safe, efficient use; handling materials before and after sterilization. Its appendixs also provide: the product's general technical specifications; sterilization program specifications;...

  • Page 7: Package Content

    PACKAGE CONTENT NOTE CHECK THE INTEGRITY OF THE PACKAGE UPON RECEIPT. DIMENSION AND WEIGHT Once the package is opened, check that: the supply matches the specifications of the order (see the accompanying document); that there is no obvious product damage; Dimensions and 17 lt 22 lt...

  • Page 8: Product Handling

    PRODUCT HANDLING Where possible, the packaged product must be handled using suitable mechanical means (forklift truck, transpallet, etc.) and following the instructions shown on the package. In the case of manual handling, the product must be lifted by two persons using the handles cut in the side of the box.Once the sterilizer has been taken out of the box, it must be lifted by two persons using appropriate means.

  • Page 9: Product Presentation

    PRODUCT PRESENTATION The C-17T / C-22T series sterilisers are a revolutionary product in the field of water steam sterilisers, equipped with type B (EN 13060) cycles, as well as the new point of reference with respect to safety, performance, flexibility and ease of use. It is a sophisticated but, at the...

  • Page 10: Front

    FRONT 1. LCD display and control panel 2. On/Off switch 3. Door 4. Door 1. Sterilization chamber 2. Door microswitch 3. Door closing system 4. Bacteriological filter 5. USB port 6. Water drain filter 7. Door 8. Distilled water tank drain quick-coupling (SERVICE ONLY) 9.

  • Page 11: Lcd Icons

    LCD ICONS SELECTION ICONS DATE TIME DOOR OPENING BACKWARD BUTTON FORWARD BUTTON CONFIRMATION BUTTON Selection of the sterilizer settings (SETUP) Selection for data management Sterilization cycle selection Selection of the test cycles NOTE OTHER PARTICULAR SYMBOLS RELATING VARIOUS CONDITIONS OF USE WILL BE DESCRIBED IN THE RELATIVE PARAGRAPHS.

  • Page 12: Example Of Working Cycle

    EXAMPLE OF WORKING CYCLE The C-17T / C-22T series sterilisation programme can be effectively described as a succession of phases, each one with a very precise objective. For example, the universal program (cycle B, 134°C - 4’): after loading the material in the...

  • Page 13: Setting Up The Device

    SETTING UP THE DEVICE FOREWORD The first and fundamental step in achieving good sterilizer operation, long life and complete use of its features is a correct, careful installation. Moreover, this precaution will avoid the danger of physical injury or property and damage, not to mention malfunctions and damage to the machine.

  • Page 14: General Precautions For Installation

    WARNING COMPARTMENT DIMENSIONS LESS THAN THOSE SHOWN MAY COM- PROMISE THE CORRECT CIRCULATION OF AIR AROUND THE DEVICE PROVIDE ADEQUATE COOLING, WITH CONSEQUENT DETERIORATION PERFORMANCE AND/OR POSSIBLE DAMAGE. NOTE IF THE FILLING AND DRAINAGE DOORS ARE NOT ACCESSIBLE FROM THE TOP AFTER THE DEVICE HAS BEEN BUILT IN, IT IS ADVISABLE TO USE THE FRONT ATTACHMENTS (FRONT FILLING KIT).

  • Page 15: Electrical Connections

    ELECTRICAL CONNECTIONS The sterilizer's must be connected to a socket of the electrical system of adequate capacity for the device's absorption and ground provided, in conformity with current laws and/or standards. The socket must be suitably protected by a breaker having the following characteristics: Nominal current I 16 A...
  • Page 16 NOTE FOR AUTOMATIC FILLING SYSTEMS (PUMP, EV AUX) THE DIRECT DRAIN MUST ALWAY S BE CONNECTED. THIS ACTS AS AN OVERFLOW, AND, IF FOR SOME REASON, THE FILLING SYSTEM DOES NOT STOP, THE WATER SEEPS FROM THE FEED TANKINTO THE DRAIN TANK AND FLOWS OUT THE DIRECT DRAIN, THUS PRE-VENTING FLOODING.

  • Page 17: First Start-Up

    FIRST START-UP STARTING Once the sterilizer has correctly been installed, turn it on with the main switch on the right- hand side of the machine. When the sterilizer is turned on, the following page appears: OPERATOR'S MANUAL...

  • Page 18: Main Menu

    MAIN MENU Once the start procedure has been completed, the main menu shown below appears on the display. The device waits for selection of the desired program (see section “Program Selection”) DANGER O PREVENT BURNS, BE CAREFUL NOT TO TOUCH THE STERILIZA- TION CHAMBER, THE CHAMBER EQUIPMENT OR THE INSIDE OF THE DOOR WITH BARE HANDS.

  • Page 19: Automatic Filling

    AUTOMATIC FILLING Refer to the Appendix "ACCESSORIES". OPERATOR'S MANUAL...

  • Page 20: Configuration

    CONFIGURATION The C-17T / C-22T series offers a wide range of customisation options. The user can thus configure the device according to need, adapting the performance based on, for example, the type of activity carried out, the type of material to be sterilized and the frequency of use.

  • Page 21: Date And Time

    DATE AND TIME Select the DATE AND TIME option and confirm by pressing the OK button. Select the field to be modified using the arrows and confirm with OK. Act on the + and – buttons to change the value. Confirm with OK and continue with modifying the other fields.
  • Page 22 STAND BY Select the STANDBY option and confirm by pressing the OK button. Select ON to activate heating in STANDBY or OFF to deactivate it. Confirm by pressing OK. OPERATOR'S MANUAL...

  • Page 23: Water Filling

    WATER FILLING Select the WATER FILLING option and confirm by pressing the OK button. Select the desired option based on the accessory actually connected and confirm with OK. NOTE WHEN THE AUTOMATIC FILLING SYSTEM IS CONNECTED, THE STERI- LIZER ASKS YOU TO IDENTIFY THE TYPE OF DEVICE ACTUALLY CON- NECTED BY PRESSING THE CORRESPONDING BUTTON.
  • Page 24 SCREEN Select the SCREEN option to adjust the screen brightness and contrast and confirm with OK. Select the field to be modified using the arrows and confirm with OK. Act on the + and – buttons to change the value. Confirm with OK and continue with modifying the other fields.
  • Page 25 SERVICE This menu is reserved for Technical Service. It may only be used by an authorised technician. OPERATOR'S MANUAL...

  • Page 26: Preparation Of The Material

    PREPARATION OF THE MATERIAL FOREWORD First of all, it should be recalled that, when handling and managing contaminated material, it is a good idea to take the following precautions: Wear rubber gloves of adequate thickness. Clean your gloved hands with a germicide detergent. Always carry the instruments on a tray.

  • Page 27: Arranging The Load

    WARNING CONSULT THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER INSTRUMENT/MATERIAL STERILIZED BEFORE SUBJECTING IT TO AUTOCLAVE TREATMENT, CHECKING FOR ANY INCOMPATIBILITIES. EXACTLY FOLLOW THE METHODS OF USING DETERGENTS OR DISINFECTANTS AND THE USAGE INSTRUCTIONS OF THE AUTOMATIC DEVICES FOR WASHING AND/OR LUBRICATING THEM.
  • Page 28 Notes for packets and packages Arrange packages side-by-side, suitably spaced and absolutely not piled, to avoid their co- ming in contact with the walls of the chamber. Whenever it is necessary to wrap particular objects, always use suitably porous material (sterilization paper, muslin napkins, etc.), closing the wrapping with autoclave adhesive tape.

  • Page 29: Sterilization Cycles

    STERILIZATION CYCLES A sterilization cycle consists of a determined number of phases. The number and duration of the phases can differ for the programs, based on the type of air extraction, sterilization process and drying method. The electronic control system monitors the various phases, at the same time checking that the various parameters are respected;...
  • Page 30 Confirm with OK and continue with modifying the other fIelds. Press the EXIT button to save all the settings and go back to the previous page. Press to start the user-defined cycle. OPERATOR'S MANUAL...

  • Page 31: Extra Drying

    EXTRA DRYING Select the EXTRA DRYING option by tapping the button indicated. Act on the + and – buttons to set the time and confirm. After confirmation, the extra drying time will appear next to the total cycle time. The extra time stays in memory. To activate the extra drying function, press the OK button. OPERATOR'S MANUAL...

  • Page 32: Execution Of The Cycle

    EXECUTION OF THE CYCLE Press the OK button to start the cycle with the active options selected. Taking as example the most complete and significant sterilization cycle, i.e. the 134°C UNIVERSAL, program, characterised by fractionated pre-vacuum, the cycle sequence is as follows: WARMING UP FIRST VACUUM PHASE...

  • Page 33: Door Opening At The End Of The Cycle

    DOOR OPENING AT THE END OF THE CYCLE To open the sterilizer door, press the button shown in the figure: MATERIAL STORAGE The sterilized material must be adequately treated and stored to maintain its sterility over time, until its use. Inadequate storage can cause rapid recontamination.
  • Page 34 NOTE CONSULT THE SPECIFICATIONS PROVIDED BY THE MANUFACTURER OF THE PACKAGING MATERIAL RELATIVE TO THE MAXIMUM ALLOWED STORAGE TIME. IN THE ABSENCE OF APPROPRIATE INSTRUCTIONS, DO NOT EXCEED THE FOLLOWING STORAGE PERIODS BASKET WITH SEALING RING CONTAINER WITHOUT 1-2 DAYS GASKET CONTAINER WITH FILTER AND GASKET OR CONTAINER WITH...

  • Page 35: Test Programs

    TEST PROGRAMS To protect the safety of users and patients, a fundamental process like sterilizing medical devices should be periodically checked. FOREWORD The C-17T / C-22T offer the possibility of easily and automatically executing two distinct test cycles: • Helix/B&D Test •...

  • Page 36: Cycle Vacuum Test

    fastened, able to contain an appropriate chemical indicator. The other end of the tube is left free so that the steam can penetrate and you can assess its effectiveness. To conduct the test (with reference to EN 13060), insert the chemical indicator (consisting of a paper strip with a special reagent ink) in the device cap (always to be used perfectly dry).
  • Page 37 The Vacuum Test program is run with the sterilization chamber empty, and only the trays and their supports. NOTE RUN THE VACUUM TEST AS THE FIRST CYCLE AFTER POWERING-ON THE EQUIPMENT. A high chamber temperature affects the variation in the vacuum value measured during the test;...

  • Page 38: Door Opening

    DOOR OPENING To open the autoclave door, hold down the button shown in the figure. The door opens and stays ajar. You can now manually open the door. USED WATER DRAIN Open the door and continue as follows: 1. Prepare a basin with a capacity of at least 4 litres in proximity of the sterilizer; place the free end of the drain tube provided in the basin.

  • Page 39: Manual Interruption

    Detaching the pipe MANUAL INTERRUPTION The cycle can be interrupted manually by the operator at any time by holding down the button shown in the figure for three seconds. The command generates the error E999 as the cycle could not be completed correctly. NOTE IF THE CYCLE IS INTERRUPTED DURING CERTAIN PHASES, AN AUTO- MATIC CLEANING PROCEDURE OF THE INTERNAL HYDRAULIC...

  • Page 40: Data Management

    DATA MANAGEMENT To access the DATA MANAGEMENT section, select the following icon and press the OK button. PRINT MANAGEMENT To set the parameters, select the following option and confirm with OK. Select Print last cycle to choose between printing the Report or the Extended report. Press ok to select paper type and go back to the previous menu.
  • Page 41 At the end of the cycle, press the button indicated to print the report. Selecting the PRINT LAST CYCLE option with the REPORT option set, the summary report of the last cycle is printed, otherwise you go back to the PAPER SETTING page. Set the REPORT option and carry out the above described operations again.
  • Page 42 DOWNLOAD CYCLE DATA Before carrying out the following operations, insert the USB key. Selecting CYCLE DATA DOWNLOAD, you can copy the data relating to the cycles executed (stored in the internal memory of the sterilizer) to the USB key. NOTE THE USB KEY MUST BE FORMATTED USING THE FAT32 F LE SYSTEM.

  • Page 43: System Information

    Once the data has been downloaded, you can remove the USB key. SYSTEM INFORMATION Selecting SYSTEM INFORMATION, all the information relating to the sterilizer settings is displayed. OPERATOR'S MANUAL...

  • Page 44: Appendix - Technical Characteristics

    APPENDIX - TECHNICAL CHARACTERISTICS SUMMARY TABLE Steam Sterilizer Device C-17T / C-22T Classification (according to the Directive 93/42/EEC and subsequent changes) CEFLA s.c. Manufacturer Via Selice Prov.le 23/a 40026 Imola BO - Italy 220 V - 240 V~ 50 Hz...

  • Page 45: Safety Devices

    SAFETY DEVICES The sterilizer is equipped with the following safety devices for which we provide a brief description of their function: Mains fuses (see summary table data) Protection inside the device against a fault in the heating elements. Action: cuts the electricity. Fuses protecting the electronic circuits (see summary table data) Protection against a fault in the primary transformer circuit and low voltage uses.

  • Page 46: Water Supply Characteristics

    WATER SUPPLY CHARACTERISTICS WATER SUPPLY VALUES IN DESCRIPTION VALUES CONDENSATE DRY RESIDUE < 10 mg/l < 1 mg/l SILICON OXIDE SiO2 < 1 mg/l < 0,1 mg/l IRON < 0,2 mg/l l < 0,1 mg/ CADMIUM < 0,005 mg/l < 0,005 mg/l LEAD <...

  • Page 47: Appendix - Programs

    APPENDIX – PROGRAMS FOREWORD The steam sterilizer is appropriate for almost all materials and instruments, so long as they are able to tolerate, without damage, a minimum temperature of 121 °C (otherwise, you will need to use other low-temperature sterilization systems). The following material can normally be sterilized with steam: Stainless steel surgical/generic instruments;...

  • Page 48: Program Summary Table

    PROGRAM 220 V - 240 V~ 50 Hz SUMMARY TABLE – 220 V - 230 V~ 60 Hz DESCRIPTION NOMINAL VALUES BASIC CYCLEPARAMETERS STERILIZABLE MATERIALS NOTES CYCLE TYPE Unwrapped porous materials 1,00 0,30 0,30 Porous materials sin-gle 0,75 0,25 0,25 package Porous materials...

  • Page 49: Summary Table

    PROGRAM 120 V~ 60 Hz SUMMARY TABLE – DESCRIPTION NOMINAL VALUES BASIC CYCLEPARAMETERS STERILIZABLE MATERIALS NOTES CYCLE TYPE Unwrapped porous materials 1,00 0,30 0,30 Porous materials sin-gle 0,75 0,25 0,25 package Porous materials double 0,60 0,20 0,20 package 134°C Solid and hollow mate-rials in UNIVERSAL 2,50 1,00...
  • Page 50 PROGRAM 220 V - 240 V~ 50 Hz SUMMARY TABLE – 220 V - 230 V~ 60 Hz DESCRIPTION NOMINAL VALUES BASIC CYCLEPARAMETERS STERILIZABLE MATERIALS NOTES CYCLE TYPE Unwrapped porous materials 1,25 0,40 0,30 Porous materials sin-gle 1,00 0,30 0,25 package Porous materials...
  • Page 51 PROGRAM 120 V~ 60 Hz SUMMARY TABLE – DESCRIPTION NOMINAL VALUES BASIC CYCLEPARAMETERS STERILIZABLE MATERIALS NOTES CYCLE TYPE Unwrapped porous materials 1,00 0,30 0,30 Porous materials sin-gle 0,75 0,25 0,25 package Porous materials double 0,60 0,20 0,20 package 134°C Solid and hollow mate-rials in UNIVERSAL 2,50 1,00...

  • Page 52: Sterilization Program Diagram

    STERILIZATION PROGRAM DIAGRAM OPERATOR'S MANUAL...
  • Page 53 OPERATOR'S MANUAL...

  • Page 54: Diagrams Of The Test Programmes

    DIAGRAMS OF THE TEST PROGRAMMES OPERATOR'S MANUAL...

  • Page 55: Examples Of Printed Reports

    EXAMPLES OF PRINTED REPORTS (WITH OPTIONAL PRINTER) PROGRAM PRINTING PROGRAM PRINTING PROGRAM PRINTING (STANDARD) HELIX/BD TEST VACUUM TEST OPERATOR'S MANUAL...

  • Page 56: Appendix - Maintenance

    APPENDIX - MAINTENANCE In addition to correct use, the user needs to perform ordinary maintenance in order to guarantee safe, efficient operation over the device’s entire life. FOREWORD For better quality maintenance, supplement ordinary checks with regular periodic examinations by the service department (see Appendix). It is also fundamental to perform a periodic sterilizer validation i.e., a check of the thermodynamic parameters of the process, comparing them with the reference values provided with suitably calibrated instruments.
  • Page 57 The user is given warning messages with the following frequency: WARNING MESSAGES FREQUENCY BOILER FILTER CLEANING Every 250 cycles BACTERIOLOGICAL FILTER Every 500 cycles REPLACEMENT BOILER GASKET Every 1.000 cycles REPLACEMENT GENERAL SERVICE Every 3.000 cycles Whenever significant reductions in performance, repeat alarms or a visible deterioration of parts subject to wear is noted, it is recommended that maintenance operations be carried out in advance of the deadlines programmed in the system.

  • Page 58: Description Of Maintenance Interventions

    DESCRIPTION OF MAINTENANCE INTERVENTIONS Let’s now look at the various operations to be carried out. CLEAN GASKET AND PORTHOLE To eliminate any traces of limestone, clean the chamber gasket and the door window with a clean cotton cloth that has been soaked in a weak solution of water and vinegar (or a similar product;...

  • Page 59: Replace The Bacteriological Filter

    NOTE PROPERLY FIT THE FILTER IN ITS HOUSING; FITTING IT ONLY PARTIALLY MAY DAMAGE THE COMPONENT. REPLACE THE BACTERIOLOGICAL FILTER When filter maintenance is due according to the maintenance schedule or every time you notice visible clogging of the filter (indicated by the filter markedly turning grey), unscrew the bacterio-logical filter from its holder and replace it with a new one, screwing it fully down on the union.

  • Page 60: Periodic Sterilizer Validation

    PERIODIC STERILIZER VALIDATION As happens with all equipment, it is possible, and sometimes inevitable, to have a decrease in performance and the effectiveness of components along its lifespan, in a period of time dependent on its frequency of use. To guarantee the safety of the process over time, it is periodically (possibly annually) necessary to verify, the thermodynamic process parameters (pressure and temperature), to check if they continue to remain within allowed limits or not.

  • Page 61: Appendix - General Problems

    APPENDIX - GENERAL PROBLEMS FOREWORD If you run into a problem or alarm while using the device, you should not be immediately concerned. It may not, in fact, be related to a breakdown but, more probably to an anomalous situation, often merely transitory (such as a blackout), or incorrect use.
  • Page 62 PROBLEM POSSIBLE CAUSE PROPOSED SOLUTION Position the material, and especially wrapped Material not correctly material, according to the instructions.(See the positioned. Chapter, “Preparing the Material”). Select the appropriate sterilization program for Wrong sterilization the type of material to be treated.(See the program selection Summary Table in Appendix “Programs”).

  • Page 63: Appendix - Alarms

    APPENDIX – ALARMS NOTE IF THE PROBLEM PERSISTS, CONTACT TECHNICAL SERVICE (SEE APPENDIX) COMMUNICATING THE STERILIZER MODEL AND SERIAL NUMBER. THIS DATA IS INDICATED ON THE REGISTRATION PLATE ON THE REAR OF THE DEVICE AND ON THE DECLARATION OF CONFORMITY FOREWORD Every time an anomalous condition, occurs during the operation of the sterilizer, an alarm is generated, identif ed by a specific code (consisting of a letter followed by a 3-digit number).

  • Page 64: System Reset

    SYSTEM RESET The system can be reset in two alternative ways depending on the type of alarm that has occurred (see the list of alarm codes further on in this appendix): 1) Pressing the OK button 2) Following the on-screen instructions and holding down the RESET button for about 3 seconds.
  • Page 65 RESET CODE ALARM DESCRIPTION MESSAGE ON THE DISPLAY PROCEDU 1 (then Door lock system activation E021 DOOR LOCK TIMEOUT reattempt or timeout exceeded (opening) turn off) The water in the feed tank is E030 MIN WATER LEVEL at minimum level (MIN)) The water in the drain tank is E031 MAX DRAIN LEVEL...
  • Page 66 ALARMS (CATEGORY A) RESET CODE ALARM DESCRIPTION MESSAGE ON THE DISPLAY PROCEDU Door lock microswitch failure A022 DOOR LOCK PROBLEM (OFF-OFF) Problem with level A032 H2O LEVEL PROBLEM sensor Temperature sensor A101 PTx INTERRUPTED failed (sterilization chamber) Temperature sensor A102 PTx INTERRUPTED failed (steam generator) Temperature...
  • Page 67 ALARMS (CATEGORY A) RESET CODE ALARM DESCRIPTION MESSAGE ON THE DISPLAY PROCEDU vacuum pulse A250 PV1 TIMEOUT reached within the timeout rise back A251 atmospheric pressure ATM1 TIMEOUT reached within the timeout pressure pulse A252 PP1 TIMEOUT reached within the timeout vacuum pulse A253...
  • Page 68 HAZARDS (CATEGORY H) RESET CODE ALARM DESCRIPTION MESSAGE ON THE DISPLAY PROCEDU The MPX pressure sensor is H150 MPX INTERRUPTED broken sensor short- H160 MPX SHORT-CIRCUITED circuited/not connected /T ratio not balanced conv H400 INCORRECT P/T RATIO >T) (PROCESS phase) conv ratio not balanced conv...

  • Page 69: Troubleshooting

    TROUBLESHOOTING Based on the type of alarm, below we provide instructions for identifying the possible causes and restoring correct operation: ERRORS (category E) CODE POSSIBLE CAUSE SUGGESTED SOLUTION Wait for the power to be restored and do a Sudden power failure (black-out). RESET following the instructions.
  • Page 70 CODE POSSIBLE CAUSE SUGGESTED SOLUTION MIN water level sensor failure. Contact Technical Service(see Appendix). Do a RESET following the instructions and Water level in the drain tank over the empty the tank. E031 MAX level Completely drain the drain tank. MAX water level sensor failure.
  • Page 71 CODE POSSIBLE CAUSE SUGGESTED SOLUTION Steam generator temperature sensor A102 failure (PT2). Heating element temperature sensor A103 failure (PT3). Temperature sensor failed A105 (conductivity measurement compensation) Incorrect temperature sensor connection (sterilization chamber). A111 Temperature sensor short-circuit (sterilization chamber). Incorrect temperature sensor connection (steam generator).
  • Page 72 CODE POSSIBLE CAUSE SUGGESTED SOLUTION Do a RESET following the instructions. Thoroughly clean the gasket with a clean Steam seepage through the gasket. cotton cloth moistened with water. Restart the cycle. Do a RESET following the instructions.Check that the load does not exceed the maximum Excessive load.
  • Page 73 CODE POSSIBLE CAUSE SUGGESTED SOLUTION Steam generator safety thermostat intervened. Steam generator malfunction Do a RESET following the instructions. Thoroughly clean the gasket with a clean Steam seepage through the gasket. cotton cloth moistened with water and restart the program. Do a RESET following the instructions.Check that the load does not exceed the maximum Excessive load.

  • Page 74: Appendix - Accessories

    APPENDIX - ACCESSORIES AUTOMATIC FILLING H2O AUXILIARY SOLENOID VALVE For management of the automatic fIlling accessories, refer to the previous section WATER FILLING and to the Accessory Manual. PRINTER For printer connection, refer to the section "PRINTER". NOTE NOT INCLUDED IN THE PACKAGE OF THE MACHINE. PRINTER CONNECTION Connect the printer to the RS232 serial port located on the rear of the autoclave (see fIgure).

  • Page 75: Appendix - Technical Service

    THAT SUPPLIED THE PRODUCT. We will gladly provide any information you may need on the product as well as give you suggestions and advice on the steam sterilization procedures. In this regard, please refer to the following address: www.castellini.com OPERATOR'S MANUAL...
