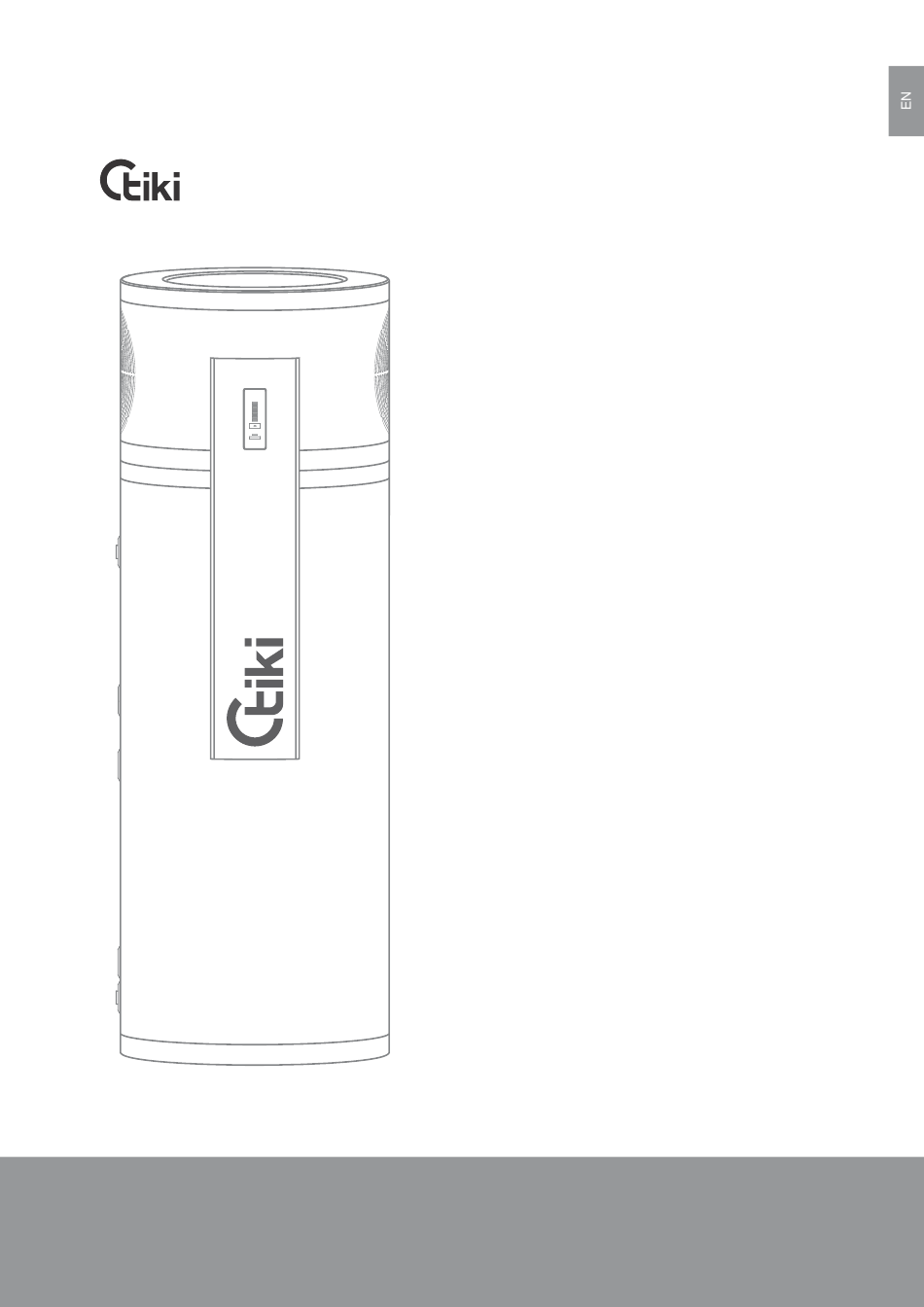

- Page 1 TCM 200 - 300 INSTRUCTIONS FOR USE...
- Page 3 WARNINGS The appliance may be used by children aged 8 and older and persons with physical, sensory or mental disabilities or lacking experience or knowledge, if they are under supervision or taught about safe use of the appliance and if they are aware of the potential dangers. Children should not play with the appliance.
-
Page 4: Storage And Transport
Store this booklet for times of doubt upon the functioning or maintenance. The installation manual is available on our webpage http://www.tiki.si. Authorised maintenance personnel are available for occasional maintenance. They will help you with their vast experience. -
Page 5: Technical Characteristics
TECHNICAL CHARACTERISTICS KEY TYPE TCMXXYZV Indication G – integrated heater; without indication – no heater installed Position of the heat pump power unit (indication Z – top) Volume, heat exchanger (0 – no heat exchanger, 1 – one heat exchanger, 6 – one bottom heat exchanger) Heat pump water heater with metal lining Type TCM200ZG... - Page 6 LEGEND Cold water inlet (H – blue rosette) Heat exchanger medium outlet (black rosette) Circulation pipeline (black rosette) VM Heat exchanger medium inlet (black rosette) Hot water outlet (T – red rosette) Sensor pipe Sensor pipe Air inlet Air outlet Fig.
- Page 7 INSTALLATION OF HEAT PUMP WATER HEATER Heat pump water heater is intended for operation with surrounding air. During operation, only the energy from the air in the room where the appliance is installed is used for heating the domestic hot water. The appliance may be installed in a room where temperatures are above freezing point, preferably close to other sources of heat or heating devices, with a temperature between 7 °C and 40 °C, and minimum volume of 20 m .
- Page 8 CONNECTION TO WATER SUPPLY MAINS Connect the water pipeline system according to the attachment signs from the previous chapter (Fig. 1). Installing a safety valve is mandatory in order to assure safe operation. The valve prevents an increase of the pressure in the boiler by any more than 0.1 MPa (1 bar) above the nominal pressure.
- Page 9 CONNECTION TO OTHER HEATING SOURCES Heat pump water heater with a shell and tube heat exchanger in the hot water storage tank allows preparation of domestic hot water in combination with different sources of energy (e.g. central heating, solar power etc.). Connection options to different heating sources are shown below.
-
Page 10: Operating The Appliance
CONNECTION TO THE POWER SUPPLY NETWORK Appliance connection requires an electrical outlet suitable for current load specified in the technical information table. Connecting the appliance to the power supply network must take place in accordance with the standards for electric appliances. To comply with the national installation regulations, an all poles disconnect switch must be installed between the appliance and the power supply network. -
Page 11: Temperature Adjustment
Temperature adjustment Use the key to set the desired temperature (factory setting is 55 °C). Water temperature can be set in the range from 10 °C to 75 °C with 5 °C increments. When the maximum level of 75 °C is reached, the next time you press the key, the setting returns to the minimum level of 10 °C. -
Page 12: Error Indication
Switching the anti-Legionella program on and off Press and hold (3 seconds) the key to switch off the heat pump. The electronic controls switch to standby mode. Press the briefly for seven (7) times to display the current anti-Legionella function status. The function status is indicated by LED1 or LED7. If LED1 is lit, then the anti-Legionella program function is switched off (Figure 10b). -
Page 13: Service And Maintenance
For more information on waste disposal, please visit your waste collection centre or the store where the product was purchased. WE RESERVE THE RIGHT TO ANY MODIFICATIONS NOT AFFECTING THE FUNCTIONALITY OF THE APPLIANCE. The instructions for use are also available on our website http://www.tiki.si. - Page 16 12/2019 808454...
