MuxLab 500775-2110 User Manual

Over ip st-2110 gateway transceiver 12g-sdi or hdmi2.0
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

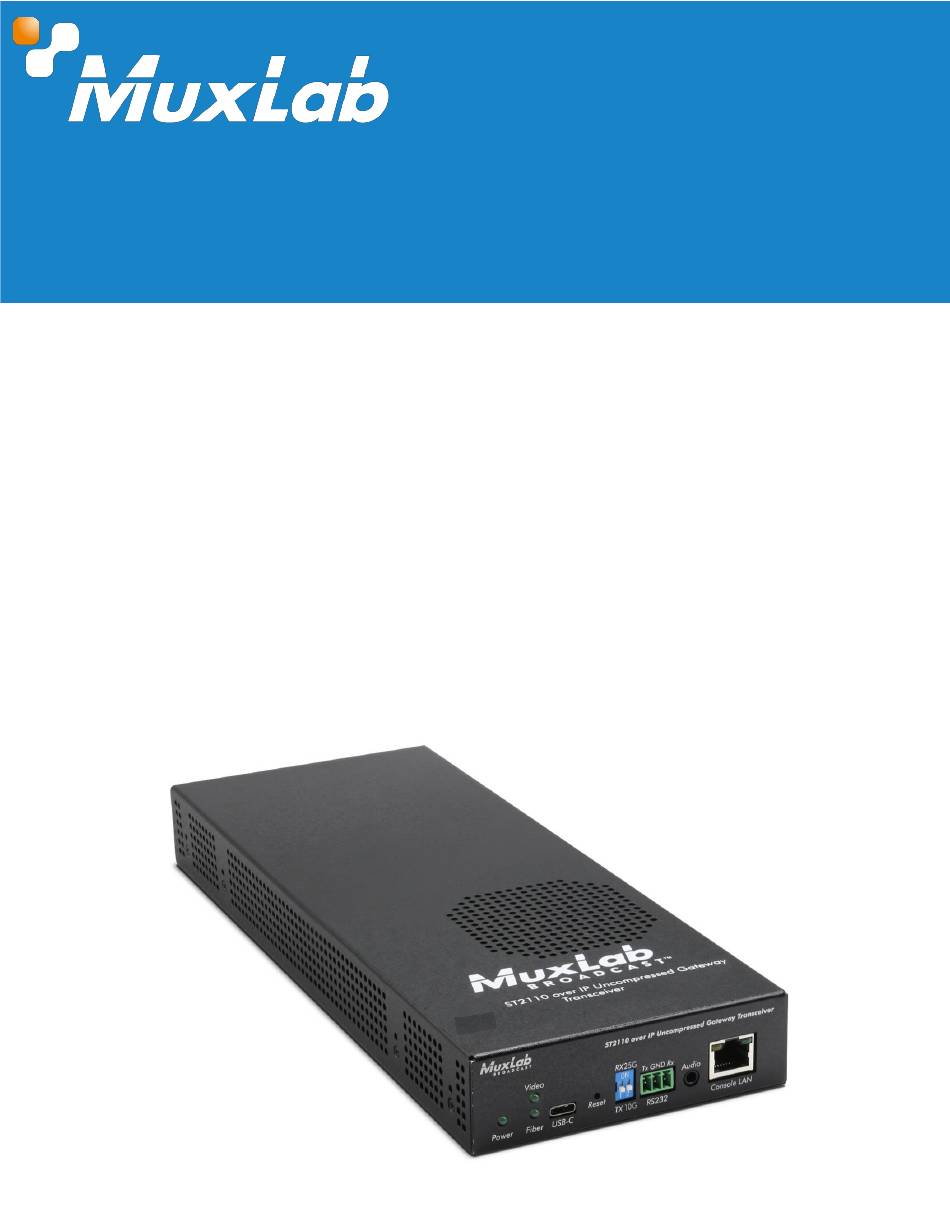

Over IP ST-2110 Gateway Transceiver
12G-SDI or HDMI2.0
© MuxLab Inc. 2024
12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver
User Manual
500775-2110
500794-2110
1
94-001053-A/SE-001053-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500775-2110 and is the answer not in the manual?

Questions and answers

Related Manuals for MuxLab 500775-2110

Summary of Contents for MuxLab 500775-2110

  • Page 1 12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver Over IP ST-2110 Gateway Transceiver 12G-SDI or HDMI2.0 User Manual 500775-2110 500794-2110 © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 2: Table Of Contents

    3.5. Specifications for 500775-2110 (SDI) model ............. 10 3.6. Specifications for 500794-2110 (HDMI) model ............11 3.7. Currently Supported Resolutions for 500775-2110 (SDI) model ......12 3.8. Currently Supported Resolutions for 500794-2110 (HDMI) model ......13 3.9. Network infrastructure ....................15 4.
  • Page 3 12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver 7. Firmware upgrade ......................39 8. Frequently Asked Questions ....................40 © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 4: Safety Precautions

    All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.

  • Page 5: Products List

    25G/10G Ethernet Networks. The unit provides a 1G Management Ethernet port for control via Web interface or 3 party management platforms supporting a RestAPI, or NMOS (IS-04 for discovery and IS-05 for connectivity management). © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 6: Application Diagrams

    12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver 3.2. Application Diagrams The following diagrams illustrate typical multipoint-to-multipoint LAN configuration. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 7 12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver Application diagram with redundancy (without fault): © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 8 12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver Application diagram with redundancy (with fault): © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 9: Features

    • Supports SMPTE ST-2022-7 (Class D, supporting up to 150usec delay with no frame lose) AV signal Redundancy (Seamless Protection Switching). • Model 500775-2110: Convert 12G-SDI audio/video over an IP network using ST- 2110 Protocol. • Model 500794-2110: Convert HDMI2.0 audio/video over an IP network using ST- 2110 Protocol.

  • Page 10: Specifications For 500775-2110 (Sdi) Model

    Weight 1.4 lbs (0.65 kg) Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0 Warranty 2 years 500775-2110: 12G-SDI/ST2110 over IP Gateway Transceiver (UPC: 627699007754) Order Information • 500920 16-Port Rackmount Transceiver Chassis Accessories • 500917 Wall Mount Transceiver Bracket Kit (Sold separately) For Media/Data Ports: •...

  • Page 11: Specifications For 500794-2110 (Hdmi) Model

    SFP Module, 25G, Single mode, 10Km • 500970-MM SFP Module, 10G, Multimode, 300m • 500970-UTP SFP Module, 10G, UTP, 30m • 500970-SM10 SFP Module, 10G, Single mode, 10Km • 500970-SM40 SFP Module, 10G, Single mode, 40Km © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 12: Currently Supported Resolutions For 500775-2110 (Sdi) Model

    59.94 50 59.94 50 YCbCr 10 bit Note: The user chooses the network bandwidth (10G or 25G) using the external switch on the transceiver’s front panel. Please mind using MuxLab SFPs compatible with your network bandwidth. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 13: Currently Supported Resolutions For 500794-2110 (Hdmi) Model

    Depth Space 59.94 50 30 29.97 25 24 23.976 YCbCr 8 bit YCbCr YCbCr 10 bit YCbCr 1080i 720p Color Color Depth Space 59.94 50 59.94 50 YCbCr 8 bit YCbCr YCbCr 10 bit YCbCr © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 14 8 bit YCbCr YCbCr 10 bit YCbCr Note: The user chooses the network bandwidth (10G or 25G) using the external switch on the transceiver’s front panel. Please mind using MuxLab SFPs compatible with your network bandwidth. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 15: Network Infrastructure

    This choice concerns your Network Ethernet Switch, ST2110 Transmitter unit, ST2110 Receiver unit compatibility. Note that MuxLab unit is versatile, it can be use either over 25G Network, or over 10G Network. The user chooses functionality using dip switch on front panel.

  • Page 16: Hardware Interface

    12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver 4. Hardware Interface 4.1. Panels of the 500775-2110 (SDI) The following section describes the external ports, LEDs and switches of 500775-2110 Gateway converter. Front Panel 1. Power LED: Off: during booting-up. On: boot-up completed.
  • Page 17 12. SFP cages for media ports: data/management. Ethernet 25Gbps or 10Gbps. 13. SDI in: input SDI signal coming from source device (used in Transmitter mode). 14. SDI out: output SDI signal going to end device (used in Receiver mode). © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 18: Panels Of The 500794-2110 (Hdmi)

    Down position for 10Gbps Media networks (Media ports 1 & 2). Up position for 25Gbps Media networks (Media ports 1 & 2). 8. RS232 port: for future use. 9. Audio port: for future use. 10. Console LAN port: Ethernet 1G port used for management/control purpose. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 19 12. SFP cages for media ports: data/management. Ethernet 25Gbps or 10Gbps. 13. HDMI in: input HDMI signal coming from source device (used in Transmitter mode). 14. HDMI out: output HDMI signal going to end device (used in Receiver mode). © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 20: Getting Started

    The gateway converter can be managed through its Web interface and API. The system supports the ST-2110 protocol, and ST-2022-7 Redundancy for critical applications. This section describes how to set up the 500775-2110 or 500794-2110 parameters using both the Web interface and the API.

  • Page 21: Web User Interface

    DHCP. If no DHCP is available on your network, the IP address is 192.168.168.64/24 on unit set as Transmitter, or 192.168.168.67/24 on unit set as Receiver. To be able to log in to the 500775-2110/500794-2110 Web interface, your computer must be in the same subnet. 5.4. Transmitter (TX) Web pages 5.4.1.

  • Page 22: Media Page

    Color Depth Detected color depth Audio port Destination Port number for audio Color Space Detected color space Number of audio channels Audio Channels detected Audio Rate Detected audio rate Audio PKT Duration Audio packet size detected © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 23: Transmitter Ptp Page

    Reboot will interrupt any active connection. On this page, you may also find interface to upgrade the firmware if necessary. For details, go to this section Firmware Upgrade. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 24 12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver Network Settings (Transmitter) The user may set the network parameters of the 500775-2110 TX or 500794-2110 TX - including enabling or disabling DHCP, setting a static IP Address, Netmask Address, and Gateway Address - and then press on “Apply”.
  • Page 25 The user may perform a factory reset, by pressing on the WebUI “Reset” button. This will return the unit to the original MuxLab factory settings, and all user settings and data will be lost. Allow the process to be completed without interruption.

  • Page 26: Receiver (Rx) Web

    12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver 5.5. Receiver (RX) Web pages 5.5.1. Receiver System Info Page The System Info page of the Receiver unit displays information such model number, firmware and FPGA version, MAC and IP address, etc. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 27: Receiver Media Page

    There are four different ways of configuring the unit: Manual, SDP and NMOS or via the custom RestAPI. In order to use the RestAPI, select “Manual” input type, and refer to this section. The following example shows settings for Manual input type. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 28 SDP input type settings are shown here: The following table describes the Media settings: Settings Description Input type • Manual: Audio, video and ANC data settings values are entered manually on the web page or via RestAPI commands. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 29 RestAPI commands. • SDP: File containing Audio, video and ANC data information. • NMOS: protocol that allows discovery, control and monitoring of the devices NMOS name Unit’s name used by the NMOS discovery system © MuxLab Inc. 2024 94-001053-A/SE-001053-A...

  • Page 30: Receiver Ptp Page

    Reboot will interrupt any active connection. On this page, you may also find an interface to upgrade the firmware if necessary. For details, go to this section Firmware Upgrade © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 31 12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver Network Settings (Receiver) The user may set the network parameters of the 500775-2110 RX or 500794-2110 RX - including enabling or disabling DHCP, setting a static IP Address, Netmask Address, and Gateway Address - and then press on “Apply”.
  • Page 32 The user may perform a factory reset, by pressing on the WebUI “Reset” button. This will return the unit to the original MuxLab factory settings, and all user settings and data will be lost. Allow the process to be completed without interruption.

  • Page 33: Managing The Unit Whit Api

    Update the unit’s name Maximum 31 characters POST /api/system/ctrl_isDhcp Update DHCP/Static IP 0 : static assignment 1 : DHCP management port IP POST /api/system/ctrl_ip Update management A valid IP address (only port IP applicable in static mode) © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 34 POST /api/system/reset Perform factory reset, custom defined data will be deleted POST /api/system/reboot Perform system reboot POST /api/system/blinkLed Blink the led POST /api/system/mediaMode The option to update the Manual: configure © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 35 1(note that the local port on media 1 will synchronized automatically) POST /api/video/dest_ip1 Update video A valid IP address destination IP on media POST /api/video/dest_port2 Update video 1024~65535 destination port media 2(note that the © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 36 1 will synchronized automatically) POST /api/audio/dest_ip1 Update audio A valid IP address destination IP on media POST /api/audio/dest_port2 Update audio 1024~65535 destination port media 2(note that the local port on media 2 © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 37 1: on POST /api/ptp/domainNumber Update the PTP domain 0~127 number POST /api/ptp/priority1 Update the PTP priority 1 0~255 POST /api/ptp/priority2 Update the PTP priority 2 0~255 POST /api/ptp/clearStat Reset the media packet statistics (Rx only) © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 38 1080 Progressive 1920 1080 23.98 Progressive 1920 1080 Interlaced 1920 1080 59.94 Interlaced 1920 1080 Interlaced 1280 Progressive 1280 59.94 Progressive 1280 Progressive 1280 Progressive 1280 29.97 Progressive 1280 Progressive 1280 Progressive 1280 23.98 Progressive © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 39 7. Firmware upgrade The 500775-2110/500794-2110 unit comes with the firmware pre-installed, please check the MuxLab Web site to verify if a newer version is available. You may go to our support software/firmware page of our Web site to download the required files: https://muxlab.com/software-firmware-downloads...
  • Page 40 8. Frequently Asked Questions The following FAQ section provides answers to the most frequent questions you may have regarding using the 500775-2110/500794-2110. What are the default IP addresses of the transceiver? By default, the unit is configured in DHCP mode. If no DHCP server is available, the unit...
  • Page 41 The 500775-2110/500794-2110 Receiver does not display video from another ST2110 manufacturer. Check media parameters and ensure you are entering the right SDP information if using this input type. If it is still not working, email the SDP file to MuxLab support. © MuxLab Inc. 2024 94-001053-A/SE-001053-A...
  • Page 42 12G-SDI/HDMI2.0 over IP ST-2110 Gateway transceiver Can I use SFPs other than the MuxLab one? You can use other brands of SFP but if they are not qualified by MuxLab, we cannot guarantee compatibility. For now, only MuxLab’s SFPs (10G/25G) have been proved compatible with the unit.
