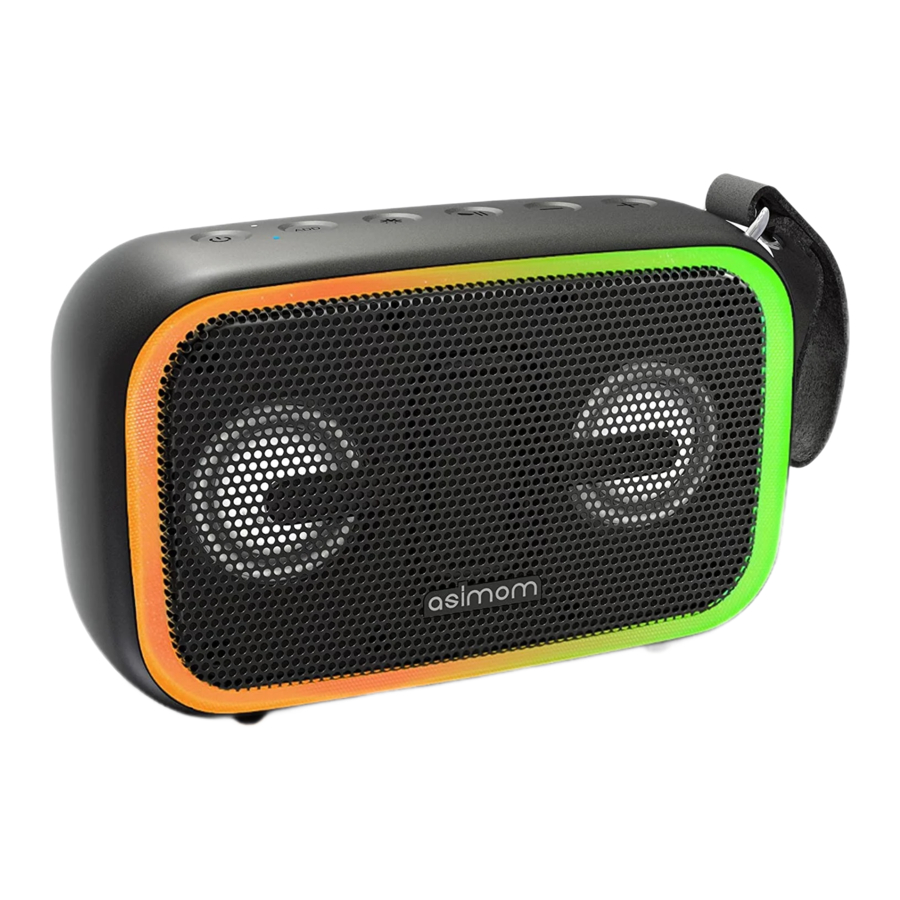

asimom EX70 Manual

What is in the Box

ASIMOM EX70 x 1

USB charge cable x 1

3.5mm Aux-in cable x 1

User manual x 1

Product Specifications

Model name: ASIMOM EX70

Output: 14Wx 2

Input: 5V 2A

Battery: Li-ion 7.4V 2200mAh

Signal to noise ratio: ≥90db

Unit dimension: 200*126*65 MM

Net weight: 940g

Charge time: 3.5—4 hours

Play time:
12Hours (at 50% of the volume with light show)
16Hours (at 50% of the volume without light show)

Warranty: 18-month limited

Product Overview

Product Overview - Part 1

Product Overview - Part 2

HOW to Use ASIMOM EX70

Charge the speaker

The ASIMOM EX70 comes with full charge, but you'd better recharge it before the first use in case of low battery. It takes about 3.5 to 4 hours to fully charge.

Turn on the speaker

There comes electronic prompt tone when you turn on the speaker.

Pair your Bluetooth-enabled device

  1. Enable the Bluetooth feature on your smart device and search it.
  2. Select "ASIMOM EX70" on the Bluetooth list.
  3. Once paired, you can see the connection status on your device.

Tips

  1. The Bluetooth speaker will automatically shut down without playing music/ Bluetooth connection for 15 minutes.
  2. It can automatically connect the last device it used to connect. If you want to connect the speaker to a new device, please "forget this device" on your device and then connect the new one.

Have Problems of Connecting?

  1. Make sure that your Bluetooth device is within 10 meters of the speaker.
  2. Clear your Bluetooth pair list on your Bluetooth device.
  3. Try the pair steps again.
  4. Still have problems? Please contact ASIMOM Customer
    Service: support_us@iasimom.com.

How to Set Up True Wireless Stereo Pairing

  1. Turn on the two Asimom EX70.
  2. Choose one speaker as the main speaker. Press 3 seconds "" button of the main speaker. You can hear the electronic prompt tone, and the LED indicators "" will be flashing white rapidly.
  3. Make sure the second speaker is not connecting with any Bluetooth device. Then the second speaker will automatically pair with the main speaker.
  4. When the two speakers succeed stereo pairing, you will hear the electronic prompt tone. The LED indicator "" of two speakers turn into solid white.
  5. To disconnect the TWS mode, please press the " button of the main speaker for 3 seconds. You can hear the electronic prompt tone from the main speaker, and the white LED " will be turned off.

warning Notice

  1. The secondary speaker will reconnect with the last Bluetooth device if they used to be connected. Press and hold the Play/Pause of the second speaker to disconnect from the Bluetooth device. Then the second speaker starts to automatically pairing function.
  2. TWS mode cannot be activated through Micro SD card mode.
  3. If one or both speakers are turned off without disconnection from TWS mode, the speakers will default to reconnect when they turn on again.
    How to Set Up True Wireless Stereo Pairing

How to Change LED Light

  1. ASIMOM EX70 has three LED light modes.
    1. The central lights and outer light are all turned
    2. Only outer light is turned on, and the central lights are turned off.
    3. All lights are turned off.
  2. Press the button " " once to change the different
  3. The light mode default to the last mode which set last time.

LED Indicators

NO. Indicator view Indicator state System state

11
 Solid red Charging
Light off Fully charged
Please refer to the part of " Set up True Wireless Stereo Pairing"

12

 Flashing blue rapidly Waiting for Bluetooth pairing
Flashing blue intermittently Bluetooth connection status
Solid green TF card mode
Solid red Aux-in mode

Trouble Shooting

Problems Solutions
No power
  • Battery may be in protection mode or drained. Plug power in and charge the speaker.
Low battery prompt tone
  • Please recharge the speaker.
Battery can not charge
  • Make sure you use a USB cable provided by ASIMOM or bought from qualified manufacturer.
Speaker can not pair with the mobile device
  • Turn the Bluetooth feature off and turn on again on your mobile device. Remove your speaker from the Bluetooth list and pair again.
  • Pair different device.
  • Reset your speaker.
No sound
  • Please select "ASIMOM EX70 "as the default playback device.
  • Increase the volume on your speaker, and your Bluetooth device.
  • Make sure the sound prompts are on.
  • Play different music source.
  • Try to pair another Bluetooth device.
  • If two devices are connected, pause your other device.
ASIMOM EX70 speakers can not pair together manually
  • Disconnect the Bluetooth, press and hold the " " button separately untilit flashes w hite and waits for auto pairing.
Poor sound quality [buzzing sound
  • Try to play different music source.
  • Check the device's audio settings.
  • Charge the speaker until it is fully charged.
  • Increase the volume.
  • Try to pair another Bluetooth device.
Laptop prompts to install driver
  • This driver is not for " ASIMOM EX70 " but for your laptop Bluetooth function, please contact customer service of the laptop or Windows for help.
Cannot turn off the speaker
  • Use a needle to poke the " Reset" in the reset port.
Auto power off
  • Contact ASIMOM customer service at support_us@iasimom.com to disable auto power off by firmware upgrade.

Warnings

Do NOT drop, hit or shake the device.

Do NOT place heavy objects on the top of the device.

Do NOT store the device in a place with dust or high humidity.

Do NOT disassemble, repair or modify the device by yourself.

Do NOT use when it is near microwave ovens or wireless LAN products.

Do NOT use the cleaning products that contain benzene, solvents or alcohol.

Do NOT expose the device to excessive heat or direct sunlight for long periods of time. Use the supplied charge cable or a cable from qualified manufacturers to charge the device.

Contact Information

E-mail address: support_us@iasimom.com

Website : www.iasimom.com

Follow us on Facebook: https://www.facebook.com/iAsimom/


asimom_official
