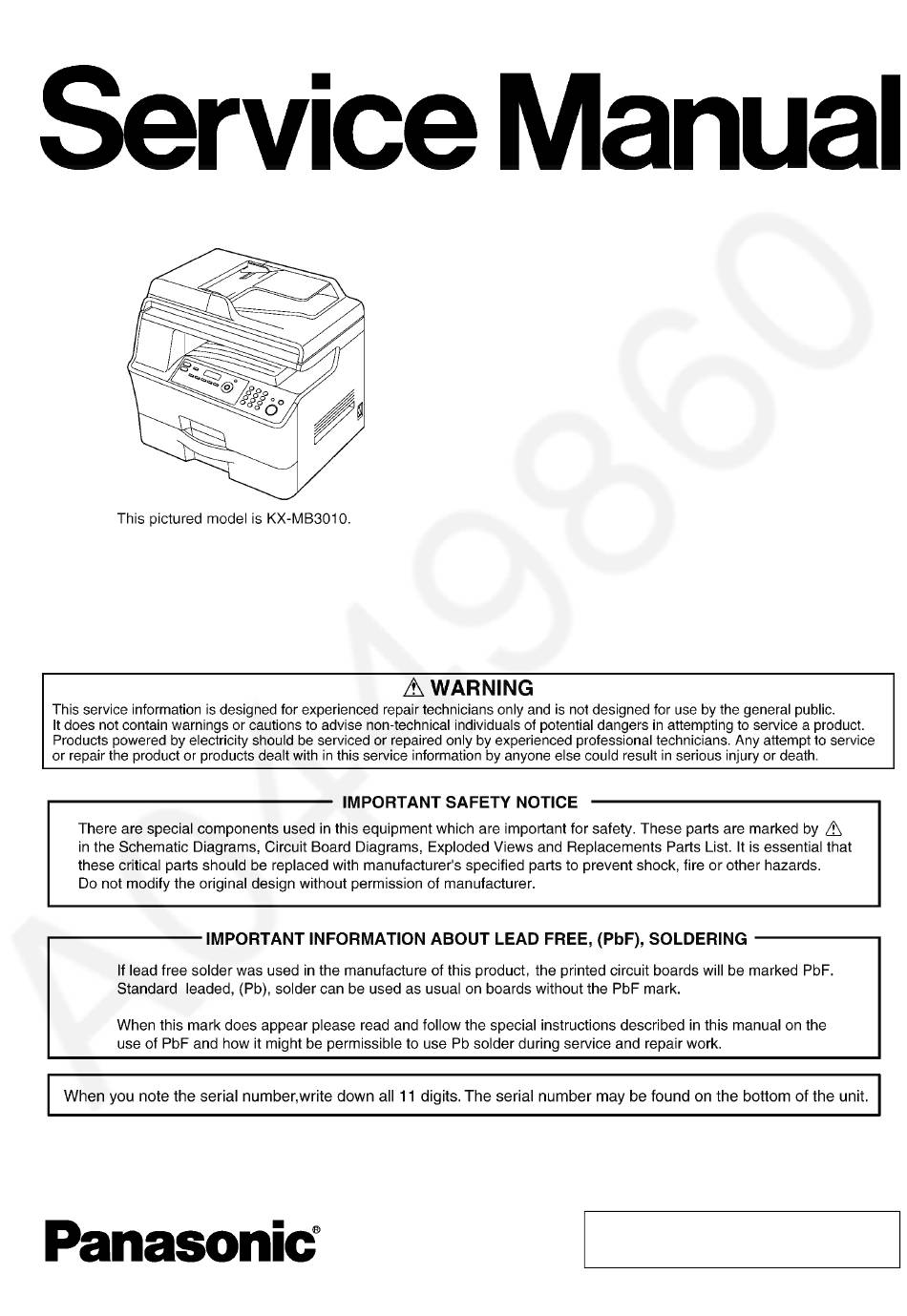

Multi-Function Printer
KX-MB3010CX
Model No.
KX-MB3020CX
KX-FAP106E
(Optional lower input
tray)
(for Middle East, Malaysia, Asia, Australia, New Zealand,
Tunisia, Africa and Latin America)
© Panasonic Communications Co., Ltd 2009.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.KMF0907244CE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KX-MB3010CX and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic KX-MB3010CX

Summary of Contents for Panasonic KX-MB3010CX

  • Page 1 ORDER NO.KMF0907244CE Multi-Function Printer KX-MB3010CX Model No. KX-MB3020CX KX-FAP106E (Optional lower input tray) (for Middle East, Malaysia, Asia, Australia, New Zealand, Tunisia, Africa and Latin America) © Panasonic Communications Co., Ltd 2009. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    KX-MB3010CX/KX-MB3020CX TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------5 6.10. LSU (Laser Scanning Unit) Section----------------- 50 1.1. For Service Technicians ----------------------------------5 6.11. Sensors and Switches Section----------------------- 54 1.2. AC Caution---------------------------------------------------5 6.11.1. Drum Sensor ----------------------------------------- 54 1.3. Personal Safety Precautions ----------------------------6 6.11.2.
  • Page 3 KX-MB3010CX/KX-MB3020CX 11 Service Mode --------------------------------------------------- 102 14.3. Automatic Document Feeder (ADF) Unit--------- 232 11.1. Programming and Lists ------------------------------- 102 14.3.1. Upper ADF Section (1)--------------------------- 233 11.1.1. Operation -------------------------------------------- 102 14.3.2. ADF Bottom Section------------------------------ 234 11.1.2. Operation Flow ------------------------------------- 102 14.3.3. Upper ADF Section (2)--------------------------- 235 11.1.3.
  • Page 4 KX-MB3010CX/KX-MB3020CX 16.2.6. Main Board (6) ------------------------------------- 280 18.1.16. ADU Section ---------------------------------------- 320 16.3. Operation Board ---------------------------------------- 282 18.1.17. Optional Lower Input Tray (OPF) Section 1 - 321 16.4. Sensor Board-------------------------------------------- 283 18.1.18. Optional Lower Input Tray (OPF) Section 2 - 322 16.5.

  • Page 5: Safety Precautions

    KX-MB3010CX/KX-MB3020CX 1 Safety Precautions 1. Before servicing, unplug the AC power cord to prevent an electric shock. 2. When replacing parts, use only the manufacturer's recommended components. 3. Check the condition of the power cord. Replace if wear or damage is evident.

  • Page 6: Personal Safety Precautions

    KX-MB3010CX/KX-MB3020CX 1.3. Personal Safety Precautions 1.3.1. Moving Sections of the Unit Be careful not to let your hair, clothes, fingers, accessories, etc., become caught in any moving sections of the unit. The moving sections of the unit are the rollers and a gear. There is a separation roller and a document feed roller which are rotated by the document feed motor.

  • Page 7: Warning

    KX-MB3010CX/KX-MB3020CX 2 Warning 2.1. About Lead Free Solder (PbF: Pb free) Note: In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to standard solder or solder that con- tains lead. We will use PbF solder when discussing the lead free solder used in our manufacturing process which is made from Tin, (Sn), Silver, (Ag), and Copper, (Cu).

  • Page 8: Insulation Resistance Test

    KX-MB3010CX/KX-MB3020CX 2.3. Insulation Resistance Test 1. Unplug the power cord and short the two prongs of the plug with a jumper wire. 2. Turn on the power switch. 3. Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metal cabinet part (screw heads, control shafts, bottom frame, etc.).

  • Page 9: Laser Beam And Fuser Unit Section

    KX-MB3010CX/KX-MB3020CX 2.5. Laser Beam And Fuser Unit Section • The printer of this unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. • The fuser unit is inside of the unit and gets hot. Do not touch it when removing the jammed paper or cleaning the lower glass.

  • Page 10: Specifications

    KX-MB3010CX/KX-MB3020CX 3 Specifications Public Switched Telephone Network Applicable Lines Document Size: Max. 216 mm (8 ")in width Max. 600 mm (23 ") in length Effective Scanning Width: 208 mm (8 ") Effective Printing Width: A4: 202 mm (7 ") Letter/ Legal/216 mm x 330 mm (8.5" x 13")/216 mm x340 mm (8.5" x 13.4"): 208 mm (8 ")

  • Page 11: General/Introduction

    KX-MB3010CX/KX-MB3020CX Transmission speed depends on the contents of the pages, resolution, telephone line conditions and capability of the other party’s machine. Transmission speed is based on the ITU-T No. 1 Test Chart with original mode. (Refer to ITU-T No.1 Test Chart (P.265).) If the capability of the other party's machine is inferior to your unit, the transmission time may be longer.

  • Page 12: Features

    KX-MB3010CX/KX-MB3020CX 5 Features 5.1. General Features General Resolution: Standard/Fine/Super fine/Photo (64 level). • Help function STANDARD: For normal-sized characters. 1. BASIC SETTINGS FINE: For small-sized characters. 2. FEATURE LIST SUPER FINE: For very small-sized characters. 3. DIRECTORY PHOTO: For photographs, shaded drawings, etc.

  • Page 13: Technical Descriptions

    KX-MB3010CX/KX-MB3020CX 6 Technical Descriptions Note: LOW VOLTAGE POWER SUPPLY BOARD = PSU HIGH VOLTAGE POWER SUPPLY BOARD = HVU 6.1. Connection Diagram CONNECTION DIAGRAM ADF Models Only CIS MODULE CN84 MOTOR HOME SENSOR PS55 ADF SOLENOID1 Duplex Scan CN85 Models Only...

  • Page 14: General Block Diagram

    KX-MB3010CX/KX-MB3020CX 6.2. General Block Diagram MAIN UNIT SOC (IC300) This custom IC is used for general MFP operations. ARM11 operating at 400MHz. DDR SDRAM Controller Controls DDR (Double Data Rate) SDRAM Memory. USB Controller with PHY Apply to USB2.0 HS Scanner I/F Controls the CIS and AFE, and process the scan images.

  • Page 15: Fan Motor

    KX-MB3010CX/KX-MB3020CX FAN MOTOR This model has 2 FAN motors. One FAN motor cool down PSU. The other FAN motor cool down Fuser Unit. Solenoid This model has 2 solenoids. OPTIONAL LOWER INPUT TRAY Composed of 1 switch and 3 sensors of transmission type and 1 stepping motor and 1 solenoid.
  • Page 16 KX-MB3010CX/KX-MB3020CX...

  • Page 17: Main Board Section

    KX-MB3010CX/KX-MB3020CX 6.3. Main Board Section 6.3.1. Data Flow Data Flow [ FAX Tx ] (KX-MB3020 only) 1. An analog image data is output from CIS unit to IC702. IC702 decode the analog data to digital data, and output to IC300.
  • Page 18 KX-MB3010CX/KX-MB3020CX 1. An analog image data is output from CIS unit to IC702. Data Flow [ PC Scan ] IC702 decode the analog data to digital data, and output to IC300. Scanner I/F in IC300 process image data and store it in IC400 and IC401 through DDR SDRAM I/F.
  • Page 19 KX-MB3010CX/KX-MB3020CX 1. An analog image data is output from CIS unit to IC702. Data Flow [ Copy ] IC702 decode the analog data to digital data, and output to IC300. Scanner I/F in IC300 process image data and store it in IC400 and IC401 through DDR SDRAM I/F.
  • Page 20 KX-MB3010CX/KX-MB3020CX Description of Pin Distribution (IC300) SOC (System On Chip) PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE DOTCLKOUT 1.2V Video Clock (Unused) PCIAD2 3.3V PCI Bus Address and Data (Unused) PCIAD5 3.3V PCI Bus Address and Data (Unused) PCIAD9 3.3V...
  • Page 21 KX-MB3010CX/KX-MB3020CX PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE AE01 SDMD1 2.5V SDRAM Data AE02 AE03 BZRST25 2.5V BZ Control AE04 TXD1 2.5V Ethernet Transmit Data AE31 EXMDMCS 3.3V Extended Modem CS (Unused) AE32 DMAD0_POLCLK 3.3V Polygon Motor Clock AE33 DMAD1_POLON 3.3V...
  • Page 22 KX-MB3010CX/KX-MB3020CX PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE AL19 USBDVSSA12PLL PLL GND AL20 AL21 NCCDON 3.3V CCD Power Control AL22 VDD3.3 3.3V POWER SUPPLY AL23 IO38 3.3V UART CH3 TXD AL24 VDD1.2 1.2V POWER SUPPLY AL25 IO34 3.3V TP_CHKSEL AL26 AL27 3.3V...
  • Page 23 KX-MB3010CX/KX-MB3020CX PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE AN17 USBDDM 3.3V USB Device Signal AN18 USBDVDDA12_SQ 1.2V Squelch POWER AN19 AFESIFDOUT 3.3V AFE SIF Data Out AN20 LEDONG 3.3V Lamp Controller / GPIO AN21 SDDAT3 3.3V SD IF (Unused) AN22 SDCMD 3.3V...
  • Page 24 KX-MB3010CX/KX-MB3020CX PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE NPCICBE1 3.3V PCI Bus Command and Byte Enable (Unused) NPCIREQ1 3.3V PCI Bus Request NPCIINT 3.3V PCI Bus Interrupt PCICLKSEL 3.3V PCI Bus Clock Select MDMCLKIN 1.2V 24.576MHz (SD, SCNR, MODEM, PCI, GPDMA) BATRST 3.3V...
  • Page 25 KX-MB3010CX/KX-MB3020CX PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE NPCITRDY 3.3V PCI Bus Target Ready VDD1.2 1.2V POWER SUPPLY VDD3.3 3.3V POWER SUPPLY NPCIGNT0 3.3V PCI Bus Grant (Unused) BZVDD33 3.3V BZ Control VDD3.3 3.3V POWER SUPPLY RTCCLKIN 1.2V 32.768MHz (RTC) VDD1.2...
  • Page 26 KX-MB3010CX/KX-MB3020CX PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE SCIO6 3.3V Document Duplex SCIO5 3.3V IEROX Detect SDUDM1 2.5V SDRAM Data Mask For Upper Byte (DQ[31:24]) SDMD30 2.5V SDRAM Data VDD1.2 1.2V POWER SUPPLY VDD1.2 1.2V POWER SUPPLY SCIO11 3.3V Option Cassette Feed Sensor SCIO4 3.3V...
  • Page 27 KX-MB3010CX/KX-MB3020CX PIN NO. PinName POWER SUPPLY EXPLANATION VOLTAGE VDD1.2 1.2V POWER SUPPLY LSI_IDDT 3.3V LSI Test THRMAVSS THRMSTR1 3.3V NSDCLK 2.5V SDRAM Clock SDMD13 2.5V SDRAM Data VDD1.2 1.2V POWER SUPPLY VDD3.3 3.3V POWER SUPPLY THRMSTR0 3.3V TONEAVSS D/A_GND THRMAVDD 3.3V...

  • Page 28: Rtc Backup Circuit

    KX-MB3010CX/KX-MB3020CX 6.3.2. RTC Backup Circuit 1. Function This unit has a lithium battery (BAT300) which works for the Real Time Clock IC (RTC: inside IC300). The RTC continues to work, backed up by a lithium battery even when the power switch is OFF.

  • Page 29: Modem Circuit Operation (Kx-Mb3020 Only)

    KX-MB3010CX/KX-MB3020CX 6.3.3. Modem Circuit Operation (KX-MB3020 only) The modem (Included IC300) has all the hardware satisfying the CCITT standards mentioned previously. ALL processing is controlled by the SOC (IC300) according to CCITT procedures. This modem (Included IC300) has an automatic application equalizer. With training signal 1 or 2 at the time of G3 reception, it can automatically establish the optimum equalizer.

  • Page 30: Tel Line Section (Kx-Mb3020 Only)

    KX-MB3010CX/KX-MB3020CX 6.3.4. TEL Line Section (KX-MB3020 only) Composed of ITS circuit and NCU circuit. 6.3.4.1. Description of Block Diagram in Analog Section Function The analog section works as an interface between the telephone line. DAA control ITS circuit and NCU circuit.

  • Page 31: Ncu Section (Kx-Mb3020 Only)

    KX-MB3010CX/KX-MB3020CX 6.4. NCU Section (KX-MB3020 only) 6.4.1. General This section is the interface between the telephone line and external telephone. It is composed of an EXT. TEL line relay (RLY100), bell detection circuit, TAM interface circuit and line amplifier. 6.4.2.

  • Page 32: Monitor Section (Kx-Mb3020 Only)

    KX-MB3010CX/KX-MB3020CX 6.5. Monitor Section (KX-MB3020 only) 6.5.1. General The Monitor operation is performed by IC200. The alarm tone, the key tone, and the beep are output from Soc IC300. 6.5.1.1. Telephone Monitor 1. Function This is the function can hear the caller’s voice from the line.

  • Page 33: Cis Control Section

    KX-MB3010CX/KX-MB3020CX 6.6. CIS Control Section The scanning block of this device consists of a control circuit and a CIS (contact image sensor), and AFE (Analog Front End) include A/D Converter. When an original document is inserted and the start button pressed, pin A3 of IC300 goes to a low level and the transistor Q710 turns on.

  • Page 34: Motor Drive Section

    KX-MB3010CX/KX-MB3020CX 6.7. Motor Drive Section 6.7.1. Engine Motor Control Circuit 1. Function All driving forces of printer engine part are supplied by this engine motor. Engine motor is controlled so as to rotate at constant speed during printing and copying.
  • Page 35 KX-MB3010CX/KX-MB3020CX <Stop operation> In order to stop the motor rotation, following 2 signals are supplied from IC300. 1. SS signal (Output pin: Pin AN29/Output Signal: “L”) When this signal is inverted by transistor Q600 and becomes “H”, motor recognize this signal as “stop” signal.

  • Page 36: Scanner Motor Drive Circuit

    KX-MB3010CX/KX-MB3020CX 6.7.2. Scanner Motor Drive Circuit 6.7.2.1. General Scanner motor drive circuit is consist of motor driver, motor current control circuit , over current protection circuit and Relay drive circuit. One motor driver IC controls both FB (Flat Bed) and ADF (Auto Document Feeder) motors.
  • Page 37 KX-MB3010CX/KX-MB3020CX IC700_pin32 determines the direction of motor rotation. For the direction of motor rotation, refer to the below table. Table2:Motor rotation direction After setting the above signals, clock signal is supplied from IC300_pinAM31 to PHA(IC700_pin28). Whenever clock signal is supplied, IC700 output current value and direction are changed according to the above signal levels.
  • Page 38 KX-MB3010CX/KX-MB3020CX 6.7.2.5. Timing chart of current control Following timing charts are the example of Vref voltage corresponding to PWM pulse duty. 6.7.2.6. Over Current protection circuit 6.7.2.6.1. Function By parts failure or other reason, if Vref voltage exceeds 1.2V, extreme current is supplied to the FB motor. This may cause FB motor over heat and damage.

  • Page 39: Flat Torque 1-2 Phase Excitation (Half Step)

    KX-MB3010CX/KX-MB3020CX 6.7.2.8. Timing chart and wave form of scanner motors Control sequence and waveform of both FB and ADF motor are almost same. 6.7.2.8.1. Normal 1-2 phase excitation (half step) ST1="L",ST2="H",ST3="L" (1) Timing chart (2) Wave form 6.7.2.8.2. Flat torque 1-2 phase excitation (half step) ST1="H",ST2="L",ST3="L"...

  • Page 40: W1-2 Phase Excitation (Quarter Step)

    KX-MB3010CX/KX-MB3020CX (2) Wave form 6.7.2.8.3. W1-2 phase excitation (Quarter step) ST1="H",ST2="H",ST3="L" (1) Timing chart (2) Wave form...
  • Page 41 KX-MB3010CX/KX-MB3020CX 6.7.2.8.4. 2W1-2 phase excitation (Octal step) ST1="L",ST2="L",ST3="H" (1) Timing chart (2) Wave form...

  • Page 42: Optional Lower Input Tray Motor (Opf Motor) Drive Circuit

    KX-MB3010CX/KX-MB3020CX 6.7.2.9. Drive mode of FB and ADF motor 6.7.2.9.1. Correspondent table of operation 6.7.3. Optional Lower input Tray Motor (OPF Motor) Drive circuit 6.7.3.1. General This MFP can add Optional Lower input Tray for improving the performance. OPF motor feed the paper in this tray to the registration roller.

  • Page 43: Circuit Explanation

    KX-MB3010CX/KX-MB3020CX 6.7.3.3. Explanation of each circuit 6.7.3.3.1. Motor driver IC IC950 is the motor driver BD6396EFV. This IC can drives up to 1.5A/phase and support 2 phase and 1-2 phase excitation. During motor driving, IC300_pin AN25 becomes "H" then motor driver IC950 is activated.
  • Page 44 KX-MB3010CX/KX-MB3020CX 6.7.3.4. Timing chart and waveform of OPF motor Control sequence and waveform of OPF motor are as follows. 6.7.3.4.1. 2 phase excitation (1) Timing chart (2) Wave form...

  • Page 45: Fan Motor Section

    KX-MB3010CX/KX-MB3020CX 6.7.3.4.2. 1-2 phase excitation (1) Timing chart (2) Wave form 6.8. FAN Motor Section 6.8.1. General This unit is equipped with two FANs to prevent the developing devices and Power Supply Unit (PSU) from overheating during printing. The FAN rotates at high speed (Approx. 3000rpm) while printing .

  • Page 46: Circuit Diagram Of Fan1 (Fuser Fan)

    KX-MB3010CX/KX-MB3020CX 6.8.2. Circuit Diagram of FAN1 (Fuser FAN) 6.8.3. FAN1 Control For the control of FAN speed, comparator IC (IC601) is used. This IC compares (+) side input level and (-) side input level. If (+) side input level is bigger than (-) side input level, output of this IC is "OPEN".

  • Page 47: Circuit Diagram Of Fan2 (Psu Fan)

    KX-MB3010CX/KX-MB3020CX 6.8.4. Circuit Diagram of FAN2 (PSU FAN) 6.8.5. FAN2 Control The control sequence is same as FAN1. Please refer to the explanation in FAN1 Control (P.46). If FAN error is occurred, display shows "Call Service 11"(PSU FAN Error) CALL SERVICE 11 (P.139).

  • Page 48: Waveform

    KX-MB3010CX/KX-MB3020CX 6.8.7. Waveform...

  • Page 49: Solenoid And Clutch Driver Section

    KX-MB3010CX/KX-MB3020CX 6.9. Solenoid and clutch Driver Section The solenoid and clutch drive circuit controls Resist Clutch, Pick up Solenoid, and ADU solenoid. These solenoids and clutch are designed to be driven 24V. The diodes protect transistors from reverse generated voltage when solenoids are turned off.

  • Page 50: Lsu (Laser Scanning Unit) Section

    KX-MB3010CX/KX-MB3020CX 6.10. LSU (Laser Scanning Unit) Section...
  • Page 51 KX-MB3010CX/KX-MB3020CX USB (Universal Serial Bus) block Description This is a USB block for data communication with PC. Two signal lines (D+/D-) are differential signals which work in reverse phase. VBUS: CN301 1pin D+: CN301 3pin D-: CN301 2pin GND: CN301 4pin...
  • Page 52 KX-MB3010CX/KX-MB3020CX Waveform of normal operation...
  • Page 53 KX-MB3010CX/KX-MB3020CX...

  • Page 54: Sensors And Switches Section

    KX-MB3010CX/KX-MB3020CX 6.11. Sensors and Switches Section All of the sensor and switches are shown below. Sensor Name Sensor Location Reference number Message Error Drum sensor 1JE1 [CHECK DRUM] Paper sensor Sensor PCB PS50 [OUT OF PAPER INPUT TRAY #1] ADU Jam sensor...

  • Page 55: Paper Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.2. Paper Sensor This Switch detects whether there are recording papers in the paper tray #1 or not. When there are recording papers in the tray, the input signal of IC300-M31pin becomes high level. When there no recording papers in the tray, the input signal of IC300-M31pin becomes low level.

  • Page 56: Exit Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.4. Exit Sensor This sensor detects whether the recording paper exits or not. When there is a recording paper at the position of the sensor, the input signal of IC300-L33pin becomes low level. When there is no recording paper at the position of the sensor, the input signal of IC300-L33pin becomes high level.

  • Page 57: Read Position Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.6. Read Position Sensor This sensor detects the front edge of the document. When the front edge of the document is detected, the shelter plate closes the sensor light. So the photo-transistor turns off and the input signal of IC300-G34pin becomes high level.

  • Page 58: Print Timing Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.8. Print Timing Sensor This sensor detects whether the recording paper is at the printing position. When the recording paper is detected, the shelter plate lets the sensor light pass. So the photo-transistor turns on, and input signal of IC300-F34pin becomes low level.

  • Page 59: Cassette Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.10. Cassette Sensor This switch detects whether the paper tray is set or not. When there is not the paper tray, the input signal of IC300-M32pin becomes high level. When there is the paper tray, the input signal of IC300-M32pin becomes low level.

  • Page 60: Toner Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.12. Toner Sensor 6.11.12.1. General This sensor detects the amount of remaining toner. The toner level is detected by LED light through the cartridge lenses when the toner is decreased to a certain level. When the phototransistor detects the light pulses, it causes the pulse signals.
  • Page 61 KX-MB3010CX/KX-MB3020CX 6.11.12.5. Waveform of each toner remaining status (1) Toner Full (2) Toner near empty...
  • Page 62 KX-MB3010CX/KX-MB3020CX (3) Toner empty 6.11.12.6. Explanation of "LED error detection block" If LED50 is broken (normally with open condition), light is not emitted and misjudged that toner is full even after toner is wasted. In order to prevent this problem, LED error detecting block is provided.
  • Page 63 KX-MB3010CX/KX-MB3020CX 6.11.12.8. Drum Life sensor circuit 6.11.12.8.1. General This circuit detects whether the drum cartridge is brand-new or secondhand. And if Drum cartridge is detected as brand-new, after predetermined printing, Fuse, which is installed inside of the Drum car- tridge is cut.

  • Page 64: Optional Opf Paper Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.13. Optional OPF Paper Sensor This sensor detects whether there are recording papers in the Optional lower input tray or not. When there are recording papers in the tray, a shelter plate closes the sensor light. So the photo-transistor turns off and the input signal of IC300-J33pin becomes high level.

  • Page 65: Optional Opf Cassette Sensor

    KX-MB3010CX/KX-MB3020CX 6.11.15. Optional OPF Cassette Sensor This sensor detects whether the Optional lower input tray is set or not. When there is the Optional lower input tray, a shelter plate closes the sensor light. So the photo-transistor turns off and the input signal of IC300-J34pin becomes high level.

  • Page 66: Operation Board Section

    KX-MB3010CX/KX-MB3020CX 6.12. Operation Board Section The unit consists of a LCD (Liquid crystal display), KEYs and LEDs (light-emitting diodes). They are controlled by the Gate Array (IC1) and SOC (IC300: on the MAIN BOARD). The key matrix table is shown below.

  • Page 67: Lcd Section

    KX-MB3010CX/KX-MB3020CX 6.13. LCD Section The Gate Array (IC1) works only for writing the ASCII code from the data bus (D4~D7). V0 is supplied for the LCD drive. Consequently, in this unit, the timing (positive clock) is generated by the LCD interface circuitry in the gate array (IC1).

  • Page 68: Hvu (High Voltage Power Supply) Section

    KX-MB3010CX/KX-MB3020CX 6.14. HVU (High Voltage Power Supply) Section 6.14.1. HVU SPECIFICATION for EUK1MN81H Charge (CHG) Grid Developing DC Developing AC Transfer (TRA) - Transfer (TRA) + Output Characteristics Constant Current Constant voltage Constant voltage Rectangular Wave Constant current Constant voltage...

  • Page 69: Dev Dc Bias Unit

    KX-MB3010CX/KX-MB3020CX 6.14.3. DEV DC BIAS UNIT When CHG REM is “L”, 5.425kHz PWM (Pulse Width Modulation) is input from IC300 to DEV CLK through Q603, developing voltage corresponding to the DUTY of PWM signal is output from DEV OUTPUT. Also DUTY is adjusted by the utilization of the developing unit and environmental temperature.

  • Page 70: Heat Lamp Control Circuit

    KX-MB3010CX/KX-MB3020CX 6.15. Heat Lamp Control Circuit The temperature of the fixing part of the Fuser Unit is converted to a voltage by THERMISTOR and input to IC300-U34pin. The heat lamp is turned on/off by the HTRCTL signal (IC300-E34pin) through the photo triac (PC2) and the triac (SCR51). And two thermostats are set on the AC line as the safety devices.
  • Page 71 KX-MB3010CX/KX-MB3020CX...
  • Page 72 KX-MB3010CX/KX-MB3020CX 2. Safety Protection a. 2 thermostats are provided with the unit, and the heater circuit is shut down when their surface temperatures became over 220°C. b. The heater control circuit of IC300 has the built-in function that the software turns off the heater control automatically if the heater is not turned ON every a fixed time.
  • Page 73 KX-MB3010CX/KX-MB3020CX Temperature AD value HEX reading Temperature AD value HEX reading Temperature AD value HEX reading [C°] [C°] [C°] Note: The value is displayed on LCD at Test Functions (P.98) [#815].
  • Page 74 KX-MB3010CX/KX-MB3020CX The correspondence readings between temperature measured by fixing thermistor and HEX readings Temperature AD value HEX reading Temperature AD value HEX reading Temperature AD value HEX reading [C°] [C°] [C°]...
  • Page 75 KX-MB3010CX/KX-MB3020CX Temperature AD value HEX reading Temperature AD value HEX reading Temperature AD value HEX reading [C°] [C°] [C°]...

  • Page 76: Main Board Section

    KX-MB3010CX/KX-MB3020CX 6.16. Main Board Section DC-DC Power Supply Circuit (5V / 3.3V / 2.5V / 1.2V) IC501 and IC502 are 2ch-output PWM type DC-DC converter controllers, which make up step down type DC-DC converter cir- cuit with Pch power MOSFET Q504, Q505, Q508 and Q509, coil of L500, L501, L502 and L503 and Schottky diode of D500,...
  • Page 77 KX-MB3010CX/KX-MB3020CX Main Unit Power Supply Circuit Block Diagram DC-DC and regulator generate desired voltage from 7V output of low voltage power supply. (Refer to the block diagram shown below.) Waveform 5V/3.3V/2.5V/1.2V booting waveform example...
  • Page 78 KX-MB3010CX/KX-MB3020CX wave form Regulator Circuit (1.25V) IC404 generates termination voltage 1.25V for DDR_SDRAM (IC400, IC401)

  • Page 79: Psu (Low Voltage Power Supply Board) Section

    KX-MB3010CX/KX-MB3020CX 6.17. PSU (Low Voltage Power Supply Board) Section The low voltage power supply board circuit generates +7V and +24Vdc. It also supplies AC voltage to the halogen heat lamp in the fuser unit. The low voltage power supply board uses the switching regulator method.

  • Page 80: Mechanical Operation

    KX-MB3010CX/KX-MB3020CX 6.18. Mechanical Operation 6.18.1. Print Process This Laser Printer creates an image on paper using a technique called laser electrophotography. The printer uses the electro- graphic process known as Discharged Area Development, or “write black”. In this process, a digitally modulated laser scans lat- erally across a rotating OPC (Organic Photo Conductive) drum that has been positively charged.

  • Page 81: Scanning (Adf)

    KX-MB3010CX/KX-MB3020CX 6.18.2. Scanning (ADF) • DOCUMENT TRANSMISSION (ADF) The frictional force between ROLLER DOC SEPARATION and RUBBER SEPARATION makes ROLLER DOC PICK UP move downward from standby position to pick up paper. Pick-upped paper is separated by ROLLER DOC SEPARATION and RUBBER SEPARATION, and then fed by ROLLER DOC FEED.

  • Page 82: Location Of Controls And Components

    KX-MB3010CX/KX-MB3020CX 7 Location of Controls and Components 7.1. Overview 7.1.1. Front view (1) ADF (Automatic Document Feeder) cover (2) Document guides (3) Document tray (4) Document exit (5) Document cover (6) Document entrance (7) Left cover (8) Left cover open lever...

  • Page 83: Control Panel

    KX-MB3010CX/KX-MB3020CX 7.2. Control Panel (1) Copy (2) Scan (3) Collate Directory (KX-MB3020 only) (4) Duplex (5) Contrast (6) Resolution (7) Zoom Quick Scan (KX-MB3020 only) (8) Page Layout Caller ID (KX-MB3020 only) (9) For beep sounds (KX-MB3010 only) (10) Menu...

  • Page 84: Installation Instructions

    KX-MB3010CX/KX-MB3020CX 8 Installation Instructions Note: KX-MB3020 is used for pictures. 8.1. Installation 8.1.1. Installation Space The space required to install the unit is shown below. The dimensions given are necessary for the unit to operate efficiently. Note: • Avoid excessive heat or humidity.

  • Page 85: Recording Paper

    KX-MB3010CX/KX-MB3020CX 8.1.2. Recording Paper 8.1.2.1. Using the paper input tray The standard input tray unit can hold: — Up to 520 sheets of 75 g/m (20 lb) paper. — Up to 470 sheets of 80 g/m (21 lb) paper. — Up to 410 sheets of 90 g/m (24 lb) paper.
  • Page 86 KX-MB3010CX/KX-MB3020CX Load the paper, print-side up (4). Important: • Push down to lock the plate (5) in the standard input tray, if it has come up. • Make sure that the recording paper guides (6) are at the paper size mark and the recording paper is under the paper limit mark (7).
  • Page 87 KX-MB3010CX/KX-MB3020CX Caution for the standard input tray • Do not drop the standard input tray. • Hold the standard input tray with both hands when removing or installing. The standard input tray weighs approximately 4.8 kg (10.6 lb) when fully loaded with recording paper.

  • Page 88: Documents The Unit Can Send

    KX-MB3010CX/KX-MB3020CX 8.1.3. Documents the Unit Can Send 8.1.3.1. Using the scanner glass Note: • Confirm that there are no documents in the automatic document feeder. • Place the original onto the scanner glass gently. To avoid malfunction, do not press down too firmly.

  • Page 89: Replacing The Toner Cartridge And The Drum Unit

    • Do not leave the toner cartridge out of the protection bag for a long time. It will decrease the toner life. • We cannot be responsible for any damage to the unit or degradation of print quality which may occur from the use of a non-Panasonic toner cartridge and drum cartridge. • Do not add toner to the toner cartridge.
  • Page 90 KX-MB3010CX/KX-MB3020CX Push down the toner cartridge (7) to lock into place. • Make sure that the triangles (8) match to install the toner cartridge correctly. Hold the left cover release lever (9), and then pull open the left cover (10).
  • Page 91 • To check the drum life and quality, please print the printer test list. If printing quality is still poor or “REPLACE DRUM CHANGE SUPPLIES” appears on the display, replace the toner cartridge and drum cartridge. • To ensure that the unit operates properly, we recommend the use of Panasonic toner cartridge and drum cartridge. (Refer to Optional Accessories (P.11).)
  • Page 92 KX-MB3010CX/KX-MB3020CX Cleaning the drum cartridge Important: • If the groove of the drum cartridge is dirty, lines or dirty patterns may appear on printed sheets. Be sure to remove any toner remaining on the inside of the drum cartridge to maintain the print quality.

  • Page 93: Connecting To A Computer

    8.1.5. Connecting to a computer Panasonic Multi-Function Station software enables the unit to carry out the following functions: - Printing on plain paper, thin and thick paper, transparencies and labels - Scanning documents and converting an image into text with Readiris OCR software ®...

  • Page 94: Important Notice

    KX-MB3010CX/KX-MB3020CX For USB connection: 1. [Connect directly with a USB cable.] → [Next] • The [Connect Device] dialog box will appear. 2. Connect the unit to a computer with the USB cable (1), then click [Next]. • If the unit is connected to your computer, the model name will be automatically detected.

  • Page 95: Connections

    KX-MB3010CX/KX-MB3020CX 8.2. Connections Caution: • When you operate this product, the power outlet should be near the product and easily accessible. • Be sure to use the telephone line cord supplied with this unit (KX-MB3020 only). • Do not extend the telephone line cord (KX-MB3020 only).

  • Page 96: Operating Instructions

    KX-MB3010CX/KX-MB3020CX • If you use the unit with a computer and your internet provider instructs you to install a filter (11), please connect it as follows (KX- MB3020 only). • A telephone handset cannot be connected directly to this unit. To talk to the other party, please connect an extension telephone (KX-MB3020 only).

  • Page 97: To Select Characters With The Dial Keypad

    KX-MB3010CX/KX-MB3020CX 9.1.1. To Select Characters with the Dial Keypad The dial keypad is used to enter characters and numbers. - Press [ ] or [ ] to move the cursor. - Press dial keys to enter characters and numbers. - Press [Stop] to erase the character or number highlighted by the cursor. Press and hold [Stop] to erase all characters or num- bers.

  • Page 98: Test Mode

    KX-MB3010CX/KX-MB3020CX 10 Test Mode 10.1. Test Functions The codes listed below can be used to perform simple checks of some of the unit’s functions. When complaints are received from customers, they provide an effective tool for identifying the locations and causes of malfunctions.
  • Page 99 KX-MB3010CX/KX-MB3020CX Test Mode Type of Mode Code Function Operation after code input SENSOR CHECK Service Mode “8” “1” “5” First of all, press the copy button, and confirm the action of ON/OFF. For each sensor’s operation, refer to Sensors and Switches Section (P.54).

  • Page 100: Dtmf Single Tone Transmit Selection

    KX-MB3010CX/KX-MB3020CX 10.1.1. DTMF Single Tone Transmit Selection Note: After performing this check, do not forget to turn the setting off. otherwise, dialing in DTMF signal will not work. 10.1.2. Button Code Table...

  • Page 101: Print Test Pattern

    KX-MB3010CX/KX-MB3020CX 10.1.3. Print Test Pattern 1. NO.01 3. NO.03 2. NO.06 • These print test patterns are just image printing, and differ- ent from actual ones. • When it is required to judge the print quality, compare with the printing of a nondefective machine.

  • Page 102: Service Mode

    KX-MB3010CX/KX-MB3020CX 11 Service Mode The programming functions are used to program the various features and functions of the machine, and to test the machine. This facilitates communication between the user and the service man while programming the unit. 11.1. Programming and Lists 11.1.1.

  • Page 103: Service Function Table (Kx-Mb3010)

    KX-MB3010CX/KX-MB3020CX 11.1.3. Service Function Table (KX-MB3010) Code Function Set Value Effective Default Remarks Range Call Service Clear Memory clear Refer to Memory Clear Specification (P.106). ROM check See (P.98). Scanner test See (P.98). Motor test See (P.98). LED test See (P.98).
  • Page 104 KX-MB3010CX/KX-MB3020CX Code Function Set Value Effective Default Remarks Range Receive equalizer select 1: 0 km Set RX equalizer to automatic mode. 2: 1.8 km 3: 3.6 km 4: 7.2 km Transmission equalizer select 1: 0 km 2: 1.8 km 3: 3.6 km 4: 7.2 km...
  • Page 105 KX-MB3010CX/KX-MB3020CX Code Function Set Value Effective Default Remarks Range Transmit speed select 1:14400BPS Adjusts the speed to start training during FAX trans- 2:12000BPS mission. Refer to P.162 3:9600BPS 4:7200BPS 5:4800BPS 6:2400BPS Receive speed select 1:14400BPS Adjusts the speed to start training during FAX 2:12000BPS reception.

  • Page 106: Memory Clear Specification

    KX-MB3010CX/KX-MB3020CX Note: The default value changes depends on Location setting (#114). Refer to the following list for more details. 11.1.5. Memory Clear Specification Execute Service Mode #550 when you want to reset the all setting data keeping the user information.

  • Page 107: User Mode

    KX-MB3010CX/KX-MB3020CX 11.2. User Mode (The list below is an example of the SYSTEM SETUP LIST the unit prints out. 11.2.1. KX-MB3010 Note: The above values are the default values.

  • Page 108: Kx-Mb3020

    KX-MB3010CX/KX-MB3020CX 11.2.2. KX-MB3020 (Page1)
  • Page 109 KX-MB3010CX/KX-MB3020CX (Page2) Note: The above values are the default values.

  • Page 110: Service Mode Settings (Example Of A Printed Out List)

    KX-MB3010CX/KX-MB3020CX 11.3. Service Mode Settings (Example of a printed out list) KX-MB3020 only Note: The above values are the default values.

  • Page 111: History (Example Of A Printed Out List)

    KX-MB3010CX/KX-MB3020CX 11.4. History (Example of a printed out list)

  • Page 112: Descriptions Of The History Report

    KX-MB3010CX/KX-MB3020CX 11.4.1. Descriptions of The History Report (1) Usage Time of receive Mode (Tel Mode) (2) Usage Time of receive Mode (Fax Mode) (3) Not used (4) Not used (5) Dial Mode (6) Number of Directory Entry (7) Number of Caller ID...

  • Page 113: Troubleshooting Guide

    KX-MB3010CX/KX-MB3020CX 12 Troubleshooting Guide Note: KX-MB3020 is used for pictures. LOW VOLTAGE POWER SUPPLY BOARD = PSU HIGH VOLTAGE POWER SUPPLY BOARD = HVU 12.1. User Recoverable Errors If the unit detects a problem, one or more of the following messages will appear on the display.
  • Page 114 KX-MB3010CX/KX-MB3020CX DISPLAY MESSAGE CAUSE AND REMEDY • The unit has a document in memory. See the other displayed message instructions to print out the docu- ment. • If the PC fax setting (feature #442) is set to “ALWAYS”,. - check the connection between the computer and the unit.

  • Page 115: Remote Programming

    KX-MB3010CX/KX-MB3020CX 12.2. Remote Programming If, after the call is connected, the customer describes the situation and it is determined that the problem can be corrected by making parameter changes, this function makes it possible to change parameters such as the user code and service code from another fax (using DTMF tones).

  • Page 116: Entering The Remote Programming Mode And Changing Service Codes

    KX-MB3010CX/KX-MB3020CX 12.2.1. Entering the Remote Programming Mode and Changing Service Codes CROSS REFERENCE: Program Mode Table (P.117)

  • Page 117: Program Mode Table

    KX-MB3010CX/KX-MB3020CX 12.2.2. Program Mode Table 12.2.2.1. User Function (KX-MB3010) Basic features Code Function Set Value Default Remote Setting SET DATE & TIME dd/mm/yy hh:mm 01/01/09 LANGUAGE 1:ENGLISH / 2:SPANISH ENGLISH LCD CONTRAST 1:NORMAL / 2:DARKER NORMAL CHANGING THE SCALE 1:MILLIMETERS / 2:INCHES...
  • Page 118 KX-MB3010CX/KX-MB3020CX Code Function Set Value Default Remote Setting ERASE EMAIL DIR. YES / NO 12.2.2.2. User Function (KX-MB3020) Basic features Code Function Set Value Default Remote Setting SET DATE & TIME dd/mm/yy hh:mm 01/01/09 YOUR LOGO --------- None YOUR FAX NUMBER...
  • Page 119 KX-MB3010CX/KX-MB3020CX Code Function Set Value Default Remote Setting FLATBED LEGAL FAX 1:OFF / 2:NEXT FAX / 3:ALWAYS FAX PREVIEW 1:OFF / 2:ON WEB PREVIEW -------- SET FAX DEFAULT YES / NO Copy features Code Function Set Value Default Remote Setting...
  • Page 120 KX-MB3010CX/KX-MB3020CX The default value changes depends on Location setting (#114). Refer to the following list for more details. 12.2.2.3. Service Function (KX-MB3010) Code Function Set Value Default Remote Setting Memory clear for Call Service --------- --------- Memory clear --------- ---------...
  • Page 121 KX-MB3010CX/KX-MB3020CX 12.2.2.4. Service Function (KX-MB3020) Code Function Set Value Default Remote Setting Pause time set 001~600 x 100msec Dial speed 1:10pps / 2:20 pps 10pps V34 transmission start speed (0:Disable/1:33.6/2:31.2/3:28.8/4:26.4/ 33600bps 5:24.0/6:21.6/7:19.2/8:16.8/) V34 reception start speed (0:Disable/1:33.6/2:31.2/3:28.8/4:26.4/ 33600bps 5:24.0/6:21.6/7:19.2/8:16.8/) Bell signal detect time...
  • Page 122 KX-MB3010CX/KX-MB3020CX Code Function Set Value Default Remote Setting Setup list 1:Start --------- Journal list 1:Start --------- Journal 2 list 1:Start --------- Journal 3 list 1:Start --------- History list 1:Start --------- Service list 1:Start --------- OK means “can set”. NG means “can not set”.

  • Page 123: Troubleshooting Details

    KX-MB3010CX/KX-MB3020CX 12.3. Troubleshooting Details 12.3.1. Outline Troubleshooting is for recovering quality and reliability by determining the broken component and replacing, adjusting or cleaning it as required. First, determine the problem then decide the troubleshooting method. If you have difficulty finding the broken part, determine which board is broken.

  • Page 124: Initialization

    KX-MB3010CX/KX-MB3020CX 12.3.3. Initialization There are two types of initialization, one is the short initialization (about 3 seconds) and the other is the long initialization (about 10 seconds). The short initialization makes the unit enter the standby mode. The long initialization makes the unit enter the...

  • Page 125: Simple Check List

    KX-MB3010CX/KX-MB3020CX 12.3.4. Simple Check List Note: Check according to the service code referring to Test Functions (P.98)

  • Page 126: Simplified Troubleshooting Guide

    KX-MB3010CX/KX-MB3020CX 12.3.5. Simplified Troubleshooting Guide 12.3.5.1. Printing Symptom Cause Countermeasure Ghost Image (P.143) Failed drum unit Replace drum unit Failed transfer unit Check the transfer roller and spring Failed the high-voltage terminal Check the high-voltage terminal Failed the high voltage power supply board Go to High Voltage Section (P.198)

  • Page 127: Recording Paper Feed

    KX-MB3010CX/KX-MB3020CX 12.3.5.2. Recording Paper Feed Symptom Cause Countermeasure Multiple Feed (P.149) Dirty or failed the pickup roller Clean or replace the pickup roller Dirty or failed the pickup rubber Clean or replace the separation rubber The Recording Paper Is Dirty the pressure roller or the heat roller Clean the pressure roller and the heat roller Waved or Wrinkled (P.150)
  • Page 128 KX-MB3010CX/KX-MB3020CX 12.3.5.3. Copy and FAX Symptom Cause Countermeasure NO DOCUMENT FEED (No Failed the document sensor lever Replace the document sensor lever Document Feed, Docu- Failed the document sensor Go to Sensor Section (P.181) ment Jam and Multiple Doc- Dirty or failed the separation roller Clean or replace the separation roller ument Feed.) (P.155)

  • Page 129: Call Service Troubleshooting Guide

    KX-MB3010CX/KX-MB3020CX 12.3.6. CALL SERVICE Troubleshooting Guide Call Service related error is most frequent. Call Service 1 ----- Polygon doesn’t rotate..Refer to LSU (Laser Scanning Unit) Section (P.50). • First, listen to the sound. If rotation sound isn't heard, check 24V line, POLON signal and POLCLK signal. If even a little of sound is heard, check XREADY signal.
  • Page 130 KX-MB3010CX/KX-MB3020CX :2... Fuser Fan ON (High speed) :3... Fuser Fan ON (Low speed) :4... PSU Fan ON (High speed) :5... PSU Fan ON (Low speed) :6... Both Fan OFF Call service 17 ----- Fuse error of monochrome drum cartridge..Refer to Drum Life sensor circuit (P.63).

  • Page 131: Call Service

    KX-MB3010CX/KX-MB3020CX 12.3.6.1. CALL SERVICE 1 "CALL SERVICE 1" means that the polygon motor inside the LSU does not rotate. The rotation of the polygon motor is detected by IC300-R32pin (NREADY).
  • Page 132 KX-MB3010CX/KX-MB3020CX 12.3.6.2. CALL SERVICE 2 "CALL SERVICE 2" means that the synchronous signal out of the LSU cannot be detected. The synchronous signal out of the LSU is detected by IC300-T31pin. (NHSYNC) Note: As for the "Pulse" waveform of the above flow chart, see the timing chart.
  • Page 133 KX-MB3010CX/KX-MB3020CX 12.3.6.3. CALL SERVICE 3 "CALL SERVICE 3" means that the temperature of the fuser does not rise up to or exceed a constant temperature. The temperature is monitored with the thermistor inside the fuser and detected with the voltage input into IC300-U34pin.
  • Page 134 KX-MB3010CX/KX-MB3020CX 12.3.6.4. CALL SERVICE 4 "CALL SERVICE 4" means that the Fuser FAN does not rotate or the rotation of the Fuser FAN cannot be detected normally. The rotation of the Fuser FAN is detected by IC300_L34. "CALL SERVICE 4" is displayed when NG is detected consecutive 3 times.
  • Page 135 KX-MB3010CX/KX-MB3020CX...
  • Page 136 KX-MB3010CX/KX-MB3020CX 12.3.6.5. CALL SERVICE 5 "CALL SERVICE 5" means that the main DC motor does not rotate properly or the rotation detection signal (LD signal) is not detected during motor rotation.
  • Page 137 KX-MB3010CX/KX-MB3020CX 12.3.6.6. CALL SERVICE 6 “CALL SERVICE 6” indicates that abnormal charge voltage is output from the high voltage unit.
  • Page 138 KX-MB3010CX/KX-MB3020CX 12.3.6.7. CALL SERVICE 7 “CALL SERVICE 7” means that PSU does not output ZERO CROSS signal, ZERO CROSS signal is detected by IC300_K34pin.
  • Page 139 KX-MB3010CX/KX-MB3020CX 12.3.6.8. CALL SERVICE 11 "CALL SERVICE 11" means that the PSU FAN does not rotate or the rotation of the PSU FAN cannot be detected normally. The rotation of the PSU FAN is detected by IC300_L34. "CALL SERVICE 11" is displayed when NG is detected consecutive 3 times.
  • Page 140 KX-MB3010CX/KX-MB3020CX...
  • Page 141 KX-MB3010CX/KX-MB3020CX 12.3.6.9. CALL SERVICE 17 "CALL SERVICE 17" means that the First use sensor problem. Especially "CALL SERVICE 17" is appeared when the fuse which is installed in the Drum Unit PCB is not blown out within a specific time.
  • Page 142 KX-MB3010CX/KX-MB3020CX 12.3.6.10. CALL SERVICE 20 "CALL SERVICE 20" means that the toner empty detect sensor problem. Especially "CALL SERVICE 20" appears when following problems occur. 1. Photo diode is broken by open mode. 2. Connection problem between Main PCB and photo diode PCB.

  • Page 143: Print

    KX-MB3010CX/KX-MB3020CX 12.3.7. Print 12.3.7.1. Ghost Image CROSS REFERENCE: High Voltage Section(P.198) PSU (Low Voltage Power Supply Board) Section(P.79)
  • Page 144 KX-MB3010CX/KX-MB3020CX 12.3.7.2. Dark or White Vertical Line Note: When wiping the cover glass, reflecting mirror, use a dry and soft cloth.
  • Page 145 KX-MB3010CX/KX-MB3020CX 12.3.7.3. Dark or White Horizontal Line CROSS REFERENCE: High Voltage Section (P.198)
  • Page 146 KX-MB3010CX/KX-MB3020CX 12.3.7.4. Dirty or Half Darkness Background CROSS REFERENCE: High Voltage Section (P.198)

  • Page 147: Black Print

    KX-MB3010CX/KX-MB3020CX 12.3.7.5. Black Print CROSS REFERENCE: High Voltage Section (P.198) LSU (Laser Scanning Unit) Section (P.50)

  • Page 148: Light Print

    KX-MB3010CX/KX-MB3020CX 12.3.7.6. Light Print CROSS REFERENCE: High Voltage Section (P.198)

  • Page 149: Recording Paper Feed

    KX-MB3010CX/KX-MB3020CX 12.3.7.7. Black or White Point 12.3.8. Recording Paper Feed 12.3.8.1. Multiple Feed...
  • Page 150 KX-MB3010CX/KX-MB3020CX 12.3.8.2. The Recording Paper Is Waved or Wrinkled...
  • Page 151 KX-MB3010CX/KX-MB3020CX 12.3.8.3. Skew...
  • Page 152 KX-MB3010CX/KX-MB3020CX 12.3.8.4. The Recording Papar Does Not Feed CROSS REFERENCE: Sensor Section (P.181) Motor Section (P.185)
  • Page 153 KX-MB3010CX/KX-MB3020CX 12.3.8.5. The Recording Paper Jam...
  • Page 154 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: FAN Motor Section (P.45) When the recording paper jam is occurred, the service mode *630 distinguishes the cause. 0:No Paper Jam 1:The paper was pulled into the unit. 2:The paper was longer than the maximum length of the register sensor.

  • Page 155: Adf (Auto Document Feed) Section

    KX-MB3010CX/KX-MB3020CX 12.3.9. ADF (Auto document feed) Section 12.3.9.1. No Document Feed, Document Jam and Multiple Document Feed. CROSS REFERENCE: Sensor Section (P.181)
  • Page 156 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: Motor Section (P.185)
  • Page 157 KX-MB3010CX/KX-MB3020CX 12.3.9.2. Skew (ADF)
  • Page 158 KX-MB3010CX/KX-MB3020CX 12.3.9.3. The Sent FAX Data Is Skewed (KX-MB3020 only) CROSS REFERENCE: Skew (ADF) (P.157) 12.3.9.4. The Received FAX Data Is Skewed (KX-MB3020 only) CROSS REFERENCE: Skew (P.151) 12.3.9.5. The Received or Copied Data Is Expanded...
  • Page 159 KX-MB3010CX/KX-MB3020CX 12.3.9.6. Black or White Vertical Line Is Copied...

  • Page 160: Communication Section (Kx-Mb3020 Only)

    KX-MB3010CX/KX-MB3020CX 12.3.9.7. An Abnormal Image Is Copied CROSS REFERENCE: CIS Control Section (P.193) 12.3.10. Communication Section (KX-MB3020 only) Find the problem in the table shown below, and refer to the corresponding troubleshooting procedure in Defective Facsimile Section (P.161). Symptom Content Possible cause The paper dose not feed properly when faxing.
  • Page 161 KX-MB3010CX/KX-MB3020CX 12.3.10.1. Defective Facsimile Section 12.3.10.1.1. Transmit Problem CROSS REFERENCE: Cleaning the White Plates and Glasses (P.251) ADF (Auto document feed) Section (P.155) Operation Panel Section (P.181)
  • Page 162 KX-MB3010CX/KX-MB3020CX 12.3.10.1.2. Sometime There Is A Transmit Problem Note: “596: Transmit level set” represents a service code. Refer to the Service Function Table (KX-MB3020) (P.103). “717: Transmit speed select” represents a service code. Refer to the Service Function Table (KX-MB3020) (P.103).
  • Page 163 KX-MB3010CX/KX-MB3020CX 12.3.10.1.3. Receive Problem Confirm the following before starting troubleshooting. • Is the recording paper installed properly? Refer to the next page. Note: “596: Transmit level set” represents a service code. Refer to the Service Function Table (KX-MB3020) (P.103). “718: Receive speed select” represents a service code. Refer to the Service Function Table (KX-MB3020) (P.103).
  • Page 164 KX-MB3010CX/KX-MB3020CX 12.3.10.1.4. The Unit Can Copy, But Cannot Transmit/Receive CROSS REFERENCE: Test Functions (P.98)

  • Page 165: Special Service Journal Reports (Kx-Mb3020 Only)

    KX-MB3010CX/KX-MB3020CX 12.3.11. Special Service Journal Reports (KX-MB3020 only) Journal 2 and Journal 3 shown below, which are special journals giving the additional detailed information about the latest 35 communications, can be printed by Service Code 881 or 882. Remote printing function for the journal reports (JOURNAL, JOURNAL 2 and JOURNAL 3) is also available for service technicians.
  • Page 166 KX-MB3010CX/KX-MB3020CX 12.3.11.1. Journal 2 Refer to JOURNAL 2 in Printout Example(P.167). Journal 2 displays the additional detailed information about the last 35 communications. Descriptions: (1) RCV. MODE Indicates which receive mode the unit was in when the unit received a fax message.

  • Page 167: Printout Example

    KX-MB3010CX/KX-MB3020CX 12.3.11.2. Journal 3 Refer to JOURNAL 3 in Printout Example(P.167). Description (6) ENCODE Compression Code: MH/MR/MMR (7) MSLT MSLT means Minimum Scan Line Time. Used only at the factory. (8) EQM EQM means Eye Quality Monitor. Used only at the factory.
  • Page 168 KX-MB3010CX/KX-MB3020CX 12.3.11.4. How To Output The Journal Report 1. Press the MENU button 3 times. 2. Press “#”, then “2”. 3. Press the SET button. 4. The report prints out. CROSS REFERENCE: Features(P.12) Error code table: (1) CODE (2) RESULT...
  • Page 169 KX-MB3010CX/KX-MB3020CX Note*: If the problem remains, see the following “Countermeasure” flow chart.
  • Page 170 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: Test Functions (P.98)
  • Page 171 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: Test Functions (P.98)
  • Page 172 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: Test Functions (P.98)
  • Page 173 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: Test Functions (P.98)
  • Page 174 KX-MB3010CX/KX-MB3020CX...
  • Page 175 KX-MB3010CX/KX-MB3020CX...
  • Page 176 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: Test Functions (P.98)

  • Page 177: Initializing Error

    KX-MB3010CX/KX-MB3020CX 12.3.12. Initializing Error After the power is turned on, the SOC (IC300) initializes and checks each IC. The ROM (IC402) and DDR-SDRAM (IC400, 401)are checked. If initialization fails for the ICs, the system will not boot up. In this case, please find the cause as follows.

  • Page 178: Analog Section

    KX-MB3010CX/KX-MB3020CX 12.3.13. Analog Section This chapter provides the testing procedures required for the analog parts. A signal route to be tested is determined depending upon purposes. The signal mainly flowing on this route is analog. You can trace the signal with an oscilloscope. The signal flow on each route is shown in the Check Sheet here.
  • Page 179 KX-MB3010CX/KX-MB3020CX 12.3.13.2. DEFECTIVE ITS (Integrated Telephone System) SECTION (KX-MB3020 only) 1. No handset and speakerphone transmission / reception Perform a signal test in the NCU section and locate a defective point (where the signal disappears) on each route between the telephone line and the speaker (receiving).
  • Page 180 KX-MB3010CX/KX-MB3020CX 4. No tone dialing CROSS REFERENCE: Check Sheet (KX-MB3020 only) (P.178) 12.3.13.3. DETECTIVE TAM INTERFACE SECTION (KX-MB3020 only) 1. The FAX turns on, but does not arrive through TAM. CROSS REFERENCE: TAM Interface Section (P.32) 2. A FAX is received, but won't switch from TAM to FAX.

  • Page 181: Operation Panel Section

    KX-MB3010CX/KX-MB3020CX 12.3.13.4. Operation Panel Section Refer to Test Functions (P.98). 1. NO KEY OPERATION 2. NO LCD INDICATION CROSS REFERENCE: Test Functions (P.98) 12.3.13.5. Sensor Section Refer to SENSORS AND SWITCHES for the circuit description. Perform an SENSOR CHECK to determine if the sensor is operating correctly.
  • Page 182 KX-MB3010CX/KX-MB3020CX 2. Check the paper sensor ..“OUT OF PAPER” INPUT TRAY #1 3. Check the ADU sensor ..“PAPER JAMMED” 4. Check the paper exit sensor ..“PAPER JAMMED” 5. Check the home sensor ..“SCANNER POSITION ERROR”...
  • Page 183 KX-MB3010CX/KX-MB3020CX 6. Check the read position sensor ..“CHECK DOCUMENT” 7. Check the registration sensor ..“PAPER JAMMED” 8. Check the print timing sensor ..“PAPER JAMMED” 9. Check the document sensor...
  • Page 184 KX-MB3010CX/KX-MB3020CX 10. Check the cassette sensor ..“CHECK INSTALL INPUT TRAY #1” 11. Check the left cover sensor ..“LEFT COVER OPEN”...
  • Page 185 KX-MB3010CX/KX-MB3020CX 12.3.13.6. Motor Section 12.3.13.6.1. Main Motor...
  • Page 186 KX-MB3010CX/KX-MB3020CX 12.3.13.6.2. Scanner (ADF & FB) motor 1. Sub flow chart 1...
  • Page 187 KX-MB3010CX/KX-MB3020CX 2. Sub flow chart 2 3. Sub flow chart 3...
  • Page 188 KX-MB3010CX/KX-MB3020CX 4. Sub flow chart 4 5. Sub flow chart 5...
  • Page 189 KX-MB3010CX/KX-MB3020CX 6. Sub flow chart 6...
  • Page 190 KX-MB3010CX/KX-MB3020CX 7. Sub flow chart 7...
  • Page 191 KX-MB3010CX/KX-MB3020CX 12.3.13.6.3. Optional lower input Tray Motor (OPF Motor)

  • Page 192: Lsu Section

    KX-MB3010CX/KX-MB3020CX 12.3.13.7. LSU Section CROSS REFERENCE: LSU (Laser Scanning Unit) Section (P.50)

  • Page 193: Cis Control Section

    KX-MB3010CX/KX-MB3020CX 12.3.14. CIS Control Section...
  • Page 194 KX-MB3010CX/KX-MB3020CX CROSS REFERENCE: Test Functions (P.98)

  • Page 195: High Voltage Value Check Point

    KX-MB3010CX/KX-MB3020CX 12.3.15. High Voltage Value Check Point Measurement Procedure 1. Turn off the power supply and remove the front cover of the main unit so that the HVU is revealed. (To remove the front cover, remove the rear and right cover in advance. (Refer to Covers(P.227).) 2.
  • Page 196 KX-MB3010CX/KX-MB3020CX...
  • Page 197 KX-MB3010CX/KX-MB3020CX...

  • Page 198: High Voltage Section

    KX-MB3010CX/KX-MB3020CX 12.3.16. High Voltage Section 1. Main...
  • Page 199 KX-MB3010CX/KX-MB3020CX 2. CHG, GRID...
  • Page 200 KX-MB3010CX/KX-MB3020CX 3. TRA (+)
  • Page 201 KX-MB3010CX/KX-MB3020CX 4. DEV AC...
  • Page 202 KX-MB3010CX/KX-MB3020CX 5. DEV DC...
  • Page 203 KX-MB3010CX/KX-MB3020CX 6. TRA (-)

  • Page 204: Usb Section

    KX-MB3010CX/KX-MB3020CX 12.3.17. USB Section Troubleshooting 1. Confirmation of the PC settings...
  • Page 205 KX-MB3010CX/KX-MB3020CX 2. Confirmation of the main unit...

  • Page 206: Lan Section

    KX-MB3010CX/KX-MB3020CX 12.3.18. LAN Section...
  • Page 207 KX-MB3010CX/KX-MB3020CX LAN Block Diagram The PHY gives an FLP signal to decide transmission rate of connected USB device. (Figure 1-1,2) When transmission rate was decided on 100Base-T, PHY transmits a wave pattern of a figure 2-1. When transmission rate was decided on 10Base-T, the PHY transmits the wave pattern of the figure 3-1,3.
  • Page 208 KX-MB3010CX/KX-MB3020CX LAN Circuit signal waveform (Normal) Transmitter waveform [TD+ ( CN500 pin1), TD- ( CN500 pin2) differential voltage] : Differential probe is used. 1. When network equipment is not connected (LAN cable is not connected); 2. When 100Base-TX-enabled device is connected;...
  • Page 209 KX-MB3010CX/KX-MB3020CX 3. When 10Base-T-enabled device is connected.
  • Page 210 KX-MB3010CX/KX-MB3020CX IC505(C1CB00003084) Pin Description Pin No Signal Name Type Description CONFIG[1] Hardware Configuration CONFIG[2] Hardware Configuration CONFIG[3] Hardware Configuration DVDD Digital core supply 1.2V LED[0] Parallel LED outputs VDDO Power 2.5V or 3.3V non-MAC Interface digital I/O supply LED[1] Parallel LED outputs...

  • Page 211: Main Board Section

    KX-MB3010CX/KX-MB3020CX 12.3.19. Main Board Section 2.5V/1.2V Troubleshooting Guide...
  • Page 212 KX-MB3010CX/KX-MB3020CX 5V/3.3V Troubleshooting Guide...

  • Page 213: Power Supply Board Section

    KX-MB3010CX/KX-MB3020CX 12.3.20. Power Supply Board Section 12.3.20.1. KEY COMPONENTS FOR TROUBLESHOOTING Check the following parts first: F1, F2, D10, C5, Q1 and IC1. This comes from our experience with experimental test. For example: power supply and lightning surge voltage test, with standing voltage test, intentional short circuit test, etc.

  • Page 214: Troubleshooting Flow Chart

    KX-MB3010CX/KX-MB3020CX 12.3.20.2. Troubleshooting Flow Chart...
  • Page 215 KX-MB3010CX/KX-MB3020CX 12.3.20.3. Broken Parts Repair Details (D10) If D10 is short-circuit, F2 will melt (open). In this case, replace all of the parts (D10, F2). (Q1) The worst case of Q1 is a short-circuit between the Drain and Gate because damage expands to the peripheral circuit of Q1.

  • Page 216: Recording Paper Jam

    KX-MB3010CX/KX-MB3020CX 12.4. Recording Paper Jam Caution: • Do not pull out the jammed paper forcibly before opening the left cover. • Do not open the paper input tray before opening the left cover as the jammed paper may be pulled and the jam may...

  • Page 217: When The Recording Paper Has Jammed Inside Of The Unit

    KX-MB3010CX/KX-MB3020CX 12.4.1. When the recording paper has jammed inside of the unit The display will show the following. • Hold the left cover open lever (1), and then pull open the left cover (2). Remove the jammed paper. • If paper is jammed inside the left cover, see case 1 to case 5.
  • Page 218 KX-MB3010CX/KX-MB3020CX Case 2: When the recording paper has jammed near the drum and toner unit: Remove the jammed paper (5) carefully by pulling it upward. Case 3: When the recording paper has jammed near the fuser unit: 1. Push down both green levers (6) until they stop.
  • Page 219 KX-MB3010CX/KX-MB3020CX When the recording paper has jammed over the fuser unit: Push down the upper green lever (8), and remove the jammed paper (9) carefully by pulling it toward you. 3. Push up the green levers (10) to the original position.
  • Page 220 KX-MB3010CX/KX-MB3020CX 1. Push down both green levers (11) until they stop. 2. Remove the jammed paper (12) carefully by pulling it rightward. 3. Push up the green levers (13) to the original position.
  • Page 221 KX-MB3010CX/KX-MB3020CX Case 5: When the recording paper has jammed inside of the automatic duplex unit: When the recording paper has jammed near the roller: Remove the jammed paper (14) carefully by pulling it upward. When the recording paper has jammed near the automatic duplex unit: Remove the jammed paper (15) carefully by pulling it toward you.
  • Page 222 KX-MB3010CX/KX-MB3020CX 3. Insert the standard input tray into the unit, lifting the front part of the tray. Then push it completely into the unit. Close the left cover.

  • Page 223: When The Recording Paper Has Jammed Near The Optional Lower Input Tray

    KX-MB3010CX/KX-MB3020CX 12.4.2. When the recording paper has jammed near the optional lower input tray The display will show the following. Open the cover (1) at the left side of the optional lower input tray. Remove the jammed paper (2). Close the cover at the left side of the optional lower input tray.

  • Page 224: When The Recording Paper Is Not Fed Into The Unit Properly

    KX-MB3010CX/KX-MB3020CX 12.4.3. When the recording paper is not fed into the unit properly The display will show the following. Pull the paper input tray until it clicks into place, then pull it com- pletely out, lifting the front part of the tray. Remove the recording paper and straighten.
  • Page 225 KX-MB3010CX/KX-MB3020CX Remove the jammed document (3) carefully. When the document has jammed near the document exit: Open the document tray (4) and remove the jammed document (5) carefully. Close the ADF cover. Press [STOP] to clear the message.

  • Page 226: Service Fixture & Tools

    KX-MB3010CX/KX-MB3020CX 13 Service Fixture & Tools...

  • Page 227: Disassembly And Assembly Instructions

    KX-MB3010CX/KX-MB3020CX 14 Disassembly and Assembly Instructions Note: KX-MB3020 is used for pictures. LOW VOLTAGE POWER SUPPLY BOARD = PSU HIGH VOLTAGE POWER SUPPLY BOARD = HVU 14.1. Covers 14.1.1. Rear and Right Covers Remove the 4 screws (A). Remove the rear cover while releasing the hook (C).

  • Page 228: Scanner Right Cover

    KX-MB3010CX/KX-MB3020CX 14.1.1.1. Disassembly of the Right Cover (KX-MB3020 ONLY) Remove the 3 screws. Remove the speaker 14.1.2. Scanner Right Cover Before performing the following steps, remove the rear and right covers. (Refer to section 14.1.1 “Rear and Right Covers”.) Remove the screw.

  • Page 229: Scanner Left Cover And

    KX-MB3010CX/KX-MB3020CX 14.1.3. Scanner Left Cover and Front Cover Before performing the following steps, remove the rear and right covers. (Refer to section 14.1.1 “Rear and Right Covers”.) Open the ADF unit and automatic duplex unit. Remove the Standard input tray.

  • Page 230: Operation Panel Unit

    KX-MB3010CX/KX-MB3020CX 14.2. Operation Panel Unit Before performing the following steps, remove the rear, right and front covers. (Refer to section 14.1.1 “Rear and Right Covers”.) Remove the 3 screws. Remove the operation panel unit. Disconnect the panel cable.

  • Page 231: Disassembly Of Operation Panel Unit

    KX-MB3010CX/KX-MB3020CX 14.2.1. Disassembly of Operation Panel Unit Remove the 5 screws. Separate the panel cover while releasing the 2 hooks (A) the operation panel board. Separate the operation keys. If necessary, remove the LCD cover while releasing the 2 hooks (B) from the operation panel...

  • Page 232: Automatic Document Feeder (Adf) Unit

    KX-MB3010CX/KX-MB3020CX 14.3. Automatic Document Feeder (ADF) Unit Before performing the following steps, remove the rear and right covers. (Refer to section 14.1.1 “Rear and Right Covers”.) Remove the screw. Disconnect the scanner cable connector (CN701) on the main board. Open the ADF unit.

  • Page 233: Upper Adf Section (1)

    KX-MB3010CX/KX-MB3020CX 14.3.1. Upper ADF Section (1) 1. Push the both side hooks in the direction of the arrow to lease the hooks. 2. Remove the ADF Cover. 3. Remove the ADF Conveyer.

  • Page 234: Adf Bottom Section

    KX-MB3010CX/KX-MB3020CX 14.3.2. ADF Bottom Section 1. Release the 4 Hooks to remove the White Board. 2. Remove the 6 screws (E). 3. Remove the 2 connectors (A),(B). 4. Remove the ADF Motor Cover. 5. Remove the 2 screws (D). 6. Remove the ADF Relay Board.

  • Page 235: Upper Adf Section (2)

    KX-MB3010CX/KX-MB3020CX 14.3.3. Upper ADF Section (2) 1. Remove the connector (M) in the ADF Bottom Section. 2. Remove the 4 screws (A). 3. Remove the ADF Pick-up Unit.Upper ADF section (2) 14.4. Drive Unit Section 1. Remove the 2 screws (A) to remove the 3 leads.

  • Page 236: Main Board Section

    KX-MB3010CX/KX-MB3020CX 14.5. Main Board Section Remove the screw (A). Remove the Plate. Remove the 2 screws (B). Remove the 5 screws (C). Remove the 3 screws (D). Remove the all connectors on the Main Board. Remove the Main board. Unsolder the Lithium Battery.

  • Page 237: Automatic Duplex Unit (Adu)

    KX-MB3010CX/KX-MB3020CX 14.7. Automatic Duplex Unit (ADU) Before performing the following steps, remove the rear and front covers. (Refer to section 14.1.1 “Rear and Right Covers”.) Open the automatic duplex unit (ADU). Remove the ADU hubs from the left and right sides while releasing the hook using a small flat-blade screwdriver.

  • Page 238: Disassembly Of The Automatic Duplex Unit (Adu)

    KX-MB3010CX/KX-MB3020CX 14.7.1. Disassembly of the Automatic Duplex Unit (ADU) Remove the 2 screws (A). Remove the duplex paper guide, ADU lock lever and lever spring. If necessary, remove the screw (B) and ADU spring. Remove the 4 screws (C). Remove the ADU inner box from the ADU cover.

  • Page 239: Fuser Unit

    KX-MB3010CX/KX-MB3020CX 14.8. Fuser Unit Before performing the following steps, remove the rear, right and front covers. (Refer to 4.1.1. Rear and Right Covers .) Open the automatic duplex unit (ADU). Pull the drum and toner unit out in the direction of the arrow.

  • Page 240: Scanner Unit

    KX-MB3010CX/KX-MB3020CX 14.9. Scanner Unit Before performing the following steps, remove the rear, right, scanner right, scanner left and front covers. (Refer to section 14.1.1 “Rear and Right Covers”.) Release the 2 screws from the rear side of the main body.
  • Page 241 KX-MB3010CX/KX-MB3020CX Remove the 6 screws (A) and scanner frame support. Remove the 2 screws (B) and 2 screws (C). Separate the scanner unit from the main body by lifting up the scanner unit in the direction of the arrow.

  • Page 242: Fb Scanner Unit

    KX-MB3010CX/KX-MB3020CX 14.9.1. FB Scanner Unit 1. Remove the 5 screws (A). 2. Remove the 6 screws (B). 3. Separate the FB Scanner Unit from the FB Base Cabinet.

  • Page 243: Installation Position Of The Lead

    KX-MB3010CX/KX-MB3020CX 14.10. Installation Position of The Lead 14.10.1. Main Board Section (1)

  • Page 244: Main Board Section (2)

    KX-MB3010CX/KX-MB3020CX 14.10.2. Main Board Section (2)

  • Page 245: Adf Section

    KX-MB3010CX/KX-MB3020CX 14.10.3. ADF Section...

  • Page 246: Main Cabinet Section

    KX-MB3010CX/KX-MB3020CX 14.10.4. Main Cabinet Section...

  • Page 247: Drive Unit Section

    KX-MB3010CX/KX-MB3020CX 14.10.5. Drive Unit Section...

  • Page 248: High Voltage Power Supply Board Section

    KX-MB3010CX/KX-MB3020CX 14.10.6. High Voltage Power Supply Board Section...

  • Page 249: Maintenance

    KX-MB3010CX/KX-MB3020CX 15 Maintenance Note: KX-MB3020 is used for pictures. 15.1. Maintenance Items and Component Locations 15.1.1. Outline MAINTENANCE AND REPAIRS ARE PERFORMED USING THE FOLLOWING STEPS. 1. Periodic maintenance Inspect the equipment periodically and if necessary, clean any contaminated parts.

  • Page 250: Maintenance List

    KX-MB3010CX/KX-MB3020CX 15.1.2.1. Maintenance List OPERATION CHECK REMARKS Document Path Remove any foreign matter such as paper. — Rollers If the roller is dirty, clean it with a damp cloth then dry thor- Refer to Maintenance Check Items/Com- oughly. ponent Locations(P.249)

  • Page 251: Maintenance

    KX-MB3010CX/KX-MB3020CX 15.2. Maintenance 15.2.1. Cleaning the White Plates and Glasses Clean the white plates and glass when a black line, a white line or a dirty pattern appears on: — your recording paper, — the original document, — the scanned data, or —...

  • Page 252: Cleaning The Document Feeder Rollers

    KX-MB3010CX/KX-MB3020CX Close the document cover (5). 15.2.2. Cleaning the Document Feeder Rollers Clean the rollers when the document frequently misfeeds. Caution: • Do not use paper products, such as paper towels or tissues for cleaning. Turn the power switch OFF.
  • Page 253 KX-MB3010CX/KX-MB3020CX Close the ADF cover. Turn the power switch ON.

  • Page 254: Printing Operation Principle

    KX-MB3010CX/KX-MB3020CX 15.3. Printing Operation Principle 15.3.1. Process Chart and Process BIAS 15.3.2. Charging Charging is the stage that keeps the surface of the sensitive drum a fixed electric potential. The sensitive drum is the Organic Photo Conductor (OPC), which is a electric conductive cylinder whose surface is covered with the Charge Generation Transfer Layer (CGTL).

  • Page 255: Exposing

    KX-MB3010CX/KX-MB3020CX 15.3.3. Exposing When the drum which is charged with the fixed electric charge is irradiated by the laser beam, the plus charge and minus charge are generated at the Charge Generation Transfer Layer. Passing through the Charge Generation Transfer Layer which conducts the minus charge, the plus-charged drum's surface is neutralized to be skipped.

  • Page 256: Developing And Transcription

    KX-MB3010CX/KX-MB3020CX 15.3.5. Developing and Transcription The developing is the stage that the OPC drum with an invisible image is changed to visible by the toner. The drum unit consists of mixing paddle, toner supply roller, developing roller, developing blade, charge wire, grid plate and OPC drum. The bias voltage is added to the developing roller and toner supply roller.

  • Page 257: Cleaning Of Transfer Roller

    KX-MB3010CX/KX-MB3020CX 15.3.6. Cleaning of Transfer Roller The toner attached to the surface of the OPC drum is transferred to the paper at the transcription stage, but a part of the toner remains. The cleaning is the stage that cleans the remain toner after the transcription stage. The remain toner on the drum and the toner which was attached to the place where the laser beam didn't scan are gathered to the developing roller to be used again.

  • Page 258: Fixing

    KX-MB3010CX/KX-MB3020CX 15.3.7. Fixing On the process of the transfer, the transferred toner is weakly attached on the paper. Fixing means the process to fix the toner on the paper permanently. The fixing part melts the toner at the high temperature using the halogen heater. The toner is fixed on the paper by the heat and pressure through the fixing part with the image.

  • Page 259: Terminal Guide Of The Ics Transistors And Diodes

    KX-MB3010CX/KX-MB3020CX 15.4. Terminal Guide of The ICs Transistors and Diodes 15.4.1. Main Board (1)

  • Page 260: Main Board (2)

    KX-MB3010CX/KX-MB3020CX 15.4.2. Main Board (2) 15.4.3. Operation Board 15.4.4. Toner LED Board 15.4.5. Driver Board...

  • Page 261: How To Replace The Flat Package Ic

    KX-MB3010CX/KX-MB3020CX 15.5. How to Replace the Flat Package IC Even if you do not have the special tools (for example, a spot heater) to remove the Flat IC, with some solder (large amount), a soldering iron and a cutter knife, you can easily remove the ICs that have more than 100 pins.

  • Page 262: Flat Package Ic Installation Procedure

    KX-MB3010CX/KX-MB3020CX 15.5.3. Flat Package IC Installation Procedure 1. Temporarily fix the FLAT PACKAGE IC, soldering the two marked pins. *Check the accuracy of the IC setting with the corresponding soldering foil. 2. Apply flux to all pins of the FLAT PACKAGE IC.

  • Page 263: Main Board Section

    KX-MB3010CX/KX-MB3020CX 15.6. Main Board Section When the unit fails to boot up the system, take the troubleshooting procedures very carefully. It may have a serious problem. The symptom: No response when the power is turned on. (No LCD display, and keys are not accepted.) The first step is to check the power source.

  • Page 264: Ng Example

    KX-MB3010CX/KX-MB3020CX 15.6.1. NG Example...

  • Page 265: Test Chart

    KX-MB3010CX/KX-MB3020CX 15.7. Test Chart 15.7.1. ITU-T No.1 Test Chart...

  • Page 266: Itu-T No.2 Test Chart

    KX-MB3010CX/KX-MB3020CX 15.7.2. ITU-T No.2 Test Chart...

  • Page 267: Schematic Diagram

    KX-MB3010CX/KX-MB3020CX 16 Schematic Diagram 16.1. For Schematic Diagram Note: 1. DC voltage measurements are taken with an oscilloscope or a tester with a ground. 2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

  • Page 268: Main Board

    IO60 SN_ADF4 6:5D 3:1C L314 NVIDEO IO21 IO61 SPMUTE 4:2D AP30 FANON2H IO22 MMPWR 4:2D AN31 5:7B FANON2L IO23 OPMPWR OPM_PWR 4:5C L315 AP33 5:1D NREADY IO24 CRMPWR 15HD102 TP for modem JTAG KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.1) (1/3)
  • Page 269 AFESIFEN AL10 B5 PCIAD3 AFESIFDIN AN19 A4 PCIAD2 R382 5:6D AFESIFDOUT AFESIFDOUT C5 PCIAD1 AM19 D5 PCIAD0 AL21 5:6C NCCDON NCCDON AP20 5:6E LEDONR LEDONR AN20 5:6E LEDONG LEDONG AP21 5:6E LEDONB LEDONB KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.1) (2/3)
  • Page 270 AL 4 vss33 vss62 AL 9 vss34 vss63 AL15 vss35 vss64 AL20 vss36 vss65 AL26 vss37 vss66 AL31 vss38 vss67 vss39 vss68 AF31 vss40 vss69 vss41 vss70 vss42 vss71 vssiopcix vss72 KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.1) (3/3)
  • Page 271 KX-MB3010CX/KX-MB3020CX Memo...

  • Page 272: Main Board (2)

    SDMA[1] SDMA[3] SDMA[2] SDMA[5] C427 Z0.1u SDMA[4] SDMA[3] SDMA[4] RA410 SDMA[5] VDD3 VSS1 C428 Z0.1u SDMA[6] SDMA[7] C429 NC SDMA[8] RA411 SDMA[9] +1.25VTT C430 Z0.1u SDMA[11] SDMA[12] C431 NC RA412 C432 Z0.1u SDMA[10] KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.2) (1/2)
  • Page 273 FRMA[2] 26 A1 27 NC2 28 NC3 1:1D;3:4B FRMA[1] FRMA[0-24] NFRCE 1:4D 1:4D;3:4B NFROE R800 R801 R802 R803 R804 R805 R806 R807 +2.5V +3.3V +1.25VTT IC404 VTT_IN VTTS R420 VREF VDDQ C475 C476 KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.2) (2/2)

  • Page 274: Main Board (3)

    RXD2 25 MDIN0 1:4B RX_CLKI RX_CLK 26 MDIP0 L508 R565 VDDOR1 27 TSTPT C562 RXD1 28 RSET F2.0k Z0.1u R576 1:4B RX_DV 1:4B R572 1:4B R573 R562 MDIO 0(1608) X501 25MHz 1:4B RXD[0-3] KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.3) (1/2)
  • Page 275 C512 F2.21k K0.047u Q500 +2.5V Q501 +1.2V Q506 R519 C515 +1.2V DC-DC(+1.2V&2.5V) K0.047u R503 R520 R521 F10k Q508 L502 IC501 Q509 +2.5V L503 R526 R528 R523 F10k F15k R527 C519 K0.047u Q502 Q503 KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.3) (2/2)

  • Page 276: Main Board (4)

    8.2k(2125) TO ADU Q619 SOLENOID 1:2E SN_PICK R653 Q627 +3.3V Q632 1:2E CN613 8.2k(2125) SN_DPLX SN_ADU Q639 R699 Q638 1:4C LEDON +3.3V +5VD IC600 R680 1:4C LEDERR +24V R678 470k C635 IC600 Z0.1u/50V KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.4) (1/2)
  • Page 277 1 FANON CN612 R650 1:4B FANDET1 5.6k +24V C646 IC601 R690 +24V 1:2E Z0.1u/50V FANON1H +3.3V R691 R692 F160k F10k R652 R654 Q630 3.9k(3216) R661 IC601 39(1/2W) TO FAN Q631 R616 Q628 1:2E FANON1L KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.4) (2/2)

  • Page 278: Main Board (5)

    1:3E;1C PHA1 CRM2 TO FBM 1:3E;1C CRM3 PGND VREF OUT1A R856 CR_XB 1:3F;1D CRMEN RNF1 CR_XA OUT1B OUT2B CR_B RNF2 TEST 1 CR_A OUT2A CN702 IC701 1:3E;1C CRM5 1:3E;1D CRM4 PHA2 1:3E;1C CRM1 KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.5) (1/2)
  • Page 279 RESOLUTION L701 R754 1:5E CCDSH L703 R740 1:5E CCDCLK Q708 R857 1:5F LEDONG 1.2k Q709 R858 1:5F LEDONR 1.2k Q711 R859 1:5F LEDONB 0.83ms* 1.2k 7.14MHZ* *Refer to Service Mode "5" "5" "5". KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.5) (2/2)

  • Page 280: Main Board (6)

    8.2k 4 V- B+IN C252 R257 R212 VREF +3.3VA2 C205 K0.1u C214 R222 L215 180k C220 Q200 1:5A;1C AFERST 1:4D K1000p CNGMUTE Q201 1:2E DAMUTE MONITOR_RX: TONE FAX-TX,RX : HS -TX,RX : MONITOR_RX: KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.6) (1/2)
  • Page 281 +5VA (10) SPMUTE R236 R238 1:3F IC204 R250 C232 C233 R251 CN200 R237 R235 C231 L220 C234 K0.047u K3900p This schematic diagram is KX-MB3020 only MONITOR_RX: TONE FAX-TX,RX : HS -TX,RX : MONITOR_RX: KX-MB3010CX/KX-MB3020CX SCHEMATIC DIAGRAM (MAIN BOARD No.6) (2/2)

  • Page 282: Operation Board

    KX-MB3010CX/KX-MB3020CX 16.3. Operation Board Z0.1u 470k K390p J100p C19 J100p C17 D10p K2700p Z0.1u Z0.1u K1500p K1000p K1500p LED1/IPENB 34 LATCH XLED15 22 35 START XLED14 21 36 LED2 NC C27 XLED13 20 6.3V/100u 37 LED3 Z0.1u C3 VSS1 19...

  • Page 283: Sensor Board

    KX-MB3010CX/KX-MB3020CX 16.4. Sensor Board SID307BR JS52 Z0.1u Z0.1u Z0.1u Z0.1u K1000p JS55 Z0.1u Z0.1u J68p JS50 W6NL10T JS51 W6NL10T JS54 K1000p K1000p JS53 K1000p K1000p K1000p...

  • Page 284: Adf Relay Board

    (BLUE) ADFSOL2 TO MAIN Duplex Scan Model only ADF SENSORS PNLP2099MZA-B JS83 DOC.DUPLEX (Duplex Scan Model only) JS84 PS82 JS85 CN82 JS80 DOC_DUPLEX DOCU PS80 3.3V DOCUMENT K1000p PS81 READ POSITION TO ADF RELAY K1000p JS81 JS82 KX-MB3010CX/KX-MB3020CX ADF BOARD...

  • Page 285: High Voltage Power Supply Board

    C310 Approx. 42V C314 IC301 R329 Approx. 6V 38kHz typ. T301 D304 D305 C306 R330 R311 C303 ZD310 D302 D307 R332 R322 C305 R308 R310 R323 R305 IC301 DEV CLK Approx. 18.5V R320 5.425kHz KX-MB3010CX/KX-MB3020CX HIGH VOLTAGE POWER SUPPLY BOARD...

  • Page 286: Low Voltage Power Supply Board

    KX-MB3010CX/KX-MB3020CX 16.7. Low Voltage Power Supply Board...

  • Page 287: Opf Board

    +3.3V C957 C959 CN951 OPCASNON R951 +3.3V CN952 NOPJAM R952 +3.3V NOPPNON CN953 OPDOPEN Feeder Board (PNLP2089MZ-B) Cassette Board (PNLP2089MZ-C) CN956 CN957 NOPJAM OPCASNON +3.3V +3.3V PS952 NOPPNON PS950 PS951 C968 C967 C966 K1000p K1000p K1000p KX-MB3010CX/KX-MB3020CX OPTIONAL OPF BOARD...
  • Page 288 KX-MB3010CX/KX-MB3020CX Memo...

  • Page 289: Printed Circuit Board

    R558 R559 C333 R132 R751 R387 R378 R125 R761 C884 C103 Q101 Q710 CN500 C351 R804 C740 R392 R805 CN301 R750 R568 R776 R775 R774 R773 R749 R780 R779 R772 R771 D504 C755 C754 C753 C752 KX-MB3010CX/KX-MB3020CX MAIN BOARD COMPONENT VIEW...

  • Page 290: Main Board: Bottom View

    Q718 R735 Q603 C837 C848 R509 R500 Q714 C507 R535 Q609 R781 C567 R784 Q712 R514 R510 R536 C508 Q713 C568 Q506 R787 C875 Q501 R786 +24V Q500 C828 R799 C502 C723 R501 C503 C865 KX-MB3010CX/KX-MB3020CX MAIN BOARD BOTTOM VIEW...

  • Page 291: Operation Board

    KX-MB3010CX/KX-MB3020CX 17.2. Operation Board 17.2.1. Operation Board: KX-MB3010CX/KX-MB3020CX OPERATION BOARD...

  • Page 292: Sensor Board

    CN51 CN50 KX-MB3010CX/KX-MB3020CX EXIT SENSOR BOARD 17.3.2. ADU SENSOR BOARD PCB-CH PNLB1074Z -AU PNLB1074Z -AU KX-MB3010CX/KX-MB3020CX ADU SENSOR BOARD 17.3.3. PAPER FEED SENSOR BOARD PS52 (PSTART) PCB-CH PNLB1074Z -AU PNLB1074Z -AU (RESIST) PS50 PS51 (PAPER) KX-MB3010CX/KX-MB3020CX PAPER FEED SENSOR BOARD...

  • Page 293: Front Relay Sensor Board

    17.3.4. FRONT RELAY SENSOR BOARD PNLB1074Z -AU CN55 CN56 PCB-CH CN57 CN60 CN54 BLUE CN59 PNLB1074Z -AU KX-MB3010CX/KX-MB3020CX FRONT RELAY SENSOR BOARD 17.3.5. REAR RELAY SENSOR BOARD PCB-CH PNLB1074Z -AU CN58 SW50 PNLB1074Z -AU CN62 CN61 CN64 CN63 KX-MB3010CX/KX-MB3020CX REAR RELAY SENSOR BOARD...

  • Page 294: Fb Relay Board

    JS55 JS56 JS52 CN69 PCB-CH KX-MB3010CX/KX-MB3020CX FB RELAY BOARD 17.3.7. CIS HOME POSITION SENSOR BOARD PNLB1074Z -AU PS55 PCB-CH PNLB1074Z -AU KX-MB3010CX/KX-MB3020CX CIS HOME POSITION SENSOR BOARD 17.3.8. TONER LED BOARD PNLB1074Z -AU PNLB1074Z -AU LED50 KX-MB3010CX/KX-MB3020CX TONER LED BOARD...

  • Page 295: Toner Sensor Board

    KX-MB3010CX/KX-MB3020CX 17.3.9. TONER SENSOR BOARD CN68 PNLB1074Z -AU KX-MB3010CX/KX-MB3020CX TONER SENSOR BOARD 17.3.10. VARISTOR BOARD (1) PNLB1074Z -AU JS53 JS54 PNLB1074Z -AU ZNR50 KX-MB3010CX/KX-MB3020CX VARISTOR BOARD ASS'Y (1) 17.3.11. VARISTOR BOARD (2) ZNR51 KX-MB3010CX/KX-MB3020CX VARISTOR BOARD ASS'Y (2)

  • Page 296: Adf Reray Board

    KX-MB3010CX/KX-MB3020CX 17.4. ADF RERAY BOARD 17.4.1. ADF RELAY BOARD PNLB1075Z -AU (SOL2) CN86 BLUE (ADF SENSOR) CN81 CN83 (MOTOR) CN85 CN84 BLUE CN80 PNLB1075Z -AU PCB-CH KX-MB3010CX/KX-MB3020CX ADF RELAY BOARD...

  • Page 297: Adf Sensor Board

    KX-MB3010CX/KX-MB3020CX 17.4.2. ADF SENSOR BOARD JS80 JS85 JS81 JS82 KX-MB3010CX/KX-MB3020CX ADF SENSOR BOARD...

  • Page 298: Opf Board

    CN953 CN952 CN950 Q954 Q953 R972 C958 Q952 Q951 (SOL) R960 Q950 C953 R964 IC950 PCB-CH AUTO-CH (MOTOR) (CAS) CN955 CN951 PNLB1069Z -LV KX-MB3010CX/KX-MB3020CX DRIVER BOARD COMPONENT VIEW 17.5.2. Driver Board: Bottom View PNLB1069Z -LV KX-MB3010CX/KX-MB3020CX DRIVER BOARD BOTTOM VIEW...

  • Page 299: Feeder Board

    KX-MB3010CX/KX-MB3020CX 17.5.3. Feeder BOARD PNLB1069Z -LV C966 CN956 (JAM) PS950 (PNON) PNLB1069Z -LV PS951 PCB-CH AUTO-CH KX-MB3010CX/KX-MB3020CX FEEDER BOARD 17.5.4. Cassette BOARD PNLB1069Z -LV AUTO-CH PS952 PCB-CH PNLB1069Z -LV C968 CN957 KX-MB3010CX/KX-MB3020CX CASSETTE BOARD...
  • Page 300 KX-MB3010CX/KX-MB3020CX Memo...

  • Page 301: High Voltage Power Supply Board

    KX-MB3010CX/KX-MB3020CX 17.6. High Voltage Power Supply Board 17.6.1. High Voltage Power Supply Board: Component View KX-MB3010CX/KX-MB3020CX HIGH VOLTAGE POWER SUPPLY BOARD (COMPONENT VIEW)

  • Page 302: High Voltage Power Supply Board: Bottom View

    KX-MB3010CX/KX-MB3020CX 17.6.2. High Voltage Power Supply Board: Bottom View EUK1MNA81HA KX-MB3010CX/KX-MB3020CX HIGH VOLTAGE POWER SUPPLY BOARD (BOTTOM VIEW)

  • Page 303: Low Voltage Power Supply Board

    KX-MB3010CX/KX-MB3020CX 17.7. Low Voltage Power Supply Board 17.7.1. Low Voltage Power Supply Board: Component View SCR21 KX-MB3010CX/KX-MB3020CX LOW VOLTAGE POWER SUPPLY BOARD (COMPONENT VIEW)

  • Page 304: Low Voltage Power Supply Board: Bottom View

    KX-MB3010CX/KX-MB3020CX 17.7.2. Low Voltage Power Supply Board: Bottom View KX-MB3010CX/KX-MB3020CX LOW VOLTAGE POWER SUPPLY BOARD (BOTTOM VIEW)

  • Page 305: Exploded View And Replacement Parts List

    KX-MB3010CX/KX-MB3020CX 18 Exploded View and Replacement Parts List 18.1. Cabinet, Mechanical and Electrical Parts Location 18.1.1. Operation Panel Section...

  • Page 306: Adf Section (1)

    KX-MB3010CX/KX-MB3020CX 18.1.2. ADF Section (1)

  • Page 307: Adf Section (2)

    KX-MB3010CX/KX-MB3020CX 18.1.3. ADF Section (2)

  • Page 308: Printer Cover Section (1)

    KX-MB3010CX/KX-MB3020CX 18.1.4. Printer Cover Section (1)

  • Page 309: Main Cabinet Section (1)

    KX-MB3010CX/KX-MB3020CX 18.1.5. Main Cabinet Section (1)

  • Page 310: Bottom Cabinet Section

    KX-MB3010CX/KX-MB3020CX 18.1.6. Bottom Cabinet Section...

  • Page 311: Front Cabinet Section

    KX-MB3010CX/KX-MB3020CX 18.1.7. Front Cabinet Section...

  • Page 312: Separation Roller Section (1)

    KX-MB3010CX/KX-MB3020CX 18.1.8. Separation Roller Section (1)

  • Page 313: Separation Roller Section (2)

    KX-MB3010CX/KX-MB3020CX 18.1.9. Separation Roller Section (2)

  • Page 314: Rear Cabinet Section

    KX-MB3010CX/KX-MB3020CX 18.1.10. Rear Cabinet Section...

  • Page 315: Top Cabinet Section

    KX-MB3010CX/KX-MB3020CX 18.1.11. Top Cabinet Section...

  • Page 316: Left Cabinet Section

    KX-MB3010CX/KX-MB3020CX 18.1.12. Left Cabinet Section...

  • Page 317: Fuser Section (1)

    KX-MB3010CX/KX-MB3020CX 18.1.13. Fuser Section (1)

  • Page 318: Fuser Section (2)

    KX-MB3010CX/KX-MB3020CX 18.1.14. Fuser Section (2)

  • Page 319: Main Cabinet Section (2)

    KX-MB3010CX/KX-MB3020CX 18.1.15. Main Cabinet Section (2)

  • Page 320: Adu Section

    KX-MB3010CX/KX-MB3020CX 18.1.16. ADU Section...

  • Page 321: Optional Lower Input Tray (Opf) Section

    KX-MB3010CX/KX-MB3020CX 18.1.17. Optional Lower Input Tray (OPF) Section 1...
  • Page 322 KX-MB3010CX/KX-MB3020CX 18.1.18. Optional Lower Input Tray (OPF) Section 2...

  • Page 323: Optional Lower Input Tray (Opf) Section

    KX-MB3010CX/KX-MB3020CX 18.1.19. Optional Lower Input Tray (OPF) Section 3...

  • Page 324: Actual Size Of Screws And Washers

    KX-MB3010CX/KX-MB3020CX 18.1.20. Actual Size of Screws and Washers...

  • Page 325: Accessories And Packing Materials

    KX-MB3010CX/KX-MB3020CX 18.1.21. Accessories and Packing Materials...

  • Page 326: Replacement Parts List

    KX-MB3010CX/KX-MB3020CX 18.2. Replacement Parts List Safety Ref. Part No. Part Name & Description Remarks RTL (Retention Time Limited) PNHR1054W FRAME ABS-HB Notes: PFBC1217Z1 PUSH BUTTON,AUTO ANSWER PS-HB PFBX1303Z2 PUSH BUTTON,DIAL ABS-HB 1. The “RTL” marking indicates that its Retention Time is...
  • Page 327 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks PNDG1032Y GEAR,DOC. FEED POM-HB PFUS1819Z TORSION SPRING PFHE1319Z PLASTIC PARTS 18.2.1.3. ADF Section (2) NOT USED PNKM1050Y1 CABINET BODY PS-HB PNHX1064Z...
  • Page 328 KX-MB3010CX/KX-MB3020CX 18.2.1.8. Separation Roller Section (1) Safety Ref. Part No. Part Name & Description Remarks XWC4BFJ WASHER PNUV1009Y CASE Safety Ref. Part No. Part Name & Description Remarks PNJS031005Z CONNECTOR,3PIN PNJS091002Z CONNECTOR,9PIN PNDE1008Z LEVER POM-HB PNJS021025Z CONNECTOR,2PIN PNUS1032Z TORSION SPRING...
  • Page 329 KX-MB3010CX/KX-MB3020CX 18.2.1.12. Left Cabinet Section Safety Ref. Part No. Part Name & Description Remarks PNDE1011Z COVER PAI-V0 PNUS1039Y LEAF SPRING Safety Ref. Part No. Part Name & Description Remarks PNDJ1010Z SPACER PNUA1009X CHASSIS PET- PNUS1037Z TORSION SPRING (GF+MD) J0KE00000115 INSULATOR...
  • Page 330 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks PFUS1608Z COIL SPRING PJDPB0004Y PLUNGER PFHR1491Z LEVER POM-HB PFDE1328Z LEVER PNHG1052X RUBBER PARTS PFUS1920Z TORSION SPRING PFUS1926Z BAR SPRING PFDN1095Y ROLLER...

  • Page 331: Main Board Parts (Kx-Mb3010)

    KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks PNUS1085Y COIL SPRING XTW3+20PFJ TAPPING SCREW,STEEL PFHR1862Y LEVER POM-HB XSB4+6FJ SMALL SCREW,STEEL PFKR1116Y GUIDE ABS-HB XSN3+6FJ SMALL SCREW,STEEL PFDG1569Z GEAR,PINION POM-HB...
  • Page 332 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks Q637 B1CHND000004 TRANSISTOR(SI) C354 ECUE1C104ZFQ 0.1 Q638 B1ABDF000026 TRANSISTOR(SI) C355 ECUE1C104ZFQ 0.1 Q639 UNR91ANJ0L TRANSISTOR(SI) C356 ECUE1C104ZFQ 0.1 Q640 UNR92ANJ0L TRANSISTOR(SI) C357 ECUE1C104ZFQ 0.1...
  • Page 333 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks C463 ECUE1C104ZFQ 0.1 C564 ECUE1C104ZFQ 0.1 C465 ECUE1C104ZFQ 0.1 C565 F1J1A106A024 10 C468 ECUE1H270JCQ 27p C566 F1J1A106A024 10 C469 ECUE1C104ZFQ 0.1...
  • Page 334 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks C739 ECUE0J105KBQ 1 C842 ECUE1C104ZFQ 0.1 C740 F2G0J1010014 100 C843 ECUE1C104ZFQ 0.1 C741 ECUE1A104KBQ 0.1 C844 ECUE1C104ZFQ 0.1 C742 F2G1V4700028 47 C845 ECUE1C104ZFQ 0.1...
  • Page 335 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks CN704 K1KA14A00238 CONNECTOR,14PIN R323 ERJ2RKF1201 1.2k (FUSE) R325 ERJ2GEJ103 F701 K5H302Y00003 FUSE R326 ERJ2GEJ103 (COILS) R327 ERJ2GEJ472X 4.7k L306 G1BYYYC00026 COIL...
  • Page 336 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks R502 ERJ2GEJ103 R604 ERJ2GEJ105X R503 ERJ2RKF1002 R605 ERJ2GEJ823 R504 ERJ2RKF9091 9.09k R606 ERJ2GEJ102 R505 ERJ2GEJ103 R607 ERJ2GEJ332 3.3k R506 ERJ2RKF2211 2.21k...
  • Page 337 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks R689 ERJ2RKF103X R786 ERJ2GEJ102 R690 ERJ2GEJ102 R787 ERJ2GEJ473 R691 ERJ2RKF1603 160k R788 ERJ2GEJ103 R692 ERJ2RKF103X R791 ERJ2GEJ103 R693 ERJ2RKF1603 160k R792...

  • Page 338: Main Board Parts (Kx-Mb3020)

    KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks (CRYSTAL OSCILLATORS) Q626 UNR92ANJ0L TRANSISTOR(SI) X300 H0J245500087 CRYSTAL OSCILLATOR Q627 UNR92ANJ0L TRANSISTOR(SI) X301 H0A327200147 CRYSTAL OSCILLATOR Q628 UNR92ANJ0L TRANSISTOR(SI) X302 H0J120500055 CRYSTAL OSCILLATOR...
  • Page 339 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks C207 ECUE1C104ZFQ 0.1 C373 ECUE1C104ZFQ 0.1 C208 ECUE1A104KBQ 0.1 C374 ECUE1C104ZFQ 0.1 C209 F2G0J3310015 330 C375 ECUE1C104ZFQ 0.1 C210 ECUE1A104KBQ 0.1 C376 ECUE1C104ZFQ 0.1...
  • Page 340 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks C509 ECUE1C104ZFQ 0.1 C602 ECUE1H101JCQ 100p C510 ECUE1C104ZFQ 0.1 C603 ECUE1H101JCQ 100p C511 F2G1A4710013 470 C605 ECUE1H102KBQ 0.001 C512 ECJ0EB1A473K 0.047 C606 ECUE1C104ZFQ 0.1...
  • Page 341 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks C759 ECUE1H102KBQ 0.001 C861 ECUE1C104ZFQ 0.1 C760 ECUE1H102KBQ 0.001 C862 ECUE1C104ZFQ 0.1 C761 ECUE1H102KBQ 0.001 C863 ECUE1C104ZFQ 0.1 C762 ECUE1H103ZFQ 0.01 C864 ECUE1C104ZFQ 0.1...
  • Page 342 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks L501 G1A220G00006 COIL R108 ERJ12SF3651 3.65k L502 G1C220M00032 COIL R111 ERJ2GEJ151 L503 G1C220M00032 COIL R112 D0GF156JA051 15M L504 G1C1R5JA0036 COIL R113...
  • Page 343 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks R357 ERJ2GEJ1R0 R539 ERJ2GEJ221 R358 ERJ2GEJ103 R540 ERJ2GEJ330 R359 ERJ2GEJ102 R543 ERJ2GEJ330 R360 ERJ2GEJ103 R546 ERJ2GEJ330 R361 ERJ2RKF6981 6.98k R549 ERJ2GEJ822 8.2k...
  • Page 344 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks R640 PQ4R10XJ822 8.2k R744 ERJ2RKF1802 R641 ERJ2GEJ562X 5.6k R747 ERJ2GEJ181 R642 ERJ2RKF1502 R749 ERJ2GEJ102 R643 ERJ2RKF2741 2.74k R750 ERJ2GEJ472X 4.7k R644...

  • Page 345: Operation Board Parts (Kx-Mb3010)

    KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks R804 ERJ2GE0R00 X500 H0J354500001 CRYSTAL OSCILLATOR R805 ERJ2GE0R00 X501 H0J250500086 CRYSTAL OSCILLATOR R806 ERJ2GE0R00 18.2.4. Operation Board Parts R807 ERJ2GE0R00 (KX-MB3010)

  • Page 346: Operation Board Parts (Kx-Mb3020)

    KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks ERJ8GEY0R00 ERJ3GEYJ241 ERJ3GEY0R00 ERJ3GEYJ391 (SWITCHES) ERJ3GEYJ241 K0H1BA000259 SWITCH ERJ3GEYJ123 K0H1BA000259 SWITCH ERJ3GEYJ102 K0H1BA000259 SWITCH ERJ3GEYJ102 K0H1BA000259 SWITCH ERJ3GEYJ102 K0H1BA000259 SWITCH ERJ3GEYJ4R7...

  • Page 347: Sensor Board Parts

    KX-MB3010CX/KX-MB3020CX 18.2.6. Sensor Board Parts 18.2.6.5. Rear Relay Sensor Board 18.2.6.1. Exit Sensor Board Ass'y Safety Ref. Part No. Part Name & Description Remarks PCB7 PNWP2MB3020M Rear Relay Sensor Board Safety Ref. Part No. Part Name & Description Remarks Ass'y (RTL)

  • Page 348: Adf Sensor Board Parts

    KX-MB3010CX/KX-MB3020CX 18.2.6.9. Toner Sensor Board 18.2.8. High Voltage Power Board Safety Ref. Part No. Part Name & Description Remarks Safety Ref. Part No. Part Name & Description Remarks PCB11 PNLP2098MZ-I Toner Sensor Board PCB16 EUK1MNA81HA High Voltage Power Ass'y (RTL)
  • Page 349 KX-MB3010CX/KX-MB3020CX Safety Ref. Part No. Part Name & Description Remarks CN952 K1KA04A00527 CONNECTOR,4PIN CN953 K1KA02AA0193 CONNECTOR,2PIN CN954 K1KA02AA0035 CONNECTOR,2PIN CN955 K1KA04AA0193 CONNECTOR,4PIN (RESISTORS) R950 ERJ3GEYJ330 R951 ERJ3GEYJ181 R952 ERJ3GEYJ1R0 R953 ERJ3GEYJ330 R954 ERJ3GEYJ330 R955 ERJ3GEYJ472 4.7k R956 ERJ3GEYJ102 R957 ERJ3GEYJ103...
  • Page 350 KX-MB3010CX/KX-MB3020CX KXMB3010CX KXMB3020CX...

This manual is also suitable for:

Kx-mb3020cxKx-fap106e

Table of Contents
