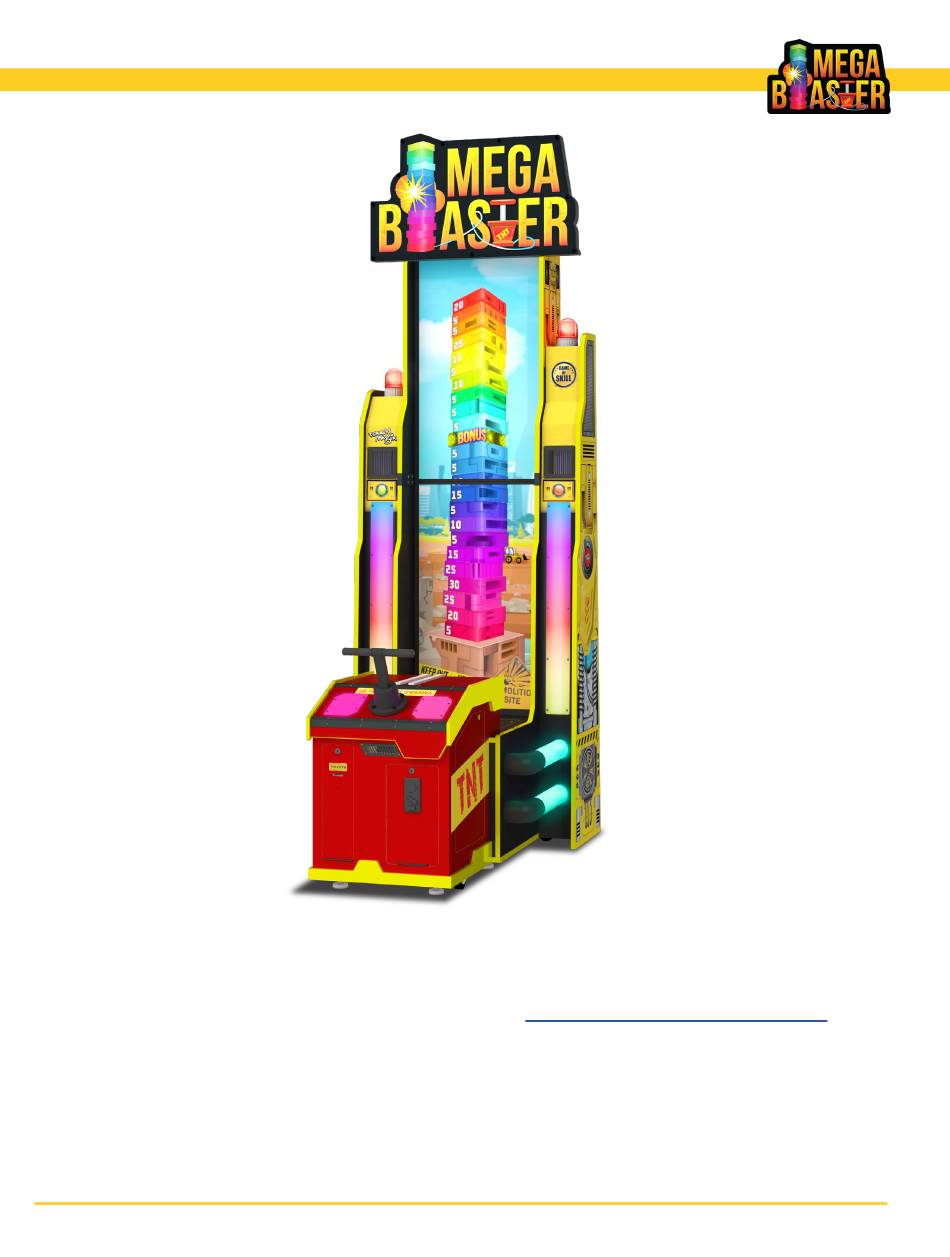

- Page 1 Mega Blaster Installation Manual Mega Blaster Rev 1 Installation Manual v.1.1 For any support queries, please email support@touchmagix.com Call: +1.415.360.0006 Whatsapp: +91.7709152220 Skype: touchmagix_support Website: www.touchmagix.com Confidential-Touchmagix Inc.
- Page 2 Mega Blaster Installation Manual Congratulations on purchasing Mega Blaster. This guide will help you setup the game at your location. Have fun!
-
Page 3: Table Of Contents
Mega Blaster Installation Manual Table of contents 1.0 Safety Precautions 1.1 Levels of Risk 1.2 Definition of “Technician” 1.3 Warning Labels 1.4 Critical Safety Precautions 2.0 Unit Features 2.1 Cabinet Specifications 2.2 Shipping dimensions 3.0 Assembly 4.0 Parts 4.1 Cabinet parts 4.2 Computer and electronics... -
Page 4: Safety Precautions
Mega Blaster Installation Manual 1.0 Safety Precautions Instructions to the owner If you delegate the work for installing, moving, transporting, operating, maintaining or disposing of this machine to other people, ensure that these people read the relevant sections of this operation manual carefully before starting work, and observe the corresponding precautions. -
Page 5: Critical Safety Precautions
● To prevent fire and electric shock, use indoor wiring that conforms to these power supply specifications. Using a voltage outside this range may result in fire or electric shock. ● Use the consumables and service parts (including screws) that are specified by TouchMagix. To request repairs or to order parts, contact your distributor. -
Page 6: Unit Features
Mega Blaster Installation Manual 2.0 Unit Features 2.1 Cabinet specification 115” 2921 mm 52” 38” 1321 mm 965 mm Rated Power Input: 110V-240V AC Rated maximum power consumption: 5 amp at 110V/ 2.5 amp at 220V Unit Weight: 177 kg/ 391 lbs 2.2 Packaging dimensions... - Page 7 Mega Blaster Installation Manual WARNING ● Install the machine according to the instructions in this Operation Manual. Failure to follow these instructions may result in fire, electric shock, injury or malfunction. ● Fully insert the power cord plug into the outlet. Poor contact may generate heat and result in fire or burns.
-
Page 8: Assembly
Mega Blaster Installation Manual 3.0 Assembly The game comes in 3 parts. After unpacking, you will have 3 parts to assemble. The assembly requires minimum of 2 people for installation. The process of assembly starts after you have set the main cabinet at the desired location and secured the cabinet firmly by lowering the leg levelers. - Page 9 Mega Blaster Installation Manual Step 2: With the help of 2 people, lift the upper part using the handles provided and rest it on lower cabinet. Secure the upper part with lower part with the help of edge band caps located on left and right side.
- Page 10 Mega Blaster Installation Manual WARNING Lower Cabinet: Please ensure all the cable and harness are properly tucked and clamped to avoid interference during plunger operation. Step 5: Fix the 4 bolts of 1/4” x 3/4” and tighten them to fix the marquee. Connect the marquee to the 12V marquee harness.
-
Page 11: Parts
Mega Blaster Installation Manual 4.0 Parts 4.1 Cabinet Parts Marquee Beacon Light Wood Cabinet Speaker Grill Side Light Panels Plunger Lower Cabinet LED Pipes Ticket Dispenser Coin/Card Door Casters and Leg Levelers... -
Page 12: Computer And Electronics
Mega Blaster Installation Manual 4.2 Computer and Electronics Sr. No. Part Name Part no. MB 12V LED & Game Control PCB Rev 2.0 RM319US-FG0090IN Game Control PCB Rev-5.0 (Firmware v1) with 10 pin relimate RM318US-FG0060IN connector and mini USB A to B cable 43”... -
Page 13: Harness And Cabling
Mega Blaster Installation Manual 4.3 Harness and Cabling Sr. No. Part Name Part no. Quantity RM011US USB 2.0 cable-A-Male to Mini-B (0.9 meter) RM345US HDMI to HDMI cable 10ft HDMI to HDMI cable 6.5ft RM346US MB Credit button harness RM336US-RM0826IN... -
Page 14: Graphics And Decals
Mega Blaster Installation Manual 4.5 Graphics and decals Sr. No. Print Name Part no. Quantity MB lower cabinet front RM353US MB lower cabinet ticket RM354US MB lower cabinet left side RM255US MB lower cabinet right side RM370US MB lower cabinet top... -
Page 15: Connection Schematic
Mega Blaster Installation Manual 5.0 Connection schematic Touchmagix game PCB Rev 5.0 10 pin connections Part code: TM-ARC-PCB01 Rev 5.0 Firmware Version 2.0 Switch S2 setting Mega Blaster S2-1= OFF, S2-2= ON PIN NO.1 Black Ground PIN NO.2 VCC output (+12V) PIN NO.3... - Page 16 Mega Blaster Installation Manual Touchmagix 12V LED and GAME PCB REV 2.0 Part Code: FG0045 MB_LED_Firmware_VER 6.0 BLOCKCONN1 Multicolor Pattern Tower side LED BLOCKCONN2 Multicolor Pattern Pipe LED BLOCKCONN3 Multicolor Pattern Panel Slope LED BLOCKCONN4 Multicolor Pattern Panel Bar LED...
-
Page 17: Installing Card Reader
Mega Blaster Installation Manual 6.0 Installing card reader If you are using e-ticket dispensing, just unplug the molex connector from mechanical ticket dispenser and connect it to the e-ticket dispensing input. The wires from the arcade PCB are marked with respective labels for crimping to the debit card reader. -
Page 18: Working Of The Coin System
Mega Blaster Installation Manual 6.1 Working of the coin system For game board REV 5.0 The system will count a coin pulse set to width of 100ms to 500ms as a single credit. The system credits when the Coin 1 Pulse Out (Brown) and Coin 1 Pulse In (Yellow) wires are shorted. -
Page 19: Coin Door
Mega Blaster Installation Manual 6.2 Coin door Some of the games come with pre-installed Wei-Ya Coin Comparitor with a wooden coin door. The Game PCB supports Active LOW coin systems. It has a direct connector for RM5 coin totalizer, which is commonly used in Europe. -
Page 20: Switch-On And Configuration
Mega Blaster Installation Manual 7.0 Switch-on and configuration Once the game is mounted and plugged into power outlet, the computer inside will automatically turn ON. You will need to turn ON the wireless keyboard in order to configure the system for first time. -
Page 21: Operator Menu Settings
Mega Blaster Installation Manual 7.1 Operator menu settings Setting Default Description Bonus Tickets to be awarded on reaching the bonus block. 6 Average Table Number Average number of tickets paid out by the game. 39-42 You can set to easy/medium/hard based on the age group... -
Page 22: Volume Control
Mega Blaster Installation Manual 7.2 Volume control Rotate the dial to increase/decrease the volume of game play Rotate the dial to increase/decrease the bass of game play... -
Page 23: Service And Repair
Mega Blaster Installation Manual 8.0 Service and Repair 8.1 Plunger Assembly Drawing The Plunger Mechanism has 3 Sub-assemblies and some individual parts to connect all the 3 sub-assemblies with each other. - Page 24 Mega Blaster Installation Manual Sr. No. Part Number Part Name Qty. SP159 Flywheel SP160 M12 x 30 HEX Bolt SP161 M6 x 12 HEX Bolt SP162 M12 Nut SP163 M6 Spring Washer SP164 M12 Spring Washer SP165 Sensor Mounting Plate...
-
Page 25: Troubleshooting Guide
Mega Blaster Installation Manual 8.2 Troubleshooting Guide Problem Possible Causes Solutions Observed Tension spring might be stretched or Replace the spring broken Tension spring may be mounted in Mount it in desire setting hole (upwards hole will Plunger tension different setting hole... - Page 26 Mega Blaster Installation Manual 8.3 Replacement Parts Part Name Part no. Mega Blaster full plunger mechanism RM312US-SF0088 Handle Assembly (Metal handle + Grip + M6 x 46 Allen bolt half thread) SP177 Handle SP173 Full Gear Sub Assembly (Tested + Assembled)
- Page 27 Mega Blaster Installation Manual CASE 01: Replacing the Whole Plunger Assembly For replacing the plunger mechanism, minimum 2 persons are required. One to unscrew the bolts and second will hold the mechanism from inside during dis-assembly to prevent mechanism from falling on other important parts.
- Page 28 Mega Blaster Installation Manual Step 4: Pull out the handle as it is Step 5: From the Left door, locate disengaged from the mechanism. the Encoder. Disconnect the harness connecting the Encoder. Step 6: This is a critical step. With the help of...
- Page 29 Mega Blaster Installation Manual CASE 02: Replacing Tension Spring Step 1: Please follow Step no. 1 and 2 of Step 2: After unscrewing the bolts, take out CASE 1 to unhook the spring from the J Hook the shaft and with the help of external circlip with hand.
- Page 30 Mega Blaster Installation Manual CASE 04: Replacing full gear sub-assembly To replace the full gear sub assembly, you need to follow all the steps from CASE 1. After the whole assembly is removed from the lower cabinet, you can place it on work table and start the process as shown in below steps.
-
Page 31: Limited Warranty Policies
Improper servicing or abuse will void existing warranties. All warranty request needs to be validated with our technical support department. After the 1 year warranty, Touchmagix offers repair & sales service options. Please contact the tech- nical support department for information. - Page 32 Mega Blaster Installation Manual For any support queries, please email support@touchmagix.com Call: +1.415.360.0006 Whatsapp: +91.7709152220 Skype: touchmagix_support...
