Carnival Cups SE Installation Manual v.1.2
Carnival Cups SE Installation Manual v.1.2
For any support queries, please email
support@touchmagix.com
Call: +1.415.360.0006
Whatsapp: +91.7709152220
Skype: touchmagix_support
Website: www.touchmagix.com
Confidential-Touchmagix Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carnival Cups SE and is the answer not in the manual?

Questions and answers

Summary of Contents for TouchMagix Carnival Cups SE

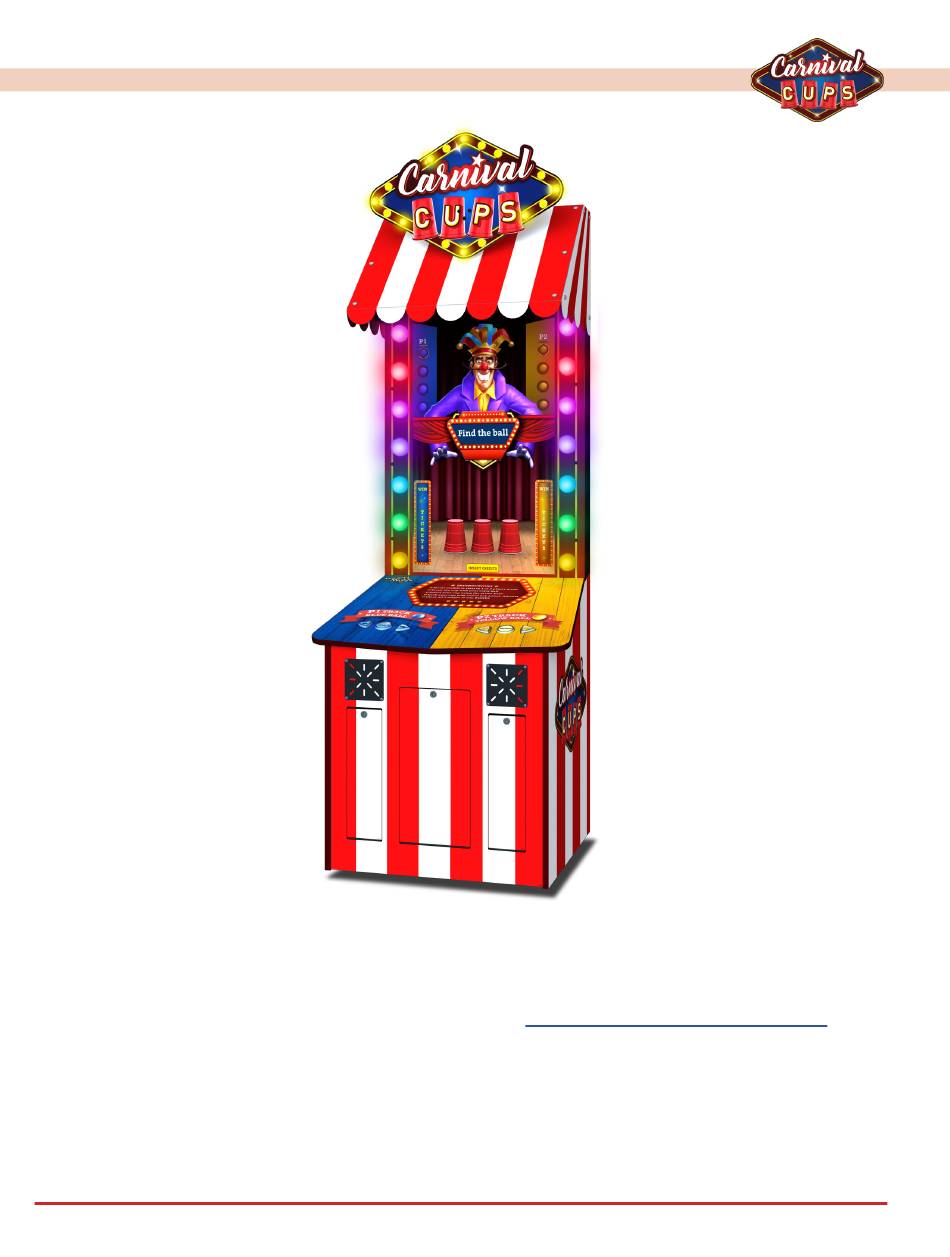

  • Page 1 Carnival Cups SE Installation Manual v.1.2 Carnival Cups SE Installation Manual v.1.2 For any support queries, please email support@touchmagix.com Call: +1.415.360.0006 Whatsapp: +91.7709152220 Skype: touchmagix_support Website: www.touchmagix.com Confidential-Touchmagix Inc.
  • Page 2 Carnival Cups SE Installation Manual v.1.2 Congratulations on purchasing Carnival Cups SE. This guide will help you setup the game at your location. Have fun!
  • Page 3: Table Of Contents

    Carnival Cups SE Installation Manual v.1.2 Table of contents 1.0 Safety Precautions 1.1 Levels of Risk 1.2 Definition of “Technician” 1.3 Warning Labels 1.4 Critical Safety Precautions 2.0 Unit Features 2.1 Cabinet Specifications 2.2 Shipping dimensions 3.0 Assembly 4.0 Parts 4.1 Cabinet parts...
  • Page 4: Safety Precautions

    Carnival Cups SE Installation Manual v.1.2 1.0 Safety Precautions Instructions to the owner If you delegate the work for installing, moving, transporting, operating, maintaining or disposing of this machine to other people, ensure that these people read the relevant sections of this operation manual carefully before starting work, and observe the corresponding precautions.
  • Page 5: Critical Safety Precautions

    ● To prevent fire and electric shock, use indoor wiring that conforms to these power supply specifications. Using a voltage outside this range may result in fire or electric shock. ● Use the consumables and service parts (including screws) that are specified by TouchMagix. To request repairs or to order parts, contact your distributor.
  • Page 6: Unit Features

    Carnival Cups SE Installation Manual v.1.2 2.0 Unit features 2.1 Cabinet specification 99” 2518 mm 32.5” 34.5” 820 mm 871 mm Rated Power Input: 110V-240V AC Rated maximum power consumption: 4 amp at 110V/ 2 amp at 220V Unit Weight: 155 kg/ 342 lbs 2.2 Packaging dimensions...
  • Page 7 Carnival Cups SE Installation Manual v.1.2 WARNING ● Install the machine according to the instructions in this Operation Manual. Failure to follow these instructions may result in fire, electric shock, injury or malfunction. ● Fully insert the power cord plug into the outlet. Poor contact may generate heat and result in fire or burns.
  • Page 8: Assembly

    Carnival Cups SE Installation Manual v.1.2 3.0 Assembly The game comes in multiple parts to assemble. The assembly process requires minimum of 2 persons. The process of assembly starts after you have set the main cabinet at the desired location and secured the cabinet by locking the caster wheels.
  • Page 9 Carnival Cups SE Installation Manual v.1.2 Step 2: Connect the canopy nailers to the canopy with the help of 8 nos. 1/4” washer and 8 nos. 1/4”-20 x 1.5” bolts. Step 3: Assemble the marquee with marquee bracket with the help of 3 nos.
  • Page 10: Parts

    Carnival Cups SE Installation Manual v.1.2 4.0 Parts 4.1 Cabinet parts Marquee Canopy Main cabinet Speaker grill Coin/ card door Ticket Dispensers Casters...
  • Page 11: Computer And Electronics

    Carnival Cups SE Installation Manual v.1.2 4.2 Computer and electronics Sr. No. Part Name Part no. 12v LED & Game PCB Rev-1.0 SP044US-SF0030IN Game Control PCB Rev-5.0 SP013US-SF0020IN 43" monitor a. 43” Monitor - Samsung DC (Option 1) RM196US-RM0087IN b. 43” Monitor - Samsung PM (Option 2) RM212US-RM0774IN c.
  • Page 12: Graphics And Decals

    Carnival Cups SE Installation Manual v.1.2 4.4 Graphics and decals Sr. No. Print Name Part No. Quantity CC SE Control Panel Decal RM000322 CC SE Left Side Decal RM000323 CC SE Right Side Decal RM000324 CC SE Ticket Side Decal...
  • Page 13: Marquee Parts

    Carnival Cups SE Installation Manual v.1.2 4.5 Marquee parts Sr. No. Part Name Part No. Quantity Carnival Cups SE Marquee RM000442 Marquee Bracket SP063US-RM0431IN...
  • Page 14: Connection Schematic

    Carnival Cups SE Installation Manual v.1.2 5.0 Connection schematic...
  • Page 15 Carnival Cups SE Installation Manual v.1.2 Touchmagix 12V LED & Game PCB Ver 1.0/ 2.0 Part Code: FG0045 CC Firmware VER1.1 BLOCKCONN1 Twinkling effect SIDE BLOCKCONN2 Twinkling effect SIDE BLOCKCONN4 Yellow twinkling Connections for 9 pin “BUTTON“ connector PIN NO.1...
  • Page 16 Carnival Cups SE Installation Manual v.1.2 Touchmagix game PCB Rev 5.0 Part code: TM-ARC-REV5.0 Game board REV 5.0 Firmware Version 1.0 Switch S2 setting Carnival cups Small Edition S2-1= OFF, S2-2= OFF PIN NO.1 Black Ground PIN NO.2 VCC output (+12V) PIN NO.3...
  • Page 17: Installing Card Reader

    Carnival Cups SE Installation Manual v.1.2 6.0 Installing card reader If you are using e-ticket dispensing, just unplug the molex connector from mechanical ticket dispenser and connect it to the e-ticket dispensing input. The wires from the arcade PCB are marked with respective labels for crimping to the debit card reader.
  • Page 18: Working Of The Coin System

    Carnival Cups SE Installation Manual v.1.2 6.1 Working of the coin system The system will count a coin pulse set to width of 100ms to 500ms as a single credit. For player 1 the system credits when the Coin 1 Pulse Out (Brown) and Coin 1 Pulse In (Yellow) wires are shorted.
  • Page 19: Coin Door

    Carnival Cups SE Installation Manual v.1.2 6.2 Coin door Some of the games come with pre-installed Wei-Ya Coin Comparitor with a wooden coin door. The Game PCB supports Active LOW coin systems. It has a direct connector for RM5 coin totalizer, which is commonly used in Europe.
  • Page 20: Switch-On And Configuration

    Carnival Cups SE Installation Manual v.1.2 7.0 Switch-on and configuration Once the game is mounted and plugged into power outlet, the computer inside will automatically turn ON. You will need to turn ON the wireless keyboard in order to configure the system for first time.
  • Page 21: Operator Menu Settings

    Carnival Cups SE Installation Manual v.1.2 7.1 Operator menu settings Setting Default Description Bonus Tickets Payout on successfully completing all the 4 Stages or 5 Stages These are the average number of tickets the game should Average Tickets payout. Adjust this number to a higher value if the game is Payout paying out less tickets.
  • Page 22: Volume Control

    Carnival Cups SE Installation Manual v.1.2 7.2 Volume control Rotate the dial to increase/decrease the volume of gameplay Rotate the dial to increase/decrease the bass of gameplay...
  • Page 23: Limited Warranty Policies

    Improper servicing or abuse will void existing warranties. All warranty request needs to be validated with our technical support department. After the 1 year warranty, Touchmagix offers repair & sales service options. Please contact the technical support department for information.
  • Page 24 Carnival Cups SE Installation Manual v.1.2 For any support queries, please email support@touchmagix.com Call: +1.415.360.0006 Whatsapp: +91.7709152220 Skype: touchmagix_support...
