Summary of Contents for Deco Chef DG26NIMSTS-RED

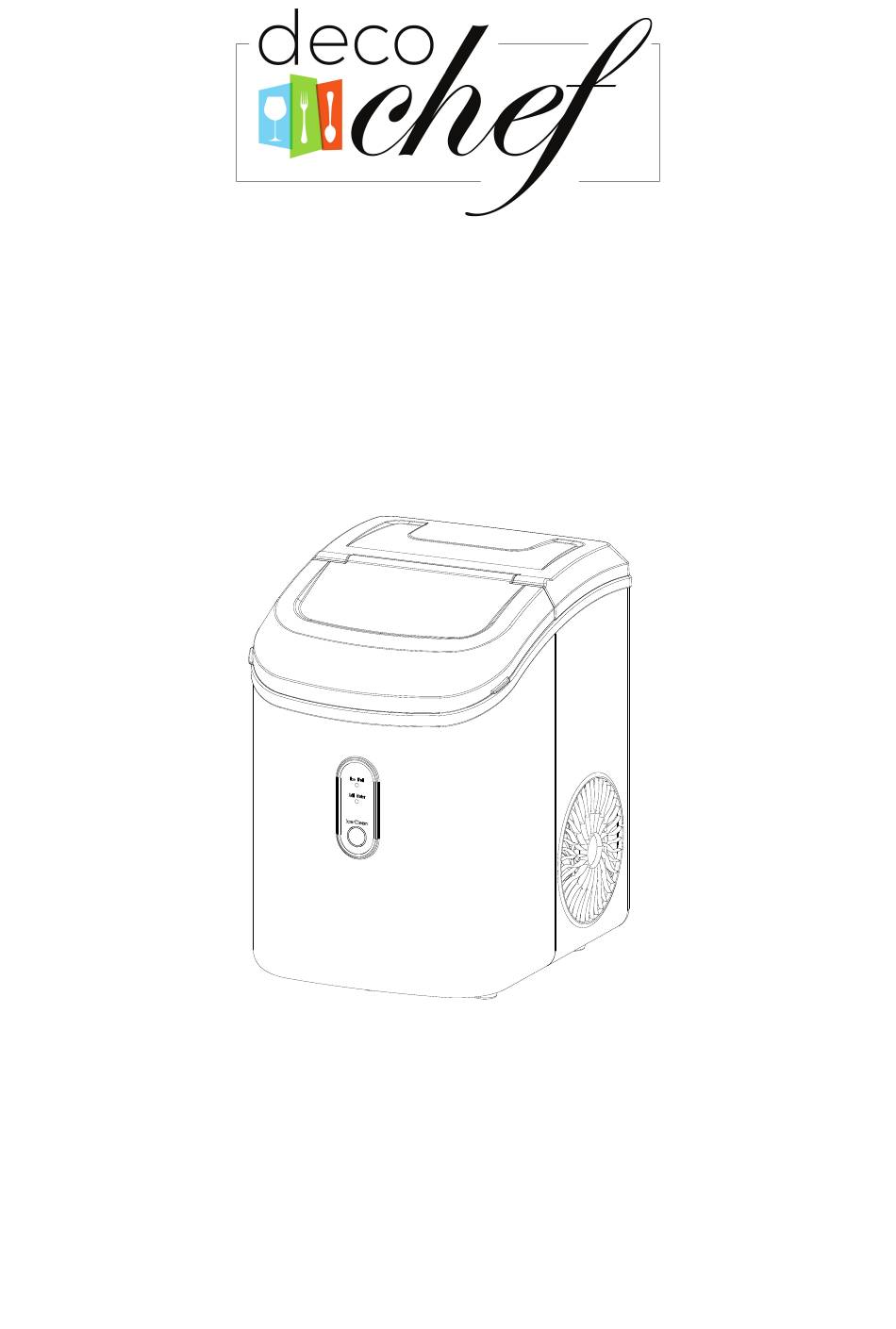

- Page 1 USER MANUAL 33lb Nugget Ice Maker DG26NIMSTS-RED IMPORTANT: read these instructions before using your portable ice maker. We strongly recommend that you keep them in a safe place for future reference.
- Page 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS…………………………………………………1 PREPARING YOUR ICE MAKER FOR USE …………………………………………………………………….2-3 IMPORTANT SAFETY TIPS … … … … … … … … … … … … … … … … … … … … … … … … …...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER”...
- Page 4 PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. ⚫...
- Page 5 DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be ⚫ Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing. ⚫ CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be Followed.
- Page 6 GETTING TO KNOW YOUR UNIT 1. Float switch 2. Secondary water reservoir: It connects directly with the evaporator 3. Water reservoir 4. MAXIMUM WATER LEVEL 5. Filter 6. Control Panel A. Ice making and cleaning buttons B. Ring indicator light C.
- Page 7 OPERATING PROCEDURES & MAINTENANCE 1. Remove the exterior and interior packaging, and then check that all the accessories are included. If any parts are missing, please contact our customer service. 2. Remove all tape on the unit; take out the accessory parts inside. 3.
- Page 8 USING YOUR ICE MAKER How to start the unit 1. Take out the ice basket, pour potable water into water reservoir. 0.3 gallon water at most at one time. DO NOT pass the max fill line. 2. Put back the ice basket. pour water 3.
- Page 9 HOW TO MAKE ICE CUBES 6. Before you start making ice, please make sure the water drain cap has been inserted into the appliance; otherwise it will not work properly. 7. Press the “ICE/CLEAN” button, the ring indicator light will flash between blue and white. The machine will begin to run.
- Page 10 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Stop the ice maker, fill water, and “Low water" Lack of water. press “ICE/CLEAN” button again indicator turns on to restart the unit. Suggest obtain There is too much ice. ice-cube. “ICE FULL” Remove the probable obstacle indicator turns on No ice cube inside.
- Page 11 · TECHNICAL PARAMETERS & CIRCUIT DIAGRAM TECHNICAL PARAMETERS DG26NIMSTS/RED 29.8 lb 11.3x 8.7 x 12.7 in CIRCUIT DIAGRAM ELECTRICAL DIAGRAM Overload Protector POWER Start Relay DC Fan Motor PUMP Pump For Water WATER LEVEL DETECTING SWITCH Ice-Full Detector SENSOR FOR AMBIENT TEMP...
