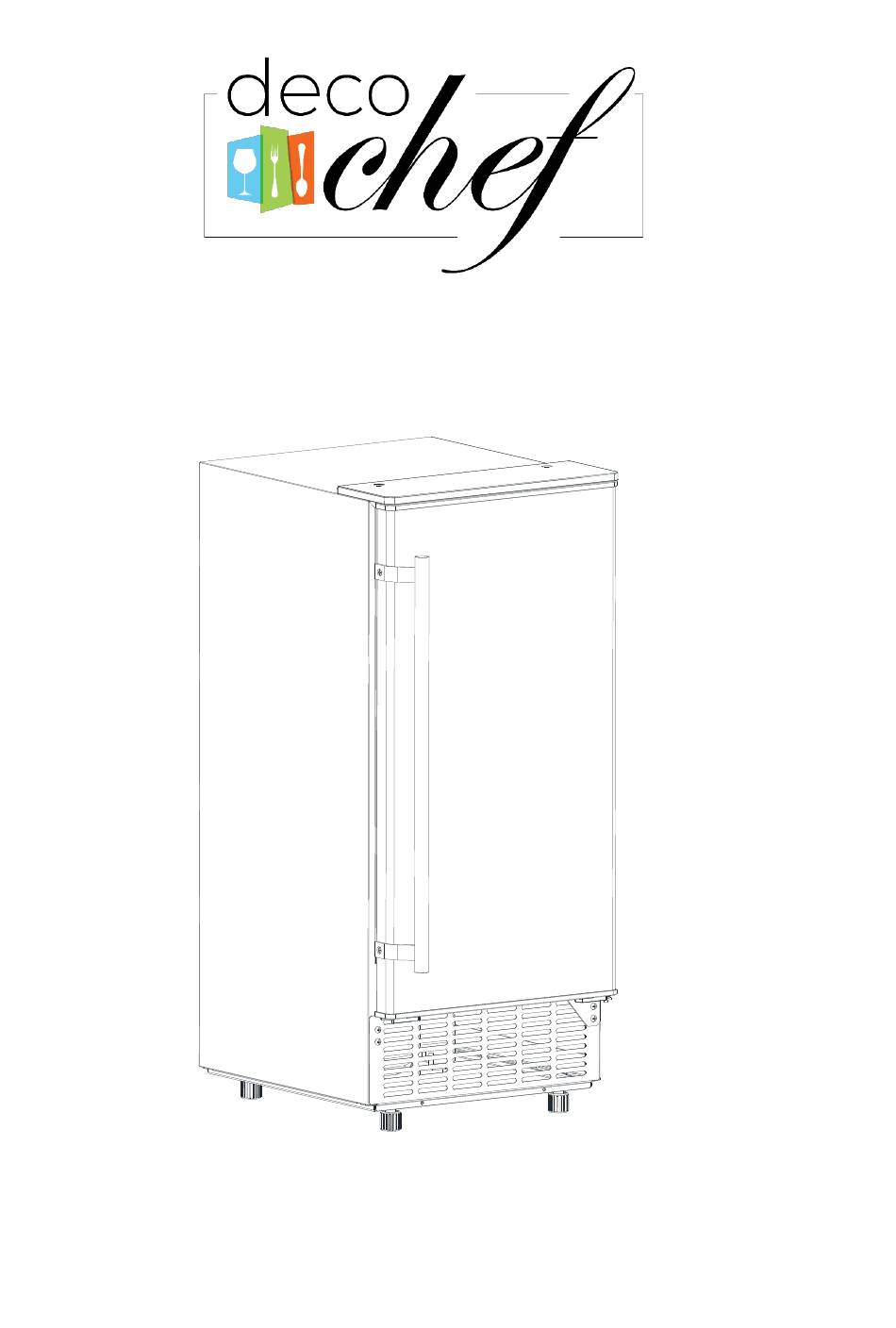

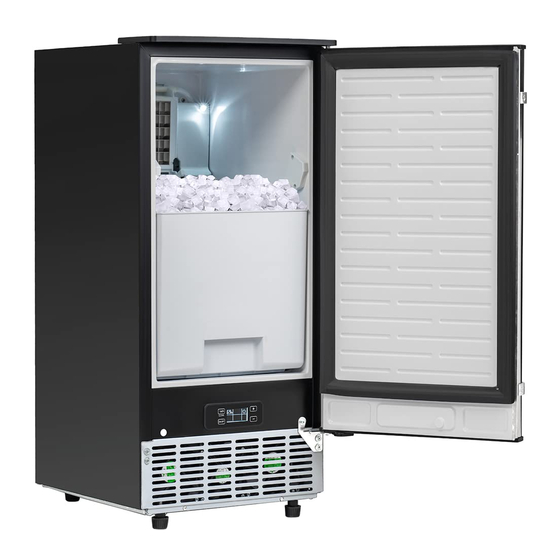

- Page 1 80LB Under Counter Automatic Ice Maker Instruction Manual Model: DGUTICM01 To ensure proper use of this appliance and your own safety, please read the following instructions carefully before operating.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFO ------------------------------------------------------------------------------------ 2 SPECIFICATION --------------------------------------------------------------------------------------------------- 4 DIMENSION/CONNECTION -------------------------------------------------------------------------- 4 RATING ----------------------------------------------------------------------------------------------------- 4 GENERAL INFORMATION -------------------------------------------------------------------------------------- 5 MAIN UNIT CONSTRUCTION ------------------------------------------------------------------------- 5 ICE-MAKING AND ITS WATER TANK PARTS --------------------------------------------------- 5 OPERATION PANEL ------------------------------------------------------------------------------------- 6 EXPLOSIVE DRAWING --------------------------------------------------------------------------------- 7 OPERATING PROCEDURE AND MAINTENANCE ------------------------------------------------------- 9 UNPACKING YOUR ICE MAKER -------------------------------------------------------------------- 9 DOOR REVERSING(Optional) ------------------------------------------------------------------------ 9... -
Page 3: Important Safety Info
IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. -Use this appliance only for its intended purpose as described in this owner’s manual. This icemaker must be properly installed in accordance with the installation instructions before it is used. - Page 4 appliance by a person responsible for their safety. WARNING: Children should be supervised to ensure that they do not play with the appliance. WARNING: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. ...
-
Page 5: Specification
SPECIFICATIONS DIMENSIONS/CONNECTIONS [20.3] [15.0] [16.8] [1.9] Rating MODEL DGUTICM01 POWER SUPPLY VOLTAGE 1Phase, 110-120/60Hz CLAIMATE CLASS 10-40℃ ELECTRICAL PROTECTION CLASS ICE MAKING RATING (Amps) 2.6Amp ICE HARVEST RATING (Amps) 2.7Amp ICE MAKING CAPACITY (KG/24H) 36kg/24Hour REFRIGERANT CHARGE R290 2.83Oz / 80g... -
Page 6: General Information
GENERAL INFORMATION 1) Main Unit Construction ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ 1. Door 2. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump and some detecting parts 3. Handle 4. Ice tank 5. Operation panel 6. -
Page 7: Operation Panel
A. Evaporator (ice-making module) B. Ice full detecting board: Use to detect if the inner cabinet is full of ice or not, and to check if the ice- harvest process is complete or not. C. Water tank D. Water supplying pipe E. -
Page 8: Explosive Drawing
4) EXPLOSIVE DRAWING 33 34 36 37 38 Part Name Specifications Door seal Door SUS & Foams Water tank side cover ABS White Float switch Electrical part DC5V Water tank cover ABS White Handle Pump Electrical part AC115V Water Tank ABS White Drain tube for water tank Silicone tube, FDA... - Page 9 Right fix piece Condenser Copper and aluminum Compressor & accessory Electrical part AC115V Zinc-Plate sheet δ=0.8 Fan fix plate Zinc-Plate sheet δ=0.6 Fan fix cover plate Plug +Power cord Electrical part AC115V Strain relief bushing PP black Electrical part DC12V 120mm Electrical part DC12V 90mm SUS430 δ=0.8 Air outlet panel...
-
Page 10: Operating Procedure And Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check to ensure that all the accessories, including instruction manual, ice scoop, white water inlet pipe, 4-ways-to-2-ways water quick connector and the water draining pipe, etc., are inside. If any parts are missing, please contact our customer service. - Page 11 6. Unscrew the 2 screw on the handle, fix on the opposite side of the door. Remove the screw on the right fix piece, attach the left fix piece (from accessory bag ) to the door. Left fix Right fix hinge pin piece piece...
-
Page 12: Installation Location Requirement
INSTALLATION LOCATION REQUIREMENT a) This unit is not for outdoor use. Keep the proper room temperature and inlet water temperature between 41-77 degrees Fahrenheit. Otherwise it will affect the ice making performance. b) This unit should not be located near any heat resource. c) The unit should be located on a firm &... -
Page 13: Electrical Requirement & Connections
ELECTRICAL REQUIREMENT & CONNECTIONS WARNING: THIS UNIT MUST BE EARTHED. Electrical Shock Hazard Plug into a grounding wall outlet. Never remove the ground prong. Use separate power supply or receptacle. Never use an adapter. Never use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. -
Page 14: Water Connections For Your Ice Maker
WATER CONNECTION FOR YOUR ICE MAKER Important: Be sure to use the new hose-sets supplied with the appliance to connect to water main. Old hose-sets should not be reused. 1、Connect the water supplying hose to the unit First remove the tape on the water inlet port for water supply (indicated in the following illustration as “B”) located at unit back, then use your other hand’s finger to press the out circle. -
Page 15: Operation Your Unit
OPERATION YOUR UNIT Operation button and display area diagram Operation of the ice-making process 1. To start the process, plug in the power plug and the Power symbol will flash in the display window. Press the ON/OFF button on the control panel and the machine will start to make ice. When enough water has been added to reach the standard level on the water tank the Power symbol will stop flashing in the display window. - Page 16 cubes are in the ice-making process, the thicker they will be. Press the “－” button one time and the ice making time will decrease by one minute. The ice will be thinner if it is in the ice-making process for less time. Restart the machine it will go back to default “0.” 4.
- Page 17 the “ON/OFF” button on control panel to cancel the self-cleaning program by force. Switching the Degrees Settings from Fahrenheit(°F) to Celsius(°C) Press the “+” or“-”button for longer than 5 seconds and it will automatically switch.
-
Page 18: Wiring Diagram
WIRING DIAGRAM Normal Sounds Your new ice maker may make sounds that you are not familiar with. Most of these sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds seem louder than they are. The following describes the kinds of sounds that might be new to you and what may be making them. -
Page 19: Cleaning And Maintenance
7. Disconnect the water drainpipe from the main drain pipeline or floor drain. Plug the drain cap back 8. Drop the door open to allow for circulation and prevent mold and mildew. 9. Leave water supply hose and power cord disconnected until ready to reuse. 10. -
Page 20: Interior Cleaning
Interior Cleaning For Ice Storage Bin The ice storage bin should be sanitized occasionally. Clean the bin before the ice maker is used for the first time and reused after stopping for an extended period. It is usually convenient to sanitize the bin after the ice making system has been cleaned and the storage bin is empty. -
Page 21: Ice Making Assembly System Cleaning By Using Nu-Calgon Nickle Safe Ice-Machine Cleaner
4. The water tank and the ice detecting plate is very important to keep your ice cube hygienic. Put a mixture of neutral cleaner and water into a clean water jet, then spray the inner surface of tank and ice detecting plate. Wipe these surfaces as far as possible with a clean cloth. -
Page 22: Cleaning Suggestion
tank’s drainpipe and drain the cleaning solution down to the lower ice storage bin. Shake the unit slightly to drain out all the cleaning solution completely. Then, reinstall the drain pipe to the slot of the water tank. 7. Repeat steps 4--6 to clean the ice making assembly system again. The ice machine cleaner contains acids. -
Page 23: Normal Trouble Shooting
NORMAL TROUBLE SHOOTING Problem Possible Cause Solution Check the main water supply pressure or the water supply hose to ensure that it is No water supply not blocked, increasing the water pressure, or cleaning the hose if necessary. Floating ball of the water level Clean the water tank and the water level detecting switch is blocked, “... - Page 24 Need the technical serviceman to maintain Refrigerant leakage Ice making cycle is normal, but there is no Need the technical service person to ice cube produced Cooling system tube is clogged maintain...
-
Page 25: Error Indicator
ERROR INDICATOR a) Ambient temp sensor breakdown Display E1 in digital window. b) The machine is not making ice or display window is reading as “E2.” c) Magnetic control switch cutoff----“Full” light will be on when plugging on or just turning on the unit.
