- Page 1 Smart Receiver Smart Rx 433 – 31 AutoDel Versión 3.6 Quick user guide 09/2024 Page 1...
- Page 2 Connections 1- NO1 RL1 2- COM1 RL1 3- NC1 RL1 4- NO2 RL2 5- COM2 RL2 6- NC2 RL2 [fuzzy]12/24V AC/DC 8- GND 9- GND ANTENNA 10- ANTENNA CONNECTION - Power: inputs 7-8 - Channel 1: NO1-COM1 normally open contact (NO) NC1-COM1 normally closed contact (NC) - Channel2: NO2-COM2 normally open contact (NO) NC2-COM2 normally closed contact (NC)

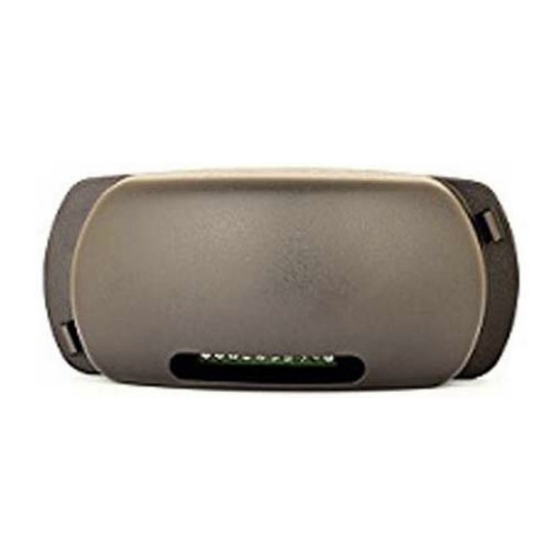

- Page 3 DESCRIPTION The Smart RX 433-31 electronic equipment is a two-channel external receiver, provided with a built-in decoding system with storage capacity for 31 users. When a channel is activated by a transmitter programmed for this purpose, the respective relay contacts act according to the modes corresponding.
-
Page 4: Borrado De Memoria
BORRADO DE MEMORIA If you wish to delete all the commands present in the receiver's memory, proceed as follows: 1. Press and hold the SW1 button for approximately 5 seconds. The receiver will emit three beeps (3 x BEEP) and the LED will flash three times (LED ON + LED OFF). 2. - Page 5 Technical characteristics Power: 12/24V AC/DC Consumption: <100mA Frequency: 433.92MHz ±25KHz Contact rate AC: 250V 5A DC: 14V 20A Temperature range -20º C - +60ºC Contacts operating mode MONOSTABLE (approx. 2 seconds) Updatable: No Page 5...
