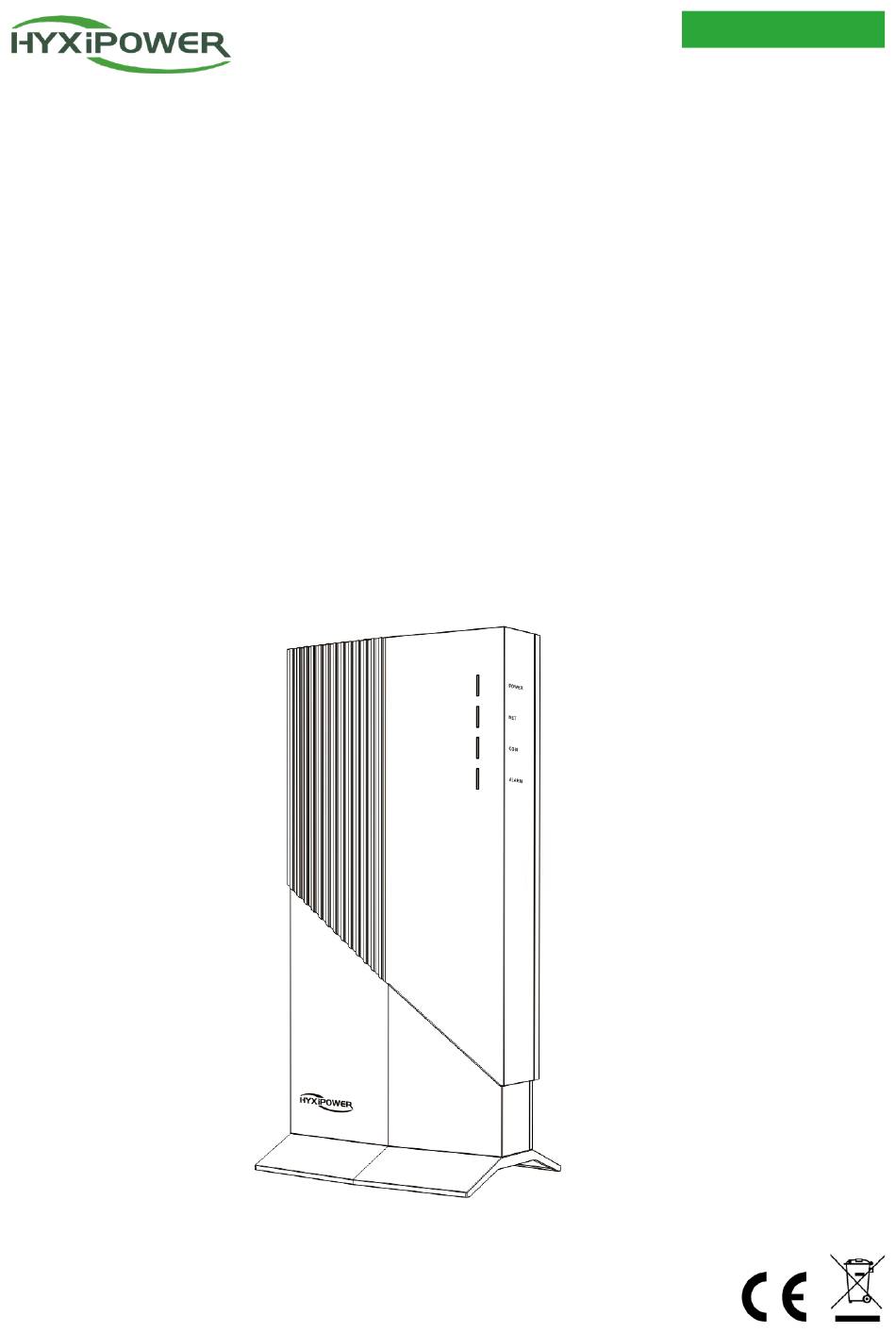

- Page 1 User Manual DATA MANAGEMENT UNIT HYX-DMU-4G / HYX-DMU-W Carefully read this inverter user instructions before using. Read and save these instructions.
- Page 2 ZHEJIANG HYXI TECHNOLOGY CO., LTD (hereinafter referred to as "HYXiPOWER"). TRADEMARKS and other HYXiPOWER trademarks are the trademarks or registered trademarks of HYXiPOWER All other trademarks mentioned herein are the properties of their respective owners.
-
Page 3: Table Of Contents
HYX-DMU-W/4G User Manual Contents Preface ..................................1 Overview ......................................1 Scope of Application .................................1 Safety Instructions ..................................1 1. Product Overview .............................3 1.1 Product introduction ................................3 1.1.1 Microinverter ..................................3 1.1.2 Data management unit ( DMU ) ..........................3 1.2 Product model ..................................3 1.3 Monitoring System ................................4 1.4 Product Appearance .................................4 1.4.1 Dimension of Device ..............................4 1.4.2 Interface Layout ................................5... - Page 4 HYX-DMU-W/4G User Manual 4.2 Frequency range & transmitted power........................15 4.3 Installation Map ................................16 4.4 Contact Information ............................... 16...
-
Page 5: Preface
HYX-DMU-W/4G User Manual Preface Preface Overview This manual provides users with the product information of the data management unit (DMU) communication system device. Product information, detailed installation and usage, fault diagnosis and daily maintenance related precautions, does not include all information about the photovoltaic system. - Page 6 HYX-DMU-W/4G User Manual Preface Symbol Description Do not dispose of the inverter as household waste. The symbol indicates DC voltage. Note that only professionals should install or replace the DMU. Do not attempt to repair the DMU without Hyxi’s permission, otherwise it will affect the warranty of the device.
-
Page 7: Product Overview
HYX-DMU-W/4G User Manual 1. Product Overview 1. Product Overview 1. Product Overview This chapter mainly introduces the DMU appearance, packaging accessories, technical parameters, etc. 1.1 Product introduction PV microinverter system 1.1.1 Microinverter Microinverter (hereinafter referred to as microinverter) converts the DC output of PV panels into AC power that meets the requirements of the grid and transmits it in the power grid, the DMU continuously collects the operating data of each microinverter port and sends it to the monitoring platform, which constitutes the module-level monitoring of the microinverter system hardware base. -
Page 8: Monitoring System
HYX-DMU-W/4G User Manual 1. Product Overview 1.3 Monitoring System The monitoring system collects the operating data and status of each microinverter in the system through the DMU data management unit, and uses the PC or APP to provide users with module- level monitoring to realize remote operation and maintenance. -
Page 9: Interface Layout
HYX-DMU-W/4G User Manual 1. Product Overview 1.4.2 Interface Layout HYX-DMU-4G （4G Version） Description Ａ Sub-1G antenna interface Ｂ SD card slot Ｃ USB port (Software upgrades only) Ｄ DRM port Ｅ Ethernet port Ｆ RS485 Ｇ Power port Ｈ Reset button Ｉ... -
Page 10: Anti-Countercurrent Function （Rs485 Port
HYX-DMU-W/4G User Manual 1. Product Overview LED Indicator Status Description： Description LED status Device status Power on Power indicator Power off Solid Normal Network communication (connecting to the server) Flashing Abnormal Solid Normal Microinverter communication (connecting to microinverter) Flashing Abnormal Abnormal Fault condition Normal... -
Page 11: Cable Connection
HYX-DMU-W/4G User Manual 1. Product Overview 1.6.3 Cable Connection Single-Phase 220V Cable Connection Three-Phase 230/400V Cable Connection L1 L2 L3 N CAUTION • CTs are directional. Check that I* and I connections are correct as per wiring diagram. If the I* (white) and I (blue) are swapped at the meter, the measured power will be negative. -
Page 12: Drm Function(Australia/New Zealand Only)
HYX-DMU-W/4G User Manual 1. Product Overview 1.7 DRM Function(Australia/New Zealand only) The DMU is connected to external control device through the standard RJ-45 port, and the DRM port to support the following requirements response mode. DRM 0/5/6/7/8 and other modes can be supported when the DMU is connected with microinverter. Description Disconnect the device DRM0... -
Page 13: Installation
HYX-DMU-W/4G User Manual 2. Installation 2. Installation 2.1 Unpack and check The device has been fully tested and strictly inspected before leaving the factory, but damage may still occur during transportation, please conduct a detailed inspection before signing for the product. •... -
Page 14: Installation Sequence
HYX-DMU-W/4G User Manual 2. Installation • DMU cannot be used outdoors alone. If installed outdoors, the DMU should be placed in a waterproof box. CAUTION • It is forbidden to install it where children can reach it. 2.3 Installation sequence 1、... - Page 15 External antenna customers can purchase it themselves or from Hyxi (please contact Hyxi technical support). • For more information about the sucker antenna please email support@hyxipower.com. Step 2: Installation location • Installing on the roof can increase the signal strength.
- Page 16 HYX-DMU-W/4G User Manual 2. Installation kept away from heating equipment (wall heaters, ovens, etc.); Note: You need to prepare yourself: marker pens, electric drills, screwdrivers and other tools. • Hang the mount on the wall, adjust the angle, and mark it with a marker pen. •...
-
Page 17: Human-Computer Interaction
Scan the following QR code to download and install the App according to the prompt information: 3.2 APP User manual For more information on using the HYXiPower APP, please refer to the user manual "HYXiPower APP". 3.3 System debugging For system configuration and debugging, please refer to the user manual "HYXipower Local... -
Page 18: Appendix
HYX-DMU-W/4G User Manual 4. Appendix 4. Appendix 4.1 Technical Parameter Product Model HYX-DMU-W HYX-DMU-4G Communication to Microinverter Signal Sub-1G Sub-1G Monitoring data limit from solar panels Communication to Hyxi Cloud Ethernet RJ45×1, 100Mbps RJ45×1, 100Mbps 4G:TDD-LTE, FDD-LTE Wireless WI-FI:802.11b/g/n 3G:SCDMA 2G:GSM/GPRS Data Acquisition Interval Default: 5 mins (1-15 mins Configurable) - Page 19 HYX-DMU-W/4G User Manual 4. Appendix 4.2 Frequency range & transmitted power Frequency Range Transmitted Power 1920MHz--2170MHz <24dBm 1710MHz--1880MHz <24dBm 2500MHz--2690MHz <24dBm 880MHz--960MHz <24dBm 791MHz--862MHz <24dBm 703MHz--803MHz <24dBm 2570MHz--2620MHz <24dBm 2300MHz--2400MHz <24dBm 1920MHz--2170MHz <24.5dBm WCDMA 880MHz--960MHz <24.5dBm 870MHz--960MHz <33.5dBm 1800 1710MHz--1880MHz <30.5dBm 868MHz--868.58MHz <15dBm...
-
Page 20: Installation Map
HYX-DMU-W/4G User Manual 4. Appendix 4.3 Installation Map 4.4 Contact Information If you have any questions about this product, please contact us. In order to provide you with faster and better after-sales service, we need your assistance in providing the following information. •... - Page 21 Version: UM_HYX-DMU-4G(W)_V1.3-202410_Global The manual is subject to change without notice while the product is being improved. Zhejiang Hyxi Technology Co., Ltd. Room 216, Block A, Building 1, No. 57 Jiang'er Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang Province, China www.hyxipower.com support@hyxipower.com...
