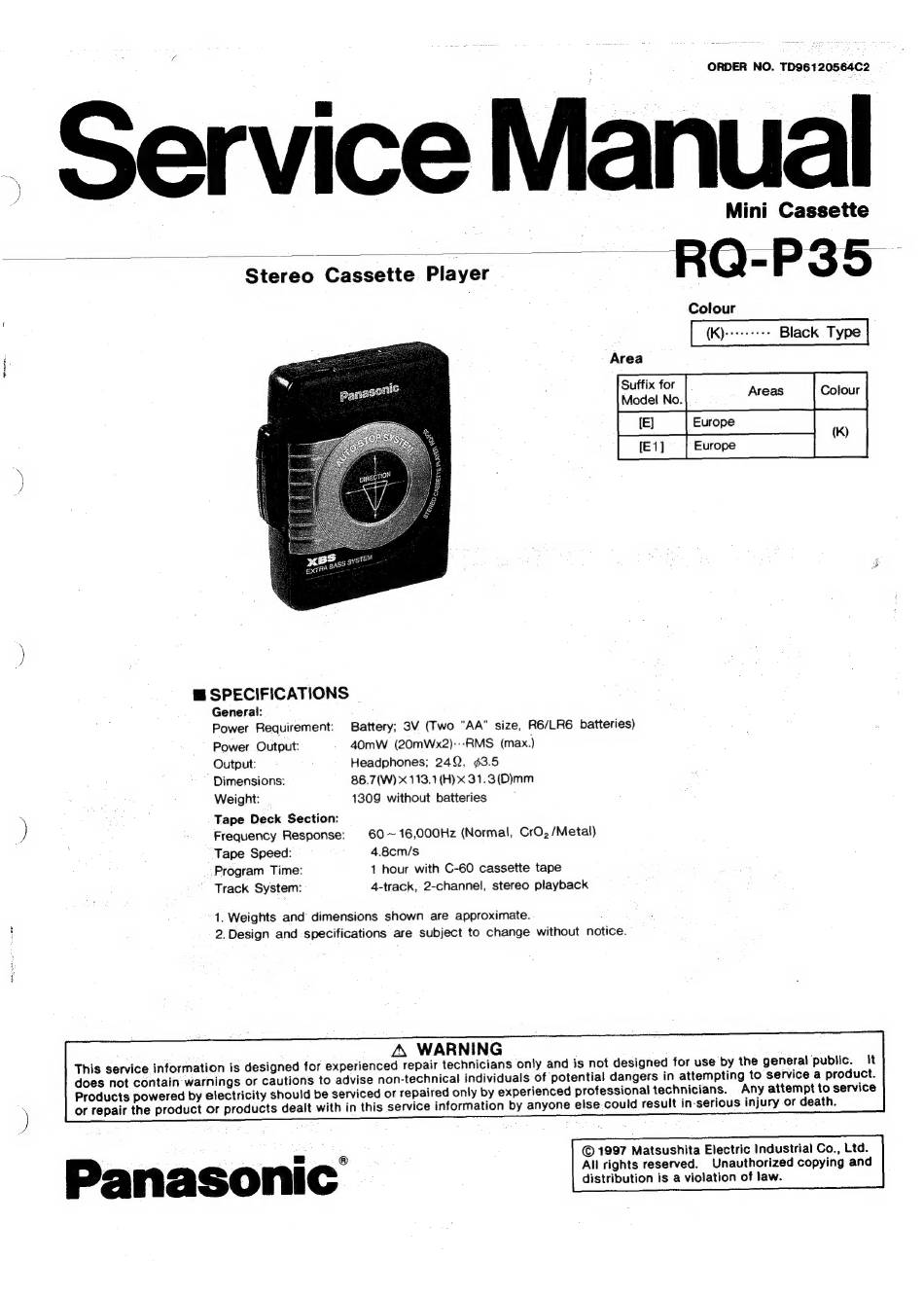

Panasonic RQ-P35 Service Manual

zs
, ae
ORDER NO. TD96120564C2

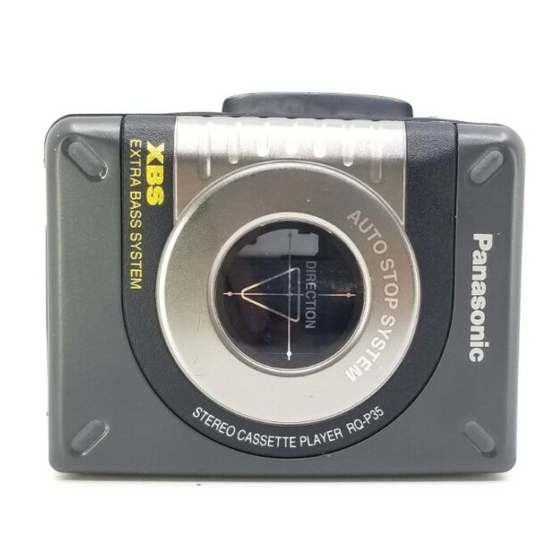

Mini Cassette
Colour
(K)scereeees Black Type
Area
Suffix for
K)
ee a
2 EM
@ SPECIFICATIONS
General:
Power
Requirement:
Battery; 3V (Two "AA"
size, R6/LR6
batteries)
Power Output:
40mW (20mWx2)::-RMS (max.)
Output: Headphones; 242, 43.5
Dimensions:
86.7 (W) X 113. 1(H) X 31.3(D)mm
Weight: 1309 without batteries :
:
;
Tape Deck Section:
Frequency
Response:
60 ~ 16,000Hz (Normal,
CrO, /Metal)
Tape Speed: 4.8cm/s
Program Time:
1 hour with C-60 cassette tape
Track System:
4-track, 2-channel, stereo playback
1. Weights and dimensions shown are approximate.
2.Design and specifications are subject to change without notice.
A WARNING
This service information is designed for experienced repair technicians only and is not
designed for use by the general public. It
does not contain warnings
or cautions to advise non-technical individuals of potential dangers in attempting
to service a product.
Products powered by electricity should be serviced or repaired only by experienced
professional technicians.
Any attempt to service
or repair the product or products dealt with in this service information by
anyone else.could result in-serious. injury or death.
