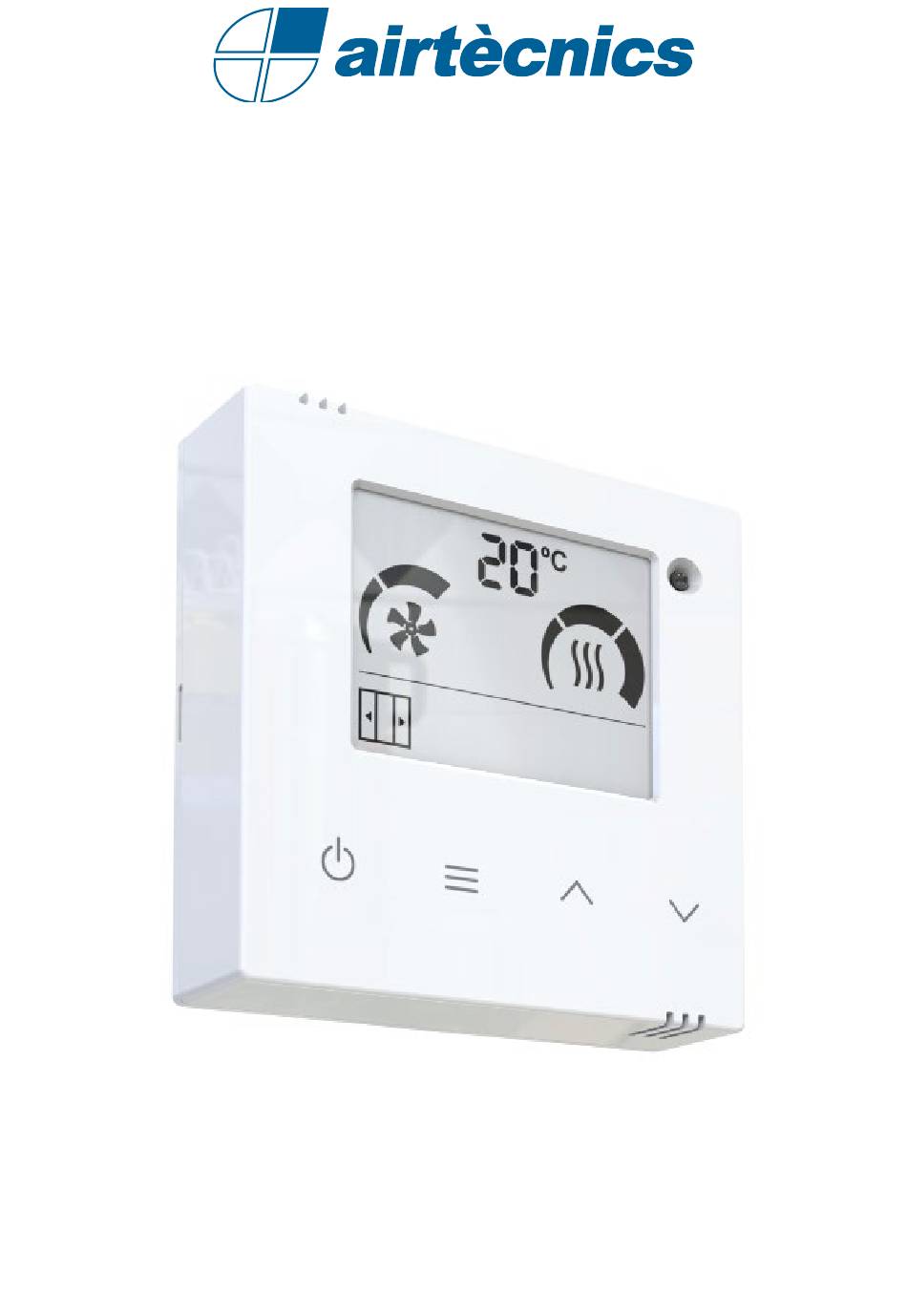

- Page 1 ADVANCED PRO RJ45 Control INSTALLATION AND OPERATION MANUAL...
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION .........................3 1.2. Main Features ........................3 1.1. Description ...........................3 1.3. Screen and Buttons ......................3 2. USER FUNCTIONING .........................4 2.1. Parameter Variables ......................4 2.2. Device Initialization ......................5 2.3. LCD User Menu Workflow ....................6 2.4. Control Locking ........................10 3. INTERFACE MODE ........................10 4. -
Page 3: Introduction
1. INTRODUCTION 1.1. Description The ADVANCED PRO RJ45 control is a versatile air curtain controller with an 8-way crossover RJ45 cable with digital communication. It is compatible with all air curtain models manufactured between 2004 and 2024. The ADVANCED PRO RJ45 control allows the selection of different speeds and heating stages for door open and door closed. -
Page 4: User Functioning
DX CD: Only one heating stage (ON/OFF) just as the temperature SET. Slave DX and Interface Slave: The heating and the temperature SET are controlled by the brand control of the heat pump. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 5: Device Initialization
E5: Electrical Heating. 5-speed stages. CH-5HW-NE P5: Water Heating. 5-speed stages. dS: Heat Pump DX Slave CE-5AW-IR di: Interface Slave CW-5AW-IR CH-5HW-NE CD-5AW-IR CS-5DX-NE (DX Slave) IN-NE-II (DX Interface Slave) For inputs/outputs configuration, see section 7. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 6: Lcd User Menu Workflow
(*) If the door contact is not detected, the door open and door closed icons will not appear. Only one speed and one heating will be available. For the door icons to appear, a door contact must be connected to the ‘DIN4’ input and a door opening and closing cycle must be performed. Instructions manual - ADVANCED PRO RJ45 Control... - Page 7 (*) If the door contact is not detected, the door open and door closed icons will not appear. Only one speed and one heating will be available. For the door icons to appear, a door contact must be connected to the ‘DIN4’ input and a door opening and closing cycle must be performed. Instructions manual - ADVANCED PRO RJ45 Control...
- Page 8 (*) If the door contact is not detected, the door open and door closed icons will not appear. Only one speed and one heating will be available. For the door icons to appear, a door contact must be connected to the ‘DIN4’ input and a door opening and closing cycle must be performed. Instructions manual - ADVANCED PRO RJ45 Control...
- Page 9 (power supply fail). Information of the Menu Menu (to escape fast temperature outside (To validate) temperature setting) (**) Flashing ON (**) Only if an outside temperature sensor is installed on the air curtain PCB. Instructions manual - ADVANCED PRO RJ45 Control...
-
Page 10: Control Locking
Blocked off only available for 2025 generation PCBs RJ45 Heat bit 2 Heat ON Closed Open Heat bit 1 Control for BMS or LCD Temp1 Din6 BMS Master Closed Back LCD Control Control Master Open Instructions manual - ADVANCED PRO RJ45 Control... -
Page 11: Autocooling, External Control And Boost Function
Open door → Always Boost * Exterior temperature ≤ SET Temperature -7 Open door + Exterior temperature ≤ SET Temperature -7 *If you want to deactivate this function, set function 10 in the configuration menu to 0°. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 12: Alarms And Errors
This alarm is activated by time counter. It Unit operation adapts and remains does not affect operation. To reset the cou- working according to inbuilt room tem- nter: perature sensor. Beep hold down Instructions manual - ADVANCED PRO RJ45 Control... -
Page 13: Configuration
Thermo OFF - Ventilation OFF when room temperature reaches SET temperature at close door. (*) By default, door open/close icons are not activated. First time the door contact is closed, then it is possible to choose door open heating/ventilation and door closed heating/ventilation. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 14: Input/Output Configuration
DIN5 - Cool DIN5 - Defrost DIN6 - n/a DIN6 - Fire Alarm DOUT - n/a DOUT - Overheating (*) FIRE function does not work with old versions of the PCB, PER-05V-W and PEC-02V-O. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 15: Digital Inputs
The LCD control has a room temperature sensor and, optionally, an additional temperature input. If a sensor is connected to this input, the control will interpret the temperature as: - Interior: With jumper Auxiliary temperature sensor - Exterior: Without jumper Auxiliary temperature sensor Instructions manual - ADVANCED PRO RJ45 Control... - Page 16 Conca de Barberà, 6 - Pol. Ind. Pla de la Bruguera E-08211 Castellar del Vallès (Barcelona) Spain ☏ + 34 93 715 99 88 airtecnics@airtecnics.com www.airtecnics.com AIRDOM05791-R5(02/25) ORIGINAL USER MANUAL Airtècnics reserves the right to modify some of the specifications in this manual.
