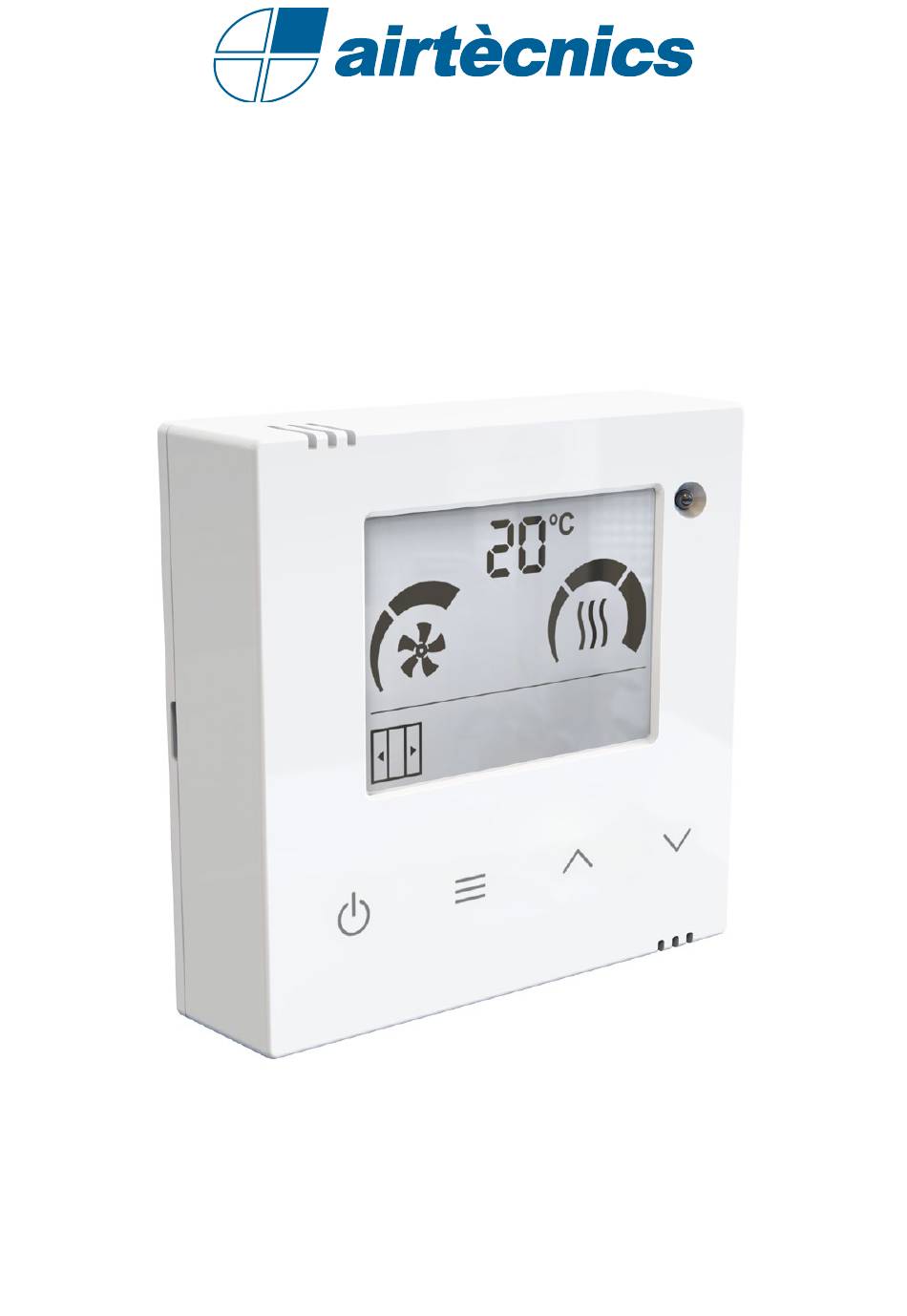

- Page 1 ADVANCED PRO RJ45 Control INSTALLATION AND OPERATION MANUAL...
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION .........................3 1.2. Main Features ........................3 1.1. Description ...........................3 1.3. Screen and Buttons ......................3 2. USER FUNCTIONING .........................4 2.1. Parameter Variables ......................4 2.2. Device Initialization ......................5 2.3. LCD User Menu Workflow ....................6 2.4. Control Locking ........................10 3. AUTOCOOLING AND EXTERNAL CONTROL ................. 11 4. -
Page 3: Button Layout
1. INTRODUCTION 1.1. Description The ADVANCED PRO RJ45 control is a versatile Plug&Play air curtain controller with an 8-way crossover RJ45 cable with digital communication. It is compatible with all air curtain models manufactured between 2004 and 2024. The ADVANCED PRO RJ45 control adjusts the heating based on the desired set temperature, depending on the room temperature and the door status of the establishment. -
Page 4: User Functioning
· 66% = 2 segments painted · 100% = 3 segments painted - Heat Pump: DX CD: only one heating stage (ON/OFF). Slave DX: the heating is not being regulated by the LCD control. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 5: Device Initialization
E9: Electrical Heating. 2-speed stages. 1000-9kW. P2: Water Heating. 2-speed stages. A5: Only Air. 5-speed stages. E5: Electrical Heating. 5-speed stages. P5: Water Heating. 5-speed stages. dS: Heat Pump DX Slave in: Interface Slave Instructions manual - ADVANCED PRO RJ45 Control... -
Page 6: Lcd User Menu Workflow
(To validate) CLOSED DOOR (*) Flashing ON (*) If the door contact is not detected, the door open and door closed icons will not appear. Only one speed and one heating will be available. Instructions manual - ADVANCED PRO RJ45 Control... - Page 7 (To validate) CLOSED DOOR (*) Flashing ON (*) If the door contact is not detected, the door open and door closed icons will not appear. Only one speed and one heating will be available. Instructions manual - ADVANCED PRO RJ45 Control...
- Page 8 (To validate) (To validate) Flashing ON (*) If the door contact is not detected, the door open and door closed icons will not appear. Only one speed and one heating will be available. Instructions manual - ADVANCED PRO RJ45 Control...
- Page 9 (power supply fail). Information of the Menu Menu (to escape fast temperature outside (To validate) temperature setting) (**) Flashing ON (**) Only if an outside temperature sensor is installed on the air curtain PCB. Instructions manual - ADVANCED PRO RJ45 Control...
-
Page 10: Control Locking
Flashing ON To unlock the unit, the user must repeat the same combination of buttons as for locking. Then it will be hear a higher-pitched beeping sound, indicating that the control has been unlocked. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 11: Autocooling And External Control
- EXT OFF: The unit has been stopped by External OFF contact. Not considered an alarm. - CALE OFF: Heating OFF, stopped externally. Not considered an alarm. Flashing ON EXT CONTROL OFF CALE OFF Instructions manual - ADVANCED PRO RJ45 Control... -
Page 12: Alarms And Errors
This alarm is activated by time counter. It Unit operation adapts and remains does not affect operation. To reset the cou- working according to inbuilt room tem- nter: perature sensor. Beep hold down Instructions manual - ADVANCED PRO RJ45 Control... -
Page 13: Configuration
- If Memory is set as ON. Once power supply is restored, the unit will go back to work with the same parameters than before the failure. - If Memory is set as OFF. The unit will remain switched off. Instructions manual - ADVANCED PRO RJ45 Control... -
Page 14: Input/Output Configuration
DIN3 - Speed Bit 3 DIN4 - Door DIN4 - Heating Bit 1 DIN5 - Cool DIN5 - Heating Bit 2 DIN6 - n/a DIN6 - Bit BMS/Control DOUT - n/a DOUT - Overheating Instructions manual - ADVANCED PRO RJ45 Control... -
Page 15: Temperature Sensor (Aux) Room/Exterior
- Jumper is connected: The ambient temperature is read by the Auxiliary temperature sensor instead of the one included on the board. The outdoor temperature will not be available to be read. Auxiliary Temperature Sensor Instructions manual - ADVANCED PRO RJ45 Control... - Page 16 Conca de Barberà, 6 - Pol. Ind. Pla de la Bruguera E-08211 Castellar del Vallès (Barcelona) Spain ☏ + 34 93 715 99 88 airtecnics@airtecnics.com www.airtecnics.com AIRDOM05780-R1(09/24) ORIGINAL USER MANUAL Airtècnics reserves the right to modify some of the specifications in this manual.
