Summary of Contents for Delta UNO IAQ

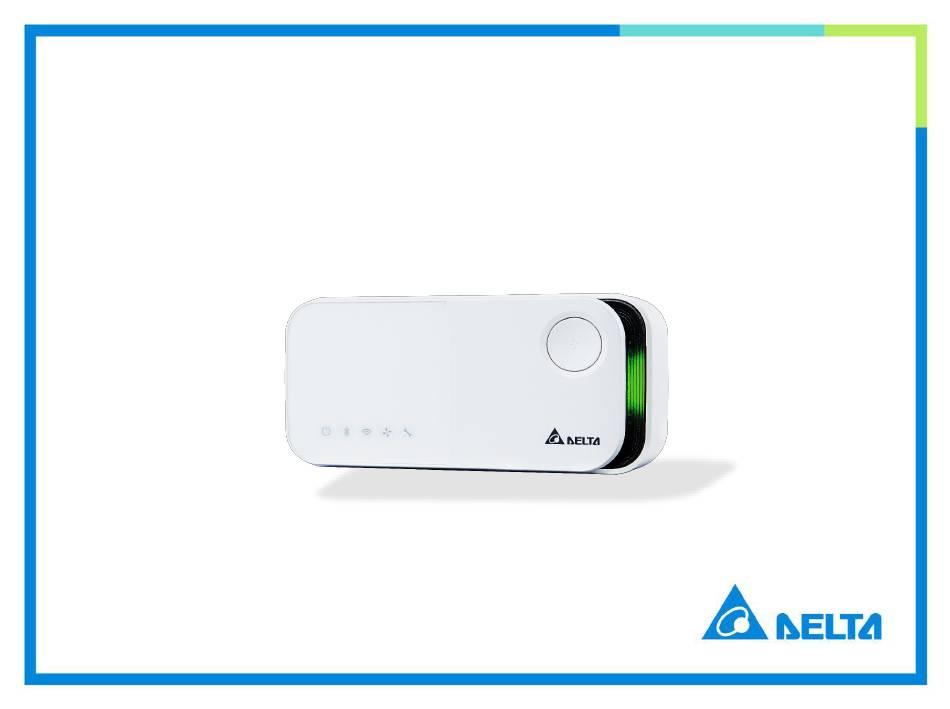

- Page 1 UNO IAQ Sensor Installation Guide Product Development Team, BABG Sep. 28 2023 ver.04...
- Page 2 Function Button Wall mount buckle Wall mount holes buckle holes Filter Reset DIP switch Adapter Terminal connector Block...
- Page 3 Placement UNOlite is recommended to be installed below condition and at a height of 0.8~1.5 meters (2.56~ 4.8 feet ). 0.8~1.5 meters (2.56~4.8 feet)
- Page 4 Located at least 5 meters(~16 feet) away from operable windows, doors and diffusers Delta Confidential...
- Page 5 Step 1 Select suitable Wall Mount Frame to meet different Junction...
- Page 6 Plastic Wall Mount Cover Dimension Plastic well module cradle is an accessory that comes with the product (Both UNOnext and UNOlite).
- Page 7 Small Wall Mount frame Dimension Delta Part No.: 3487312702 Compact Wall Mount Frame for 1-Gang Junction Boxes (Compatible with US, EU, & TW Junction Box) Delta Part No.: 3487312702 This well module frame is an accessory that comes with the product (UNOlite).
- Page 8 Large Wall Mount frame Dimension Delta Part No.: 3994041800 The Wall Mount Frame and Cover for China 86 or 2-Gang Junction Boxes (Compatible with US, EU, & TW Junction box) Delta Part No.: 3994041800...
- Page 9 Step 1.1 Install small Wall Mount frame with 1 Gang Embedded Junction Box...
- Page 10 Step 1.2 Install large Wall Mount Kit with 2 Gang Embedded Junction Box...
- Page 11 Step 1.3 Install large Wall Mount cover with Junction Box Installation...
- Page 12 Step 2 (for UNOlite) Insert wire cables to terminal plug • 簡介 • 策略定位 • 客戶效益導向 • 台達樓宇解決方案 DC power Plug • 以物聯網為基礎的智慧建築 • 樓宇台達樓宇自動化產品特色 Terminal Plug • 成功案例與獎項 • 附錄 l 品牌介紹 Pin Terminal Only choose one of the two power supply options, either the DC adapter Wires (Data Signal) : or the DC source via terminal plug, but...
- Page 13 Step 2 (for UNOnext) Insert wire cables to terminal plug B2 A2 G Vin Only choose one of the two power supply options, either the DC adapter or the DC source via terminal plug, but NOT both at the same time.
- Page 14 Step 3 Insert terminal plug and DC power plug to UNOlite Terminal Plug DC power Plug...
- Page 15 Step 4 Mount UNOlite on four buckles of Wall Mount Fix UNOlite with M4 screw by Hex screw driver • 簡介 • 策略定位 • 客戶效益導向 • 台達樓宇解決方案 • 以物聯網為基礎的智慧 建築 • 樓宇台達樓宇自動化產 品特色 • 成功案例與獎項 • 附錄 l 品牌介紹 M4 screw Hex screw Driver...
-
Page 16: Finished Installation
Finished Installation... - Page 17 Installation Guide for UNO IAQ Sensor Step 1: Determine Installation Height The optimal installation height for the product is between 0.8 to 1.5 meters (2.56 to 4.8 feet) from the ground. Step 2: Choose Installation Method Option A: Wall Mount Installation Utilize the wall mount provided in the package.
- Page 18 Smarter. Greener. Together.
