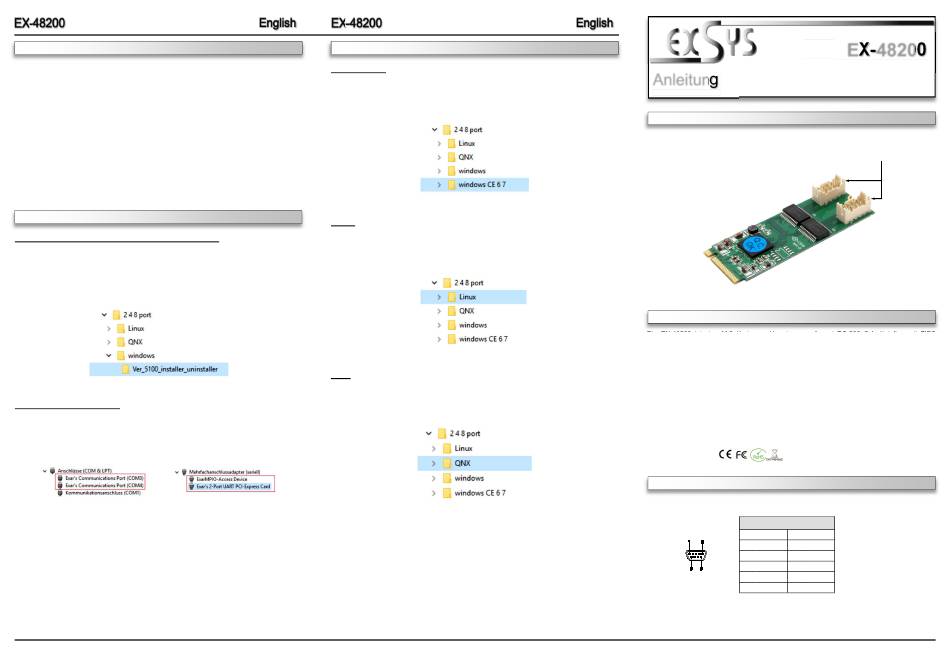

Exsys EX-48200 Manual

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-48200. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Now connect the two Ribbon Cable with the 10 Pin Floppy Connectors at the EX-48200.
4. Locate an available M.2 NGFF expansion slot and insert the card. Make sure that the card is
plugged in correctly.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows 200x/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx
After starting Windows is recognizes a new „Serial PCI-Connector". Insert the driver CD into
you CD-ROM drive (eg drive D:) and then start the installer „xr17v35x_win_single_installer"
which located in folder „Ver_5100_installer_uninstaller" (see picture). Follow the installation
instructions and finish the installation:
CHECK INSTALLED DRIVER
Open the >Device-Manager<. Now you should see at „Ports (COM & LPT)" and at „Multiple
Connection Adapter (serial)" the following new entry's:
If you see this or a similar information the device is installed correctly.
5
DRIVER INSTALLATION
Windows CE
After starting Windows is recognizes a new „Serial PCI-Connector". Insert the driver CD into
you CD-ROM drive (eg drive D:) and then use the driver which located in the folder „windows
CE 6 7" (see picture):
Linux
After starting Linux is recognizes a new „Serial PCI-Connector". Insert the driver CD into you
CD-ROM drive (eg drive D:) and then use the driver which located in the folder „Linux" (see
picture):
QNX
After starting the system is recognizes a new „Serial PCI-Connector". Insert the driver CD into
you CD-ROM drive (eg drive D:) and then use the driver which located in the folder „QNX" (see
picture):
6
Anleitung
Vers. 1.0 / 20.02.19
AUFBAU
COM1&COM2: 2x 10 Pin Floppy Anschluss für
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-48200 ist eine M.2 Karte zur Umsetzung auf zwei RS-232 Schnittstellen mit FIFO
16C550 Port für den Anschluss von High Speed Seriellen RS-232 Peripherie Geräten (z.B.
Modem, Plotter usw.). Die EX-48200 nutzt den Exar Chipsatz, der die neueste High-Speed-
Interface-Technologie beinhaltet. Die Karte gewährleistet so eine sichere Datenübertragung und
exzellente Performance von bis zu 921.6 KBaud/s für jedes angeschlossene serielle Gerät! Sie
unterstützt den M.2 NGFF Bus mit A-Key. Es ist nicht möglich die I/O Adressen und Interrupts
manuell einzustellen, da die Einstellungen der Karte vom System (BIOS) und beim installieren
des Betriebssystems automatisch vorgenommen werden.
Kompatibilität: M.2 NGFF mit A-Key
Betriebssysteme: Windows 200x/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux/ QNX 6.0
Anschlüsse: 2x 9 Pin Stecker Seriell RS-232
Lieferumfang: EX-48200, 2x Flachbandkabel, Treiber CD, Anleitung
Zertifikate:
ANSCHLÜSSE
DB 9M
9 Pin Stecker Seriell RS-232
Pin Signal Pin Signal
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
1
EX-48200
RS-422/485 9 Pin Flachbandkabel
