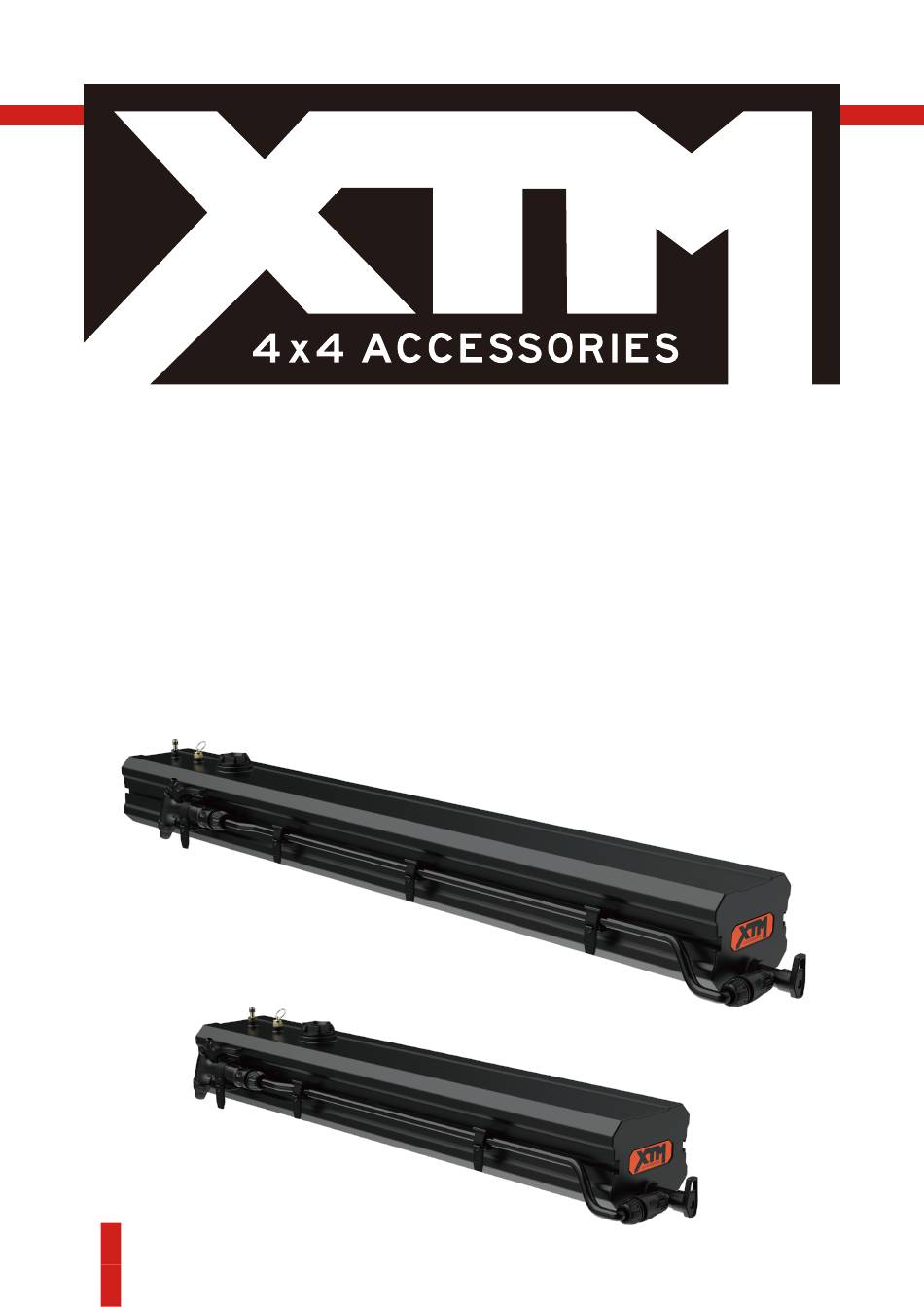

- Page 1 28L & 20L Aluminium Water Tank...
-
Page 2: Important Safety Information
Important Safety Information NOTE: The safety pressure valve will deflate automatically to make sure pressure inside tank is not higher than 35 PSI. Ensure safety valve is operational by pulling and releasing 2-3 times before using. WARNING: DO NOT REMOVE FILLER CAP WHILE IT IS UNDER PRESSURE. YOU CAN RELEASE PRESSURE BY PUSHING THE CORE IN THE AIR VALVE, OR BY PULLING ON THE SAFTY VALVE. -
Page 3: Specification
Aluminium Water Tank Overview NOTE: These instructions are compatible with the 20L and 28L sizes of aluminium watertank. Contents 1: Camping Shower 4: Screw X6 water tank X1 Fixing plate X3 2: Water valve X1 Washer X6 Washer X1 Nut X6... -
Page 4: Accessory Assembly
Aluminium Water Tank Instructions Attach the hose to water tank Attach spray gun to hose Connect the quick release hose Install spray gun to the socket female end to the water tank. other end of the hose. Accessory Assembly Attach to the hose Install the base Install shower head to the other end of the hose. - Page 5 Aluminium Water Tank Mounting Instructions (Option A) When roof racks are perpendicular to car Install the screws to water tank Insert 2 bolts into each end of the slot on the bottom of the tank. Position the water tank Put the water tank on your crossbars, and adjust the bolt position to suit.
- Page 6 Aluminium Water Tank Mounting Instructions (Option B) When roof racks are parallel to car Install the screws to water tank Insert 2 small and 2 large bolts into each bracket, as shown in diagram left. Slide the 2 fixing plates into the slots underneath the water tank. Add washers and nuts to the smaller two insidebolts, and tighten.
-
Page 7: Care And Maintenance
Care and maintenance Cleaning tank: The best way to keep water tank in good shape is by regular cleaning to remove any build up of dirt. If left for an extended period of time, grime can cause staining. When cleaning the water tank, you should always start with the mildest method possible, and only move to harsher treatments if absolutely necessary. -
Page 8: Warranty
The benefits provided to the consumer by the warranty are in addition to other rights and remedies available to the consumer under the law. PLU: 701671 (20L) & 701672 (28L) Manufactured and packaged for: SRGS PTY LTD...
