Summary of Contents for XTM 669707

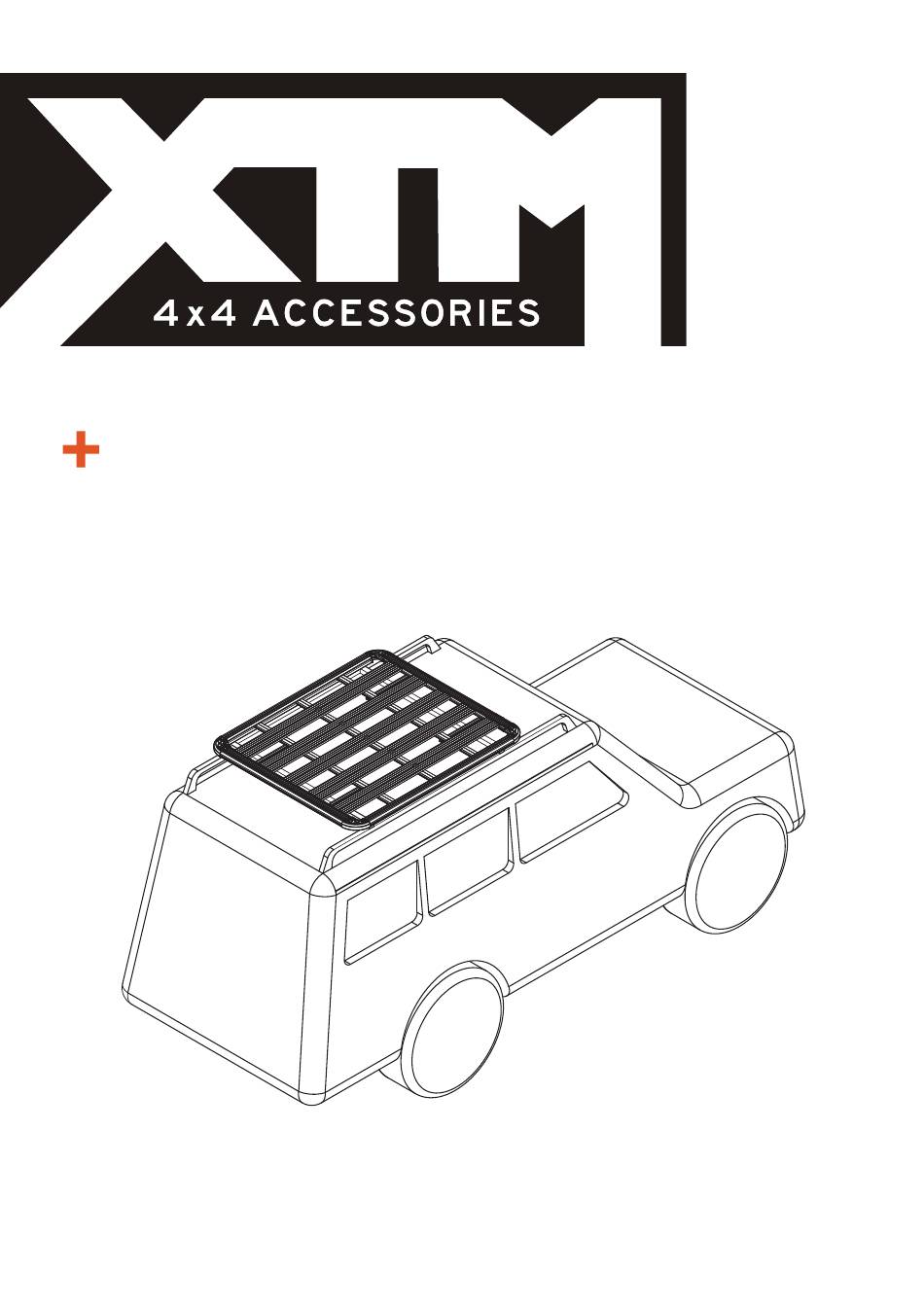

- Page 1 XTM ROOF PLATFORM Instruction Manual PLU：669707...
- Page 2 Thank you for purchasing the XTM Roof Platform. Please read these instructions carefully before + Parts list assembling and installing the Roof Platform to your vehicle. Assembly and installation requires minimum 2 people. Tools required (not included): - Rubber hammer...
- Page 3 + Assembly Bolt M8 Spring washers M6*15MM 14 pcs 10 pcs To insert the C into the B. M4 Hex key M8 Square bolt 1 pcs 1 8 pcs M8 Washers M6 Washers 14 pcs 50 pcs M6 Nyloc nut U bracket 40 pcs 15 pcs...
- Page 4 Place the assembled unit flat and tighten the Slide the M8 square nut (teeth face up) into Self-tapping screw using your own screwdriver. the slot of the D, then tighten the bolts with spring washer and washer using the M5 Hex key provided.
- Page 5 + Mounting Pull out the end caps before sliding the bolts into the slot of F, and tighten the mounting plates with nuts. Slide the bolts into the slot of the E, and tighten the U brackets with nuts and washers using your own 10mm Spanners.
- Page 6 PLU: 669707 CODE: CZ-RT04B...
