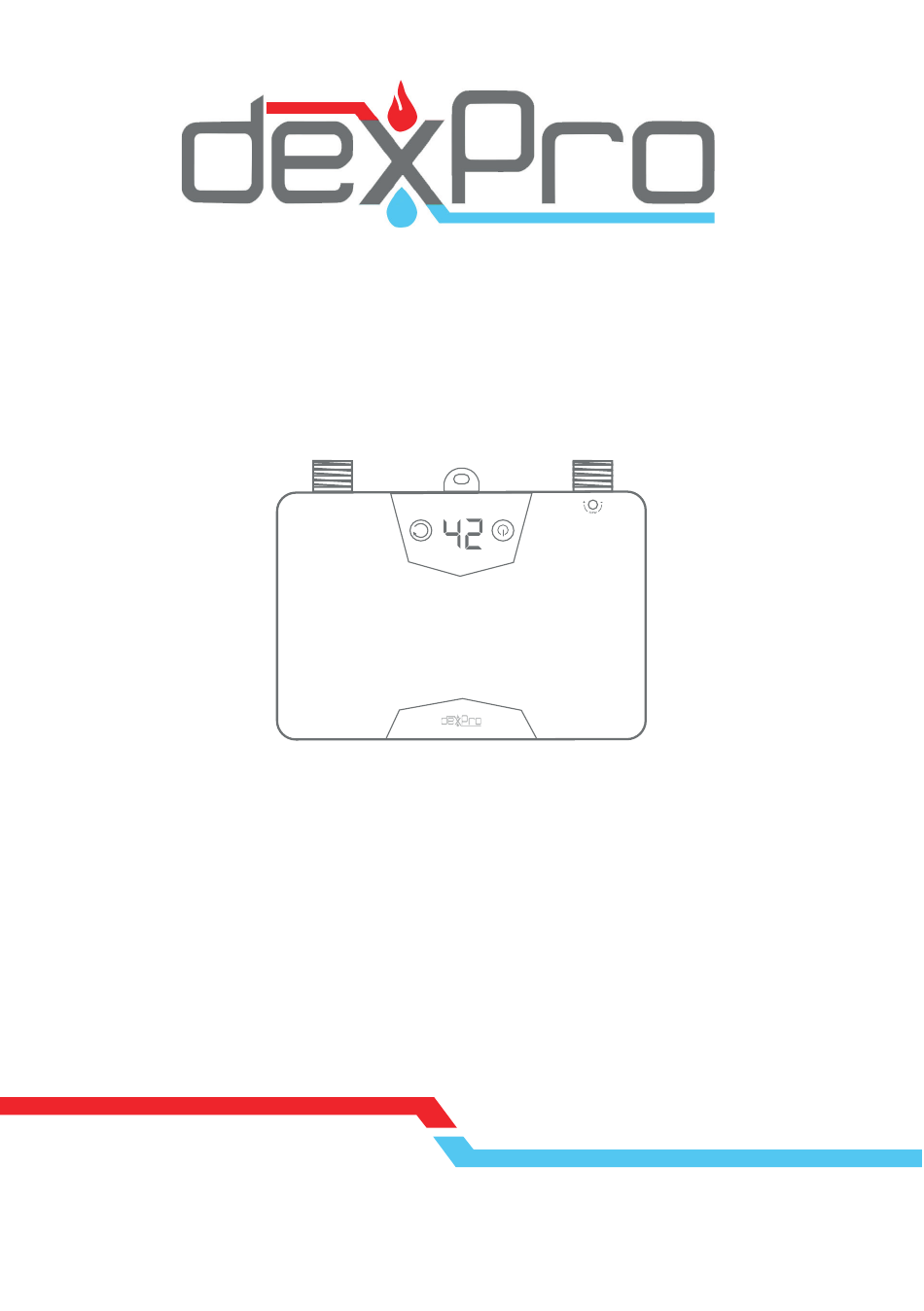

- Page 1 INSTRUCTION MANUAL DXI35DT/DXI55DT INSTANT ELECTRIC WATER HEATER Tel: 01244 631370 | Email: sales@dexprouk.com...
- Page 2 Illustration Fused Spur 30A (DXI55DT) 20A (DXI35DT) O Ring must be fitted O Ring must be fitted STOP FUSED SPUR ORIENTATION The unit can be mounted in any orientation DXI35DT/DXI55DT INSTANT WATER HEATER...
- Page 3 These electric instant water heater are ideal for use in light commercial or domestic applications where supply to a single sink is required for light hand (DXI35DT) or dish washing (DXI55DT). Its modern design and the use of carefully selected materials and an improved manufacturing process ensure high quality.
-
Page 4: Wiring Diagram
Environment This device is delivered in sturdy packaging in order to avoid damage during transport. This packaging consists mainly of recyclable materials. We request that you dispose of the packaging accordingly for recycling. Wiring Diagram DXI35DT/DXI55DT INSTANT WATER HEATER... -
Page 5: Installation
The connection pipes must be installed as shown in the drawing. It is recommended that a 2 Litres (DXI35DT) or 3 Litre (DXI55DT) per minute flow restrictor/ spray head be used in the hot outlet tap. -
Page 6: Connection To The Water Supply
Isolate electric and water supply before electrical installation. Ensure all wiring provisions meet the specifications of the heater as stated on the rating label and ‘Specification’ section of this manual. The power cable can be surfaced clipped, hidden or via 20mm conduit. DXI35DT/DXI55DT INSTANT WATER HEATER... -
Page 7: Specifications
Specifications Model DXI55DT DXI35DT Rated Power (kW) Recommended cable size (mm²) ≥ 2.5 ≥ 1.5 Recommended Amps Rated Voltage AC220V~ Frequency 50/60Hz Operating Water Pressure 0.05~0.6MPa Waterproof Rating IPX4 Rated Pressure 0.6MPa Protection Against Electric Shock Class I Over Temperature Protection 55°C... -
Page 8: Function Keys
4. When powered on, the unit will continue to heat the water ready for use. 5. When not in use for a long period of time, we recommend switching off the unit at the main supply. DXI35DT/DXI55DT INSTANT WATER HEATER... -
Page 9: Troubleshooting
Trouble Shooting Failure Cause Remedy Leakage in the joint of inlet A.Bad connection of inlet and A.Reconnect the pipe. outlet pipe. and outlet pipe. B.The rubber washer is B.Replace the washer. damaged. The water temperature A.Water flow is too low. A.Adjust the valve to increase the water flow. - Page 10 In the event of a faulty product firstly contact our customer services team who will guide you through the process. Do not uninstall or return the product before contacting deXpro customer services, such action may void the warranty. The standard warranty covers the supply of spare parts or at our sole discretion a replacement product.
- Page 12 Tel: 01244 631370 | Email: sales@dexprouk.com...
