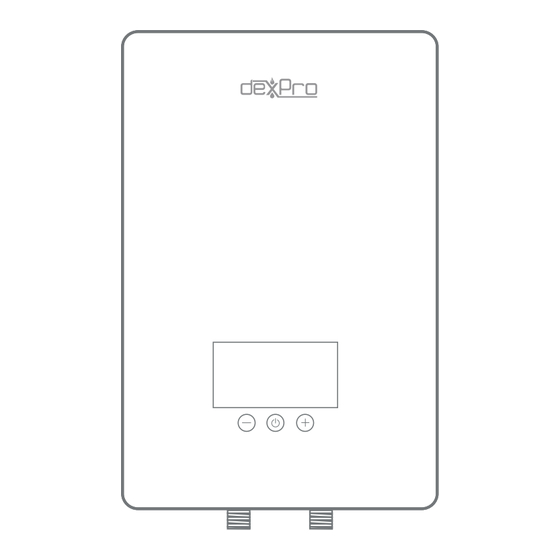

- Page 1 INSTRUCTION MANUAL DXI95DT DELUX 9.5K INSTANT ELECTRIC WATER HEATER Tel: 01244 631370 | Email: sales@dexprouk.com...
- Page 2 O Ring must be fitted ORIENTATION The unit can be mounted in any orientation 55º 38º 25º 7.4L/M 00:09 NOTE The temperature display will reamin in a fixed position regardless of mounting position. DXI95DT DELUX 9.5KW INSTANT ELECTRIC WATER HEATER...
- Page 3 Introduction Thank you for selecting our 9.5kW electric instant water heater. These instructions contain important information about commissioning, switching the device on and maintenance. To ensure your safety and that of others we suggest that you read these installation and operating instructions before using the device for the first time.
- Page 4 When installing, consider any risks posed by potential leaks from the product or ● pipework. Avoid installation in areas where a leak could have potentially severe consequences, such as near electronic equipment DXI95DT DELUX 9.5KW INSTANT ELECTRIC WATER HEATER...
- Page 5 Check for potential freezing of the pipework or heater and take action if required, such ● as lagging supply pipes. The heater should be located as close as practical to the hot water outlet as this avoids ● heat losses through the pipework and improves performance. This system allows water to be drawn from a single discharge point.
- Page 6 Green/Yellow earth wire to the terminal marked “ E” or Brown/Red live wire to the terminal marked “L” Blue/Black neutral wire to the terminal marked “N” The power cable can be surfaced clipped, hidden or via 20mm conduit. DXI95DT DELUX 9.5KW INSTANT ELECTRIC WATER HEATER...
- Page 7 Specifications Model DXI95DT Rated Power (kW) Recommended Amps Rated Voltage AC220V~ Frequency 50Hz Rated Pressure 0.6MPa Waterproof IPX4 Hot water temperature limit 30-55°C℃ Temperature Display Digital Heating Element Material Cast Aluminum Heating Element Life-time 8000h Connector Type G1/2 Power selection Thermal cutout temp 95±5℃...
- Page 8 2. The unit will stop heating when the temperature reaches 55°C, to protect user from scalding. 3. When powered on, the unit will continue to heat the water ready for use. DXI95DT DELUX 9.5KW INSTANT ELECTRIC WATER HEATER...
- Page 9 Cause Remedy Exceed 55°C Select lower power level or turn down the temperature. Leakage of electricity Contact deXpro technical team Water flow sensor failed Contact deXpro technical team Temperature probe of water Contact deXpro technical team outlet is wrong. Heating Element fail...
- Page 10 In the event of a faulty product firstly contact our customer services team who will guide you through the process. Do not uninstall or return the product before contacting deXpro customer services, such action may void the warranty. The standard warranty covers the supply of spare parts or at our sole discretion a replacement product.
- Page 12 Tel: 01244 631370 | Email: sales@dexprouk.com...
