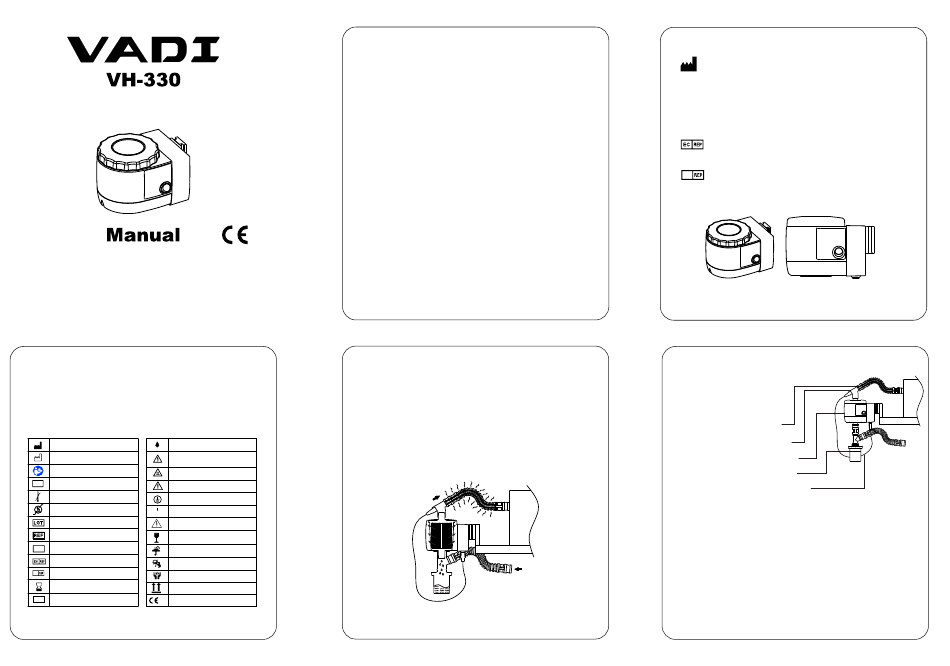

VADI VH-330 Manual

Bacteria Filter Heater
Made In Taiwan
2021.12.23 VA-1-VH-330-EN.MDR_01
2. Intended Use
The heater is intended to use for heating the expiratory
filter to prevent the condensation accumulated in the
filter when exhalation gas passes the filter.
Symbols Glossary
Symbol Title and Meaning
Manufacturer Drip-proof
IPX0
Caution
Date of manufacture Electrical Shock Hazard.
Refer to qualified service Personnel.
Consult instructions for use Caution
Hot surface may exceed 75℃
MD Medical device
Caution
Temperature limit
Protective earth
Storage Humidity limitation Power On
O Power Off
Batch code
Caution
Catalogue number
Fragile, handle with care
Unique device identifier
UDI
Keep dry
EU Authorized Representative
Use no hooks
Switzerland Authorized
CH
Handle with care
Representative
Use-by date
This side up
SN Serial number
CE Mark
2460
-2-
Table of Content
1.General Information
2.Intended Use
........................................P.3
3.Principle
4.Specification
5.Optional Accessories
6.Use Instruction
7.Temperature Adjustment
8.Disposition
...........................................P.9
9.Clean
2460
10.Warnings
11.Cautions
12.Troubleshooting
3. Principle
The heater takes advantage of heating to prevent water
condensation in filter and decreased gas flow
resistance. When the filter is kept warm and dry, it will
continue to work efficiently according to specification. A
water trap can be used below the device to collect
water condensation.
The heated wire can be used to decrease water
condensation downstream from the filter. The filter
system is generally used to prevent the spread of
infectious disease and protect sensitive flow monitoring
equipment as used in mechanical ventilators.
.........................P.1
..................................P.2
..................................P.4
.......................P.5
........................P.6~P.8
..................P.9
....................................P.9
.....................................P.10
....................................P.11
............................P.12
-3-
1. General Information
VADI Medical Technology Co., Ltd. Yangmei
No. 198, Lane 298, Huandong Road, Zhongshan
Village, Yangmei District, Taoyuan City 32665, Taiwan
TEL：+886-3-475-9911
FAX：+886-3-475-9922
E-mail：sales@vadimedical.com.tw
Website：www.vadimedical.com.tw
MedNet EC-REP IIb GmbH
Borkstrasse 10, 48163 Münster, Germany
MedNet SWISS GmbH
CH
Bäderstrasse 18, 5400 Baden, Switzerland
-1-
4. Specification
Dimension: 16cmX10.5cmX11cm Weight: 1000g
I/P: 100-240Vac, 50/60Hz, 0.7-0.4A
Fuse: T3.15AL 250V
Power Output: 12V (DC)
Heated Wire
L-Connector
Bacteria Filter Heater
Water Trap
Power Adaptor
Power of Heated Sleeve for heating the filter: 20W
Power of Heating Wire: 7.5W (For 45cm Heating Wire)
Temperature Range at Sleeve: 55-70℃ ±3℃ @12LPM
≦
Temperature Range at Heated Wire: 70℃
Warm-up Time <= 30min
This device life cycle is 3 years.
Operating Environment Temperature:18~26℃,
Humidity RH:15%~95%, Pressure: 700 to 1060hPa
Storage Temperature: 25~40℃, Humidity RH:15%~95%
without condensation
Transport Temperature: -10~60℃, Humidity RH:15%~95%
without condensation, Pressure: 595 to 1013 hPa
-4-
