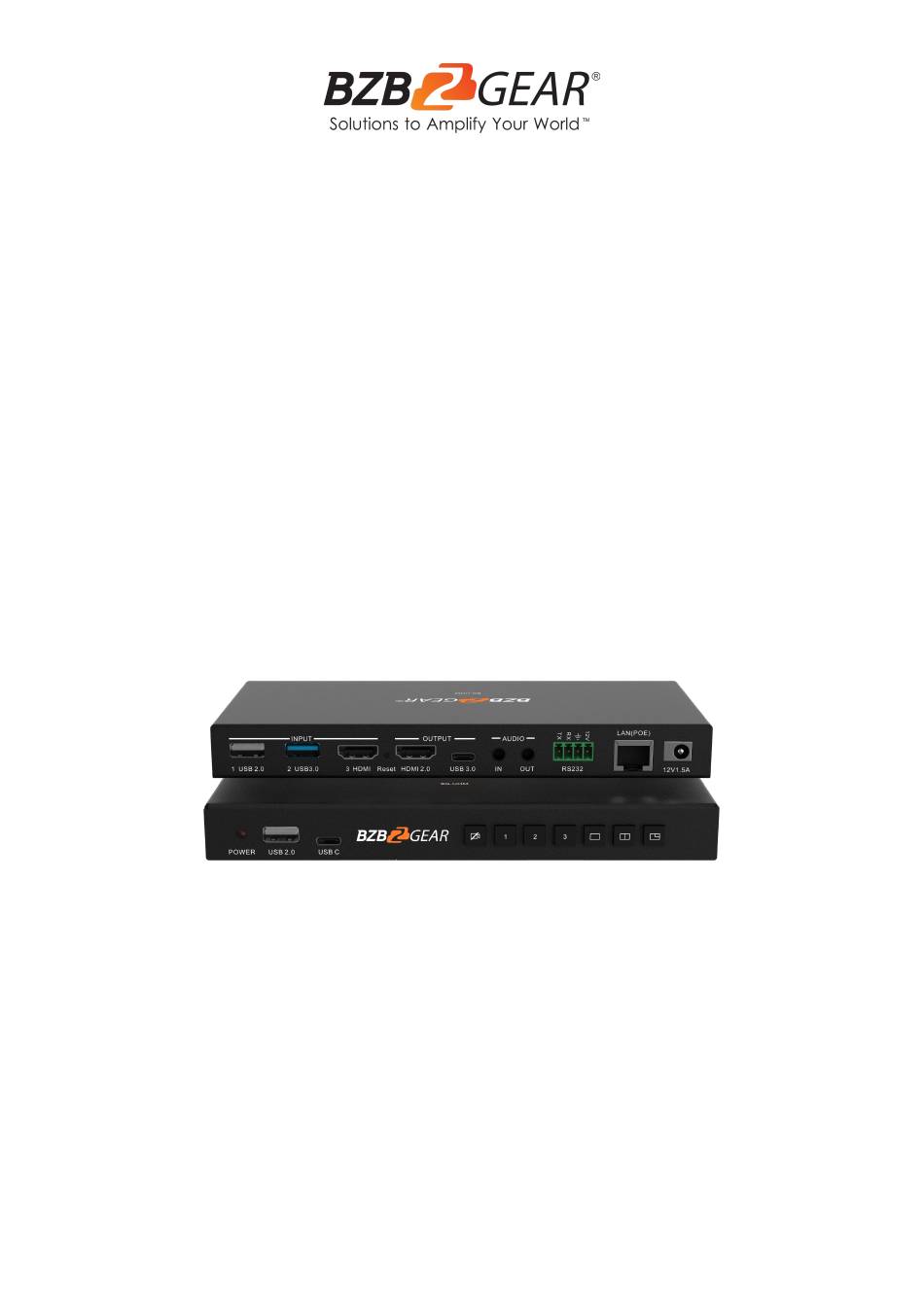

- Page 1 BG-UHM USB/HDMI Video Selector and Mixer User Manual...
- Page 2 BZBGEAR BG-UHM PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHM PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Video function switching instructions Home Page Web GUI Display settings System Settings Mechanical Diagram Connection Diagram Troubleshooting Tech Support Limited Product Warranty Terms... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-UHM USB/HDMI Video Selector and Mixer is a solution designed to streamline video production workflows by enabling seamless switching and mixing of multiple video sources. Supporting up to three input sources, including USB 3.0, USB 2.0, and HDMI 1.4, the BG-UHM allows users to effortlessly integrate devices such as webcams, laptops, and... -
Page 6: Specifications
BZBGEAR BG-UHM PRODUCT MANUAL Specifications Technical Specifications OUTPUT HDMI output 1x HDMI 19-pin female connector Format Compliance HDMI1.4 / HDMI2.0 HDCP HDCP1.4 / HDCP2.2 USB Interface Type C x1, UVC, and UAC Video Output HDMI: 3840x2160@60Hz, 3840x2160@30Hz, Resolution 1920x1080@60Hz, 1280x720@60Hz Type C: 1920x1080@30Hz, 1280x720@30Hz, etc. -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHM PRODUCT MANUAL Operation Controls and Functions Front Panel 1. USB 2.0 & USB C PORT: KVM Input 2. Video Mute Button: Mute UVC output 3. Video 1 Button: Switch the source from USB 2.0 4. Video 2 Button: Switch the source from USB 3.0 5. -
Page 8: Video Function Switching Instructions
BZBGEAR BG-UHM PRODUCT MANUAL Video function switching instructions Single Screen Display By pressing the button to enter Single Screen mode, press the button select the video source you want to output as shown in the following example: PBP Mode By pressing the button... - Page 9 BZBGEAR BG-UHM PRODUCT MANUAL PIP Mode By pressing the button to enter the PIP mode, press the button select two video sources you want to output as shown in the following example: Mute UVC output By pressing the button to enter the Mute UVC output as shown in the following...
-
Page 10: Home Page
BZBGEAR BG-UHM PRODUCT MANUAL Home Page Note: This page can be accessed via the HDMI output once the device is powered on. ● The current IP address will be displayed on the bottom left corner of the screen ● The background image can be changed in the Web GUI ·... -
Page 11: Web Gui
PRODUCT MANUAL Web GUI Note: To access the Web GUI of the BG-UHM, you will need to type the IP address of the unit in the address bar of a web browser and hit Enter or Search. Default Password: admin Network Settings Ethernet Network Configuration... -
Page 12: Display Settings
BZBGEAR BG-UHM PRODUCT MANUAL Display settings Preview ● Here you can search for signals connected to the three Input interfaces and preview them, including camera signals and computer HDMI signals. Attention: If the camera is occupied by video conferencing software or the computer system camera,... - Page 13 BZBGEAR BG-UHM PRODUCT MANUAL Layout Single Screen In Single Screen mode, you can select the desired signal input source for single-screen output by clicking on the signal source with the mouse. When the green button next to the corresponding interface lights up, the selected signal input is successfully output and displayed on the screen.
- Page 14 BZBGEAR BG-UHM PRODUCT MANUAL button next to the corresponding interface lights up, the selected signal inputs will be output and displayed on the screen. After clicking the "Change" button, Signal Source 1 and Signal Source 2 will be swapped, as shown in the photo below.
- Page 15 BZBGEAR BG-UHM PRODUCT MANUAL UVC Output (Video Mute) This feature is the same as the "Mute UVC Output" button in the front panel. It is turned off by default. Customize Home Screen When the device starts, the boot screen is displayed. Users can customize the background image of the main page by selecting an image in JPG, BMP, PNG, or GIF format with a resolution of 1920 ×...
- Page 16 BZBGEAR BG-UHM PRODUCT MANUAL Audio Settings Testing Speaker and Microphone Functionality This section allows you to test whether the speakers and microphones connected to the device are functioning correctly. You can select the desired speaker output and adjust its volume, as well as choose the preferred microphone input and modify its volume accordingly.
-
Page 17: Microphone Settings
BZBGEAR BG-UHM PRODUCT MANUAL Speaker Options (Refer to the Device Interface Diagram): ● USB 1 – Corresponds to audio output port ⑨ ● USB 2 – Corresponds to audio output port ⑩ ● HDMI Out – Corresponds to audio output port ⑬... - Page 18 BZBGEAR BG-UHM PRODUCT MANUAL Volume Control > Speaker By default, HDMI Out is selected as the speaker output. You can adjust the volume of the selected speaker output using the volume bar below. ● The Master volume bar adjusts the overall output volume for the selected speaker.
-
Page 19: System Settings
BZBGEAR BG-UHM PRODUCT MANUAL Device Interface Diagram Refer to the diagram below for port identification and corresponding audio input/output connections. System Settings Date and Time Time Settings Configuration ● 24-Hour Time Format The 24-hour time format is enabled by default. - Page 20 BZBGEAR BG-UHM PRODUCT MANUAL ● OFF ○ In this mode, you can manually set the desired date and time. Note: If you switch from OFF to Use Time Server (Online), you will need to re-login to the web client for the changes to take effect.
- Page 21 BZBGEAR BG-UHM PRODUCT MANUAL Download Configuration You can download the current configuration file (Config.dat) to save your web settings. Click the "Download" button, as shown in the figure below. After the Download is Complete ● The downloaded file will be saved as Config.dat.
- Page 22 BZBGEAR BG-UHM PRODUCT MANUAL Developer Tools You can capture system abnormalities during device operation by generating a log file for further analysis. To download the log file, click the “Download system log” button, as shown in the figure below: The downloaded log file is displayed in the following figure: Note: When “Enable the maximum storage space for system logs and automatically turn off...
-
Page 23: Mechanical Diagram
BZBGEAR BG-UHM PRODUCT MANUAL Mechanical Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 24: Connection Diagram
BZBGEAR BG-UHM PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 25: Troubleshooting
BZBGEAR BG-UHM PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 26: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
