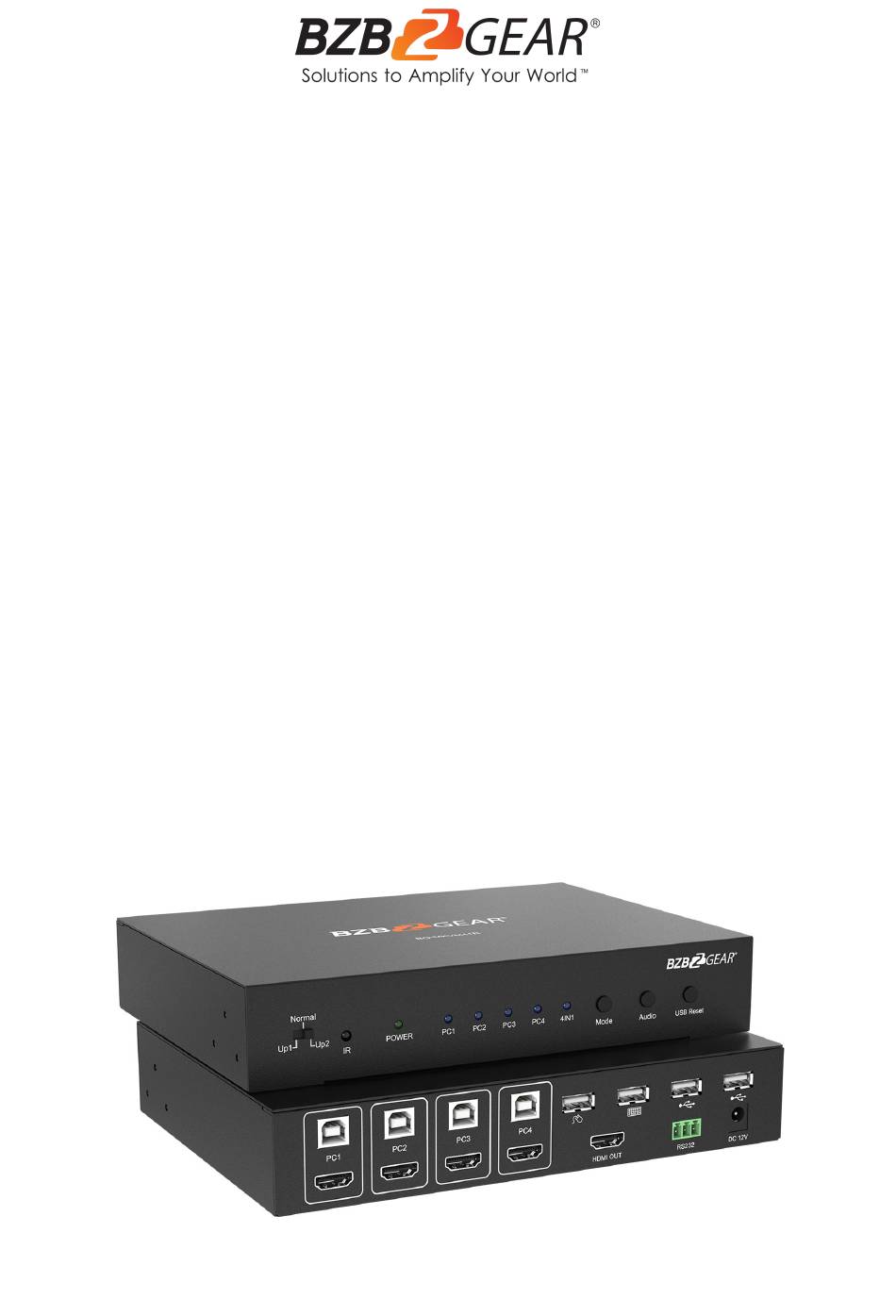

- Page 1 BG-MKVM41R 4X1 1080P Full HD HDMI/USB 2.0 Seamless Quad KVM Multiviewer User Manual...
- Page 2 BZBGEAR BG-MKVM41R PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-MKVM41R PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Connection And Operation Remote Control Through Mode & Sync Mode RS232 Connection Application Example Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
● Unique 4 in1 Multi-Viewer mode, which allows you to operate 4 PCs with a keyboard & mouse on the same screen without switching ● Mouse button, keyboard hotkeys, front panel button, IR control ● Multi-output resolution Packing List 1x BG-MKVM41R 4x1 1x Phoenix plugs for RS232 cable ● ● termination 1x 12V/DC, 2A Power Supply ●... -
Page 6: Technical Specifications
BZBGEAR BG-MKVM41R PRODUCT MANUAL Technical Specifications Signal Inputs/Output Maximum Single Link 1920x1080@60 Range HDMI Input/Output Type A 19 pin Connector Operating Frequency 50/60Hz Vertical Frequency Range Video Amplifier 2.25Gbps Bandwidth Resolutions 480i60Hz, 480p60Hz, 576i50Hz, 576p50Hz, 720p50/60Hz, Input Resolution 1080i50/60Hz, 1080p24/25/30/50/60Hz... -
Page 7: Operation Controls And Functions
BZBGEAR BG-MKVM41R PRODUCT MANUAL Operation Controls and Functions Front Panel 1. USB 2.0 Type B Inputs (PC1-PC4): Connect to USB 2.0 ports of 4 PCs respectively. 2. HDMI Inputs (PC1-PC4): Connect to HDMI ports of 4 PCs respectively. 3. USB 2.0 Type A: Connect the keyboard and mouse. - Page 8 BZBGEAR BG-MKVM41R PRODUCT MANUAL Rear Panel 8. Update function select switch: ● Normal: Normal use ● Up_1: Upgrade data for MCU_1 via RS232 ● Up_2: Upgrade data for MCU_2 via RS232. 9. IR: Remote control receiver window. 10. Power LED: The blue LED illuminates when the device is connected to the power supply.
-
Page 9: Connection And Operation
BZBGEAR BG-MKVM41R PRODUCT MANUAL Connection And Operation 1. Connect up to 4 PCs using HDMI and USB cables to their respective ports on each device. 2. Connect the HDMI output of the HDMI Switcher to a high-definition display device via HDMI Cable. -
Page 10: Remote Control
BZBGEAR BG-MKVM41R PRODUCT MANUAL Remote Control ON/OFF: Power on/off switch Reset button: Reset the KVM Switcher H/S Resolution button: upscale 720P signal into 1080P or downscale 1080P signal into 720P Mode select button (Ch1-Ch4, ): Press these buttons, the quad multi-viewer will select the corresponding mode;... -
Page 11: Through Mode & Sync Mode
BZBGEAR BG-MKVM41R PRODUCT MANUAL Through Mode & Sync Mode There are 2 modes for Keyboard & mouse in the 4 in 1 mode: ● Through Mode: In this mode, the mouse can move across the screen of the 4 PCs. -
Page 12: Rs232 Connection
BZBGEAR BG-MKVM41R PRODUCT MANUAL Hotkey Commands Command Function Mouse HOTKEY 1.At 4IN1 mode, switch to full screen mode [wheel key]+[wheel key] 2.At full screen mode, Switch to 4IN1 mode Keyboard HOTKEY [*]+[1] Switch to PC1 [*]+[2] Switch to PC2 [*]+[3]... -
Page 13: Application Example
BZBGEAR BG-MKVM41R PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 14: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 15: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
