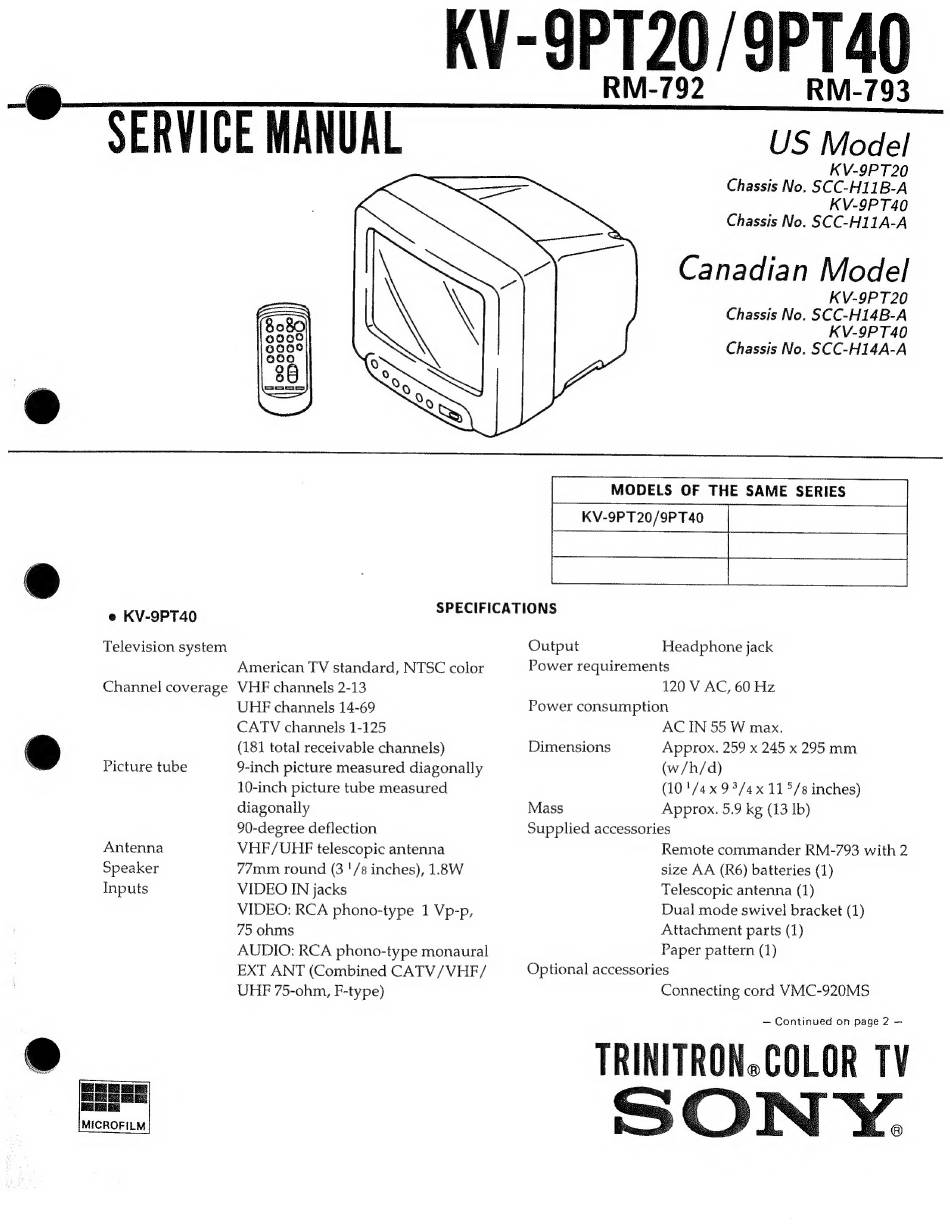

Sony TRINITRON KV-9PT20 Service Manual

SERVICE MANUAL
e KV-9PT40
Television system
American TV standard, NTSC color
Channel coverage VHF channels 2-13
ОНЕ channels 14-69
САТУ channels 1-125
(181 total receivable channels)
9-inch picture measured diagonally
10-inch picture tube measured
diagonally
90-degree deflection
Picture tube
US Model
KV-9PT20
Chassis No. SCC-H11B-A
KV-9PT40
Chassis No. SCC-H11A-A
Canadian Model
KV-9PT20
Chassis No. SCC-H14B-A
KV-9PT40
Chassis No. SCC-H14A-A
MODELS OF THE SAME SERIES
KV-9PT20/9PT40
SPECIFICATIONS
Output
Headphone jack
Power requirements
120 V AC, 60 Hz
Power consumption
AC IN 55 W max.
Dimensions Approx. 259 x 245 x 295 mm
(w/h/d)
(10 '/4x 93/4 x 115/8 inches)
Mass Approx. 5.9 kg (13 Ib)
Supplied accessories
