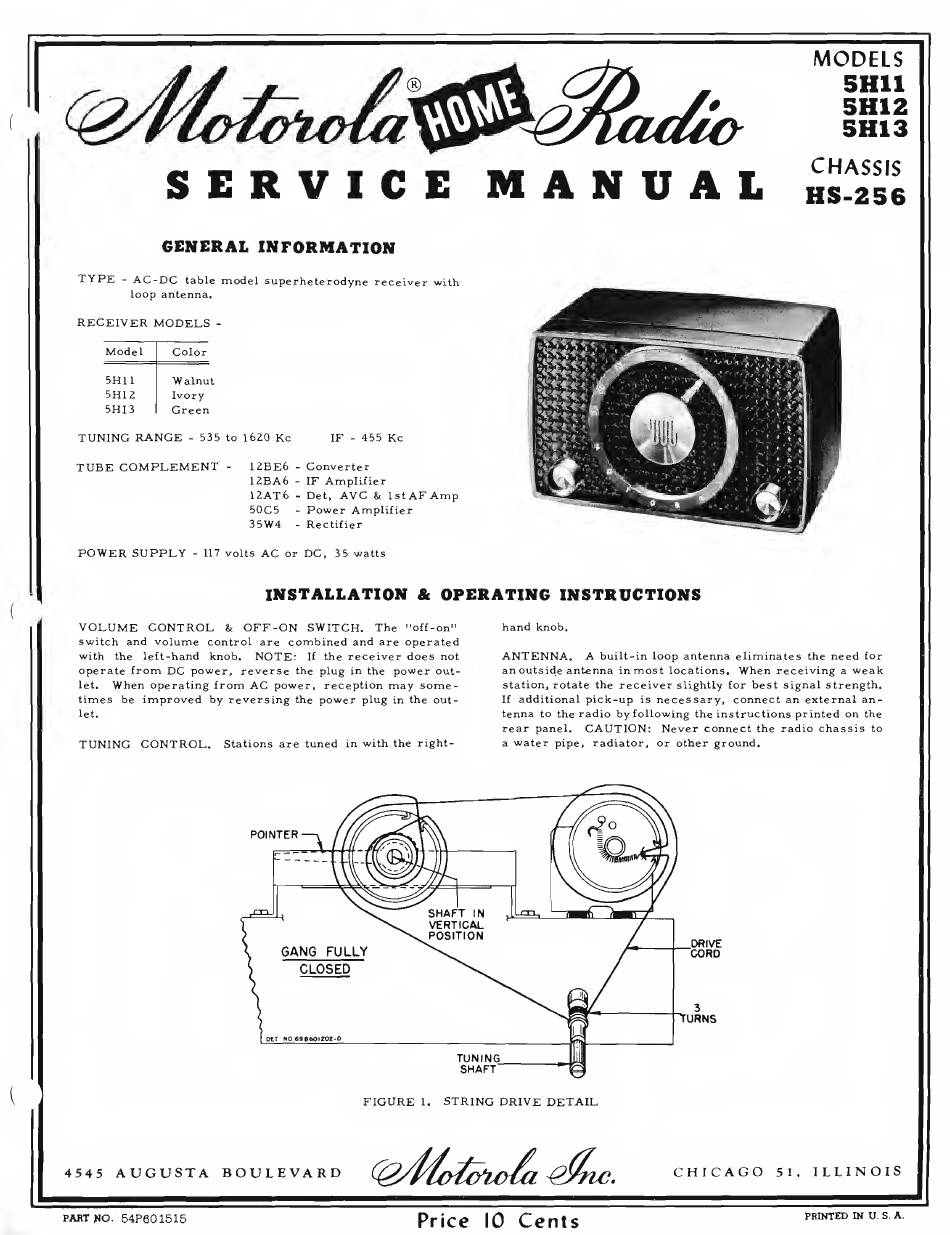

Motorola 5H11 Service Manual

SERVICE MANUAL
CHASSIS
HS-256
GENERAL INFORMATION
TYPE - AC-DC table model superheterodyne receiver with
loop antenna.
RECEIVER MODELS -
Mode 1 Color
5H11
Walnut
5H12
Ivory
5HI3
Green
TUNING RANGE - 535 to 1 620 Kc IF - 455 Kc
TUBE COMPLEMENT - 12BE6 - Converter
12BA6 - IF Amplifier
12AT6 - Det, AVC & IstAFAmp
50C5 - Power Amplifier
35W4 - Rectifier
POWER SUPPLY - 117 volts AC or DC, 35 watts
INSTALLATION & OPERATING INSTRUCTIONS
VOLUME CONTROL & OFF-ON SWITCH. The "off-on"
switch and volume control are combined and are operated
with the left-hand knob, NOTE: If the receiver does not
operate from DC power, reverse the plug in the power out¬
let. When operating from AC power, reception may some¬
times be improved by reversing the power plug in the out¬
let.
TUNING CONTROL. Stations are tuned in with the right-
hand knob.
ANTENNA. A built-in loop antenna eliminates the need for
an outside antenna inmost locations. When receiving a weak
station, rotate the receiver slightly for best signal strength.
If additional pick-up is necessary, connect an external an¬
tenna to the radio by following the instructions printed on the
rear panel. CAUTION: Never connect the radio chassis to
a water pipe, radiator, or other ground.
PART NO.
54P601515 Price 10 Cents
PRINTED IN U. S. A.
