TEKNIX BITKW814 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Washing Machine / User Manual
BITKW814

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BITKW814 and is the answer not in the manual?

Questions and answers

Related Manuals for TEKNIX BITKW814

Summary of Contents for TEKNIX BITKW814

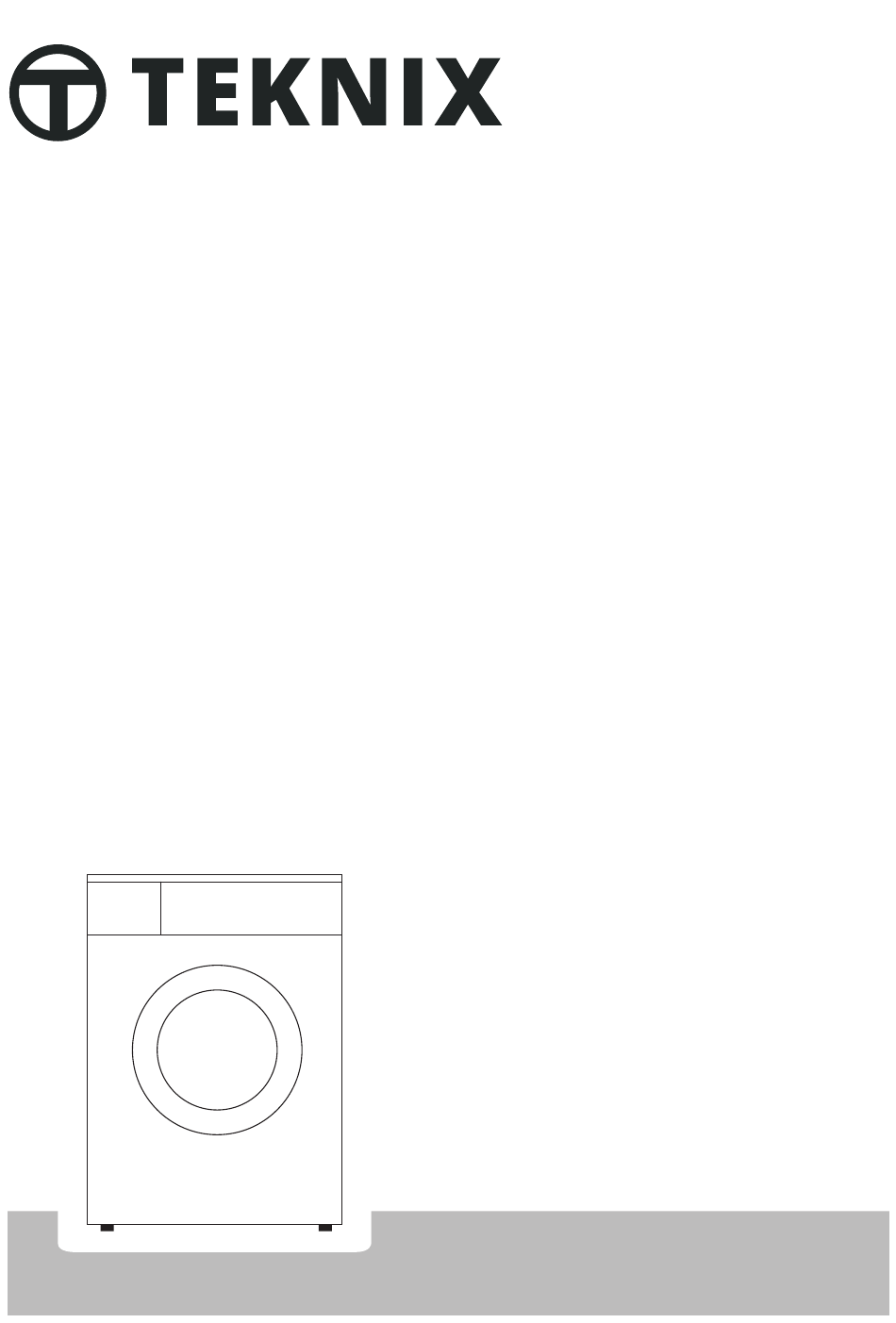

  • Page 1 Washing Machine / User Manual BITKW814...

  • Page 2: Table Of Contents

    CONTENTS THANK YOU LETTER SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW QUICK START GUIDE PRODUCT INSTALLATION OPERATION INSTRUCTIONS CLEANING AND MAINTENANCE TROUBLE SHOOTING DISPOSAL AND RECYCLING BUILT-IN INSTALLATION Read all instructions and explanations before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

  • Page 3: Safety Instructions

    • The obstruction of the openings by a carpet can damage the machine. Model Washing Capacity BITKW814 8.0kg For countries other than EU: • The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Page 4 Explanation of Symbols DANGER This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas. WARNING OF ELECTRICAL VOLTAGE This symbol indicates that there is a danger to life and health of persons due to voltage.

  • Page 5: Installation

    Installation Location and Surrounding • All washing and additional substances are to be kept in a safe place out of the reach of children. • Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode. •...

  • Page 6: Water Connections

    Water Connections • Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak, close the water tap and get it repaired. •...

  • Page 7: Specifications

    SPECIFICATIONS BITKW814 Model Power Supply 220-240V~,50Hz MAX. Current Standard Water Pressure 0.05MPa~1MPa Washing Capacity 8.0kg Dimension 595mm 825mm 535mm Weight 60kg Rated Power 1950W Reference Dimension 540mm 521mm 985mm 135mm...

  • Page 8: Product Overview

    PRODUCT OVERVIEW Door Drain hose Power supply cord Detergent dispenser Service flap Control panel NOTE The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover 1 x Supply hose 1 x Owner’s caps cold water manual...

  • Page 9: Quick Start Guide

    QUICK START GUIDE CAUTION • Before washing, please make sure the machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.

  • Page 10: Before Washing

    1. Before Washing 1. Plug in 2. Open tap 3. Load Earth terminal 4. Close door 5. Add detergent Main wash Ⅱ Softener Prewash NOTE • The picture is reference only, please refer to real product as standard. Detergent need to be added in compartment I if the pre-wash function is selected. •...
  • Page 11 2. Washing 1. Select programme 2. Select function or remain default settings 3. Press Start/Pause to start the program NOTE 1 : If default is selected, step 2 can be skipped. 2: The function button line chart is for reference only, please refer to real product as standard.

  • Page 12: Product Installation

    PRODUCT INSTALLATION Tools Needed If Installation By Yourself (not include) Installation Area WARNING • Stability is important to prevent the product from wandering! • Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. •...

  • Page 13: Unpacking The Machine

    Unpacking the Machine WARNING • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. Lift the machine and remove the base packaging. 3.

  • Page 14: Levelling The Machine

    Levelling the Machine WARNING The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. Turn the foot until it reaches the floor. 3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level.
  • Page 15 There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. Water trough...

  • Page 16: Operation Instructions

    OPERATION INSTRUCTIONS Before Each Washing • The ambient temperature of the machine should be 5 °C -40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    Detergent Dispenser Pre wash Ⅱ Main wash Ⅱ Softener Release button to pull out the dispenser CAUTION • The picture is reference only, please refer to real product as standard. • Detergent only need to be added in “case I” after selecting pre-washing for machines with this function.

  • Page 18: Detergent Recommendation

    Detergent Recommendation Recommended washing Type of laundry Washing Wash cycles detergent and textile temp. °C Heavy-duty detergent White laundry made COTTON, ECO 40-60 40 60 with bleaching agents from boil-proof and optical brighteners cotton or linen Colour detergent without Coloured laundry COTTON bleaching agent and 20/40...

  • Page 19: Control Panel

    Control Panel BITKW814 Turn the appliance off. Start/Pause Start or pause your programme. Option This allows you to select additional functions. Programmes Available according to the laundry type. Display The display shows settings, estimated remaining time, options and status messages.
  • Page 20 Display Display Wash Time Delay Time Speed Error Temp. Child Lock Door Lock Extra Rinse Pre Wash Delay Speed Wash...
  • Page 21 Programmes BITKW814 Programme Load (kg) Default Time (h:min) SYNTHETIC 3:18 COTTON 3:39 1:20 BABY CARE 2:01 20°C CARE+ 1:08 PET HAIR REMOVAL 2:04 DRUM CLEAN 1:18 SPIN ONLY 0:12 JEANS 1:35 DUVET 1:27 WOOL 1:07 ECO 40-60 3:38 RAPID 59'...
  • Page 22 Programmes BITKW814 Cycle 3:39 0.998 60%/1400 COTTON 65%/1000 1:20 0.754 65%/1000 1:08 0.195 20°C CARE+ 65%/1000 BABY CARE 2:01 1.317 Cold Cold 70%/800 QUICK 15' 0:15 0.030 3:38 53.9%/1351 0.699 61.0 ECO 40-60 2:48 0.348 45.0 53.9%/1351 36.0 53.9%/1351 2:48 0.186...
  • Page 23 Programmes 1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 24 Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or linen. COTTON RAPID 59' Washing few and not very dirty clothes quickly. Wash synthetic articles, for example: shirts, coats, blending. While SYNTHETIC washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
  • Page 25 Option Default Default spin Additional Cycle speed (rpm) Temp.(℃) functions SYNTHETIC 1200 COTTON 1400 1000 BABY CARE 1000 20°C CARE+ 1000 PET HAIR REMOVAL 1200 DRUM CLEAN SPIN ONLY 1000 JEANS DUVET WOOL ECO 40-60 RAPID 59' 1000 QUICK 15' Cold NOTE •...
  • Page 26 Speed Speed When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400:0-400-600-800-1000-1200-1400 Delay End Delay End 1. Select a programme. 2.Press the Delay End button to choose the delaying time 0-24H. 3.Press [Start/Pause] to start the delay end operation. Delay End Choose programme Setting time...
  • Page 27 Child Lock To avoid mis operation by children. Press [Delay End] and [Funct.] simultaneously for 3 sec until the buzzer beep. The child lock indicator switches on. Funct. DelayEnd CAUTION When the Child Lock is activated, the display will alternately show “CL” and the remaining time.

  • Page 28: Product Fiche

    Product Fiche a , c Supplier's name or trade mark( ) ( ): a , c Supplier's address( ) ( ): Model identifier( ): BITKW814 General product parameters: Parameter Value Parameter Value Height Width a , c Dimensions in cm( ) ( )

  • Page 29: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning and Care WARNING • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the machine can extend its working life. The surface can be cleaned with diluted non- abrasive neutral detergents when necessary.
  • Page 30 Cleaning the Inlet Filter NOTE • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove 2. Clean the filter with a brush. the water supply hose from it. 3. Unscrew the water supply 4.
  • Page 31 Cleaning the Detergent Dispenser • Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. • Lift the softener cover off the dispenser drawer and wash both items with water. • Clean the inside of the recess with a brush. •...
  • Page 32 Cleaning the Drain Pump Filter WARNING • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •...

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible Cause Solution Appliance does Door is not closed Close the door properly not start and restart.

  • Page 34: Disposal And Recycling

    DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

  • Page 35: Customer Service

    Customer Service Spare parts for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements In case of questions, please contact our local customer service center. WARNING Risk of electric shock •...

  • Page 36: Built-In Installation

    Built-in installation Appendix Self-tapping Self-tapping Hinges Counter magnet Spacer Fixed position paper screws(ST4*12) screws(M5*12) Tool Screw driver Automatic driver Ruler Pencil Install Steps 600mm 580mm 825mm 152.5mm 17.5mm Overview The door is open from left to right The door is open from right to left Preparation and assembly of the door...
  • Page 37 Position Paper Make the mark on the door Position Paper Position Paper Left Open Right Open Fixed position paper on the door. 35mm Drill hole on the door...
  • Page 38 Installation the hinges and spacer Installation the counter magnet Installation the door WARNING • When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are placed in either of the two recesses on the back of the appliance. This will help to prevent the hoses from becoming kinked or trapped.
  • Page 39 All repairs necessary as a result of faulty materials, defective components or manufacturing defect. • The cost of all functional replacement parts. • The labour cost of a Teknix approved repairer to carry out the repair. What is not covered • Transit or delivery damage.
