Summary of Contents for DFI MPC350-RPS

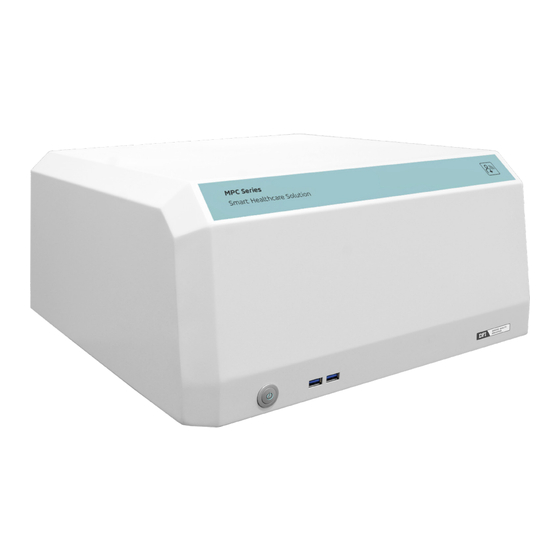

  • Page 1 MPC350-RPS Medical Edge AI inference System User’s Manual © February 20, 2025 DFI Inc.
  • Page 2: Fcc And Doc Statement On Class A

    1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | MPC350-RPS...
  • Page 3: Table Of Contents

    System Agent (SA) Configuration ................30 PCH-IO Configuration ....................31 PCH-IO Configuration► PCI Express Configuration ..........31 PCH-IO Configuration► SATA Configuration ............32 PCH-IO Configuration► HD Audio Configuration ..........32 Security ..........................33 Secure Boot ........................33 Boot ............................34 Save & Exit ..........................34 User's Manual | MPC350-RPS...
  • Page 4: About This Manual

    The manual is subject to change and update without notice, and may be based on editions that do not resemble your actual products. Please visit our website or contact our sales representa- • 1 MPC350-RPS System Unit tives for the latest editions. Warranty Note: The items are subject to change in the developing stage.
  • Page 5: Static Electricity Precautions

    Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | MPC350-RPS...
  • Page 6: Chapter 1 - Introduction

    PCIe x16 (Gen 4) HDMI PCIe x4 (Gen 4) ▲2.5G LAN ▼USB2_1/2 USB3_1/2 Power Button ▲2.5G LAN DP++ ▼USB2_3/4 USB3_3/4 ▲Line-Out USB2_5/6 USB3_5/6 ▼MIC-In ▲2.5G LAN ▼USB2_7/8 USB3_7/8 ▲2.5G LAN ▼USB2_9/10 Antenna Hole USB3_9/10 PCIe x16 (Gen 4) User's Manual | MPC350-RPS...
  • Page 7: Dimensions

    Support various Nvidia AI GPU Card and Capture card: Nvidia RTX 6000 ada, Nvidia GeForce RTX 4070, 2-ch Full HD H.264 PCIe Video Capture Card with SDK Security: Nuvoton TPM 2.0 Medical Grade: Comply IEC60601-1, IEC60601-1-2 User's Manual | MPC350-RPS...
  • Page 8: Specifications

    Audio Codec Realtek ALC888 ETHERNET Controller 1 x Intel I226-LM (Core i9/i7/i5 support iAMT) ® 3 x Intel I226-V ® Indicators 1 x Power LED FRONT I/O 2 x USB 3.2 Gen1 Buttons 1 x Power Button User's Manual | MPC350-RPS...
  • Page 9 Dimensions (W x H x D) 380 x 180 x 400 mm Weight 9.6 Kg STANDARDS AND CERTIFICATIONS Shock Operating: IEC60068-2-27 Random 3Grms,11ms Vibration Operating: IEC60068-2-24 Random 1Grms, 5~500Hz Certifciation CE, FCC, IEC 60601-1, IEC-60601-1-2 (ongoing) User's Manual | MPC350-RPS...
  • Page 10: Chapter 2 - Hardware Installations

    The 7 screws on the rear side of the system are used to secure the cover to the chassis cover. Remove the screws and put them in a safe place for later use. Step 2: Slide the over in the opposite directionto to open the system. User's Manual | MPC350-RPS...
  • Page 11: Installing A Pcie Expansion Card

    And then unlock the screw from a slot bracket the one you want to install an expansion card in. For those screws, please keep them in a safe place for later use. 1 x PCIe x16 1 x PCIe x4 Thumb screw User's Manual | MPC350-RPS...
  • Page 12: Installing A Graphics Card

    Thumb screw Note: For optimum performance of GPU, be sure to install it on the PCIe x16 slot 1 only. When PCIE slot 3 has device installed, both PCIE slot 1 & 3 would run at x8. User's Manual | MPC350-RPS...
  • Page 13: Installing A Video Capture Card

    Express specifications into the PCI Express x4 slot. To install a video capture card into the x4 slot, align the card above the slot then press it down firmly until it is completely seated in the slot. User's Manual | MPC350-RPS...
  • Page 14: Installing An M.2 Card

    4. Make sure the notch on card is aligned to the key on the socket. 5. Make sure the standoff screw is removed from the standoff. Step 3: Assemble the metal bracket and the chassis cover back. M.2 E-Key M.2 M-Key M.2 E-Key User's Manual | MPC350-RPS...
  • Page 15: Installing An Antenna

    Module Connector Cable Antenna Connector Washer and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | MPC350-RPS...
  • Page 16: Chapter 3 - Bios Settings

    “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | MPC350-RPS...
  • Page 17: Main

    The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | MPC350-RPS...
  • Page 18: Cpu Configuration

    Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy. Select disabled for other OSes not optimized for Hyper-Threading technology. When dis- abled, only one thread per enabled core is enabled. Enable / Disable AES (Advanced Encryption Standard) User's Manual | MPC350-RPS...
  • Page 19: Power & Performance ► Cpu- Power Management Control

    Enable/Disable Power Limit 4 override. If this option is disabled, BIOS will leave the default values for Power Limit 4. C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | MPC350-RPS...
  • Page 20: Pch-Fw Configuration

    MEBx Setup. This option does not disable manageability features in FW. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. Firmware Update Configuration Configure Management Engine Technology Parameters. Note: The sub-menus are detailed in following sections. User's Manual | MPC350-RPS...
  • Page 21: Trusted Computing

    This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | MPC350-RPS...
  • Page 22: It8786 Super Io Configuration ► Serial Port 1, 2 Configuration

    Advanced Advanced IT8786 Super IO Configuration IT8786 Super IO Configuration ► Serial Port 1, 2 Configuration ► Serial Port 3, 4 Configuration Serial Port Serial Port Enable or disable serial port. Enable or disable serial port. User's Manual | MPC350-RPS...
  • Page 23: It8786 Hw Monitor

    ► Smart FAN Function This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting. Case Open Enable or disable the case open detection function. User's Manual | MPC350-RPS...
  • Page 24: It8786 Hw Monitor ► Smart Fan Function ► Cpu Fan Setting

    Fan will start working when the temperature is higher than this limit. Fan full speed temperature limit Fan will be full speed when the temperature is higher than this limit. Fan start PWM Fan will start with this PWM value. User's Manual | MPC350-RPS...
  • Page 25: Serial Port Console Redirection

    Serial Port Console Redirection Serial Port Console Redirection ► Console Redirection Settings Console Redirection By enabling Console Redirection of a COM port, the sub-menu of console redirection settings will become available for configuration as detailed in the following. User's Manual | MPC350-RPS...
  • Page 26: Acpi Settings

    (G3 state). • S0 State The system automatically powers on after power failure. • S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. User's Manual | MPC350-RPS...
  • Page 27: Network Stack Configuration

    Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or nu- meric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | MPC350-RPS...
  • Page 28: Dfi Wdt Configuration

    USB Power Control DFI WDT Configuration Server CA Configuration Watchdog Timer 5_Dual: Support system wake up from S3/S4 by USB KB&MS Enable or disable Watchdog Timer. 5V: No support system wake up from S3/S4 by USB KB&MS User's Manual | MPC350-RPS...
  • Page 29: Tls Auth Configuration

    Chapter 3 BIOS SETTINGS Advanced Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. User's Manual | MPC350-RPS...
  • Page 30: Chipset

    System Agent (SA) Configuration Please select a submenu and press Enter. The submenus are detailed in the following pages. Graphics Configuration Settings about graphic. VMD setup menu VMD Configuration Settings PCI Express Configuration : VT-d VT-d capability. User's Manual | MPC350-RPS...
  • Page 31: Pch-Io Configuration

    Select one of the PCI Express channels and press enter to configure the following settings. PCI Express Configuration Settings LAN3, LAN4, M.2-E, M.2-M2, PCIE2, PCIE4 SATA Configuration Control the PCI Express Root Port. SATA Device Otpions Settings HD Audio Configuration HD Audio Subsystem Configuration Settings User's Manual | MPC350-RPS...
  • Page 32: Pch-Io Configuration► Sata Configuration

    This field is used to select SATA speed generation limit: Auto, Gen1, Gen2 or Gen3. Ports and Hot Plug • Enabled HDA will be unconditionally enabled. Enable or disable the Serial ATA port and its hot plug function. User's Manual | MPC350-RPS...
  • Page 33: Security

    Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. User's Manual | MPC350-RPS...
  • Page 34: Boot

    Select this option to save BIOS configuration settings to a USB flash device. • Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set-ting from the USB flash device. User's Manual | MPC350-RPS...
  • Page 35: Table Of Contents Mebx

    Chapter 3 BIOS SETTINGS X MEBx User's Manual | MPC350-RPS...
  • Page 36: Updating The Bios

    MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | MPC350-RPS...
