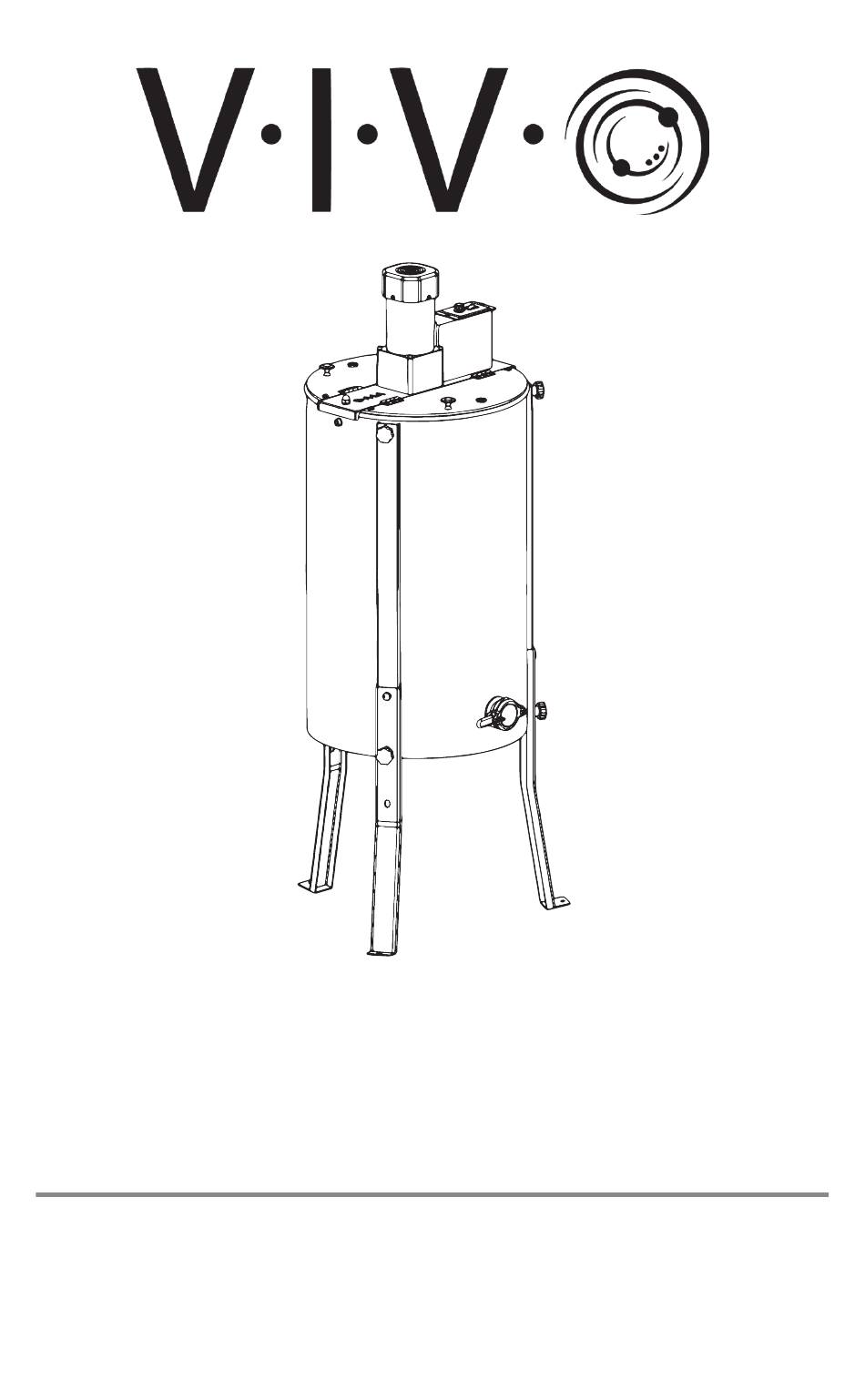

- Page 1 Electric Three Frame Stainless Steel Honey Extractor BEE-V003E Assembly Manual...
-
Page 2: Electrical Safety Instructions
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement. -
Page 3: Package Contents
Package Contents A (x1) B (x3) C (x3) D (x2) Drum Upper Leg Lower Leg E (x1) Honey Gate Included Hardware & Tools S-A (x4) S-B (x4) S-C (x4) S-D (x10) S-E (x10) M8x25mm M8x20mm M8x16mm M8 Lock M8 Washer Screw Screw Screw... -
Page 4: Assembly Steps
Assembly Steps STEP 1 Attach Lower Legs (C) to Upper Legs (B) in one of the two height settings using M8x16mm Screws (S-C), M8 Washers (S-E) and M8 Lock Washers (S-D). Tighten using a wrench. - Page 5 STEP 2 Attach Legs to Drum (A) using M8x20mm Screws (S-B) on the top and M8x25mm Screws (S-A) on the bottom with M8 Washers (S-E) followed by M8 Lock Washers (S-D). Secure using Plastic Knobs (S-F).
- Page 6 STEP 3 Carefully cut the zipties around the basket inside Drum (A). Use a wrench to loosen the center screw and to remove the pre-installed Cap Nuts (A1) and Lock Washers (A2) from the top of Drum. Remove the entire Electrical Unit. Electrical Unit...
- Page 7 STEP 4 Remove the large flat Hex Nut from the back of Honey Gate (E). Hex Nut Position Honey Gate (E) inside the hole in the bottom of Drum (A). Reach inside the Drum with the previously removed Hex Nut and thread and tighten it back onto the Honey Gate. Inside Drum Wing Hex Nut...
- Page 8 STEP 5 Reattach the Electrical Unit to the Drum (A) using the previously removed Cap Nuts (A1) and Lock Washers (A2). Re-tighten the center screw. Electrical Unit...
- Page 9 STEP 6 Remove the protective film from Lids (D). Line up the holes on Lids with the hinges on Electrical Unit and loosely attach using M4x10mm Screws (S-H) and M4 Nuts (S-I). Once all 12 M4 Nuts have been partially threaded, tighten them by hand.
- Page 10 For Additional Stability * Optional * Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 3/8” (10mm) Position the extractor where desired and mark Hole Depth: the foot locations using a pencil. 2.2” (55mm) Remove the pre-installed nuts and washers from Concrete Anchors (S-G), then use a hammer to tap in the Concrete Anchors flush with the floor.
- Page 11 Operating Instructions Thorough Cleaning: See step 3 on Page 6 to remove the electrical unit from the Drum (A). Using mild dish soap and warm water, scrub the Drum and basket clean. Completely rinse the parts and dry with a soft cloth. See step 5 on Page 8 to reattach the electrical unit when dry. Thorough cleaning is needed before first time use and before each extraction session.
-
Page 12: Last Updated
Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
