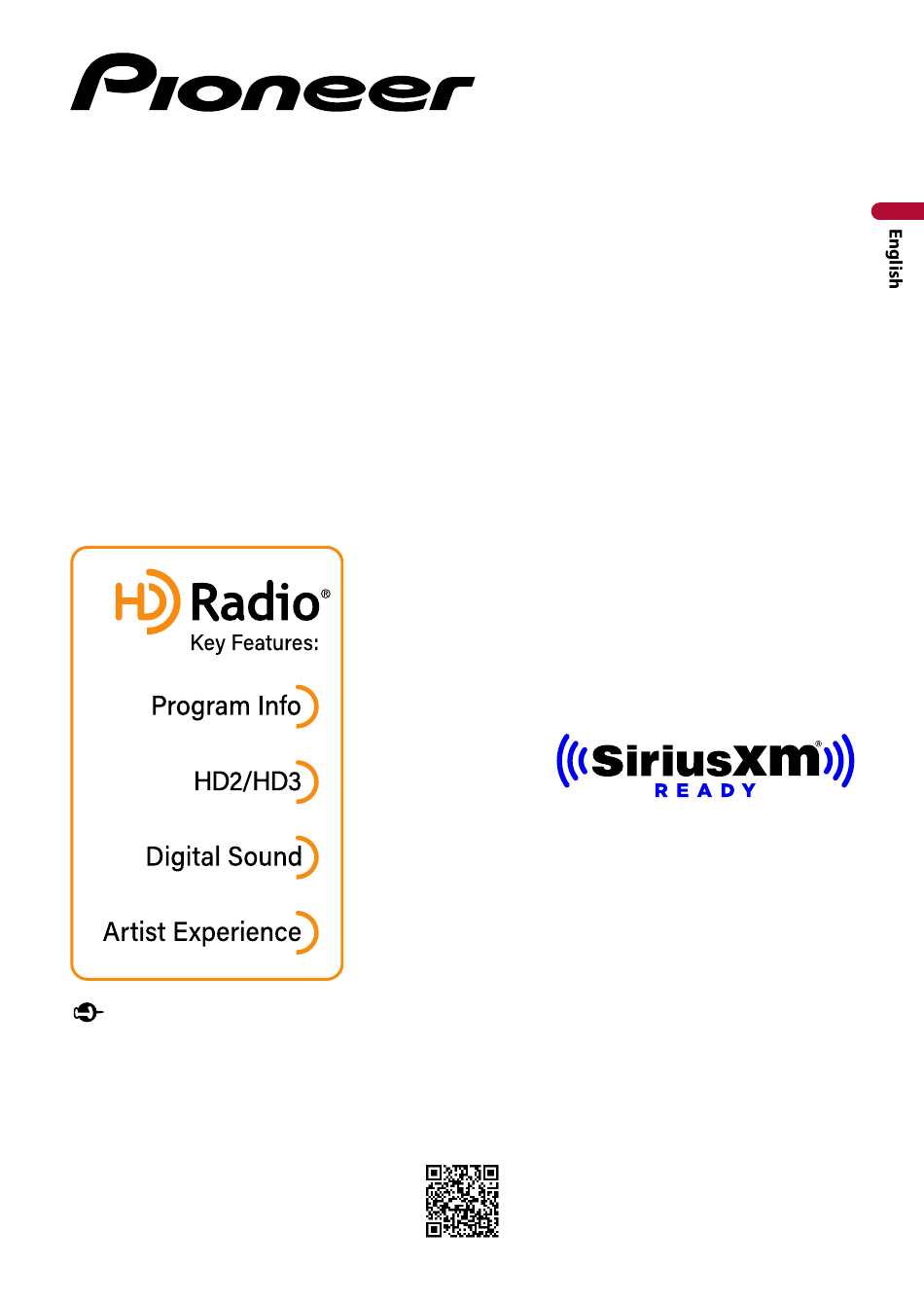

DMH-WT6000NEX
DMH-WT5000NEX
RDS AV RECEIVER
Operation Manual
Important (Serial number)
The serial number is located on the bottom of this unit. For your own security and convenience, be
sure to record this number on the Limited Warranty sheet. Please visit usa.pioneer/warranty to
download the warranty sheet, or you can receive a copy by calling 1-800-421-1404 or writing to
Customer Support, Pioneer Electronics (USA) Inc., P.O. Box 1720, Long Beach, California 90801 USA.
https://usa.pioneer/warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMH-WT5000NEX and is the answer not in the manual?

Questions and answers

Related Manuals for Pioneer DMH-WT5000NEX

Summary of Contents for Pioneer DMH-WT5000NEX

  • Page 1 The serial number is located on the bottom of this unit. For your own security and convenience, be sure to record this number on the Limited Warranty sheet. Please visit usa.pioneer/warranty to download the warranty sheet, or you can receive a copy by calling 1-800-421-1404 or writing to Customer Support, Pioneer Electronics (USA) Inc., P.O.

  • Page 2: Table Of Contents

    Contents Thank you for buying this Pioneer product. Please read through these instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this document in a safe place for future reference.
  • Page 3 ■ iDatalink® .................. 58 ■ Metra Axxess ................63 ■ Playing data in a USB..............66 ■ Using external devices (AUX) ........... 72 ■ Displaying video images from the back camera/2nd camera ..................74 ■ Updating the firmware wirelessly ........... 76 ■...

  • Page 4: Precaution

    Precaution To ensure safe driving WARNING • LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.

  • Page 5: Failure To Operate

    For warranty information, please see the Limited Warranty sheet. For the Limited Warranty sheet, please see Important (Serial number) on the cover of this manual. • When taking this product to the dealer or authorized Pioneer Service Station, make sure to bring both the unit and LCD display.

  • Page 6: About This Manual

    About this manual • This manual uses diagrams of actual screens to describe operations. However, the screens on some units may not match those shown in this manual depending on the model used. Meanings of symbols used in this manual This indicates to touch the appropriate soft key on the touch screen.

  • Page 7: Important Safety Information

    • If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorized Pioneer Service Station. Do not use this product in this condition because doing so may result in a fire, electric shock, or other failure.
  • Page 8 If your vehicle has a compliant backup camera that displays the backup view through the factory receiver, do not use the Pioneer receiver unless it is connected to and displays the same view as the factory backup camera. Connection to the factory backup camera will require an adaptor, sold separately.

  • Page 9: To Avoid Battery Exhaustion

    To avoid battery exhaustion Be sure to run the vehicle engine while using this product. Using this product without running the engine can drain the battery. WARNING Do not install this product in a vehicle that does not have an ACC wire or circuitry available. - 9 -...

  • Page 10: Protecting The Lcd Panel And Screen

    Protecting the LCD panel and screen • Do not expose the LCD screen to direct sunlight when this product is not used. This may result in LCD screen malfunction due to the resulting high temperatures. • If you use your mobile phone close to the LCD screen and the image gets distorted in the form of spots, colored stripes, etc., move your cellular phone away from the screen.

  • Page 11: Parts And Controls

    Parts and controls Main unit DMH-WT6000NEX: DMH-WT5000NEX: • Touch when the main unit and the iPhone/smartphone are not connected via Bluetooth to display the Bluetooth connection screen. • When the main unit and the iPhone/smartphone are connected via Bluetooth, the screen that is displayed varies depending on the configuration of [Companion App Key settings].

  • Page 12: Using The Touch Panel

    Touch to activate the voice recognition mode such as Siri when the iPhone is connected to the unit via Bluetooth or USB. Touch when an Android phone is connected and Android Auto is running to access hands-free help from Google Assistant. Touch and hold to display the mobile device search or selection screen.
  • Page 13 Operating list screens ・ ・ ・ File Touching an item on the list allows you to narrow down the options and proceed to the next operation. Drag the list to view any hidden items. Appears when not all the characters can be displayed in the display area. If you touch the key, the remaining characters will display via scroll.

  • Page 14: Home Menu Screen

    Home menu screen 12:38 6/10 Favorite source/application area Touch to see the selected source/application. The source/application to be displayed can be changed as desired (page 24). NOTE If linking to PxLink app or update of the firmware is not complete, the settings icon and setting items will be displayed with a red badge.
  • Page 15 [Reconnect] is displayed on the home menu screen only when the Wi-Fi connection (Wireless Apple CarPlay or Android Auto) has failed or been disconnected automatically (page 99). - 15 -...
  • Page 16 Shortcuts Shortcuts enable you to easily operate frequently used functions on the home menu screen. NOTES • The position of the shortcuts on the home menu screen depends on the driving position setting (page 96). • Some of the shortcut keys become unavailable depending on the source. •...

  • Page 17: Starting Up The Unit

    Starting up the unit Start the engine to boot up the system. The [Select Program Language] screen appears. From the second time on, the screen shown will differ depending on the previous conditions. Select the language. Touch The [Speaker Mode settings] screen appears. Select the speaker mode.

  • Page 18: Using The "Pxlink" App For The Av Main Unit

    Using the “PxLink” App for the AV main unit PxLink is an app that allows you to configure and transfer various settings of this unit. You can also update this unit's firmware wirelessly by using this app. NOTE If linking to PxLink app is not complete, the settings icon and [Companion App Info] setting item will be displayed with a red badge.

  • Page 19: Starting Procedure

    Starting procedure • When connecting PxLink app for the first time on your Android device, disconnect Android Auto. Turn on the Wi-Fi and Bluetooth functions on your iPhone or smartphone. Touch Touch then Touch [Wi-Fi settings]. Touch [Access point] and turn it [On]. Touch Touch [Connection].

  • Page 20: Bluetooth® Connection

    Bluetooth® connection Starting procedure • If five devices are already paired, the message confirming whether to delete the registered device is displayed. If you want to delete the device, touch [Agree]. If you want to delete other device, touch [Go to DeviceList] and delete the devices manually on the mobile device select screen.

  • Page 21: Bluetooth Settings

    Connecting a third Bluetooth device (HFP only) Perform pairing from an unconnected Bluetooth device when two Bluetooth devices are connected. Of the two connected devices, the first device is disconnected and the unconnected device is connected. Bluetooth settings Touch Touch then Touch [Bluetooth settings].
  • Page 22 connected at the same time when using the phone function. If two of the five registered devices are already connected, the third device can only be used as an audio function. You can switch devices from the Switch Devices key on the Audio source screen.

  • Page 23: Wi-Fi® Connection

    Wi-Fi® connection By connecting your Wi-Fi certified mobile device to this product via Wi-Fi connection, you can use Apple CarPlay or Android Auto wirelessly. See the following chapters for the procedure on how to use Apple CarPlay or Android Auto wirelessly. •...

  • Page 24: Customizing The Home Menu Screen

    Customizing the home menu screen The [Settings] icon cannot be removed from the favorite source/application area. The [Apple CarPlay] icon and the [Android Auto] icon can be deleted from the favorite source/application area, but if Apple CarPlay or Android Auto is started, the respective icon is added automatically.
  • Page 25 TIPS • The clock and the artwork can also be removed from the favorite source/application area. • When you cancel removing, touch [Done]. Touch [Done]. Rearranging the icons in the favorite source/ application area Touch Touch [Edit]. Drag the icon to the desired position. The clock display cannot be moved.

  • Page 26: Source/Application

    Source/application Supported source and application You can play or use the following sources or application with this product. • HD Radio™ Technology (page 48) • Playing data in a USB (page 66) The following sources or applications can be played back or used by connecting an auxiliary device.

  • Page 27: Displaying The Av Operation Screen

    Source list Touch to see the selected source. Selecting [Power OFF] will turn off most of the functions on this unit. The [Power OFF] mode is released in the following cases: • Footage from the rear view camera is input when the vehicle is in reverse. •...
  • Page 28 Selecting a source/an application [Source OFF] is only available for AV sources. Source/application selection screen Touch then [Sources]. Touch the source/application icon. When you select [Source OFF], the AV source is turned off. - 28 -...

  • Page 29: Apple Carplay

    Apple CarPlay You can operate iPhone applications with finger gestures such as tapping, dragging, scrolling, or flicking on the screen of this product. • The compatible finger gestures vary depending on the application for the iPhone. • To use the Apple CarPlay function, first turn off the WebLink function. •...

  • Page 30: Using Apple Carplay

    • Apple CarPlay allows access to applications other than those listed that are subject to limitations while driving. • PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON- PIONEER) APPS AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE INFORMATION.

  • Page 31: Setting The Driving Position

    Setting the driving position To achieve optimum usability of Apple CarPlay, set the driving position setting correctly according to the vehicle. The setting will be applied the next time an Apple CarPlay compatible device is connected to this product. Touch Touch then The communication setting screen appears.

  • Page 32: Adjusting The Volume

    on, only a Bluetooth audio connection will be possible for devices other than the device connected via Apple CarPlay. • Hands-free phoning via Bluetooth wireless technology is not available while Apple CarPlay is on. If Apple CarPlay is turned on during a call on a cellular phone other than an Apple CarPlay compatible device, the Bluetooth connection will be terminated after the call ends.

  • Page 33: Using Shortcuts

    Touch to mute. Touch again to cancel mute. The mute function is not available while the enhanced Siri function is used. Touch [+]/[-] to adjust the guidance volume. Displays the main sound volume. To adjust the main sound volume, press VOL (+/-) on the unit or touch [+]/[-].

  • Page 34: Android Auto

    Android Auto™ You can operate Android applications with finger gestures such as tapping, dragging, scrolling, or flicking on the screen of this product. • The compatible finger gestures vary depending on the application for the smartphone. Compatible Android devices For details about compatibility of Android models, refer to the following website. https://support.google.com/androidauto For wireless connections Compatible Android phone and compatible active data plan required.

  • Page 35: Using Android Auto

    Touch [Android Auto]. 12:38 6/10 The playback screen appears. Wireless connection Connect an Android Auto compatible device to this product wirelessly (page 36). Touch Touch [Android Auto]. 12:38 6/10 The playback screen appears. Using Android Auto Android Auto may not be available in your country or region. For details about Android Auto, please refer to the Google support site: - 35 -...
  • Page 36 • Android Auto allows access to applications other than those listed that are subject to limitations while driving. • PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON- PIONEER) APPS AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE INFORMATION.
  • Page 37 ▶How can the voice recognition function help? You can use Google Assistant by touching the button once Android Auto is activated. NOTES • For details on USB connection, refer to the Quick start guide. • When the device for Android Auto is connected to this unit, the device is also connected via Bluetooth at the same time.

  • Page 38: Setting The Auto-Launch Function

    Setting the auto-launch function If this function is set to on, the Android Auto screen is displayed automatically when an Android Auto compatible device is connected to this unit. • The Android Auto screen is displayed automatically only when an Android Auto compatible device is correctly connected to this product.

  • Page 39: Weblink

    Using WebLink® Important • Pioneer is not responsible for content or functions accessed via WebLink®, which are the responsibility of the application and content providers. • Availability of non-Pioneer content and services, including apps and connectivity, may change or discontinue without notice.

  • Page 40: Basic Operation

    Touch [WebLink]. 12:38 6/10 For smartphone (Android) users System requirement • For the latest OS support information, please visit HelloWebLink.com. • The video playback capability depends on the connected Android device. • For USB connection, refer to the Quick start guide. •...

  • Page 41: Hands-Free Phoning

    Hands-free phoning To use this function, you need to connect your cellular phone to this product via Bluetooth in advance (page 20). Making a phone call Touch then [Sources]. Touch [Phone]. The phone menu screen appears. Touch one of the call icons on the phone menu screen. The following items are displayed.

  • Page 42: Using The Preset Dial Lists

    Using phone book Select a contact from the phone book. Touch the desired name on the list then select the phone number. • The contacts on your phone will be automatically transferred to this product. • Update the phone book manually. •...

  • Page 43: Receiving A Phone Call

    Deleting a phone number Touch then [Sources]. Touch [Phone]. Touch Touch Touch [Yes]. Receiving a phone call Touch to answer the call. Touch to end the call. • Touch while receiving an Incoming Call to put current call on hold and accept new call.

  • Page 44: Setting The Private Mode

    Phone setting Touch Touch then Touch [Bluetooth settings]. Menu Item Description [Auto Answer] Select [On] to answer an incoming call automatically. [On] [Off] [Ring Tone] Select [Off] to use the ring tone of the paired device, or [On] [Off] select [On] to use the ring tone of this unit. [Invert Name] Select [Yes] to change the order of the first and last names in the phone book.
  • Page 45 • The line-of-sight distance between this product and your cellular phone must be 10 meters or less when sending and receiving voice and data via Bluetooth technology. • With some cellular phones, the ring sound may not be output from the speakers. •...

  • Page 46: Bluetooth Audio

    Bluetooth audio Before using the Bluetooth audio player, register and connect the device to this product (page 20). • Depending on the Bluetooth device connected to this product, the available operations with this product may be limited or differ from the descriptions in this manual.
  • Page 47 Track number indicator Switches between playback and pause. Skips files forward or backward. Sets a repeat play range. Switches between random and normal file playback order. Selects a file or folder from the list to playback. NOTE This function is available only when the AVRCP version of the Bluetooth device is 1.4 or higher.

  • Page 48: Hd Radio™ Technology

    HD Radio™ Technology About HD Radio stations HD Radio stations offer high quality audio and data services. HD Radio stations are brought to you by your local FM or AM stations. HD Radio stations feature the following: • High quality audio • FM multicasting • Data service AM band Analog AM Analog AM...
  • Page 49 Program Info: Contributes to the superior user experience of HD Radio Technology. Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other relevant data streams. Adjacent to traditional main stations are extra local FM channels. These HD2/HD3 Channels provide new, original music as well as deep cuts into traditional genre. Visual information related to content being played on your HD Radio receiver, such as Album Art, historical photographs, still art from live broadcasts, among other related content.

  • Page 50: Storing The Strongest Broadcast Frequencies (Bsm)

    Recalls the preset channel stored to a key from memory. Stores the current broadcast frequency to a key. Displays the preset channel list. Select an item on the list ([1] to [6]) to switch to the preset channel. Selects the FM1, FM2, FM3 or AM band. Performs BSM (best stations memory) function (page 50).

  • Page 51: Radio Settings

    Radio settings Touch Touch then The system setting screen appears. Touch [AV Source settings]. Touch [Radio settings]. Menu Item Description [Blending] Switches to the analog broadcast of the same [On] [Off] frequency level automatically when reception of a digital broadcast becomes weak. Select [Off] to receive only an analog signal.

  • Page 52: Siriusxm® Satellite Radio

    SiriusXM® Satellite Radio SiriusXM is where moments happen. The widest, deepest variety of music, ad-free. More games, more sports, more coverage than anywhere. The most extensive entertainment, complete news coverage and every kind of comedy. Listen in your car, on your phone, online and at home.

  • Page 53: Listening To Siriusxm

    Listening to SiriusXM Touch then [Sources]. Touch [SiriusXM]. Basic operation • On the Featured Favorites™ Band, the current broadcast frequency cannot be stored to a key (page 56). • If fewer than two music channels are stored as presets, you cannot use the TuneMix function.
  • Page 54 Switches TuneMix to on or off. You can use TuneMix from each of the music channels stored as presets on the current band. • When fewer than two music channels are stored as presets, you cannot use TuneMix. • Locked channels will not be used by TuneMix until the channels are unlocked by entering the parental control passcode.
  • Page 55 Performs fast forward or rewind. The operation stops if the icon is touched and held for more than 30 seconds. To resume the operation, touch and hold the icon again. Switches to live broadcast mode. TuneScan When you activate the TuneScan feature, you will hear a few seconds of the songs which have not been listened to from each of the music channels stored as presets on the current band.

  • Page 56: Using Featured Favorites Band

    Using Featured Favorites Band Featured Favorites are groups of channels that are created by the SiriusXM Programming department allowing you to discover new channels. Featured Favorite channels are dynamic and can change often, allowing you to discover new channels. For details, see [Featured Favorites] (page 57) and [Featured Band Update Message] (page 57) in SiriusXM settings.
  • Page 57 Menu Item Description [Parental Control] Enter the current passcode then touch to set this function (the default passcode is 0000). • To edit the passcode, touch [Edit Code] then touch followed by entering the new passcode. • To lock the channel, touch the appropriate channel. appears and the channel is locked.

  • Page 58: Idatalink

    iDatalink® Using iDatalink You can access the satellite radio source provided for the vehicle. The vehicle information and many OEM systems such as steering wheel controls, warning chimes, driver safety systems, and etc. can be displayed on this product by connecting the optional iDatalink adaptor.
  • Page 59 • You can also check the device number on the [Firmware Information] screen of this product (page 86). Find the device number (12 alphanumeric characters) on the label on the packaging of this product or on the product itself. Access the following website and follow the on-screen instructions to configure the desired firmware.
  • Page 60 • Operating via Bluetooth audio (page 46) • Operating via Hands-free phone (page 41) Using the functions on [Car Features] You can check and use the following screens after selecting [Car Features] in the starting procedure. Touch one of the icons on the left side of the screen to change a feature. Displays the Gauge screen.
  • Page 61 Vehicle Information screen Climate screen Parking Assist screen - 61 -...

  • Page 62: Displaying Obstacle Detection Information

    Speed Radar Detector screen 90 105 Displaying obstacle detection information This function is only available for vehicles equipped with a parking sensor system. CAUTION This function is intended solely to assist the driver’s vision. It does not detect all dangers and obstacles and is not a substitute for your attentiveness, judgement, and care while parking your vehicle.

  • Page 63: Metra Axxess

    Metra Axxess Using Metra Access the vehicle information and many of the OEM systems such as climate control, driver safety systems, etc. and display them on this product by replacing the Metra parts kit with interface conversion. NOTE Since the type of module varies depending on the vehicle model, search for your vehicle via the following URL to determine which features are available for each module.
  • Page 64 Displays the Vehicle Information screen. Displays the Climate screen. Displays the Radio ID screen. Vehicle information screen 3500 Climate screen - 64 -...
  • Page 65 Radio ID screen 0.43 - 65 -...

  • Page 66: Playing Data In A Usb

    Playing data in a USB Plugging/unplugging a USB storage device You can play audio, video, or still image files stored in a USB storage device. Plugging a USB storage device • This product may not achieve optimum performance with some USB storage devices. •...

  • Page 67: Basic Operation

    Playback is performed in order of folder numbers. Folders are skipped if they contain no playable files. Basic operation You can set the screen size for the video and image files (page 98). Audio source Audio source screen 1 12:38 6/10 9999’99”...
  • Page 68 Switches the following media file types. [Music]: Audio files [Video]: Video files [Photo]: Image files Selects a file from the list. Touch a file on the list to playback. Touching a folder on the list shows its contents. You can play a file on the list by touching it.
  • Page 69 This function is available for the USB storage device only. Touch to create a database. Music Browse mode will be available after the database has been created. Touch Touch the desired category to display the file list. Touch the item. Refine the item until the desired song title or file name is displayed on the list.
  • Page 70 Performs frame-by-frame playback. Performs slow-motion playback. Sets a repeat play range for all files/the current folder/the current file. Switches the audio language. Switches the following media file types. [Music]: Audio files [Video]: Video files [Photo]: Image files Selects a file from the list. Touch a file on the list to playback.

  • Page 71: Usb Settings

    Skips files forward or backward. Selects the previous folder or the next folder. Rotates the displayed picture 90° clockwise. Sets a repeat play range for all files/the current folder. Switches between random and normal playback order of the files that are currently selected for repeat playback.

  • Page 72: Using External Devices (Aux)

    Using external devices (AUX) You can display the video image output by the device connected to video input. • A Mini-jack AV cable (sold separately) is required for connection. For details, refer to the Quick start guide. CAUTION For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.
  • Page 73 Basic operation 12:38 6/10 Hides the touch panel keys. To display the keys again, touch anywhere on the screen. • You can set the screen size for the video image (page 98). Switches between the video input and audio input. - 73 -...

  • Page 74: Displaying Video Images From The Back Camera/2Nd Camera

    Displaying video images from the back camera/2nd camera You can display the video image output using the device connected to the back camera input or 2nd camera input. For details, refer to the Quick start guide. Starting procedure Touch then [Sources]. Touch [Camera View].
  • Page 75 Touch to switch the camera view. The 2nd camera video footage is displayed on the screen. NOTE If you touch , the previous screen temporarily appears and the rear view mode resumes after 7 seconds. (If you switch to another screen, the rear view mode may not resume depending on the screen, such as in the case of menu screens.) - 75 -...

  • Page 76: Updating The Firmware Wirelessly

    Updating the firmware wirelessly To update the firmware wirelessly, PxLink app must be installed in advance. You can only update the firmware when the vehicle is stopped and the parking brake is engaged. CAUTION • Never turn this product or your iPhone/smartphone off while the firmware is being updated. •...
  • Page 77 • If an error message appears on the screen, touch the display and perform the above steps again. NOTES • When an iPhone/smartphone (Android) on which PxLink app is installed is connected to the main unit and information about the latest firmware update is received, a notification is displayed on the screen of the main unit.

  • Page 78: Settings

    Settings You can adjust various settings in the main menu. Displaying the setting screen Touch Touch Touch one of the following categories, then select the options. System settings (page 79) Theme settings (page 89) Audio settings (page 90) Communication settings (page 95) Favorite menu Register your favorite menu items in [Favorites] to be able to quickly navigate from the [Favorites] screen to the desired menu screen with a single touch.

  • Page 79: System Settings

    Touch the star icon of the menu item to register in Favorites. The star icon for the selected menu is filled in. To cancel the registration, touch the star icon in the menu column again. Selecting a menu item registered in Favorites Touch Touch Touch...
  • Page 80 [Volume settings] Menu Item Description [Operation Sounds] Set the operation sounds for the main unit. [On] [Off] [Receiver Volume] Touch [+]/[-] to adjust the volume of the speaker’s voice. [0] to [40] [Ring Volume] Touch [+]/[-] to adjust the ring volume. [0] to [40] [Luminous Bar settings] [Luminous Bar settings] can be used on DMH-WT6000NEX only.
  • Page 81 2nd camera image. CAUTION Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen image may appear reversed. • Immediately verify whether the display changes to the rear view camera image when the shift lever is moved to REVERSE (R) from another position.
  • Page 82 • If you touch while the camera image is displayed, the displayed image turns off temporarily. Menu Item Description [Back-up Camera Input] Setting rear view camera activation. [Off] [On] [Camera Polarity] Setting the polarity of the rear view camera. [Battery] The polarity of the connected lead is positive.
  • Page 83 * This setting may not be available according to the connected camera if the iDatalink adaptor is connected to the unit. [Parking Security settings] [Parking Security settings] can be used on DMH-WT6000NEX only. Menu Item Description [Parking Security Mode] When this setting is set to [On], both ends of the luminous [On] [Off] bar flash red during parking.
  • Page 84 • Depending on your vehicle, this function may not work properly. In this case, contact your dealer or an authorised PIONEER Service Station. [Restore settings] • This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
  • Page 85 Menu Item Description [Manual] Switches the dimmer to on or off manually. [Time] Switches the dimmer to on or off at the time you adjusted. [Day/Night] Setting the dimmer duration by day or night. You can use this function when [Dimmer Trigger] is set to [Manual].
  • Page 86 CAUTION For safety reasons, you cannot use some of these functions while your vehicle is in motion. To enable these functions, you must stop in a safe place and apply the parking brake. To adjust following menu, touch to adjust. Menu Item Description [Brightness]...
  • Page 87 Menu Item Description [Firmware Update] Update to the latest version of the firmware by using a USB storage device or wireless connection. To update the firmware via wireless connection, PxLink app is required. For details on performing the wireless update, refer to Updating the firmware wirelessly (page 76).
  • Page 88 Menu Item Description [3D Calibration Status] Check the sensor learning status, such as the degree of learning. You can also check the current sensor values and the total number of speed pulses. To delete the learned results stored in the sensor, follow the below instructions.

  • Page 89: Theme Settings

    [System Language] Menu Item Description [System Language] Select the system language. • If the programmed language and the selected language setting are not the same, the text information may not display properly. • Some characters may not be displayed properly. [OEM settings] Menu Item Description...

  • Page 90: Audio Settings

    Menu Item Description Colored Keys Select the desired preset color. (custom) Displays the screen to customize the illumination color. To customize the defined color, touch then touch to adjust the brightness and the level of red, green and blue to create favorite color. To store the customized color in the memory, touch and hold [Memo], and the customized color will be available at the next illumination setting by touching...
  • Page 91 Menu Item Description [Fader/Balance] Touch to adjust the front/rear speaker balance. Set [Front] and [Rear] to [0] when using a dual speaker system. Touch to adjust the left/right speaker balance. • You can also set the value by dragging the point on the displayed table.
  • Page 92 Menu Item Description [Speaker Level] Adjust the speaker output level of the listening position. Listening Position*1*2 • You can adjust the subwoofer output level if the [Off] [Front Left] [Subwoofer] setting is set to [On]. [Front Right] [Front] [All] Touch to select the listening position then select the output speaker.
  • Page 93 Menu Item Description [EQ] Select or customize the equalizer curve. [Super Bass (S.Bass)] Select a curve that you want to use as the basis of [Powerful] [Natural] customizing then touch the frequency that you want to [Vocal] [Flat] [Custom1] adjust. •...
  • Page 94 Menu Item Description [Load settings] Load the sound settings. • [Sound setting] is available only when you have already [Initial settings] [Sound setting] saved the sound settings (page 93). *1 [All] is not available when [Network Mode] is selected as the speaker mode. *2 If you change the listening position setting, the set values for all speakers will change in conjunction with this setting.

  • Page 95: Communication Settings

    Communication settings [Connection] Menu Item Description [Connection] Displaying a list of mobile devices that have been connected via Bluetooth or USB. Connect, disconnect, or delete registered mobile device manually. Touch to delete registered device. To connect a registered device manually, perform the following: •...
  • Page 96 [Driving Position] Menu Item Description [Driving Position] Setting the driving position. • Setting the driving position (page 31) [Left] [Right] NOTE The position of the shortcuts on the home menu screen depends on the driving position setting (page 16). [Notifications] Menu Item Description [Notifications]...
  • Page 97 [Android Auto Auto-launch] Menu Item Description [Android Auto Auto- Select [On] to display the Android Auto screen launch] automatically when an Android device is connected to the [On] [Off] unit. - 97 -...

  • Page 98: Other Functions

    Other functions Setting the clock display You can set the time format, time zone, daylight saving, and the date format. However, the time and date are automatically adjusted by the GPS antenna and cannot be adjusted by the user. Touch the current time on the screen. Set the following items in the settings.
  • Page 99 Touch the screen display mode key. 12:38 6/10 Screen display mode key Touch the desired mode. When a video is viewed in the widescreen mode with a setting that does not match its original aspect ratio, it may appear different. Image files can be set to either [Normal] or [Trimming] in the widescreen mode.

  • Page 100: Restoring This Product To The Default Settings

    Restoring this product to the default settings You can restore settings or recorded content to the default settings from [Restore all settings] in (page 84). - 100 -...

  • Page 101: Compatible Iphone Models

    Compatible iPhone models • iPhone 14 Pro Max • iPhone 14 Pro • iPhone 14 Plus • iPhone 14 • iPhone SE (3rd generation) • iPhone 13 Pro Max • iPhone 13 Pro • iPhone 13 • iPhone 13 mini •...

  • Page 102: Handling The Usb Connector

    • To prevent data loss and damage to the storage device, never remove it from this product while data is being transferred. • Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using this product.

  • Page 103: Detailed Information For Playable Media

    Detailed information for playable media Compatibility Common notes about the USB storage device • Do not leave the USB storage device in any location with high temperatures. • Depending on the kind of the USB storage device you use, this product may not recognize the storage device or files may not be played back properly.

  • Page 104: Media Compatibility Chart

    Media compatibility chart General • Maximum playback time of audio file stored on an USB storage device: 8 h (480 minutes) USB storage device CODEC FORMAT MP3, WMA, WAV, AAC, FLAC, AVI, MPEG-PS, MPEG-TS, MP4, 3GP, MKV, MOV, ASF, FLV, M4V MP3 compatibility •...
  • Page 105 AAC compatibility • This product plays back AAC files encoded by iTunes. SAMPLING FREQUENCY 8 kHz to 48 kHz TRANSMISSION RATE 16 kbps to 320 kbps (CBR) FLAC compatibility • If the sampling frequency of the file exceeds 48 kHz, the sampling frequency is reduced automatically to 48 kHz when the file is played.
  • Page 106 .3gp Maximum resolution 1 920 × 1 080 Maximum frame rate 30 fps .mkv Maximum resolution 1 920 × 1 080 Maximum frame rate 30 fps .mov Maximum resolution 1 920 × 1 080 Maximum frame rate 30 fps .flv Maximum resolution 1 920 ×...

  • Page 107: Specifications

    Body: 0.98 kg (2.2 lbs) Monitor: 1 kg (2.2 lbs) <DMH-WT5000NEX> Dimensions (W × H × D): Body (excluding the monitor mounting part): 178 mm × 50 mm × 156 mm (7 in. × 2 in. × 6-1/8 in.) Nose: 170 mm ×...
  • Page 108 Screen size/aspect ratio: 10.1 inch wide/16:9 (effective display area: 223.680 mm × 125.820 mm) Pixels: 1 280 (Width) × 720 (Height) × 3 (RGB) <DMH-WT5000NEX> Screen size/aspect ratio: 9.0 inch wide/16:9 (effective display area: 196.608 mm × 114.150 mm) Pixels: 1 024 (Width) ×...
  • Page 109 Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct Phase: Normal/Reverse Time alignment: 0 to 150 inch (0.6 inch/step) Speaker level: -24 dB to +10 dB (1 dB/step) <Network Mode> HPF (High): Frequency: 1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/12.5 kHz Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct Phase (High): Normal/Reverse...
  • Page 110 <USB audio> MP3 decoding format: MPEG-1 & 2 & 2.5 Audio Layer 3 WMA decoding format: Ver 9.2 Profile L1 AAC decoding format: AAC-LC (Low Complexity) FLAC decoding format: Ver. 1.3.0 Sampling frequency: 8 kHz to 192 kHz WAV signal format: Linear PCM Sampling frequency: 16 kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz/96 kHz/192 kHz...
  • Page 111 <USB video> : Supported : Not supported Playable video format (container) QuickTime MP4/M4V MPEG2-PS TS Stream (MOV) .mpg/ .ts/.m2ts/ .avi mp4/.m4v .mov .wmv .mkv .flv .3gp EXTENSION .mpeg .mts H.264 H.263 WMV9 (VC-1) Video codec MPEG-4 MPEG-2 Audio codec LPCM Vorbis Bluetooth Version:...
  • Page 112 FM tuner Frequency range: 87.9 MHz to 107.9 MHz AM tuner Frequency range: 530 kHz to 1 710 kHz Wi-Fi Version: IEEE 802.11 a/n/ac (5 GHz) Frequency channel: 149 ch (5 GHz) Security: WPA2 (Personal)/WPA3 (Personal) Output power: +14.5 dBm Max (5 GHz) GNSS receiver System: GPS L1C/A, SBAS L1C/A, GLONASS L1OF, Galileo E1B/C...
  • Page 113 Weight: 73.7 g (0.2 lbs) NOTE Specifications and design are subject to possible modifications without notice due to improvements. - 113 -...

  • Page 114: Trademark · Copyright, Etc

    Corporation in the United States and/or are registered trademarks owned by other countries. Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under • This product includes technology license. Other trademarks and trade owned by Microsoft Corporation and...
  • Page 115 can result in iPhone malfunction due to • LTE is a trademark of ETSI. the resulting high temperature. • iDatalink, Maestro and iData are • Do not leave the iPhone in any location registered trademarks of Automotive with high temperatures. Data Solutions Inc.

  • Page 116: Troubleshooting

    The screen is covered by a caution found here, contact your dealer or the message and the video cannot be nearest authorized Pioneer service shown. facility. • The parking brake lead is not connected or the parking brake is not applied.
  • Page 117 – Select the appropriate setting for that • The reverse lead on the receiver may image. not be connected to the proper wire at the reverse lamp. iPhone cannot be operated. – Check the connection and make sure • The iPhone is frozen. that the violet/white lead of the –...
  • Page 118 – Perform the connection process. – Disconnect the smartphone from the • Of the two cellular phones connected to cable, and wait until the smartphone this product at the same time, if the first cools down. • More battery power was consumed phone is dialing, ringing or a call is in progress, dialing cannot be performed than was gained from charging.

  • Page 119: Error Messages

    Refer to the table below to identify the dealer or the nearest authorized Pioneer problem, then take the suggested service center for assistance. corrective action. If the error persists,...

  • Page 120: Usb Storage Device

    your subscription. In Canada, visit – Change to a different source. Then, return to www.siriusxm.ca or call 1-888-539-7474 if the USB storage device. you have questions about your subscription. Unplayable File Channel Not Subscribed. Call SiriusXM • There is no playable file in the USB to Subscribe.
  • Page 121 • This type of file is not supported on this contact your dealer or an authorized product. Pioneer Service Station. – Select a file that can be played. Android Auto Apple CarPlay To use Android Auto, please check the Connection failed.
  • Page 122 To use Android Auto, please stop your car and check your Android phone. • The default settings are displayed on the screen of the Android Auto compatible device or images are not output from the Android Auto compatible device. – Park your vehicle in a safe place, and follow the instructions displayed on the screen.

  • Page 123: Appendix

    Content application(s) or service by its product: provider. • Latest version of the Pioneer compatible • Pioneer is not liable for any issues that connected content application(s) for the may arise from incorrect or flawed app- smartphone, available from the service based content.

  • Page 124: Notice Regarding Video Viewing

    Availability of non- operating temperature range, because Pioneer content and services, including the LCD screen may not operate apps and connectivity, may change normally and could be damaged.
  • Page 125 Image quality will improve with an increase in temperature. • The product lifetime of the LED backlight is as follows; DMH-WT6000NEX: More than 10 000 hours. DMH-WT5000NEX: More than 30 000 hours. However, it may decrease if used in high temperatures. - 125 -...
  • Page 126 © 2024 PIONEER CORPORATION <OPM_DMHWT6000NEXUC_EN_B> UC <KOZZ24L>...
