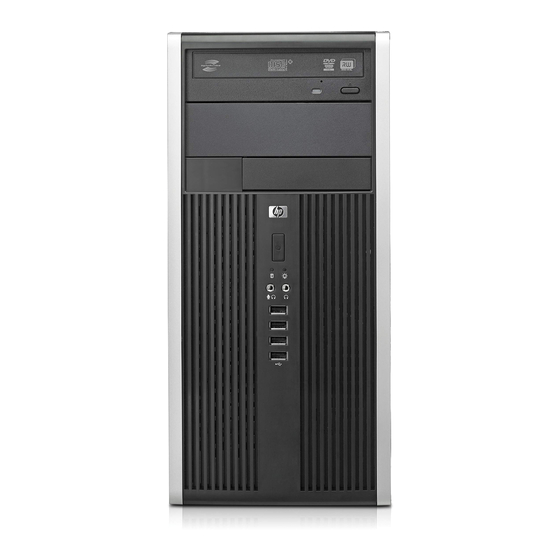

Compaq 6005 - Pro Microtower PC Setup Utility Manual
  1. Manuals
  2. Brands
  3. Compaq Manuals
  4. Desktop
  5. 6005 - Pro Microtower PC
  6. Setup utility manual
Compaq 6005 - Pro Microtower PC Setup Utility Manual

Compaq 6005 - Pro Microtower PC Setup Utility Manual

Computer setup (f10) utility business pcs
Hide thumbs Also See for 6005 - Pro Microtower PC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Illustrated Parts & Service Map, Using Manual
Computer Setup (F10) Utility Guide
HP Compaq 6005 Pro Business PCs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6005 - Pro Microtower PC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compaq 6005 - Pro Microtower PC

Summary of Contents for Compaq 6005 - Pro Microtower PC

  • Page 1 Computer Setup (F10) Utility Guide HP Compaq 6005 Pro Business PCs...
  • Page 2 Hewlett-Packard Company. Computer Setup (F10) Utility Guide HP Compaq 6005 Pro Business PCs First Edition (September 2009) Document Part Number: 576441-001...

  • Page 3: About This Book

    About This Book This guide provides instructions on how to use Computer Setup. This tool is used to reconfigure and modify computer default settings when new hardware is installed and for maintenance purposes. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.
  • Page 4 About This Book ENWW...

  • Page 5: Table Of Contents

    Table of contents Computer Setup (F10) Utility Computer Setup (F10) Utilities ......................1 Using Computer Setup (F10) Utilities .................. 2 Computer Setup—File ......................3 Computer Setup—Storage ....................4 Computer Setup—Security ....................7 Computer Setup—Power ....................10 Computer Setup—Advanced ..................... 11 Recovering the Configuration Settings ....................
  • Page 6 ENWW...

  • Page 7: Computer Setup (F10) Utility

    Computer Setup (F10) Utility Computer Setup (F10) Utilities Use Computer Setup (F10) Utility to do the following: ● Change system default settings. ● Set the system date and time. ● Set, view, change, or verify the system configuration, including settings for processor, graphics, memory, audio, storage, communications, and input devices.

  • Page 8: Using Computer Setup (F10) Utilities

    ● Replicate the system setup by saving system configuration information on USB flash media device or other storage media emulating a diskette and restoring it on one or more computers. ● Execute self-tests on a specified ATA hard drive (when supported by drive). ●...

  • Page 9: Computer Setup-File

    Computer Setup—File NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 2 Computer Setup—File Option Description System Information Lists: ● Product name ● SKU number (some models) ● Processor type/speed/stepping ● Cache size (L1/L2/L3) ●...

  • Page 10: Computer Setup-Storage

    Computer Setup—Storage NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 3 Computer Setup—Storage Option Description Device Configuration Lists all installed BIOS-controlled storage devices. When a device is selected, detailed information and options are displayed. The following options may be presented.
  • Page 11 Table 3 Computer Setup—Storage (continued) Option Description Enables/disables ability to boot the system from removable media. eSATA Port Allows you to enable eSATA support. This causes one of the SATA connectors to become eSATA capable. Max eSATA Speed Allows you to choose 1.5 Gbps or 3.0 Gbps as the maximum eSATA speed. By default, the speed is limited to 1.5 Gbps for maximum reliability.
  • Page 12 Table 3 Computer Setup—Storage (continued) Option Description To boot one time from a device other than the default device specified in Boot Order, restart the computer and press when the monitor light turns green. After POST is completed, a list of bootable devices is displayed.

  • Page 13: Computer Setup-Security

    Computer Setup—Security NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 4 Computer Setup—Security Option Description Setup Password Allows you to set and enable setup (administrator) password. NOTE: If the setup password is set, it is required to change Computer Setup options, flash the ROM, and make changes to certain plug and play settings under Windows.
  • Page 14 Table 4 Computer Setup—Security (continued) Option Description ● SATA1 ● SATA2 ● SATA3 USB Security Allows you to disable individual or groups of USB ports. Slot Security Allows you to disable PCIe and PCI slots along with cards plugged into them. Network Service Boot Enables/disables the computer’s ability to boot from an operating system installed on a network server.
  • Page 15 Table 4 Computer Setup—Security (continued) Option Description the Embedded Security Device. Changing this setting requires turning the computer off and then back on. NOTE: To enable this option, a Setup password must be set. Master Boot Record Allows you to disable/enable Master Boot Record Security. Security ●...

  • Page 16: Computer Setup-Power

    Computer Setup—Power NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 5 Computer Setup—Power Option Description ● OS Power S5 Maximum Power Savings—Enable/Disable. Enabling this feature reduces the power of this Management system as much as possible in the S5 state. Power is removed from the wake up circuitry, the expansion slots, and any management features while in S5.

  • Page 17: Computer Setup-Advanced

    Computer Setup—Advanced NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 6 Computer Setup—Advanced (for advanced users) Option Description Power-On Options Allows you to set: ● POST mode (QuickBoot, Clear Memory, FullBoot, or FullBoot Every x Days). ◦...
  • Page 18 Table 6 Computer Setup—Advanced (for advanced users) (continued) Option Description NOTE: If you turn off power to the computer using the switch on a power strip, you will not be able to use the suspend/sleep feature or the Remote Management features. ●...

  • Page 19: Recovering The Configuration Settings

    Table 6 Computer Setup—Advanced (for advanced users) (continued) Option Description the BIOS to choose the optimal size. Available sizes may be limited by the installed system memory. ● Integrated Video (enable/disable). Allows you to use integrated video and PCI Up Solution video at the same time (available on some models only).
  • Page 20 To restore the configuration, insert the USB flash media device or other storage media emulating a diskette with the saved configuration and perform the Restore from Removable Media command with the Computer Setup (F10) Utility. (See Restore from Removable Media on page 3 in the Computer Setup —File table.) Computer Setup (F10) Utility...
