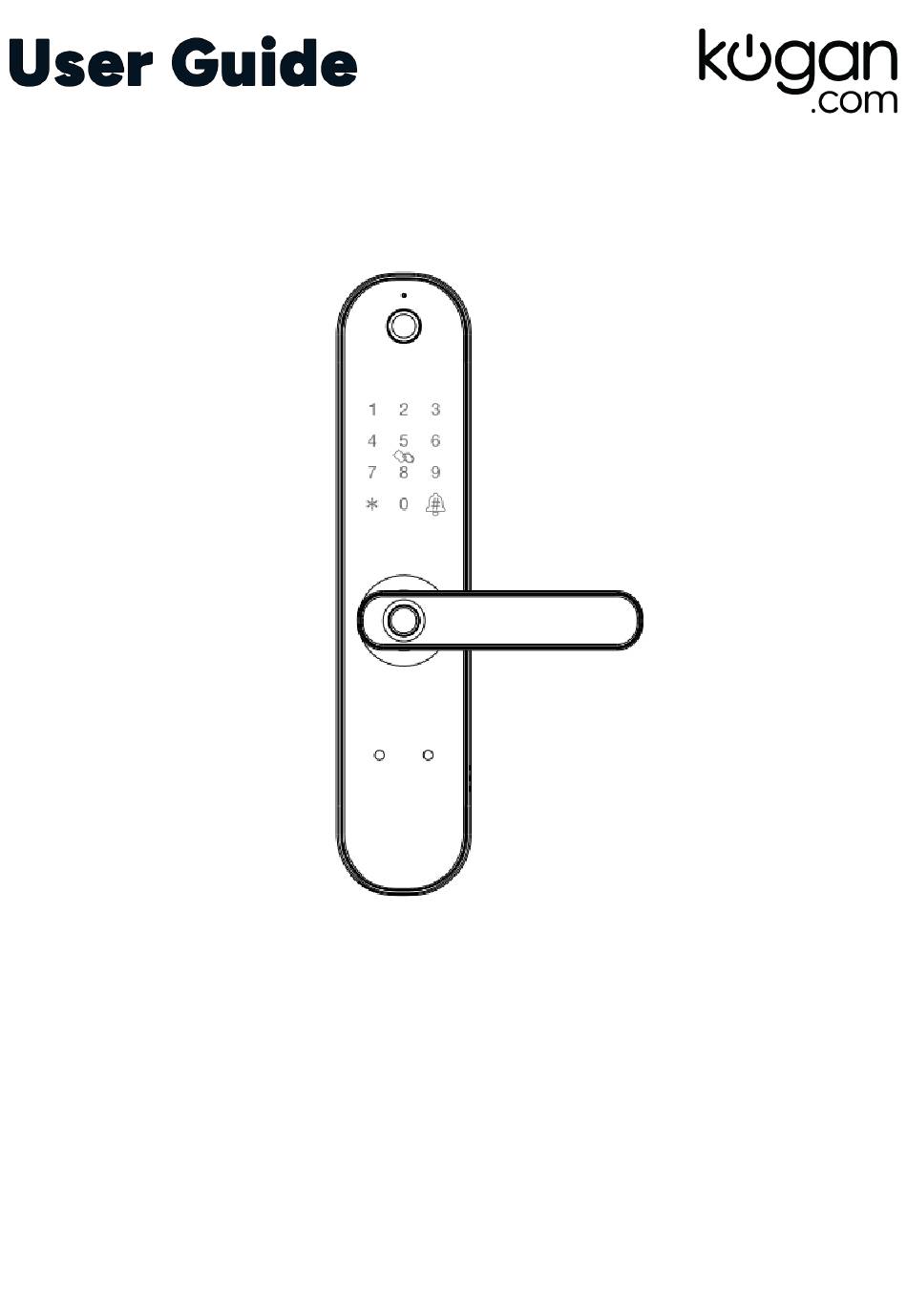

- Page 1 Kogan SmarterHome™ Wi-Fi Fingerprint Video Smart Lock With Monitor KASMLCKCAMA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Installation Connect to the SmarterHome EZ Mode Google Home Amazon Alexa Operation Specifications Notes... -
Page 3: Safety & Warnings
Safety & Warnings • Ensure your fingers are clean before using the product. • In its default settings, the lock can be unlocked with any fingerprint, any card, or the default passcode ‘1234567890’ followed by ‘#’. • Unlocking the Lock: •... - Page 4 Electrical Safety: • Use only the specified battery type and size for this product (6 AA alkaline batteries). Do not mix old and new batteries. • Avoid exposing the lock to water or excessive moisture to prevent electrical damage. Emergency Access: •...
-
Page 5: Components
Components • Front lock panel • Rear lock panel • Lock body • ID card (x2) • Keys (x2) • Fastener pack • Square steel (x2) • Buckle frame • Buckle box • Installation template • User Guide Tools Required: •... -
Page 6: Overview
Overview Front Panel Rear Handle Connection Column Spring Square Steel Lock Switch Lock Body (5085) Latch-bolt Lock Connector Deadbolt Camera Connector Lock Body Screws Rear Panel Keyhole Battery Cover and Display Emergency Power Port Display Button Square Steel Sleeve Connection Column Screw Front Handle ‘RESET’... -
Page 7: Installation
Installation Note: Ensure the lock is installed by a licensed trade professional if you are not confident in doing it yourself. Installation Considerations: Ensure the door is in a half-open position during installation and debugging until all steps are completed. Select the lock type according to the door's opening direction before beginning installation. - Page 8 Confirm The Direction of The Door This smart lock is suitable for 4 kinds of opening directions: • Left Out • Left In • Right Out • Right In Indoor Left hand door Left in Outdoor Indoor Left out Outdoor Indoor Right hand door Right in...
- Page 9 Handle Direction Adjustment Verify that the handle direction is appropriate for the door's opening direction. If it is incorrect, adjust the handle direction as follows: Front Handle Adjustment: • Remove the direction-changing screw. • Carefully rotate the handle clockwise 180 degrees. •...
- Page 10 Drilling Holes for Installation Use the provided installation template to mark the correct positions for the holes on the door. Ensure the template is aligned properly with the intended placement of the lock. Drill the holes following the markings on the template. Note: Always double-check the measurements and template alignment before drilling or cutting into your door to avoid errors or damage.
- Page 11 Install the Lock Body: • Insert the lock body into the door frame and secure it with the two fixing screws. Reversing Block Latch-bolt Square steel sleeve Deadbolt Lock body Select the Appropriate Parts Choose the correct parts based on your door’s thickness, as outlined in the table below: Connection Square Steel Connection...
-
Page 12: Installing The Lock
Installing the Lock Front Panel: Attach the two connection columns to the rear of the front panel. Adjust the square steel sleeve orientation based on the sticker on the rubber mat: For doors that open to the right, position the dot at the bottom. Incorrect Dot Orientation Door... - Page 13 Insert the appropriate square steel into the lock body. Pass the connection wire through the door hole, ensuring it is not pinched or damaged. Align the square steel with the corresponding hole on the rear of the front panel. Secure the front panel onto the door and press the other end of the square steel into place.
- Page 14 Buckle Plate and Buckle Box Insert the buckle box into the designated hole in the door frame. Position the buckle plate over the buckle box, ensuring proper alignment. Secure the buckle plate and buckle box in place using the supplied Phillips head self- tapping screws.
-
Page 15: Connect To The Smarterhome App
Connect to the SmarterHome™ App Install the App Download the Kogan SmarterHome™ app from the Apple App Store (iOS) or the Google Play Store (Android). App Store (iOS) Play Store (Android) Log In or Sign Up If you already have a SmarterHome account, tap ‘Log In’. To register a new account, tap ‘Sign Up’. - Page 16 Enter a password that uses 6-20 characters with a mix of letters and numbers and tap ‘Done’. Enable the permissions and tap ‘Go to App’.
-
Page 17: Ez Mode
The device and the app must use the same Wi-Fi network. • The device is only compatible with 2.4Ghz networks. • Ensure Bluetooth is enabled on your phone. Connectivity Support Scan the QR code below or go to https://help.kogan.com/s/article/Kogan-SmarterHome- App-Connectivity-Support and follow the pairing instructions for EZ mode. -
Page 18: Google Home
Google Home Ensure you are logged into the Kogan SmarterHome™ app. Open the Google Home app. Go to the devices tab and tap the ‘+ Add’ button in the lower right corner. Tap ‘Works with Google Home’. Search for ‘Smarter Home’ in the search bar and select ‘Smarter Home’ from the... - Page 19 Tap the ‘Agree and link’ button. Search for ‘Smarter Home’ in the search bar and select ‘Smarter Home’ from the results. Once linked, a ‘Smarter Home is linked’ pop-up will appear at the bottom of the screen. Tap your device and then tap the ‘Next’ button.
- Page 20 10. Select the home you wish to add the device to and tap the ‘Next’ button. 11. Select the room your device is in and tap the ‘Next’ button.
-
Page 21: Amazon Alexa
Amazon Alexa Ensure you are logged into the Kogan SmarterHome™ app. Open the Amazon Alexa app. Go to the ‘More’ tab and tap ‘Skills & Games’. Search for ‘Smarter Home’ in the search bar and select ‘Smarter Home’ from the results. - Page 22 Tap the ‘Agree and link’ button. Once linked, tap ‘Next’. Alexa will search for any compatible devices.
- Page 23 Once your device has been found, tap ‘Next’. Rename the device to your desired name and tap ‘Update Name’. 10. Select the room your device is in and tap ‘Add To Group’...
- Page 24 11. Once the device has been successfully added to your desired room, tap ‘Continue’. 12. You can view and manage your device from the ‘Devices’ tab.
-
Page 25: Operation
Operation Debugging Always keep the door in a half-open position during debugging to ensure safe operation. Verify that the following functions perform correctly: Press the front handle: The latch-bolt and deadbolt should remain locked when in the locked state. Press the front handle: The latch-bolt and deadbolt should retract when in the unlocked state. -
Page 26: Adding An Administrator
Adding an Administrator Press and hold * until you hear the voice prompt: ‘Please enter a 6-8 digit admin passcode followed by #.’ Enter the administrator passcode (6-8 digits) followed by #. Repeat the passcode to confirm. You will hear the voice prompt: ‘Add successfully.’ To continue adding users, press 1, then press 1 again to add an administrator: Press 1 to add a passcode (6-8 digits) followed by #. -
Page 27: System Menu
System Menu Press 1 Add Passcode Press 1 Press 2 Add Administrator Add Fingerprint Press 3 Add Card Press 1 Add User Press 1 Add Passcode Press 2 Press 2 Add User Add Fingerprint Press 3 Add Card Press 2 Modify Passcode Modify User Press 1... -
Page 28: Low Power Warning
Note: The administrator can't be removed by Pressing 3(Delete User) or by APP. Only resetting will remove an administrator Reset The Lock Remove the battery cover and press and hold the Reset button for 5 seconds. Verify the administrator to proceed. The system will restore to factory default settings. -
Page 29: Lock Switch
Lock Tampering Alert • If the lock detects tampering or damage to the front lock (e.g., the pickproof alarm button is loosened), it will trigger an alert and notify the app. • To deactivate the pickproof alarm: Unlock using a registered user (including administrators) or temporarily remove and reinstall the batteries. -
Page 30: Specifications
Specifications Fingerprint Sensor Semiconductor Identify Time 0.3S Unlock Way Fingerprint, ID Card, Passcode, Key and APP System Capacity 100 (The fingerprint maximum capacity is 50) Supply Voltage Low Voltage Warning 7.2V... -
Page 31: Notes
Notes... - Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
