LHMF | OmniMax
• Please read the product specification carefully first to confirm that the working
environment is in line with the condition on the specification before it is used.
• Please turn off the power before installation or maintenance.
• Please confirm the input voltage and frequency before use.
• The light must be installed by professional personnel
• If the power cord and case of the products are damaged, it will be regarded
as disqualified product and should not be used. If so, please contact
manufacturer timely.
• If external soft cable or wire of the product is damaged, the wire should be
replaced by manufacturer or service agent or personnel with similar
qualification to avoid danger.
• This luminaire is designed to operate in ambient temperatures ranging from
-22°F to 113°F and to be horizontally mounted facing down.
1. This product has dimming function.
2. 3 dimming functions are available in this LED light.
(1) Constant current can be achieved by 0-10VDC or 1-10VDC
dimming.
(2) PWM signal dimming.
(3) Variation of resistance unit dimming (Please choose the
appropriate dimming way according to your needs. You can
also choose not to use this function).
3. Choose the wire connection ways, dimming
1. High mast light has been listed to applicable U.S. & Canadian
safety standards by Underwriters Laboratories Inc. It is
suitable for use in wet locations and ambient temperatures
up to 113°F.

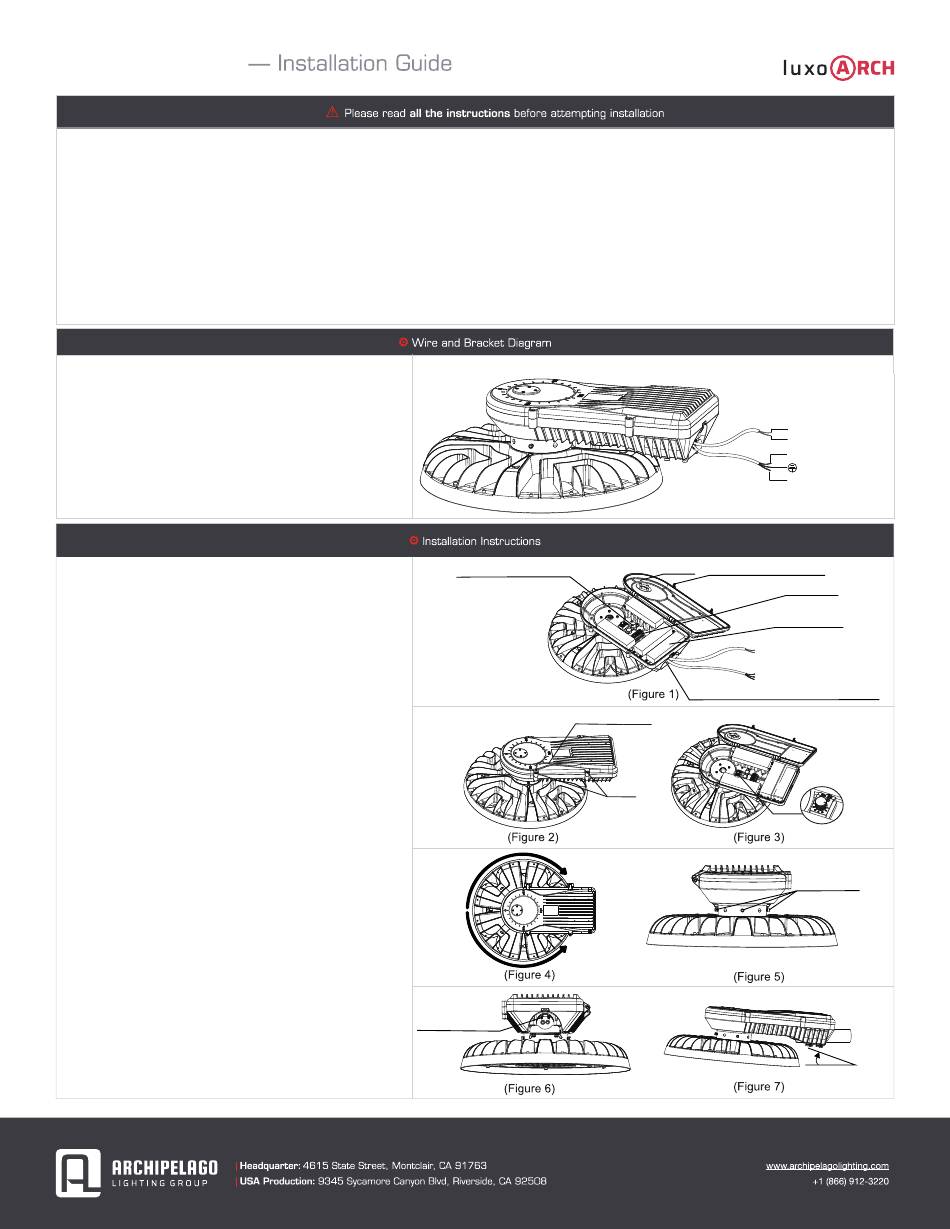

2. Description of each part of the product (Figure 1).
3. The LED driver can be replaced or repaired by opening the
driver box (Figure 2).
4. The Optical Assembly can be rotated to assist with aiming the
lighting distributions.
5. For products with optional gear dimming function, the light
output and input power of the lamp can be changed by shifting
the knob of the dimmer, (Gear 8 = full output. Gear 1 is the
minimum outputOptional 25%, 40%,50%,60%,70%,80%,
90%,100%, factory setting: "8") (Figure 3).
6. Products with optional light control function are equipped with
a light controlbase on the top of the power box. You need to
use the light control to install the light controller into the base.
7. 20KV surge protector is equipped to resist the risk of lightning
strike.
8. The direction of light projection can be adjusted by turning the
radiator (165º left and right) (Figure 4). Before turning, you
need to loosen the three screws shown in (Figure 3), and then
tighten the screws after adjusting the projection direction.
9. The lamp can be adjusted vertically by 5º by adjusting the limit.
(Figure 6), (Figure 7),
• The product should be installed, inspected and maintained by a qualified
electrician in accordance with local national electrical safety regulations;
• Use wires that comply with UL (or other local standards) for wiring.
The voltage AC120-277V should be wired with no less than 16 AWG, and
the voltage AC277-480V should be wired with no less than 18 AWG;
• Do not install in a hazardous environment. The ambient temperature must
not exceed the rated operating temperature of the product;
• Do not install the product when it rains. Avoid the danger of lightning strikes
and avoid accidents;
• Avoid direct eye exposure to the light source while it is on;
• All wiring connections should be capped with UL approved recognized wire
connectors；
• Do not use the electric generator to test the LED lamp;
• External 0-10V only passive dimmers are supported.
SURGE PROTECTOR
Gear Dimmer
OPTICAL ASSEMBLY
M6 Hex wrench
165°
165°
Adjusting System
As for the wire color of DIM+ and DIM-,
pls check the lamp label.
DOOR 2X CLOSURE SCREWS
LED DRIVERS
MOUNTING ARM ENTRY (
Screw
Dim+
Dim-
Black/Brown:ACL
Green/Yellow
White/Blue:ACN
Connector
Ø42-60MM)
3X CLOSURE
SCREWS
5°
