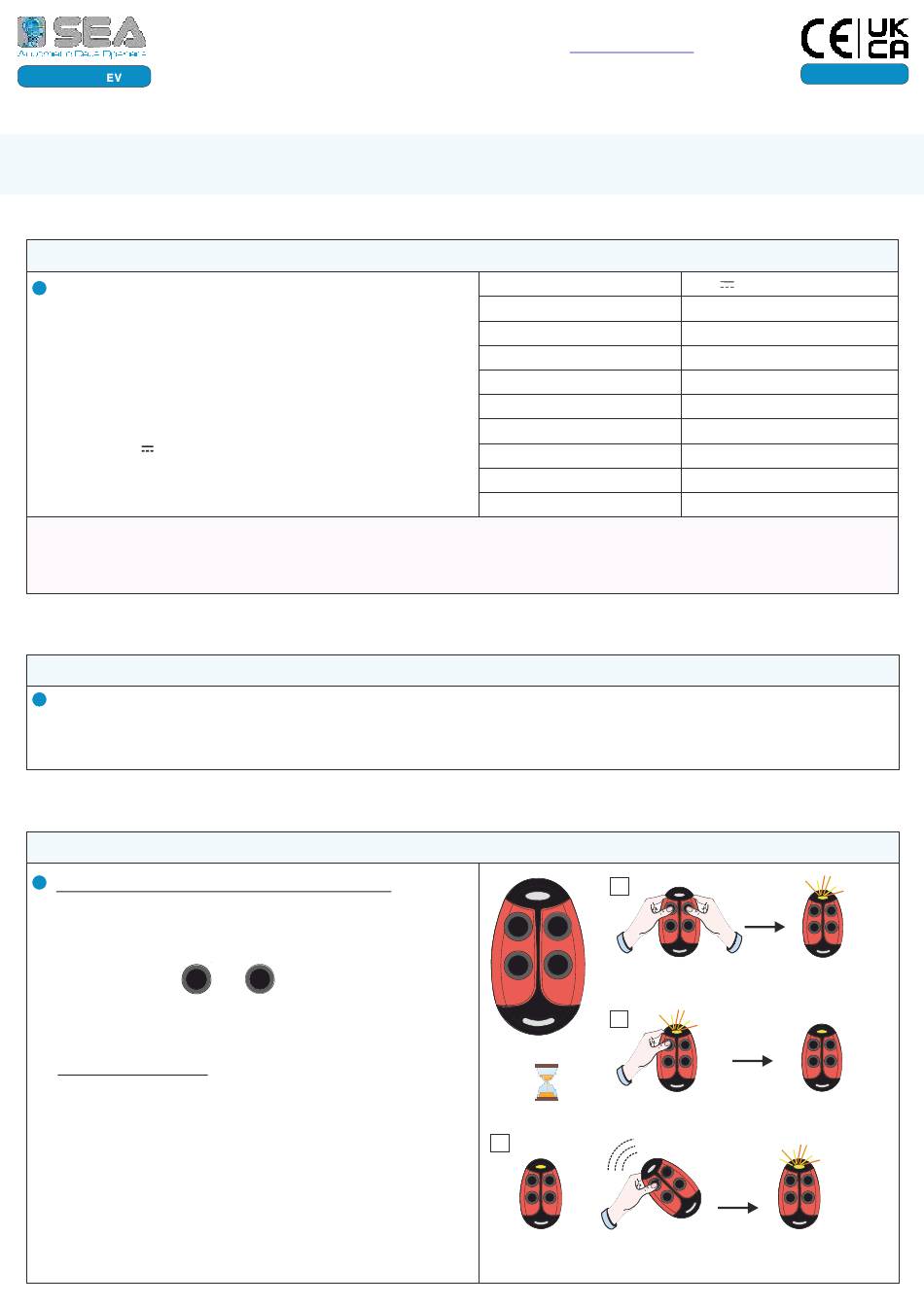

SEA COCCINELLA E-COPY Manual

International registered trademark n. 804888
67410771 - R . 05
COCCINELLA E-COPY 433,920 MHz
COCCINELLA E-COPY is a 433.920 MHz
frequency data transmitter which can be used with
SEA receivers on the same frequency and coding, in
order to control the opening and closing of automated
gates and doors;
COCCINELLA E-COPY must be powered at safety
voltage (12V battery size 23A).
Exhausted battery must be correctly disposed!
* The COCCINELLA E-COPY range, as for all devices operating in radio frequency, may vary according to
the electromagnetic pollution, to the spurious RF signals in the installation site, or to any obstacles
between the radio transmitter and its receiver
THE PROGRAMMING OF THE FIRST COCCINELLA E-COPY
following the instructions given on the receiver manual (in case of an external receiver) or on the control unit
manual (in case of a receiver plugged into the control unit)
NEW TRANSMITTER COPY FUNCTION:
Follow the instructions to copy the keys of a transmitter
already in use on a new
1
a) Press the keys
new
COCCINELLA E-COPY
starts blinking (first slowly then faster).
b) Within 8 seconds from the fast blinking, press and
release the key to be programmed; the LED lights up;
c) Place the old transmitter close to the new one and
press the key you want to transmit to the new
COCCINELLA E-COPY
confirm the storage
If necessary, repeat the same procedure for every key
to be programmed
Teramo - ITALY - Telephone: + 39 0 861 588341 -
TECHNICAL FEATURES
PROGRAMMING OF THE FIRST TRANSMITTER
COPY OF THE OTHER TRANSMITTERS
COCCINELLA E-COPY:
2
+ at the same time on the
transmitter until the LED
. The LED will blink 2 times to
SEA S.p.A.
www.seateam.com
P
OWER SUPPLY
A
BSORPTION
T
RANSMITTING FREQUENCY
R *
ANGE
C
ODE
N .
O OF CHANNELS
W
ORKING TEMPERATURE
S
TORAGE TEMPERATURE
D
IMENSIONS
H
UMIDITY
transmitter must be carried out on the receiver, by
1 2
3 4
WITHIN
8
SEC
c
SOLID LIGHT
Tx already
New Tx
12V (
BATTERY SIZE
M . 20 mA (
AX IN TRANSMISSION
433.920 MH
Z
100 m *
- 12
DIGITAL BIT
4
-20°C / +55°C
-30°C / +80°C
71 42 14 mm
X X
5% - 90%
NON CONDENSING
a
New Tx
b
New Tx
New Tx
in use
ENGLISH
23A)
)
FAST
BLINKING
New Tx
SOLID
LIGHT
New Tx
TWO
FLASHES
TO CONFIRM
