RCP Cockpit PRO MK3 Manual (v.03/2025.2)
If you need any assistance building, please let us know. We are here to help!
Team@RacingCockpits.com
+1(833)RACING2

Advertisement

loading
Need help?

Need help?

Do you have a question about the RCP Cockpit PRO MK3 and is the answer not in the manual?

Questions and answers

Related Manuals for RACING COCKPITS RCP Cockpit PRO MK3

Summary of Contents for RACING COCKPITS RCP Cockpit PRO MK3

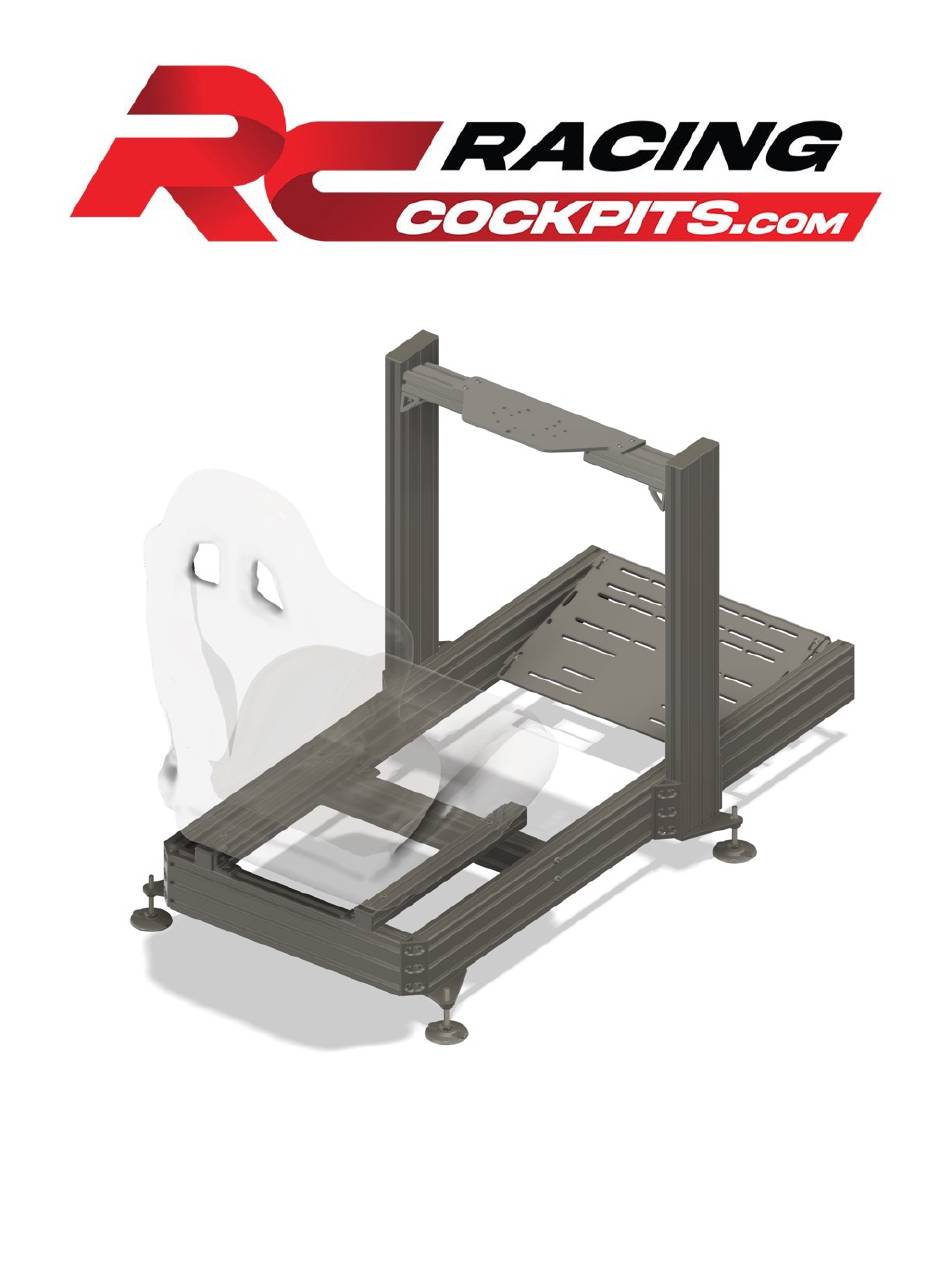

  • Page 1 RCP Cockpit PRO MK3 Manual (v.03/2025.2) If you need any assistance building, please let us know. We are here to help! Team@RacingCockpits.com +1(833)RACING2...

  • Page 2: Safety Notices

    Pinch Hazard When assembling it’s possible to pinch fingers accidentally. Be sure your fingers are out of the way when tightening and making adjustments. Page 2 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 3 Pro Kit v3 - Box 2 - Allen wrenches, extrusions, wheel deck, sim riser plates, bolts etc. Part Types: 1-Slot Profile 2-Slot Profile 3-Slot Profile T-Slot Joiner Universal Wheel Deck Universal Pedal Plate 2-Hole Slotted Corner Bracket Sim Riser Plate Page 3 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 4 3-Hole End Cap 2-Hole End Cap 1-Hole End Cap Standard Spring T-Nut (M8) Flange Nut (M8) 12mm SHORT Bolt (M8) 16mm Standard Bolt (M8) 20mm LONG Bolt (M8) 45mm EXTRA LONG Bolt (M8) Page 4 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 5 Method 2: Push T-Nut into T-Slot at an angle then snap into place so it ends up flat. You can lever the allen wrench in the screw hole to help with this. This method is what you will use once the ends are blocked. Page 5 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 6 If you are installing vertically and need to hold the T-Nut in place, you can put the long end of the allen wrench into the T-Slot channel to hold it from below. Page 6 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 7 → Method 3: Place bolts into holes. Then loosely attach T-nuts onto bolts. Then you can slide the entire assembly into the T-slot all at once. This can save a huge amount of time! Page 7 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 8 ● 4 x T-Slot Joiners Connect 30” and 20” pieces using T-Slot Joiners to make two 50” long 3-Slot pieces Be sure to leave threaded end holes on 30” profiles facing out to the back! Page 8 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 9 ● 2 x 50” 3-Slot Profile (that you just built) ● 1 x 20” 3-Slot Profile (with Logo printed on back) Hardware: ● 2 x 6-hole 90° Corner Gussets ● 12 x 16mm Standard Bolts Page 9 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 10 Step 3: Connect Mid-Rail To Side Rails Profile: ● 1 x 20” 2-Slot Profile Hardware: ● 4 x 45mm EXTRA LONG Bolts Page 10 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 11 INWARD and at the TOP. This is for the wheel deck leveling in a later step. 4. Tighten down all 24 screws being thoughtful about keeping everything squared and aligned as you tighten. Page 11 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 12 Sim Risers / Vibration Plates (SR) Note: If you didn’t purchase Sim Risers: please put floor sliders under where the Sim Risers would normally go. The Chassis needs to be up off the ground for future steps. Page 12 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 13 ● 4 x Riser Studs with Rubber Feet Use the M10 Nuts to set the height of the Sim Riser Plates. Make 2 right hand sided Make 2 left hand sided (flip plates over for 2!) Page 13 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 14 Once installed, you can place floor sliders fabric side down, rubber side up UNDER the rubber feet. This allows you to be able to move your rig around by sliding it. It also protects your floors. Page 14 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 15 Step 5: Install Racing Seat Note: This is the hardest step. It can be a pain but you’ve got this! Very Helpful Video Here: https://www.youtube.com/watch?v=u6C0oN8c8bs (skip to 6:49 video if your seat already has sliders installed) Page 15 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 16 If your seat has sliders, you will need to slide them all the way forward to mount the back, and then all the way back to mount the front. See our video here: https://www.youtube.com/watch?v=u6C0oN8c8bs Page 16 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 17 5. Tighten all bolts to lock things into place. 6. Celebrate! You just completed the hardest part! Page 17 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 18 Universal Wheel Deck Front Mount Rock Solid Side Mounts Fanatec Belt Driven (CSL, Fanatec Direct Drive SimuCube CSW) CSL DD Logitech GT DD PRO Thrustmaster MiGE Accuforce Simagic Moza Etc… Etc… Etc... Page 18 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 19 ● 8 x 16mm Standard Bolts ● 8 x Standard Spring T-Nuts Install lined up with the tops up the uprights to ensure everything is square while mounting the wheelbase, then we can adjust height later. Page 19 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 20 Option A - Step 2: Install Universal Wheel Deck Hardware: ● 1 x Universal Wheel Deck ● 4 x 16mm Standard Bolts ● 4 x Standard Spring T-Nuts Install so that the Universal Wheel Deck is centered. Page 20 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 21 Option A - Step 3: Install End Caps Hardware: ● 2 x 3-Hole End Caps ● 2 x 2-Hole End Caps Page 21 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 22 1. Install your wheelbase using 2, 3, or 4 of the included M6 bolts and washers (depending on your exact wheel base you may need different size bolts) Everything should now be secure and rigid. If it’s not, tighten whatever is needed. Page 22 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 23 ● 8 x 16mm Standard Bolts ● 8 x Standard Spring T-Nuts Install lined up with the tops up the uprights to ensure everything is square while mounting the wheelbase, then we can adjust height later. Page 23 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 24 Option B/C - Step 2: Install Side Mounts Hardware: ● 2 x Rock Solid Side Mounts ● 8 x 16mm Standard Bolts ● 8 x Standard Spring T-Nuts Leave Bolts slightly loose to allow for the next step. Page 24 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 25 Option B/C - Step 3: Install End Caps Hardware: ● 2 x 3-Hole End Caps ● 2 x 2-Hole End Caps Page 25 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 26 8 x 16mm Standard Bolts that hold the side mounts onto the extrusions. Everything should now be secure and rigid. If it’s not, tighten whatever is needed. Page 26 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 27 This allows you to position the wheelbase in the right spot, tighten the single bolt, and then be free to mount the other 3 bolts into the wheelbase without having to hold it. Page 27 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 28 2. Adjust the tilt as needed / desired. For the universal wheel deck the Gussets themselves are designed to allow +15° / -15° of tilt. For Side and Front mounts tilt is adjusted via the arcs in the side mounts. Page 28 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 29 2. Install two of the THREADED Corner Gussets onto the TOP slot of the side rail. Be sure all threads are pointing upwards as this is what the pedal plate will screw into. Page 29 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 30 Pass 4 x 16mm Standard Bolts through the pedal plate and screw into the threaded holes in the Gussets from the top. You may need to push side rails in or out slightly to get everything to align correctly to put bolts in. This is normal. Page 30 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 31 Higher and more tilted position. the low back. For Option A, no modification is necessary and you can flip ahead. For Option B: GT seating position, follow steps on the next page. Page 31 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 32 2. Loosen the 6 Bolts holding the front Gussets to the uprights (3 right, 3 left). 3. Slide the entire pedal assembly up until the bottom Slot of the pedal assembly profiles lines up with the top Slot of the side rail profiles. Page 32 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 33 4. Slide the top T-Slot Joiners back into the middle of the seam once again connecting the pedal plate assembly profiles. 5. Tighten everything down again. Tighten all of the T-Slot Joiners and the 6 bolts connecting to the uprights to ensure everything is solid again. Page 33 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 34 Hardware: ● 4 x 2-Hole End Caps Raising pedal assembly up exposes the raw ends of the profiles both top and bottom. Insert 2-Hole End Caps into all four ends as shown. Page 34 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 35 Regardless of if you use Option A or Option B, there are many different Pedal Plate mounting options for different heights, distances, and angles. You can and should get creative to get the position perfect for you. Page 35 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 36 Step 11: Install Remaining End Caps Hardware: ● 2 x 3-Hole End Caps ● 4 x 1-Hole End Caps Page 36 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 37 ● The top of the steering wheel should be at about your chin level. ● Move the pedal plate close enough so your knees are still somewhat bent when sitting in your racing chair and the gas pedal is fully depressed. Page 37 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 38 After a few days of use, go back around and tighten up all screws to keep everything nice and rigid after it settles in. If you need anything, please let us know. We are here to help! Fast Email Support: Team@RacingCockpits.com Fast TXT Support: +1(833)RACING2 (833-722-4642) Page 38 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 39 Switch the 20” 3-Slot Profile (with Logo printed on back) and the 20” 2-Slot Profile midrail. This way the 3-Slot is now in the middle, and the 2-Slot is now on the (lower) back giving more seat tilt than otherwise possible. Page 39 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
  • Page 40 Move the universal wheel deck closer so that it mounts only to the closest slot (instead of both slots). This gets you an extra few inches of reach while still being quite rigid and strong. Page 40 RCP Cockpit PRO MK3 Manual (v.03/2025.2)
